Bystronic DNE Laser Cutting Machine 4m x 2m (12KW)

**Machine arriving soon**

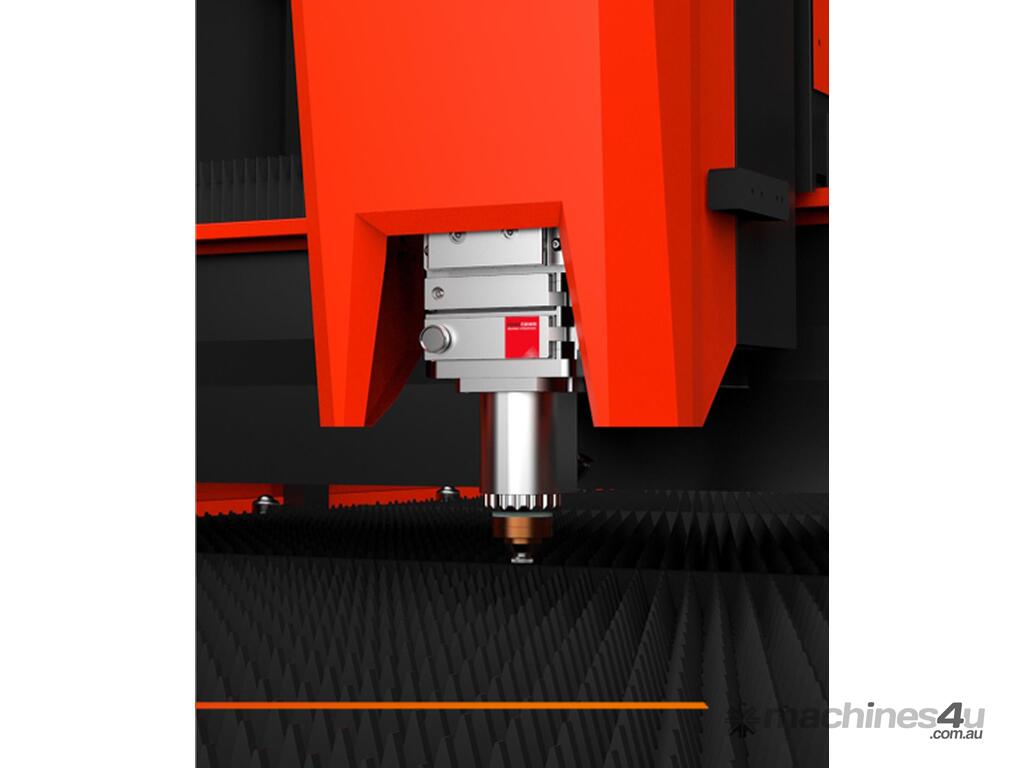

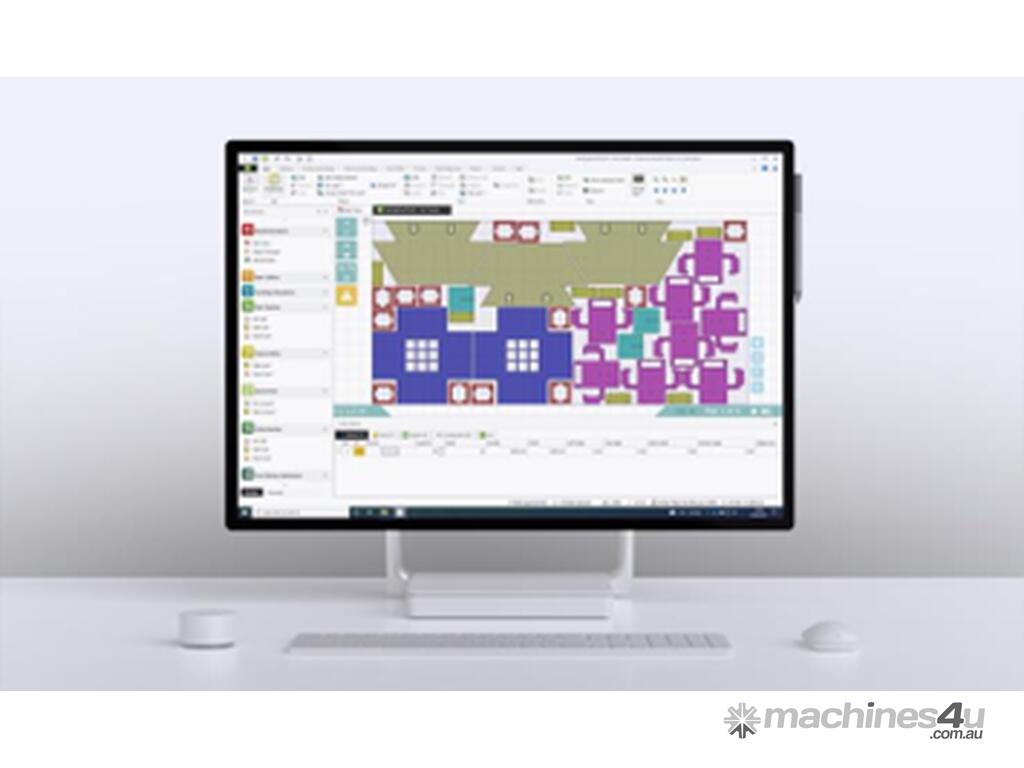

The D-Power Ultra-High Power Series Fiber Laser Cutting Machine, designed and fine-tuned by the R&D team at DNE Laser, offers exceptional performance for metal plate processing. The stable machine tool, coupled with imported components from renowned brands, ensures high cutting accuracy and speed. The intelligent programming of the D-Power series makes it easy to operate, capable of precisely processing various thick metal plates at a relatively low operating cost.

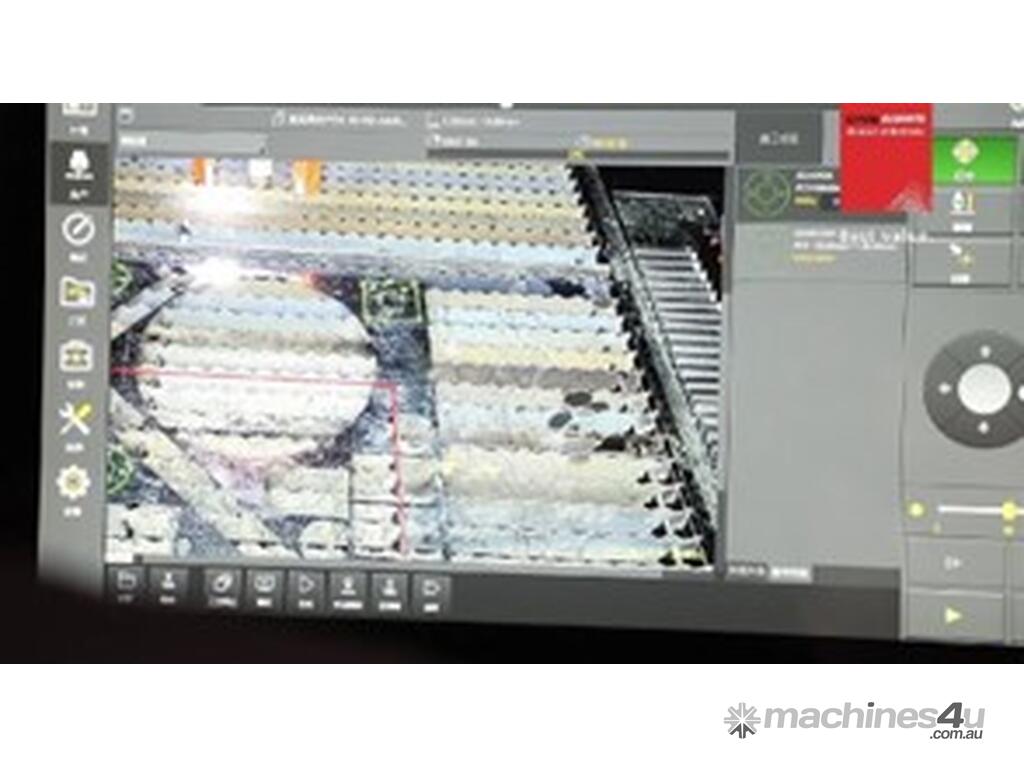

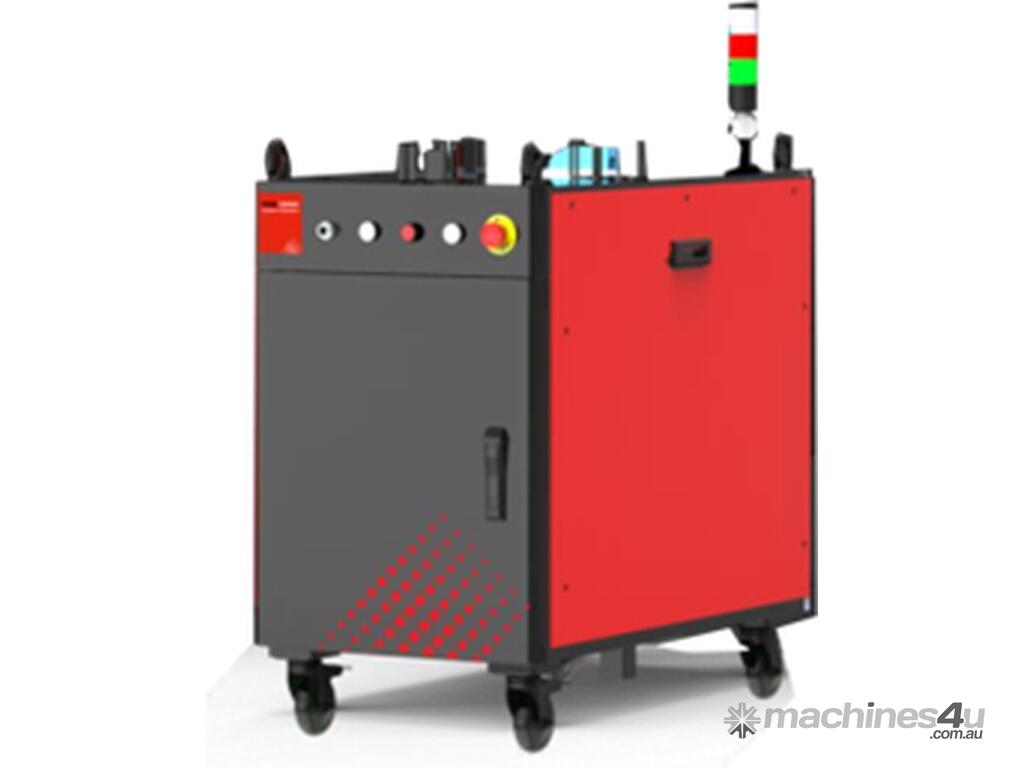

Key features include optional visual edge patrol, safety and collision avoidance, and residual material reproduction functions, providing customers with a safe, accurate, and cost-effective experience. Compared to conventional laser sources, the D-Power series boasts over 30% higher efficiency due to its high-performance laser source.

Laser Wavelength: 1060 nm-1080 nm
Laser Power: 6000 W /12000 W (Customisable per order)
Aiming and Positioning: Red light indication
Effective Working Area: 2000 mm * 4000 mm (Customisable per order)
Repositioning Accuracy of X / Y- Axis: 0.03 mm
Positioning Accuracy of X / Y-Axis: ±0.05 mm
Maximum Positioning Speed of X / Y-Axis Linkage: 150 m/min
Maximum Acceleration of X / Y-Axis Linkage: 1.5 G
Normal Edge Finding Accuracy: ±0.5 mm
Drawing Formats Supported: DXF, PLT, AI, Gerber files, NC codes and other graphic formats of Auto CAD.
Power Consumption of Complete Machine: 40KW (6000W) | 75KW (12000W)
Power Supply: Three-phase five wire AC 380V, 50Hz


Who is Bystronic DNE?

DNE Laser is a member of the Bystronic group of Switzerland. The combined capabilities of Bystronic and DNE Laser enable Bystronic to strengthen their client value proposition offering a complete spectrum of products from one source.

360 Automation and DNE Laser Partnership.

360 Automation have been appointed as an agent of DNE to introduce their state-of-the-art machines to Australia, offering comprehensive service and installation support. This collaboration signifies our commitment to delivering advanced manufacturing solutions and ensuring businesses in Australia have access to cutting-edge technology for their production needs.
