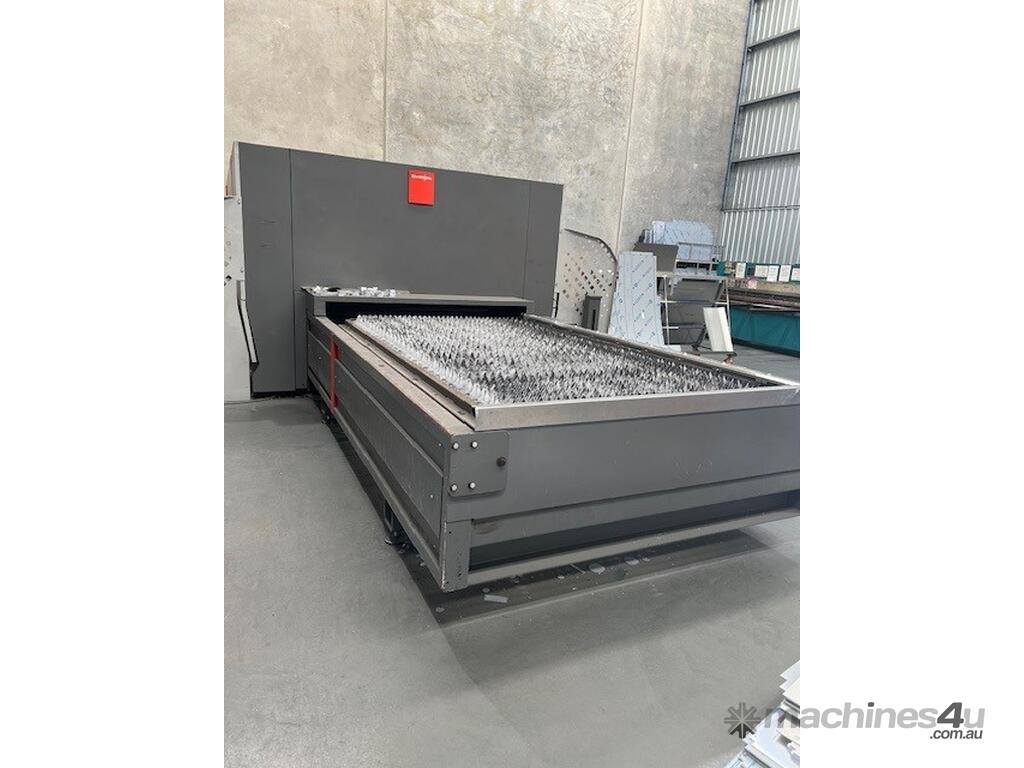

Bystronic Laser Cutting Machine - BySmart Fibre 3015; Fibre 4000

BySmart Fiber 3015 F4000
LOW RUN HOURS - Cutting Hours - 1,550

NEW CUTTING HEAD

Used for inhouse laser cutting only

This machine has been well maintained.

The BySmart Fiber 3015 F4000 serves as a robust, mid-power laser cutter — offering excellent value, solid productivity, and strong materials versatility for manufacturers processing sheet metal in the thin to medium range.

The BySmart Fiber 3015 F4000 is a configuration of Bystronic’s mid speed, high quality fiber laser cutter tailored for thin to medium sheet metal. Here’s what sets it apart:

Technical Summary

Laser Source & Power: Equipped with a 4?kW fiber laser (often referred to as the "F4000" variant).

Nominal Sheet Size: Handles a 1,500?mm × 3,000?mm sheet — typical for 5' × 10' format systems.

Cutting Capability (approximate maximum sheet thicknesses):

Steel: up to ~20?mm

Stainless Steel: ~15?mm

Aluminum: ~20?mm

Brass/Copper: up to ~8?mm

Performance & Accuracy:

Max. positioning speed: ~100?m/min

Simultaneous movement: ~140?m/min

Precision: repeatability ±0.05?mm, accuracy ~±0.1?mm, edge detection ±0.5?mm

MetzFab Industries

Machine Size & Weight:

Footprint: ~10,495?mm (L) × 6,903?mm (W) × 2,880?mm (H)

Weight: around 11,800?kg (excluding chiller and exhaust)

Power Consumption: Approximately 15?kW (including chiller/exhaust systems).

Control System: Operated via Bystronic’s intuitive ByVision Cutting touchscreen UI, paired with BySoft 7 CAD/CAM software for efficient nesting and workflow integration.
