C/Z Purlin Roll-Forming Machine – Quick-Change – 75-300 mm

With Victoria’s construction pipeline set to surge, this fully tooled C/Z purlin roll-former is your fast-track into this niche market.
Grab it now, have it running next week, and be first in line when the inevitable rush for local supply hits—miss it, and you’ll be waiting months and paying more.

** Machine is connected and running at this stage - we will need to move it for a different factory soon to save space on the floor. Happy to negotiate if we can save the trouble of moving it **

???? **Machine Overview**
- **Manufacturer**: Chinese OEM (HXY2019 series)
- **Year**: 2019 (low hours, ex-factory upgrade)
- **Condition**: Used, workshop inspected, fully operational

?? **Technical Specifications**
| Item | Detail |
|---|---|
| **Profiles** | C & Z purlin, 75 – 300 mm wide, 1.2 – 3.2 mm G550 galvanised |

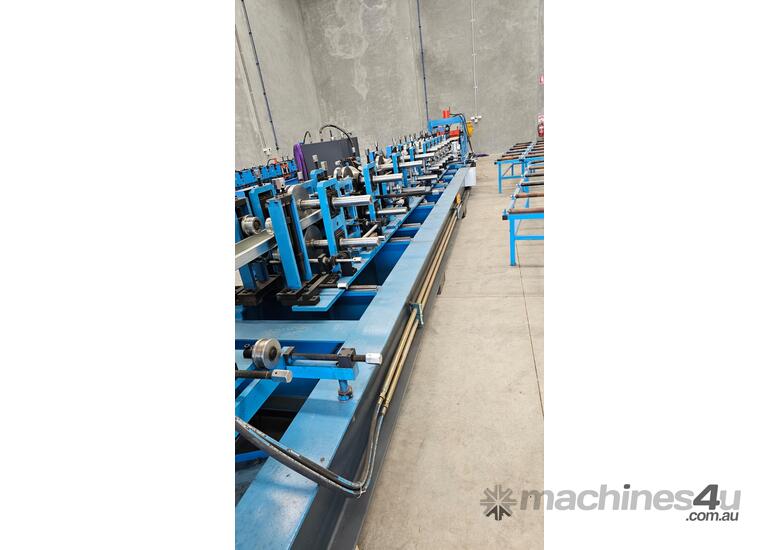

| **Roll stations** | 14 forming stations + 2 straightening |
| **Main motor** | 11 kW Siemens, variable speed |
| **Hydraulic cut-off** | Post-cut, 5.5 kW, HSS blades |
| **Decoiler** | 5 ton hydraulic mandrel, auto-expand & brake |

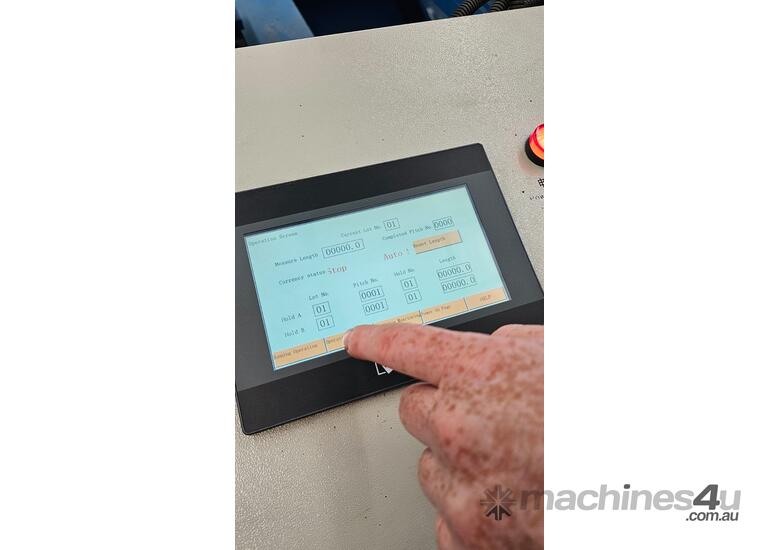

| **Control system** | Delta DVP-PLC, 7" colour HMI, 16 job memory |
| **Punching** | Dual-hole cassette, 60 positions, ±0.5 mm accuracy |
| **Run-out table** | 6 m powered roller section |
| **Power supply** | 3-phase 380 V / 50 Hz |
| **Footprint** | 9 m L × 1.5 m W × 1.8 m H |
| **Weight** | ? 5.8 t |

for operational video .... please see this link
youtu.be/2hevaL5XWZ0

Please don't hesitate to ask a question.
Please refrain from making low-ball offers.
