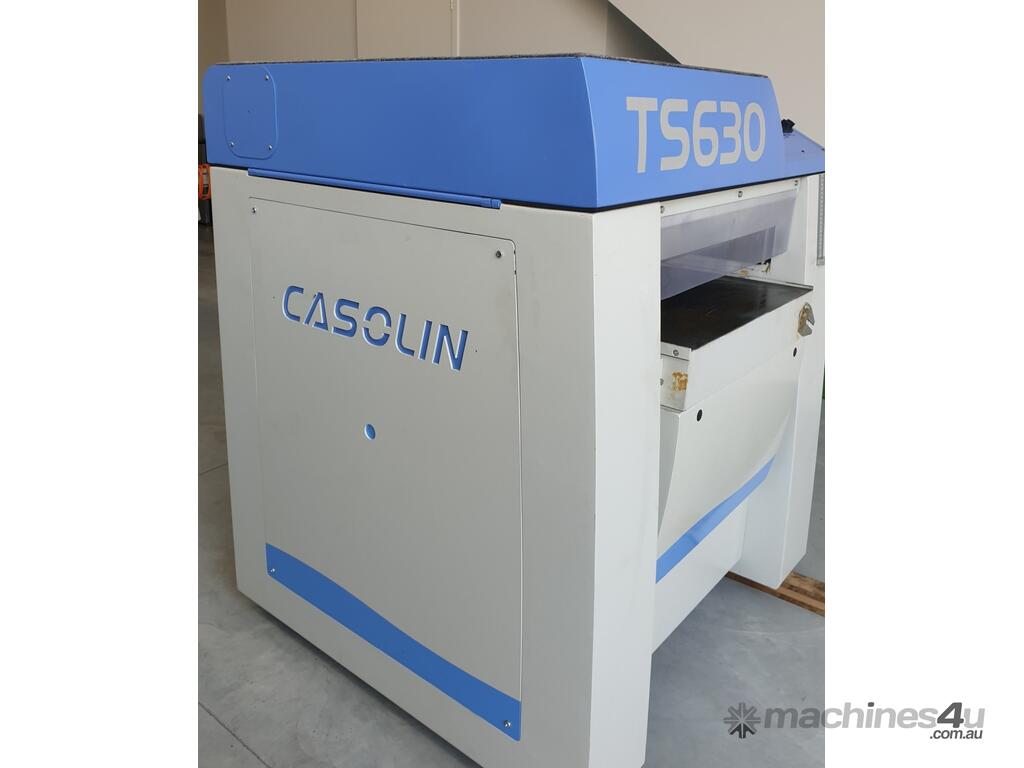

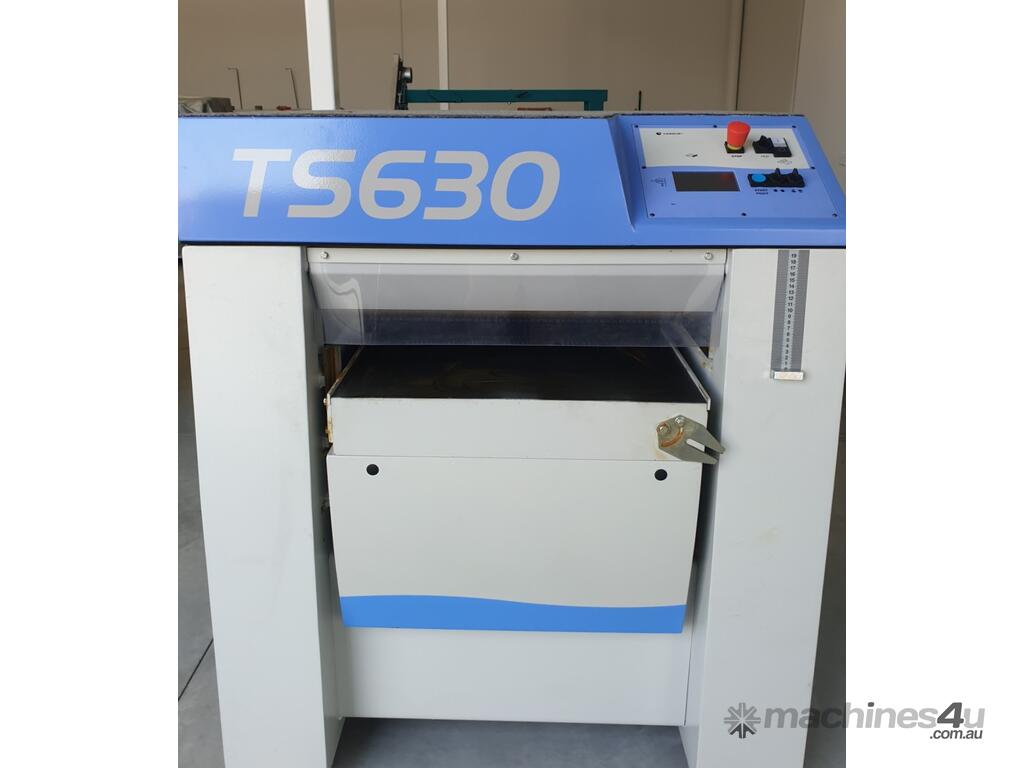

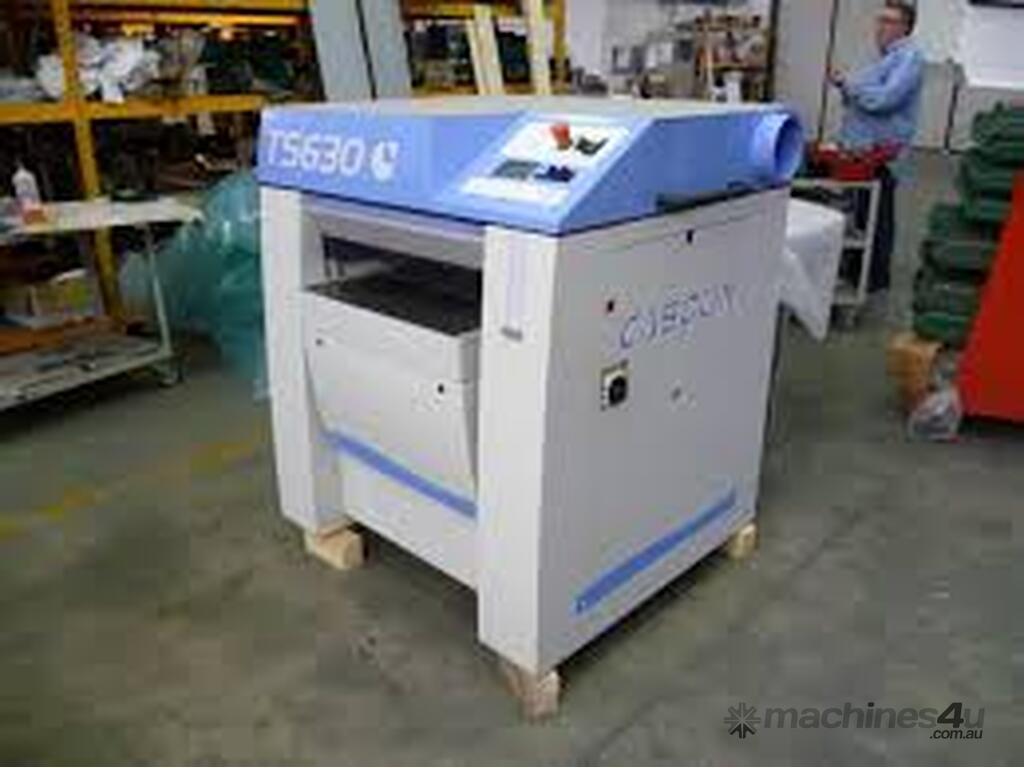

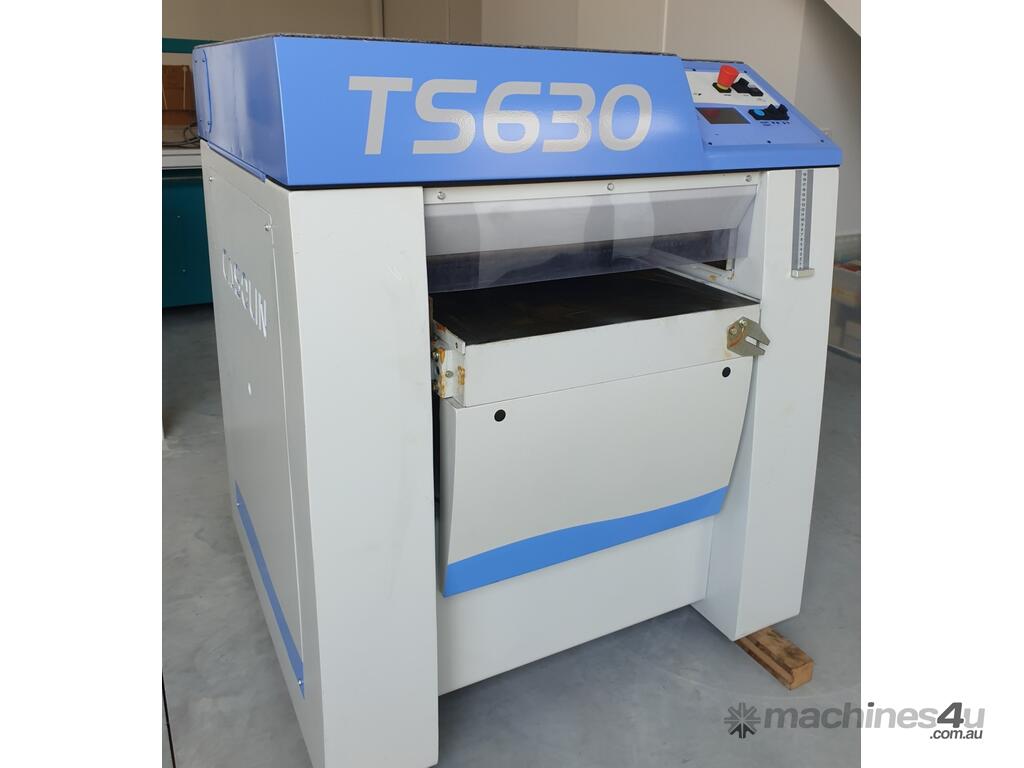

CASOLIN TS630 Thicknesser

Thicknesser - Planer Model TH 810-630. Modern machine, safe and easy to use, with touch-screen supplied standard to manage all work functions. Exceptional driving performance of work pieces, thanks to the rubber rollers with large diameter and the suspension of the rollers with torsion bars. High maximum thickness of extraction: 12 mm. Automatic reduction of the feed rate of the workpiece, if the planer shaft motor exceeds the maximum available power. Machine with compact size to save space in carpentry. Machine ALL MADE IN ITALY

Thicknessing table 1060x630 / 810 mm on 4 rise screws
Planing thickness height from 3 mm to 300 mm
Prismatic guide of table ( auto-cleaning system)
Automatic locking of thicknessing table
Thicknessing table designed for improved sliding on the wood
CNC positioning of the table on touch screen controller


Feeding speed adjust with electronic inverter 4-25 mt/min
1 at infeed, helical toothed sizeable roller for regular feed of piece Ø 85 mm
Suspension of rocker roller with fixed bar
On exit side, 2 roller Ø 85 mm in special rubber for long time work ( from 5 to 10 years )
Easy operation to change the roller
Suspension of 2 rubber rollers with fixed bar


Shaft with 4 cutters block Ø 120 mm
Shaft rotation speed 5000 rpm
Main motor self braking
Suction dust hood Ø 160 mm
Automatic star/delta starting
Digital display of thickness position
Supply 400V - 3P - 50Hz ( special voltage on request )

Optional equipment included on this machine
SPIRAL CUTTERBLOCK
2 IDLE ROLLERS IN TABLE FOR DAMP OR RESINOUS STOCK
RUBBER IN-FEED ROLLER FOR SENSITIVE STOCK
RUBBER OUTFEED ROLLERS

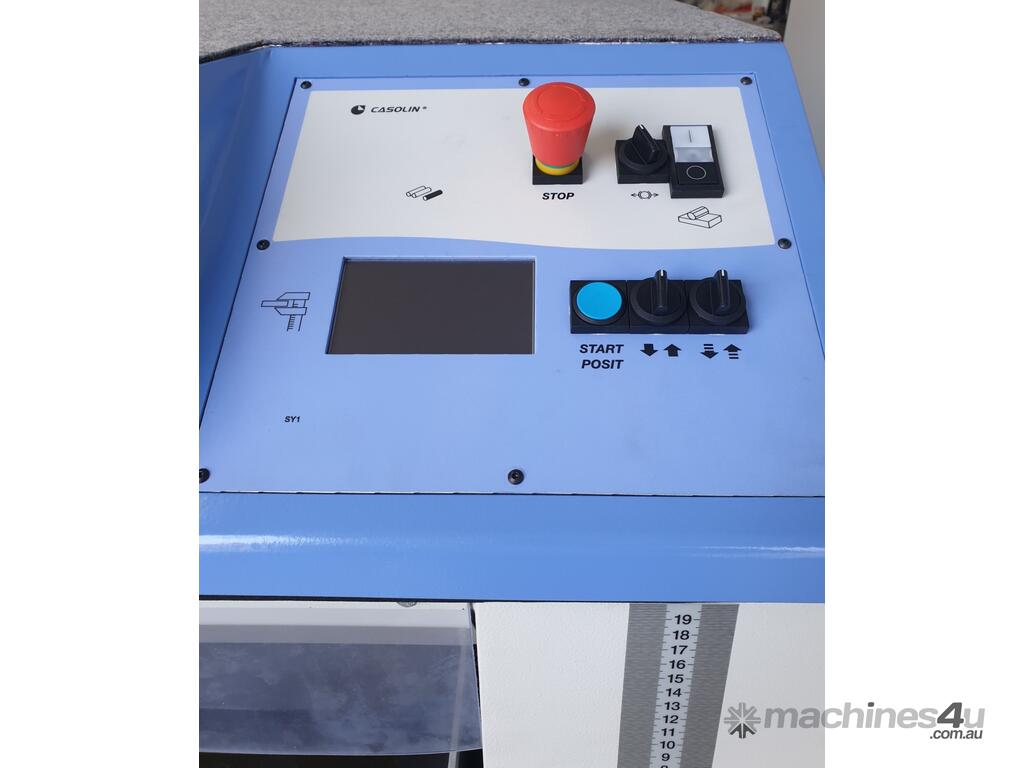

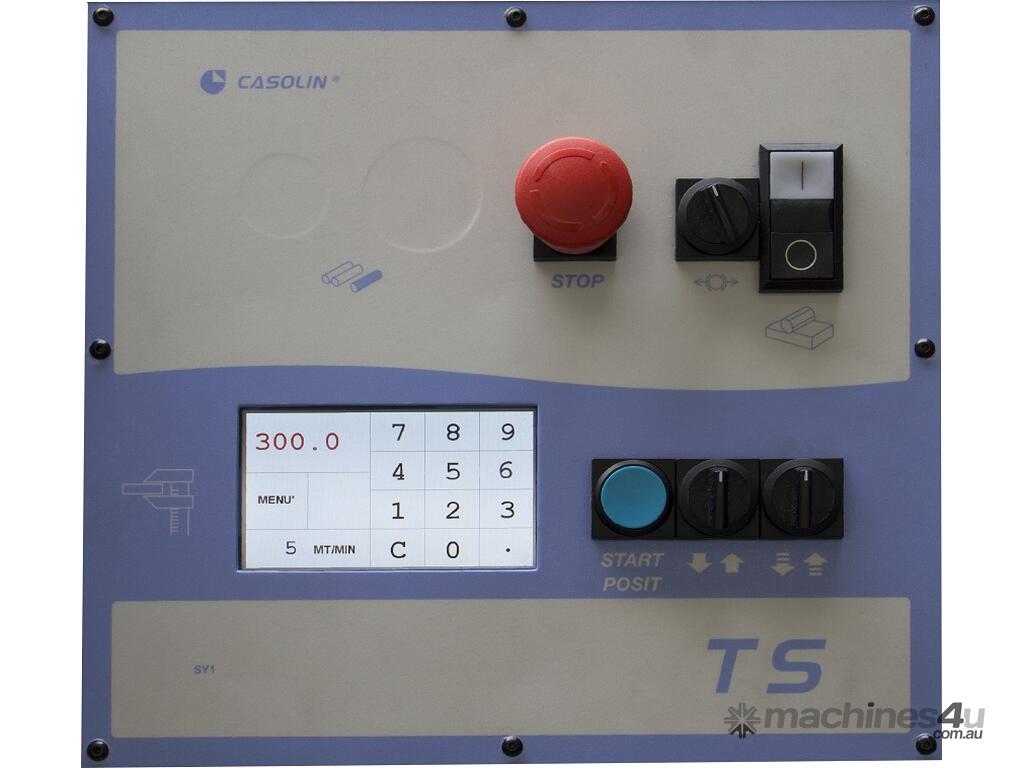

- Colour touch screen. The main screen, thanks to its essential graphics and large buttons, allows for very simple and
intuitive use of the installed features.
- Positioning of the automatic worktop with touch or manual controls through slow and fast switches on the control panel.
- Automatic return to the initial position defined in case multiple removal steps need to be performed.
- Feed rate from 4 to 25 MT/Minute displayed and adjustable from the touch screen.
- Automatic reduction of feed rate of the workpiece, if the planer shaft motor exceeds the maximum available power.
- Diagnostics of the machine on the touch screen. Automatic star/delta starting system.
- Steel base with closed loop structure to increase rigidity.
- This machine features low noise with soundproof base and suction cover.
- Suction with anti-clogging conveyor belt, ideal for suctioning long chips.

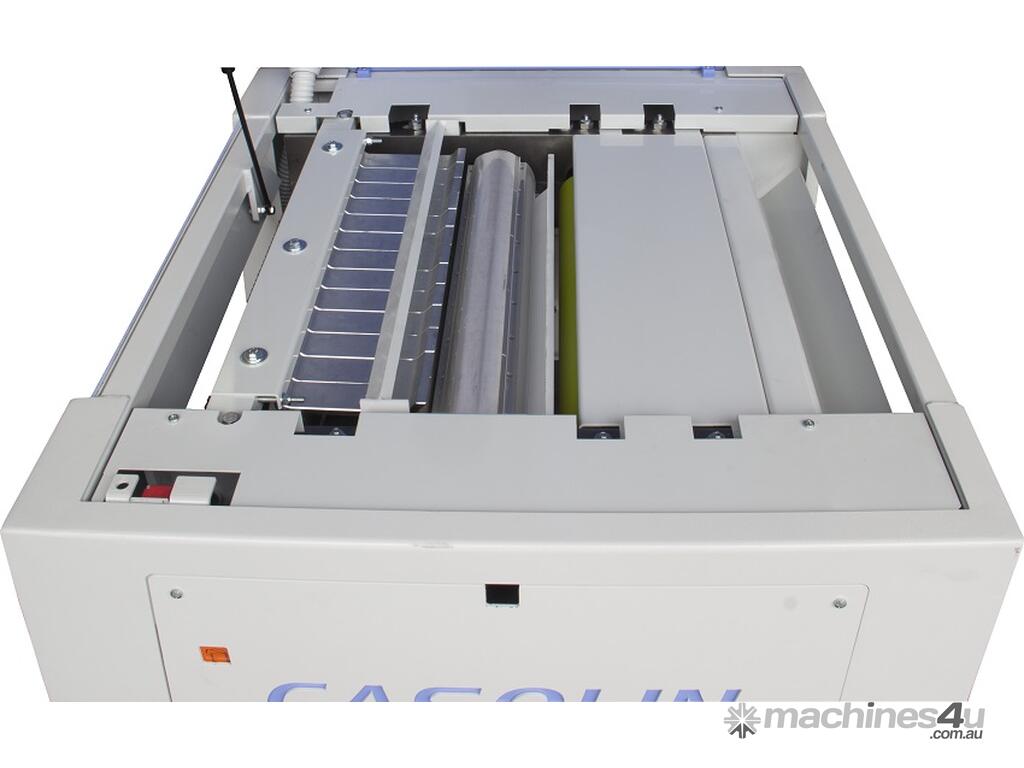

- Front Ribbed rubber drive roller with a diameter of 85 mm.
- Suspension of the front roller with rocker arm and adjustable torsion bar, to allow straight driving of the workpiece and the
simultaneous driving of multiple workpieces.

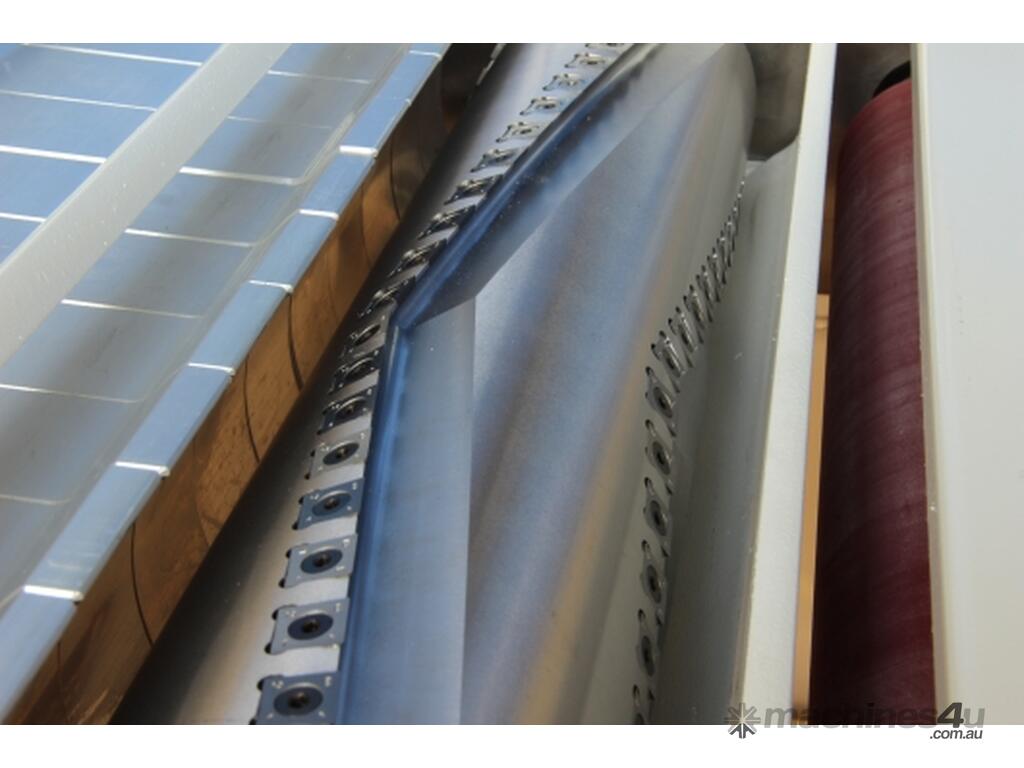

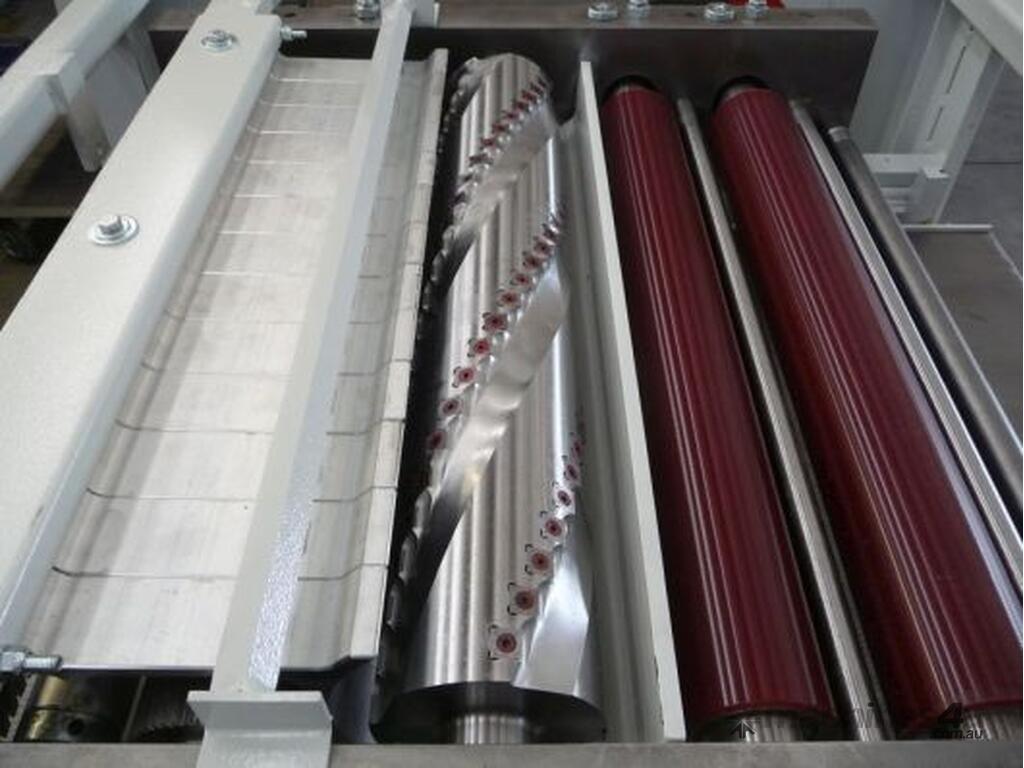

- SPIRAL planer shaft with a diameter of 120 mm.

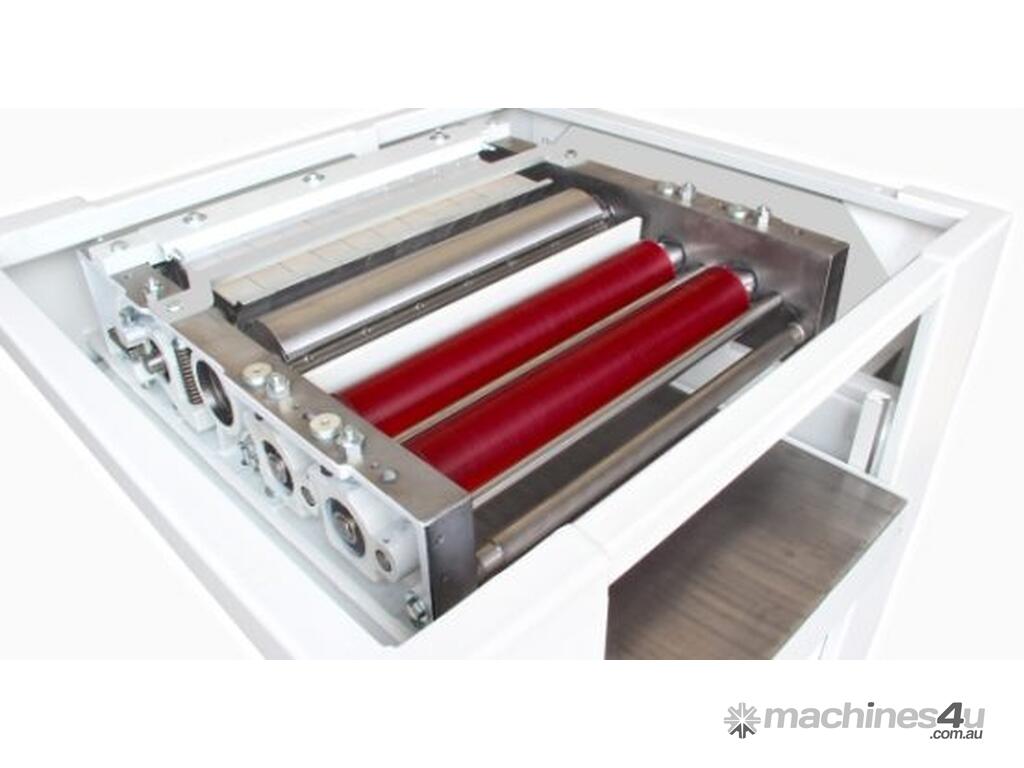

- Equipped as standard with 2 rear drive rollers covered with wear-resistant polyurethane rubber with a diameter of 85 mm.
- Suspension of 2 rollers with rocker arm and fixed torsion bar to always have a 100% adherence of the drive rollers to the
workpiece.
- Option of replacing the 2 rear rollers with a simple operation.
- Pressure of the three drive rollers pneumatically adjustable from the control panel; allows for the pressure exerted on the
workpiece by the drive rollers to be varied across a wide range.
- Ideal for machining soft wood or very small pieces (on request)
- Worktop supported by 4 synchronous lifting jacks, sealed and lubricated for life.
- 2 self-cleaning prismatic steel guides keep the surface rigid with the base of the machine and eliminate vibration during
machining.
