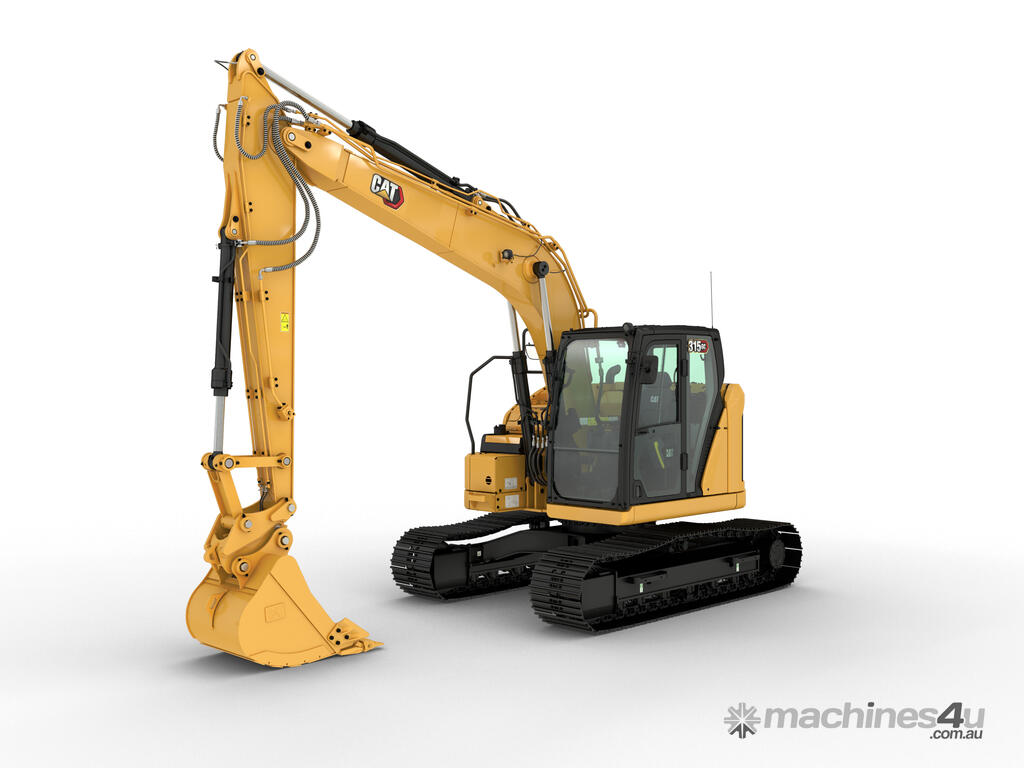

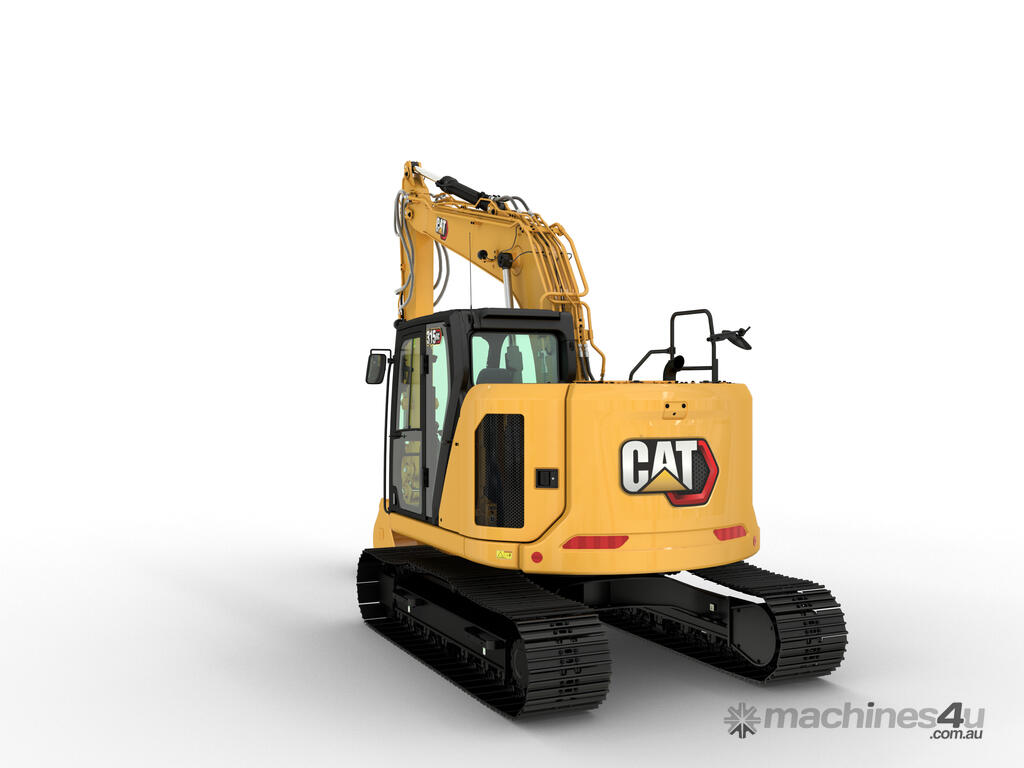

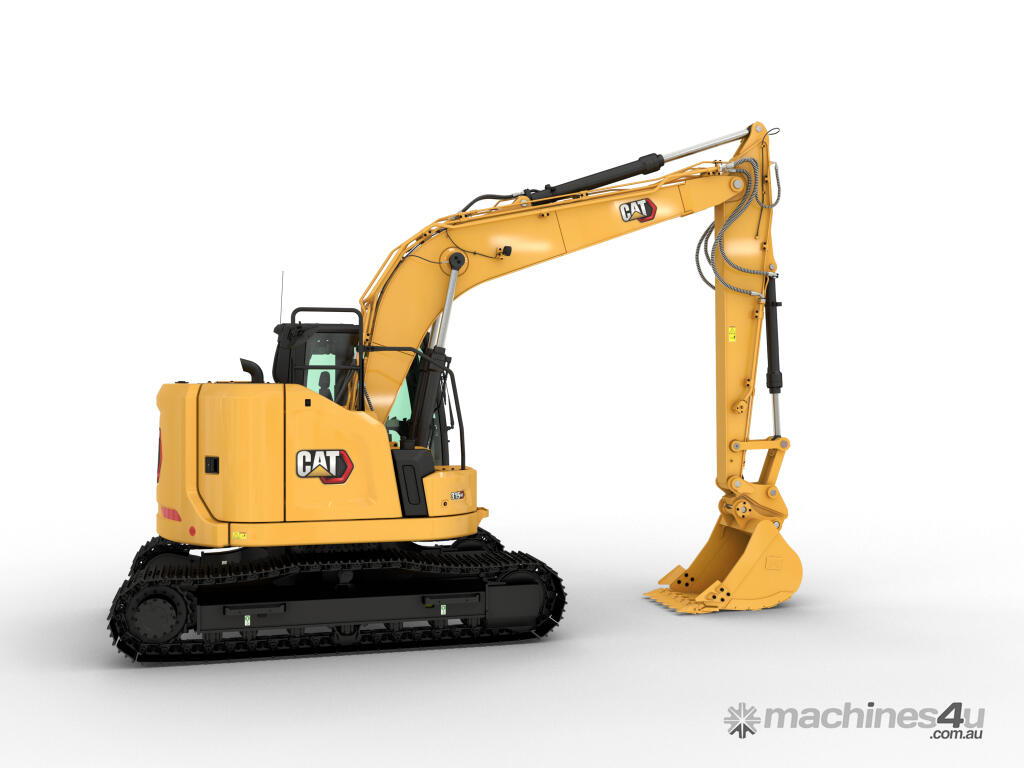

CAT 315 GC SMALL HYDRAULIC EXCAVATOR

OVERVIEW

COMPACT WITH LOW OWNING AND OPERATING COSTS
The Cat® 315 GC Excavator fits your jobsite and your wallet. Simplified maintenance points, longer maintenance intervals, and fuel-saving features and components keep owning and operating costs low. Combined with its compact radius design and a large, ergonomic cab, the 315 GC keeps you working efficiently and comfortably – all at a low cost-per-hour.


ENGINE
UNITS: US METRIC
Net Power - ISO 9249 73 kW
Engine Model Cat C3.6
Engine Power - ISO 14396 74 kW
Engine Power - ISO 14396 (DIN) 101 hp (metric)
Net Power - ISO 9249 (DIN) 100 hp (metric)
Bore 98 mm
Stroke 120 mm
Displacement 3.6 l
Biodiesel Capability Up to B20¹
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards

Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.


MACHINE WEIGHT
Operating Weight - 15400 kg


Cat® 315 GC

LATEST FEATURES
Cab Monitor Improvements.
1. Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
2. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
3. A notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
4. Color coded notifications set critical messages apart from the rest.
5. Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to”videos.
• The standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 07E

FUEL SAVING PERFORMANCE MATCHED TO THE JOB
• Use up to 15% less fuel than the 315F to keep you moving and productive on the jobsite.

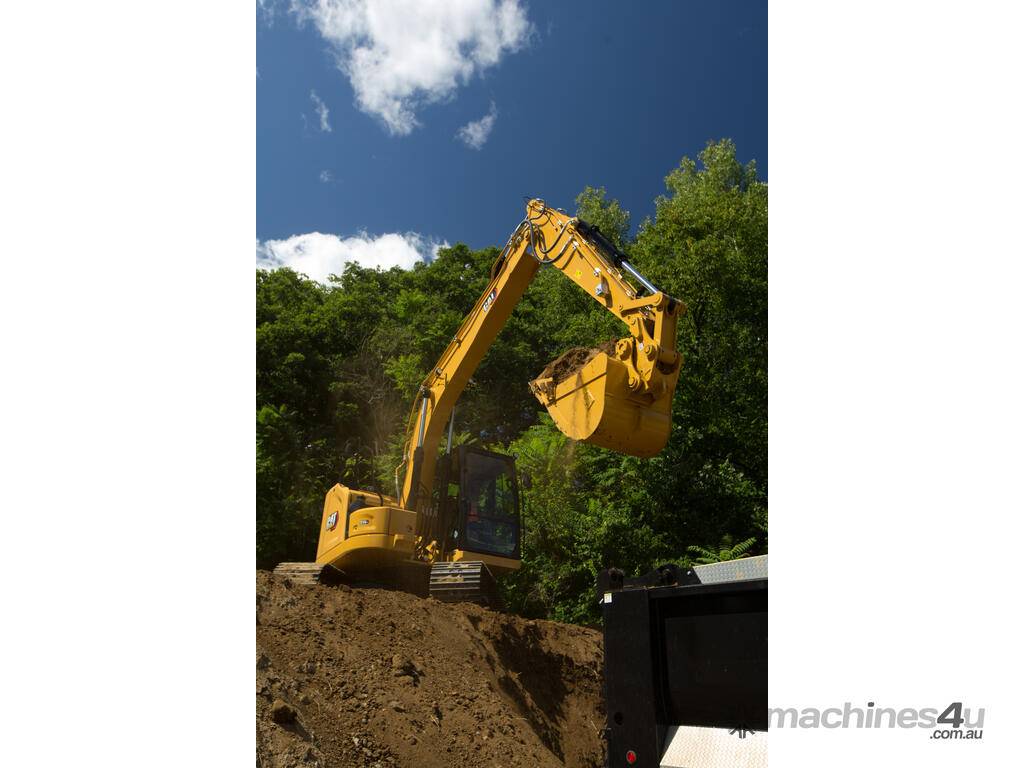

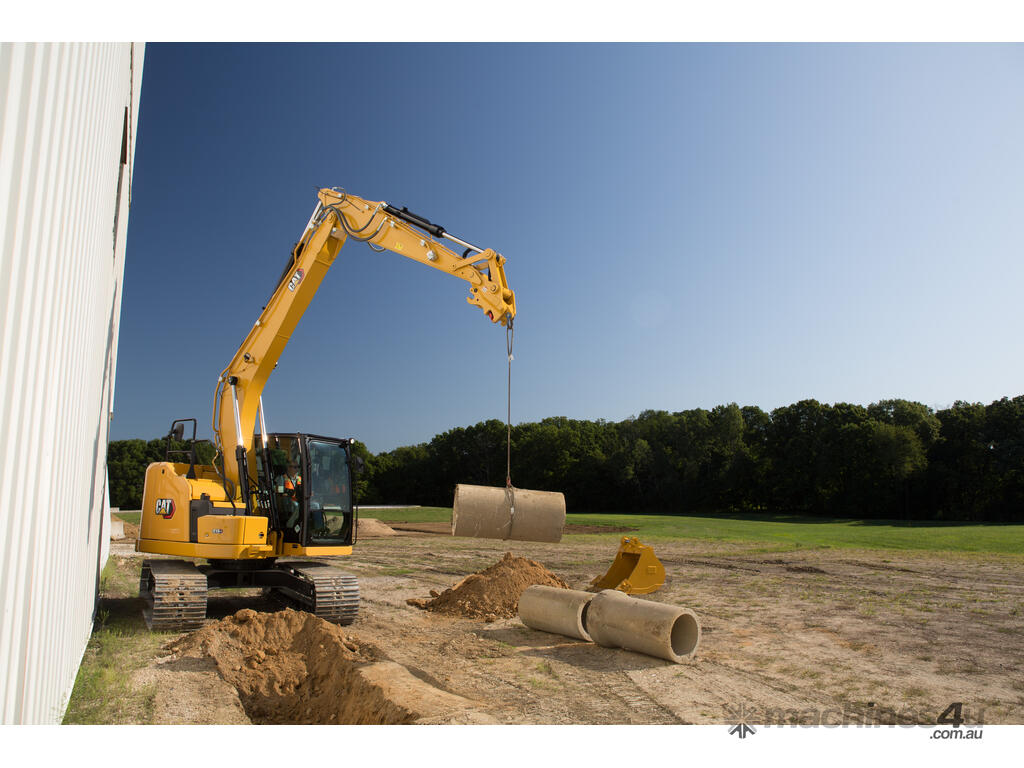

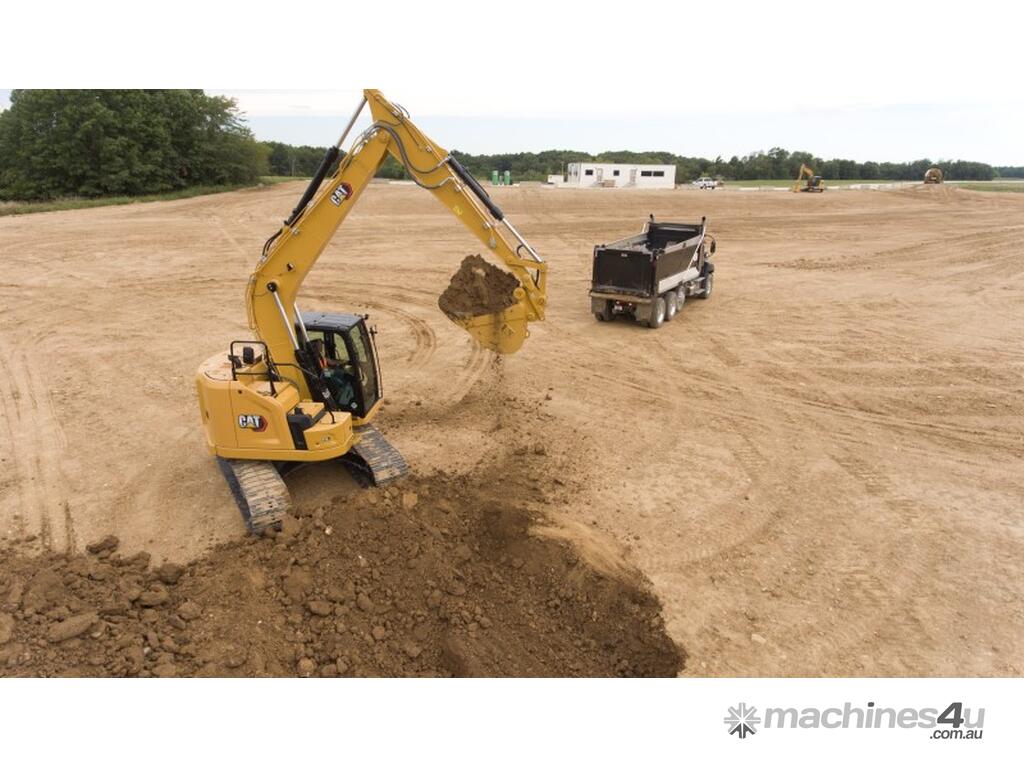

• Work confidently in space-restricted areas. Dig, swing, and dump within a working space of 3.96 m (12 ft 11 in).
• Easily work on slopes and move around the jobsite with 10% more swing torque.
• The advanced hydraulic system provides the optimum balance of power and efficiency while providing the control needed for precise digging requirements.
• Smart mode meets your power needs by automatically matching engine and hydraulic power to digging conditions.

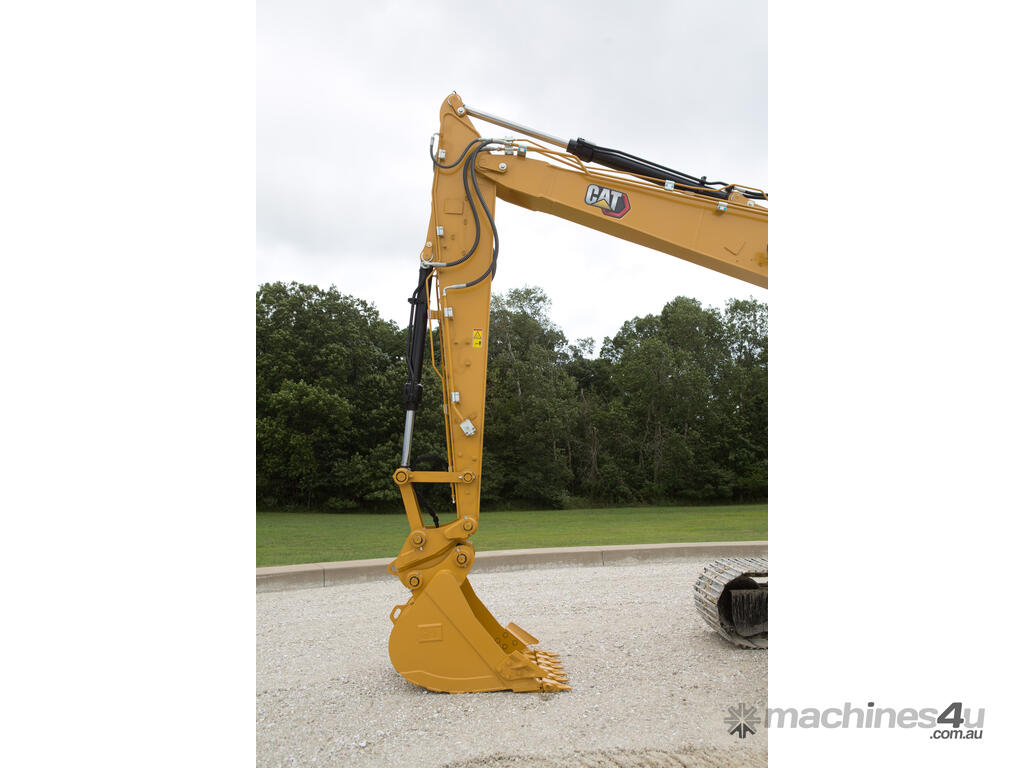

• Get higher production in demanding applications, easier penetration into piles, and faster cycle times with Cat ® Advansys™ bucket tips. Quickly change tips with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
• Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
• The Cat ® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

LOWER MAINTENANCE COSTS
• Expect up to 25% less maintenance costs than the 315F.

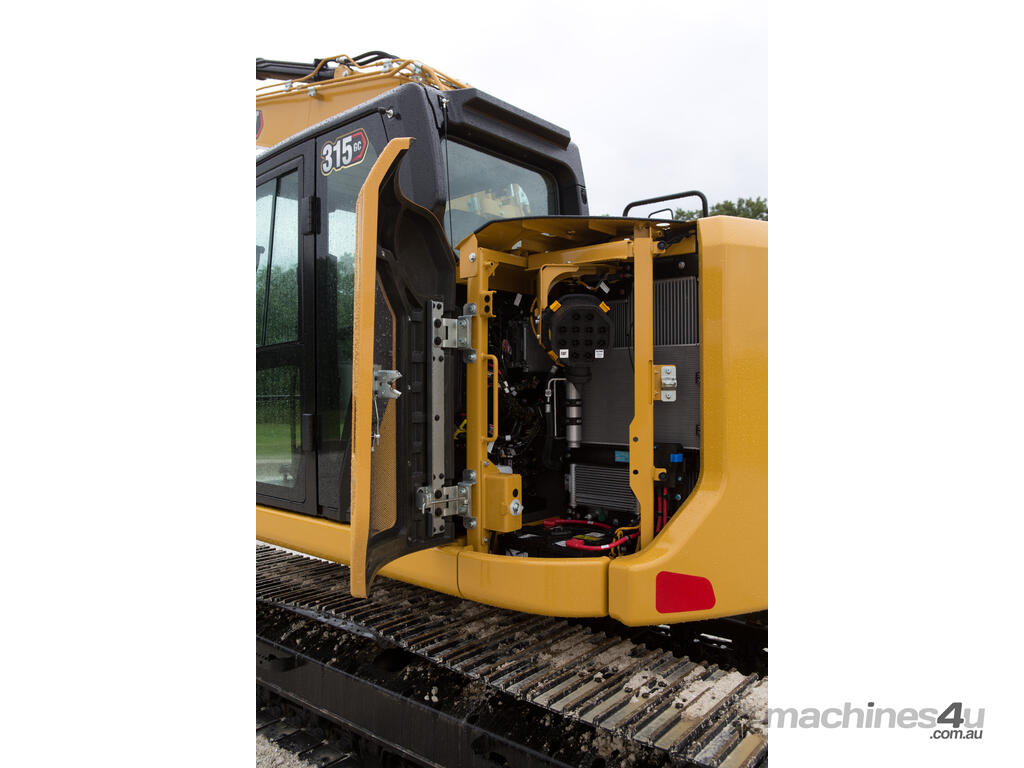

• Quickly check and service your machine with all daily maintenance points accessible from ground level.
• Check the engine oil level quickly and safely from the ground. Fill and check engine oil on top of the machine with a conveniently located second dipstick.
• The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
• Track your machine’s filter life and maintenance intervals on the in-cab monitor.
• Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance along with parts needed so you don’t experience any unnecessary downtime.
• Scheduled Oil Sampling (S·O·S) ports are located at ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

WORK IN COMFORT
• Increase operator productivity with a comfortable, 13% larger cab.

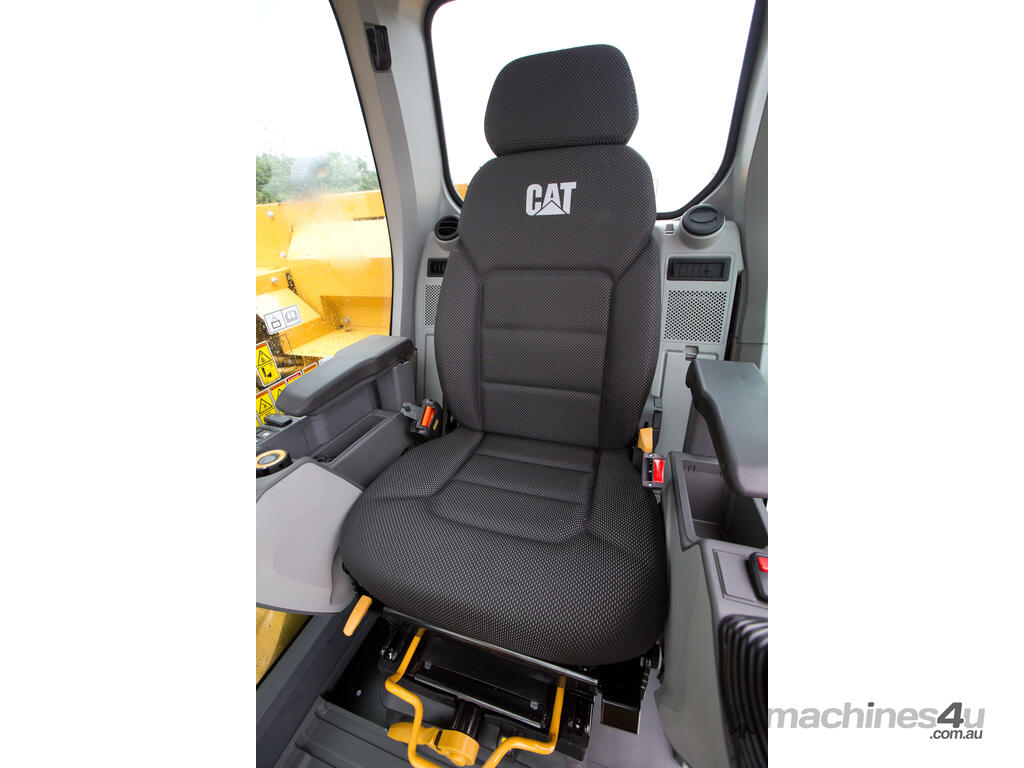

• The cab has a wide seat that adjusts for operators of all sizes.
• Get in and out of the cab easier using the tip-up left console.
• Advanced viscous mounts reduce cab vibration.

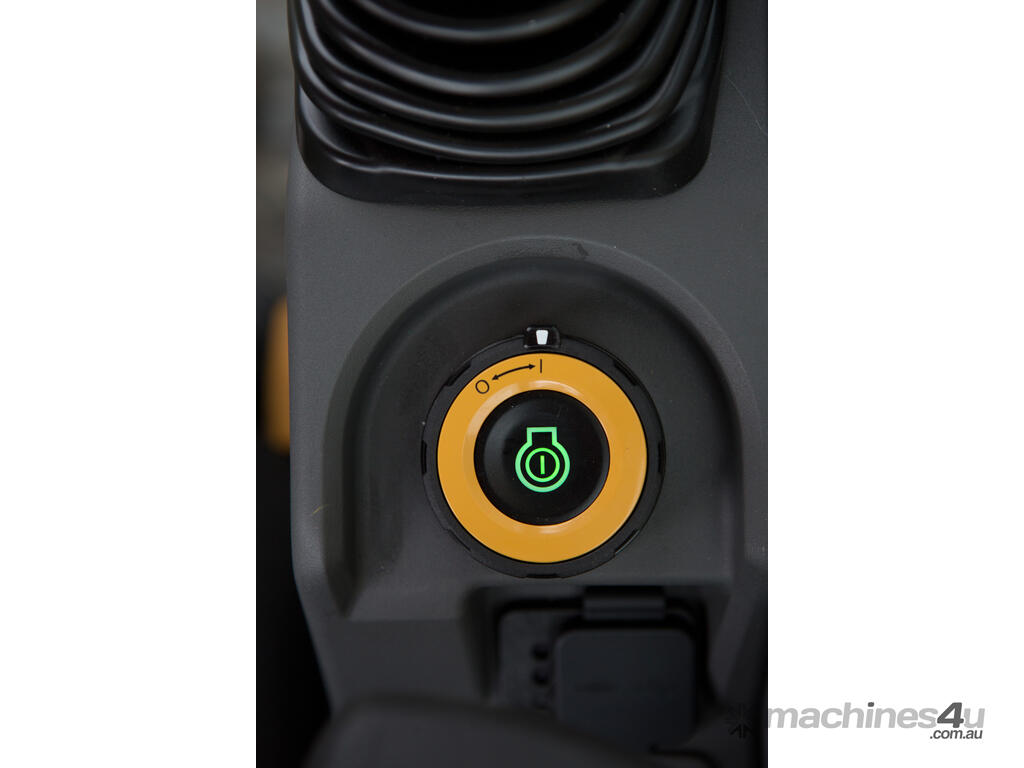

• Control the excavator comfortably with easy-to-reach controls, all located in front of you.
• Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, and coat hook are also provided.
• Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

SUSTAINABILITY
• The Cat C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
• The 315 GC emits up to 15% less CO2 than the previous 315F GC*.
• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels*** up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-toliquid) fuels. Refer to guidelines for successful application.
Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations”(SEBU6250) for details.
• Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
• Cat Scheduled Oil Sampling Services helps reveal excessive wear, contaminated fluids or other “unseen”issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information.
• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
• Cat VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
• Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
• Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
• Cat ® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
*All comparisons to 315F GC. Productivity, fuel and CO2 emissions vary by application. CO2 emissions calculations based on a reference work cycle using 2.2 U.S. gallons per hour of #2 U.S. diesel fuel based. Applies IPCC2006 methodology using U.S. EPA Emissions Hub emission factors. Includes DEF (diesel exhaust fluid) related CO2 . Fuel measurements are at 15º C. Estimated average fuel consumption improvements are based on tests or ProductLink™ data where available. Productivity improvements are based on test data.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
***Tailpipe greenhouse gas emissions from lower-carbon intensity
fuels are essentially the same as traditional fuels.

Find out more about at cat/en_AU/products/new/equipment/excavators/small-excavators/106060.html or contact your local Cat dealer.
