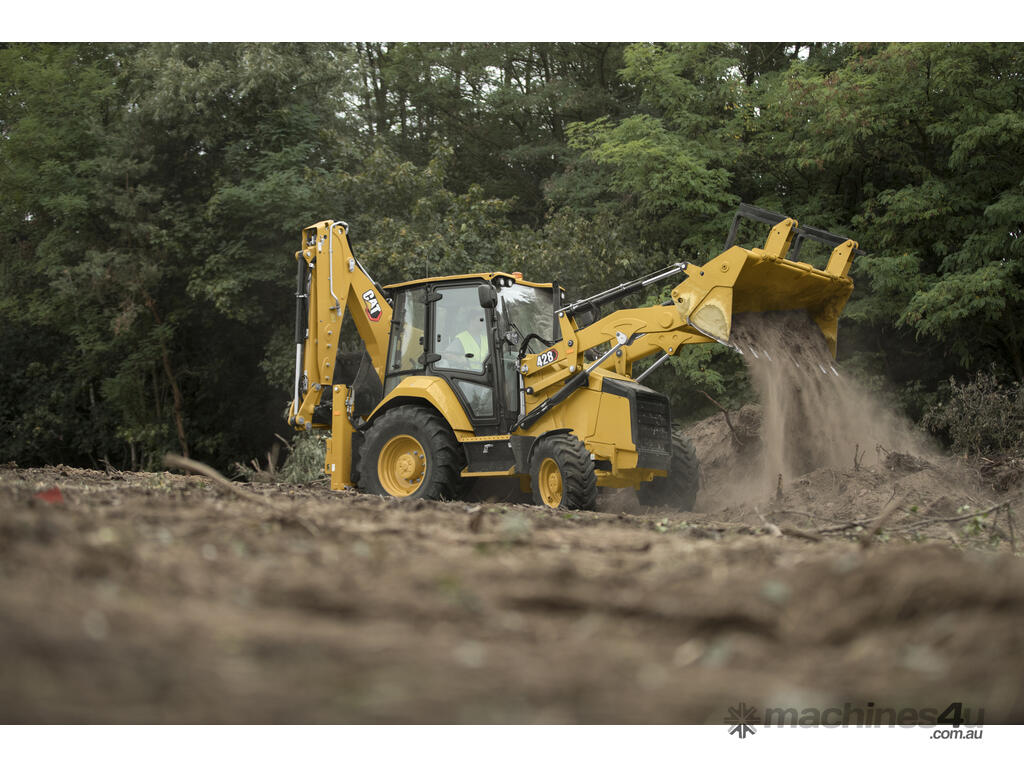

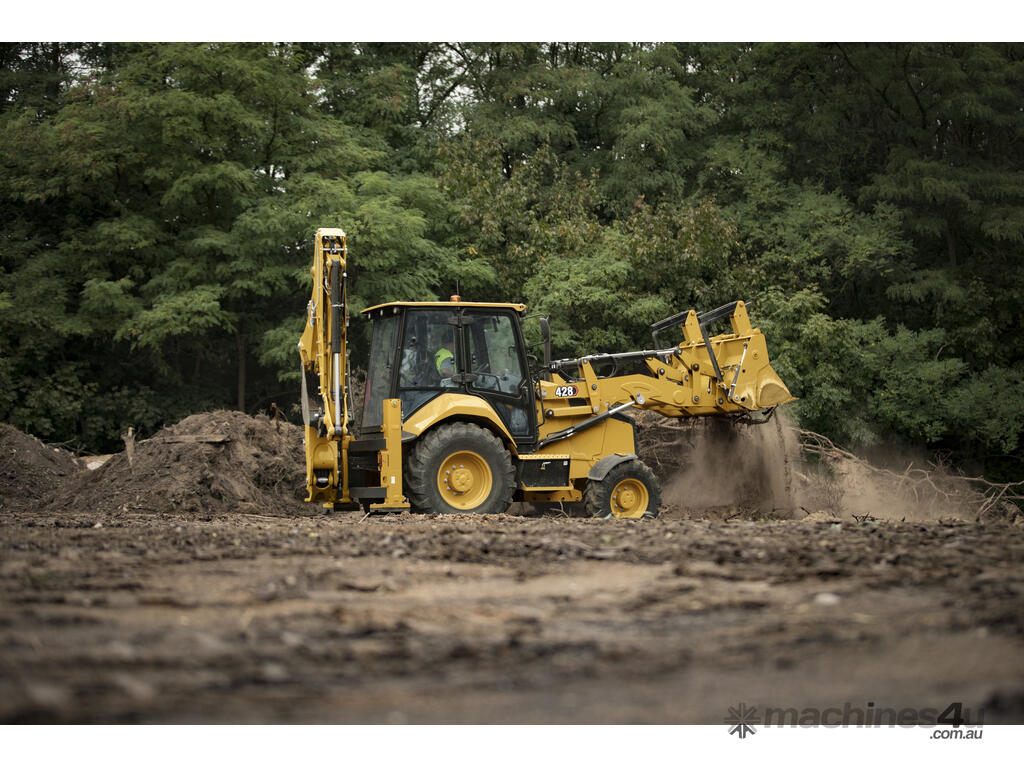

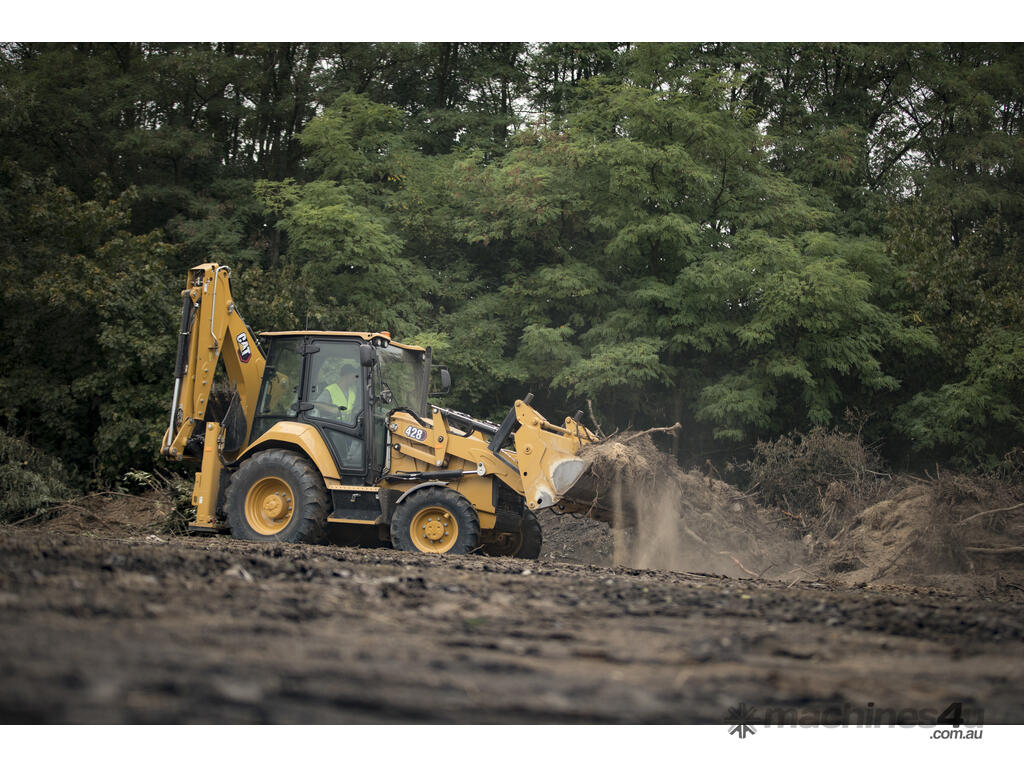

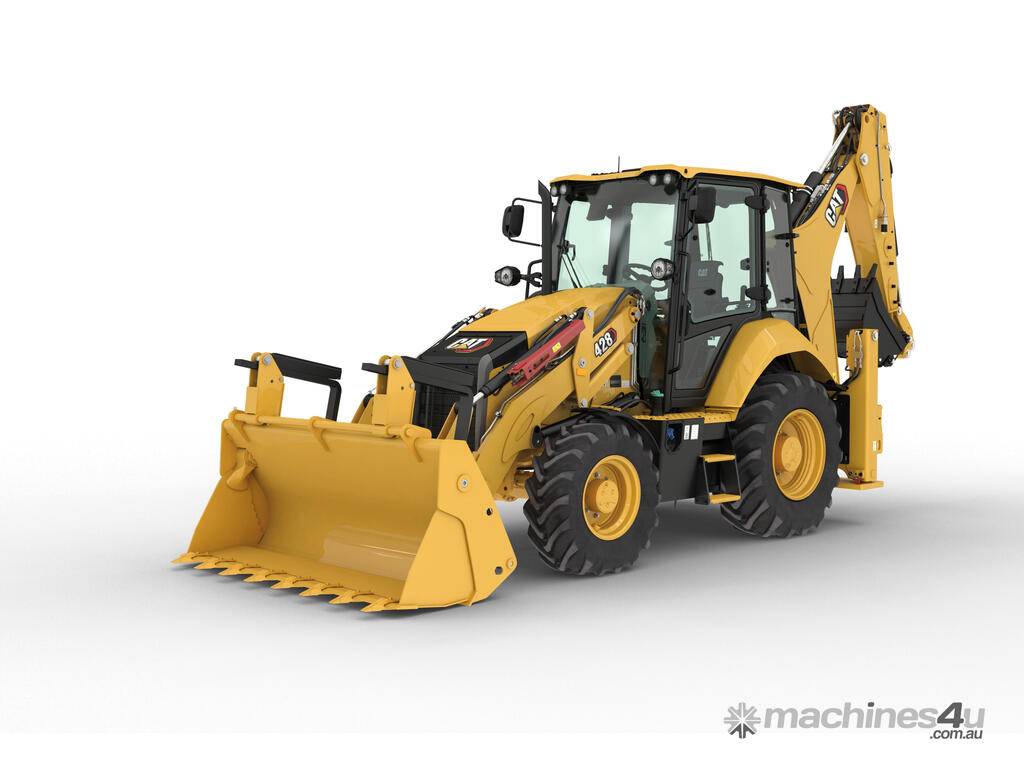

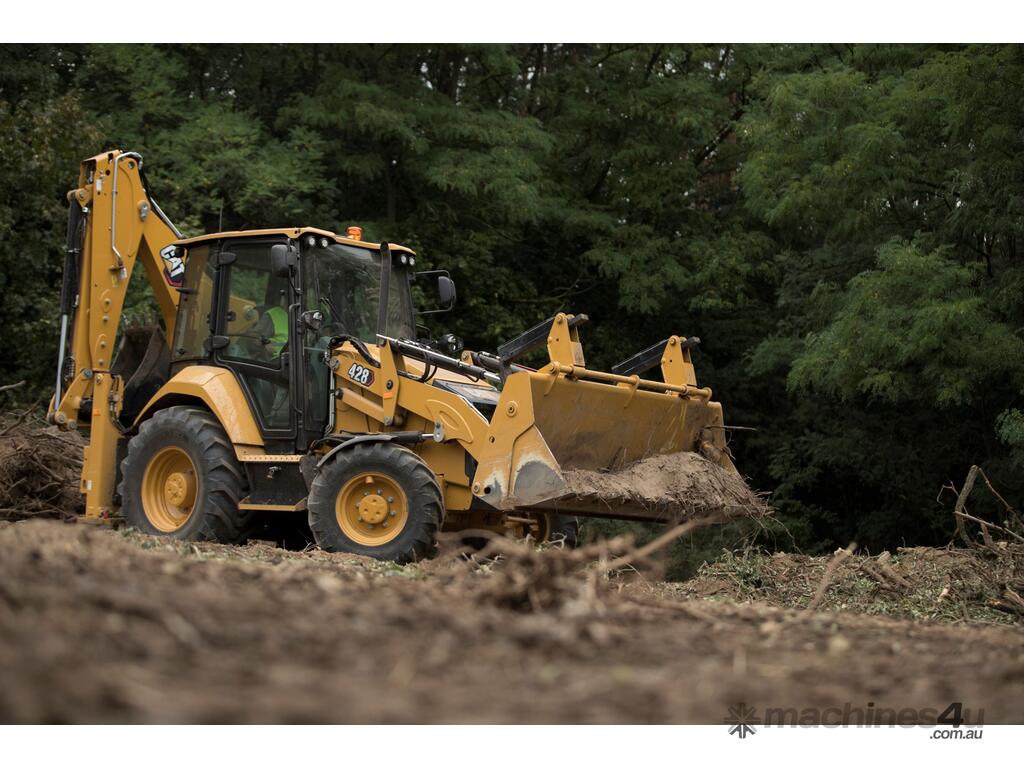

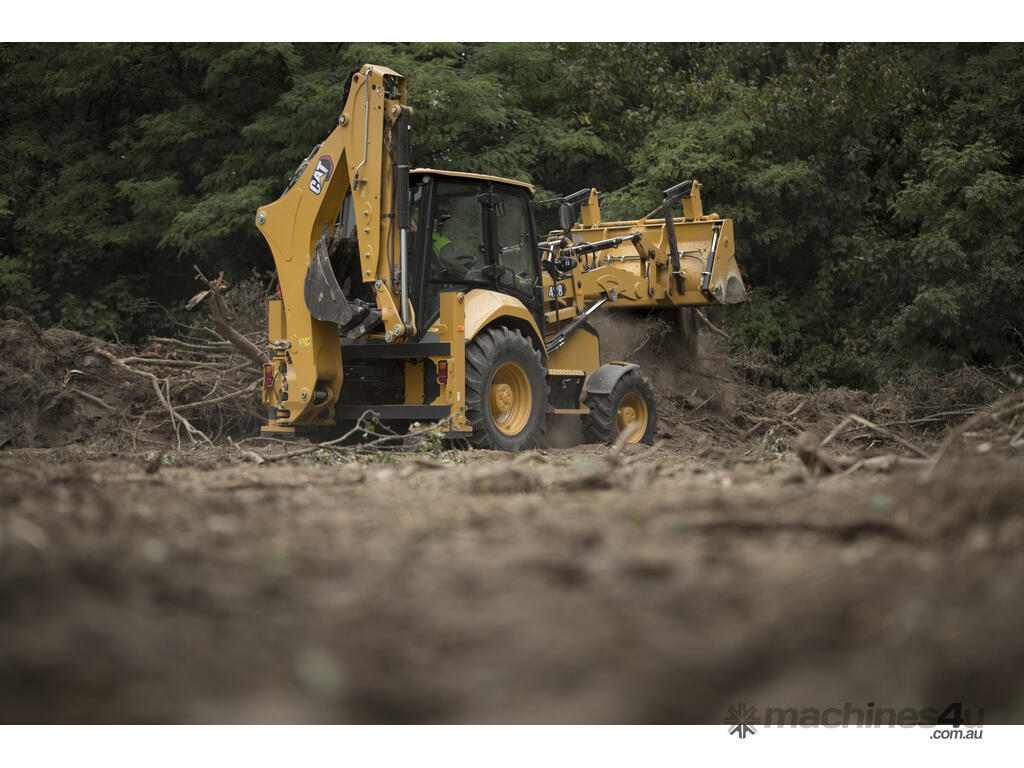

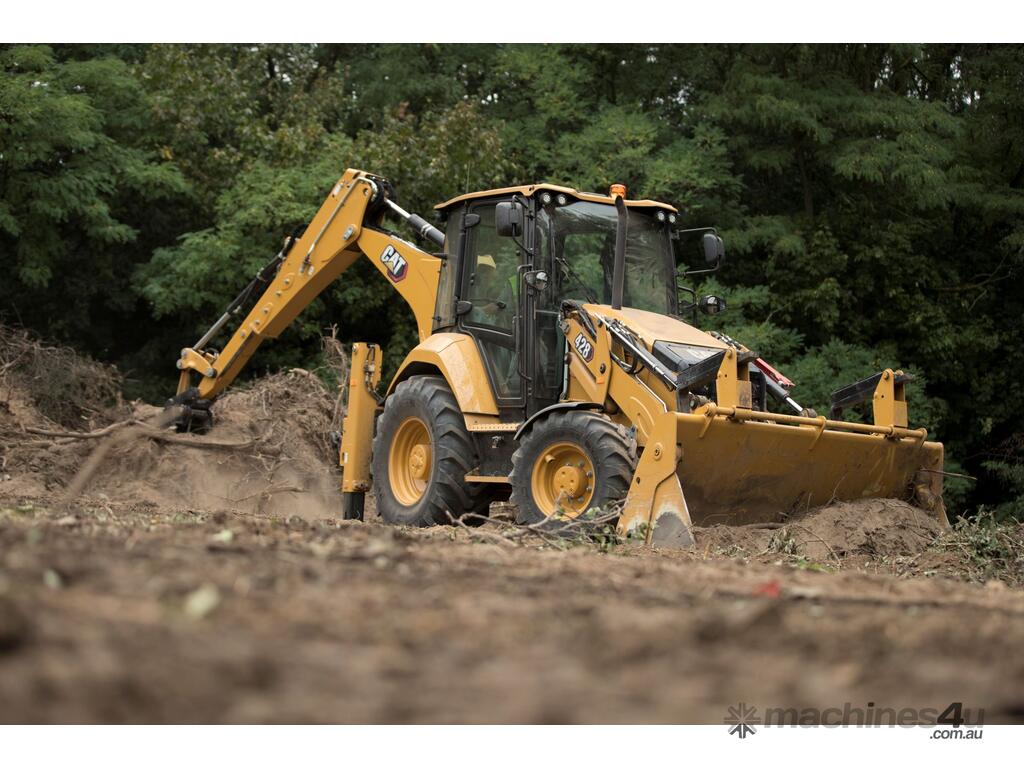

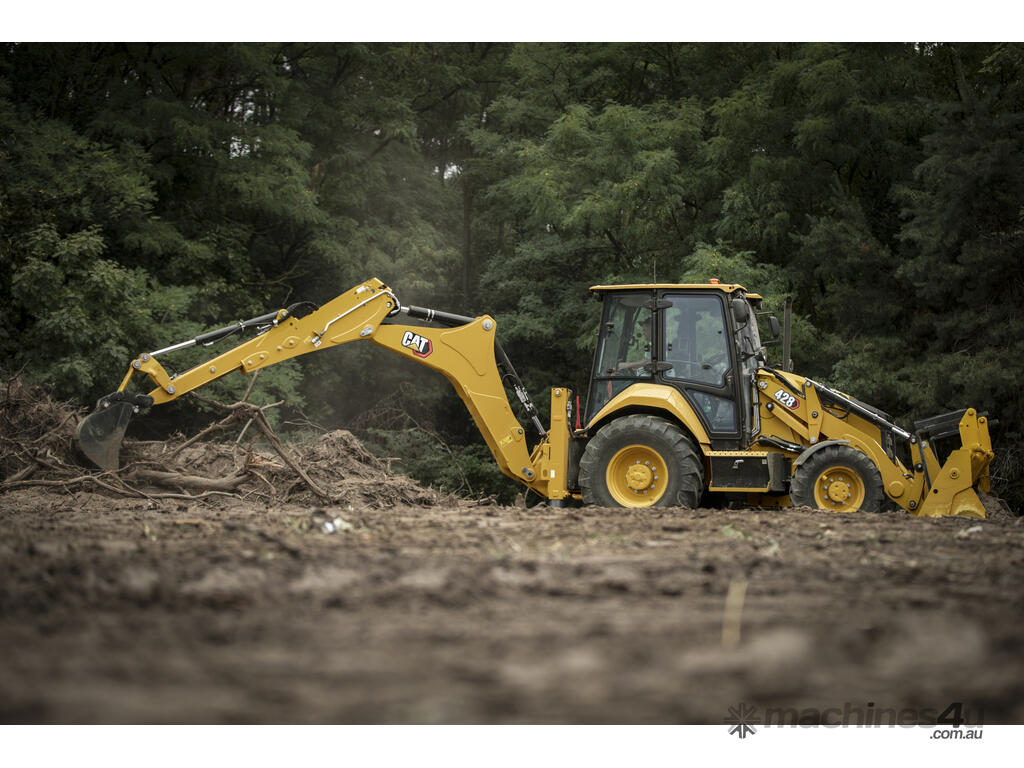

The Cat® 428 Backhoe Loader delivers exceptional performance, a superior hydraulic system and spacious operator station.
ENGINE:
CAT C3.6
Power - Net - 70 kW Electronic
Turbo Intercooled
Gross Power (SAE J1995) - 71 kW
Engine Power (ISO 14396) - 70 kW
Rated Net Power - 2,200 rpm
SAE J1349 - 64 kW
ISO 9249 - 63 kW
Net Peak Power 2,200 rpm
SAE J1349 - 64 kW
ISO 9249 - 63 kW
DIMENSIONS
Bore - 98 mm
Stroke - 120 mm
Displacement - 3.6 L
Net Torque Rise 1,500 rpm - 43%
Net Peak Torque SAE J1349 - 395 N·m
WEIGHTS
Operating Weight* (estimated) - 9453 kg
Operating Weight (maximum) - 11 000 kg
HYDRAULIC SYSTEM
Type - Closed Center
Pump Type - Variable-flow, Axial Piston
Pump Capacity 2,200 rpm - 160 L/min
System Pressure:
Backhoe 25 000 kPa
Loader 25 000 kPa
