CEA Containerised Self Bunded Fuel Tanks

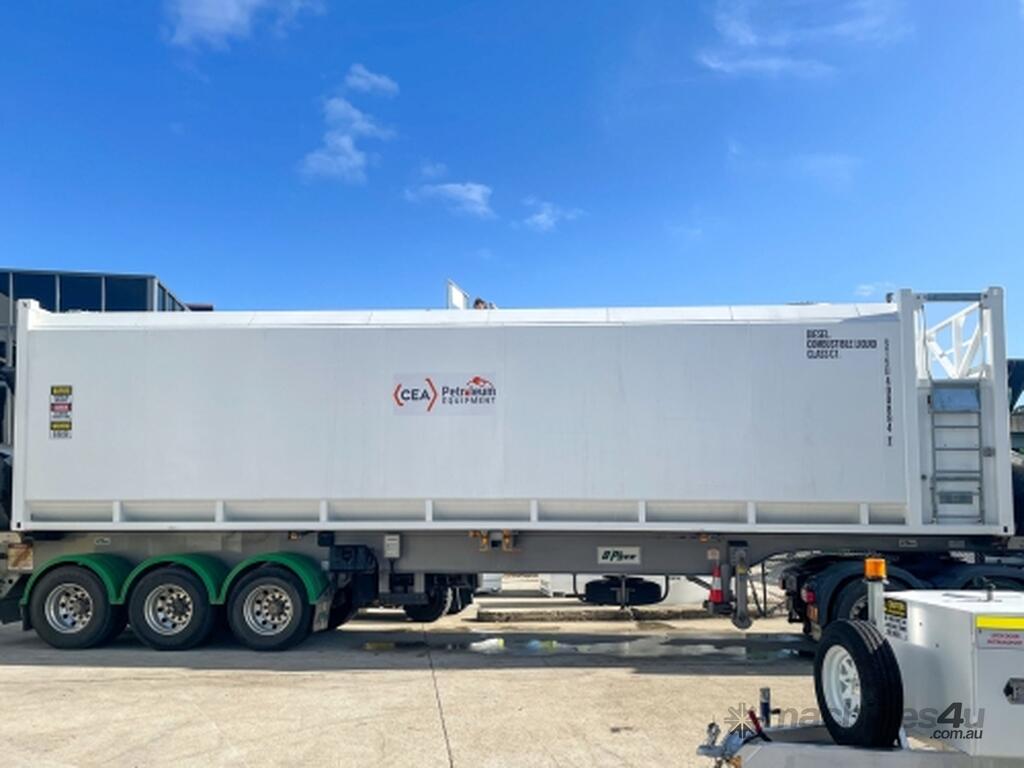

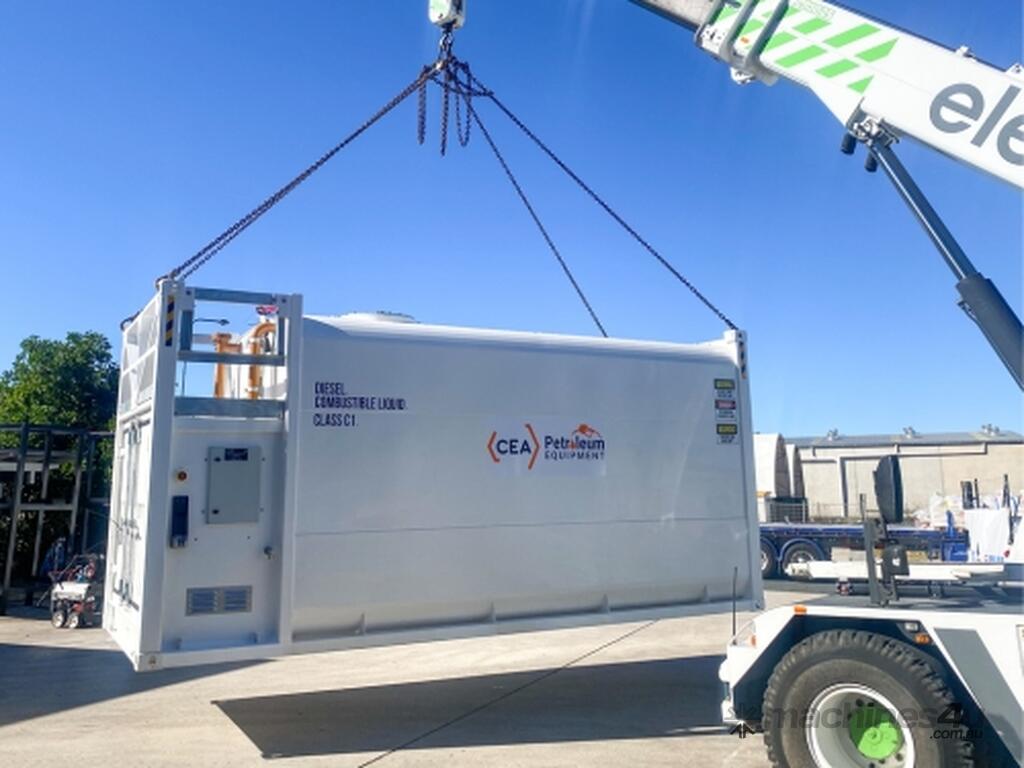

The CEA Containerised Self Bunded Tank Range is designed and approved as a standard intermodal shipping container footprint. Each CEA Containerised Self Bunded Tank is provided with a CSC plate allowing the tank to be shipped via Road, Rail or Sea as a standard container.

We can supply a range of materials for the primary and secondary tanks allowing the CEA Containerised Self Bunded Tank to be used to store a wide variety of fluids. Design options include the ability to supply multiple compartments in the one tank footprint allowing for the site storage of multiple fluids.

At A Glance
Available in 12Kl / 18kL / 30kL / 38kL / 69kL / 75kL / 80kL / 90kL / 110kL
CSC Plated as 10FT / 20FT / 40Ft / 48FT Container
6mm Primary and 6mm Secondary Tanks

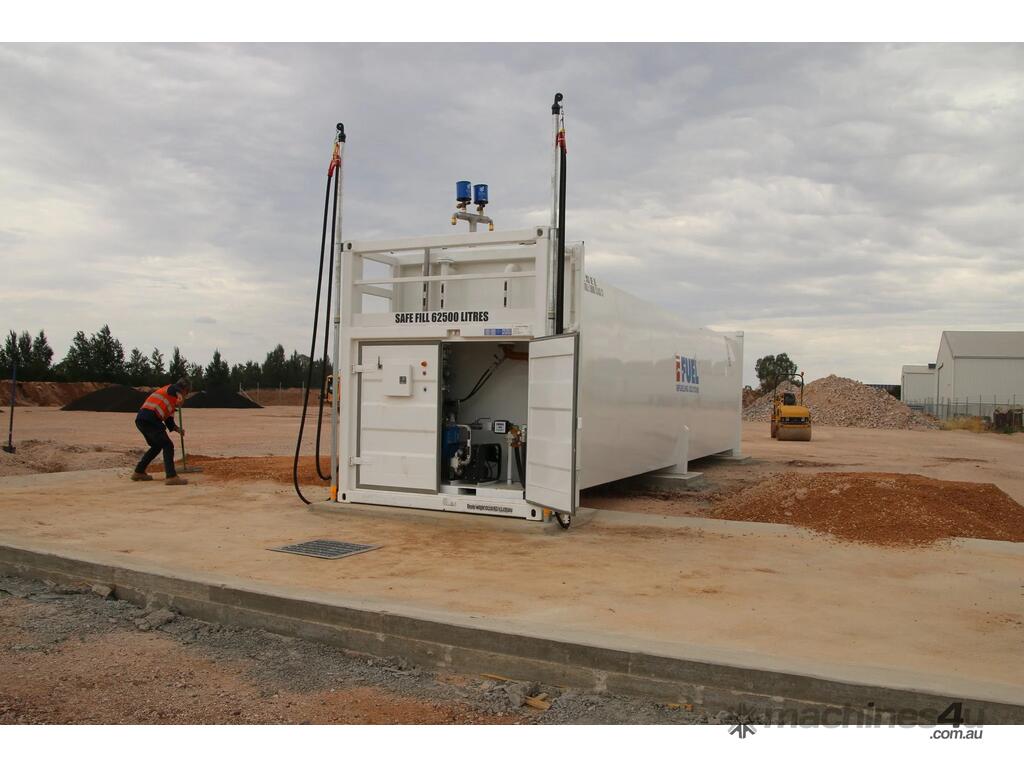

Bunded, lockable, weatherproof, pump bay housing
Max Capacity 10,000-106,000 litres
Dry Weight 4,500-21,100 kg

CEA Petroleum Containerised Self Bunded Range starts at tanks with capacities of 10,000 litres and goes up to 106,000 litres.

Technical Summary

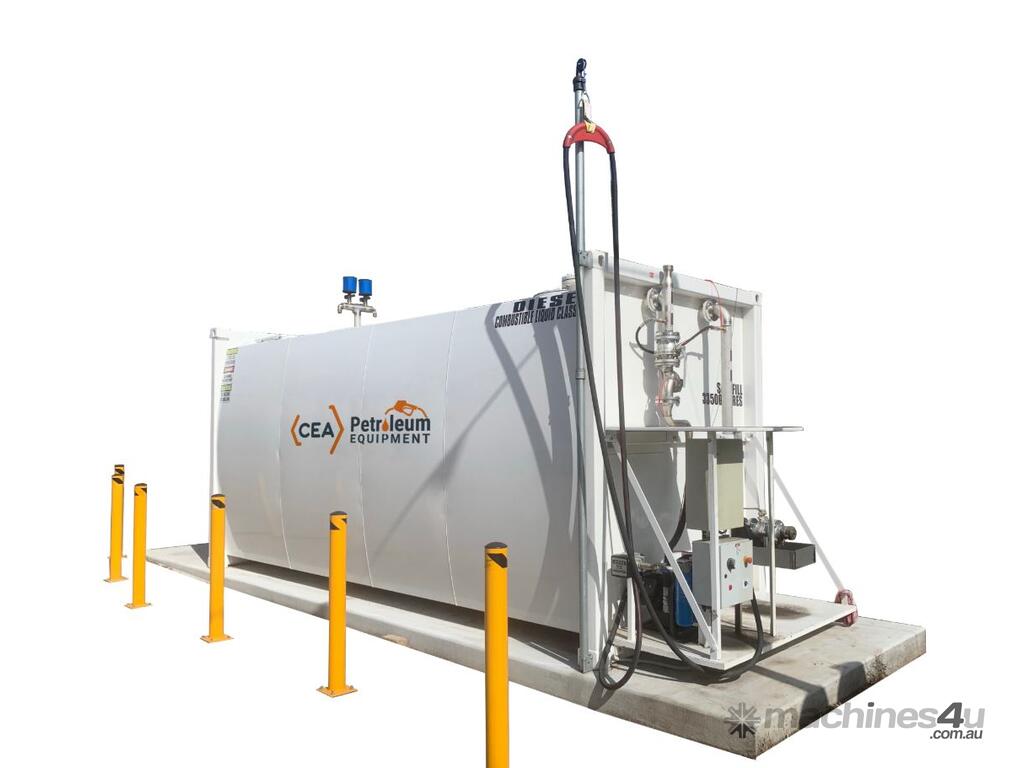

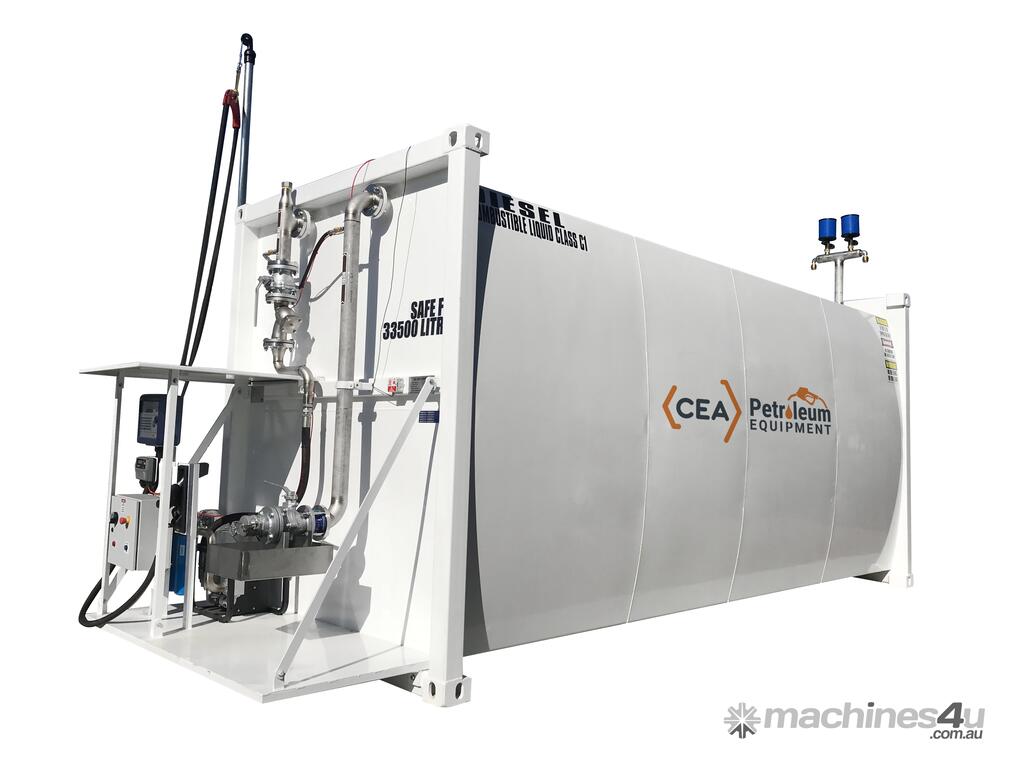

• Integrated Bunded Pump Bay and Tank Access Platform
design providing access to the full tank functionality in one
convenient location on the tank.
• Unique rounded rectangular tank profile maximises the
storage capacity of the tank and provides the strength of a
cylindrical design.
• Rounded roof profile that will not pool water / snow or sand.
• CSC plated as 10ft / 20ft / 40ft / 48ft Standard Container.
• Dispensing Equipment housed within a lockable bunded
pump bay housing.

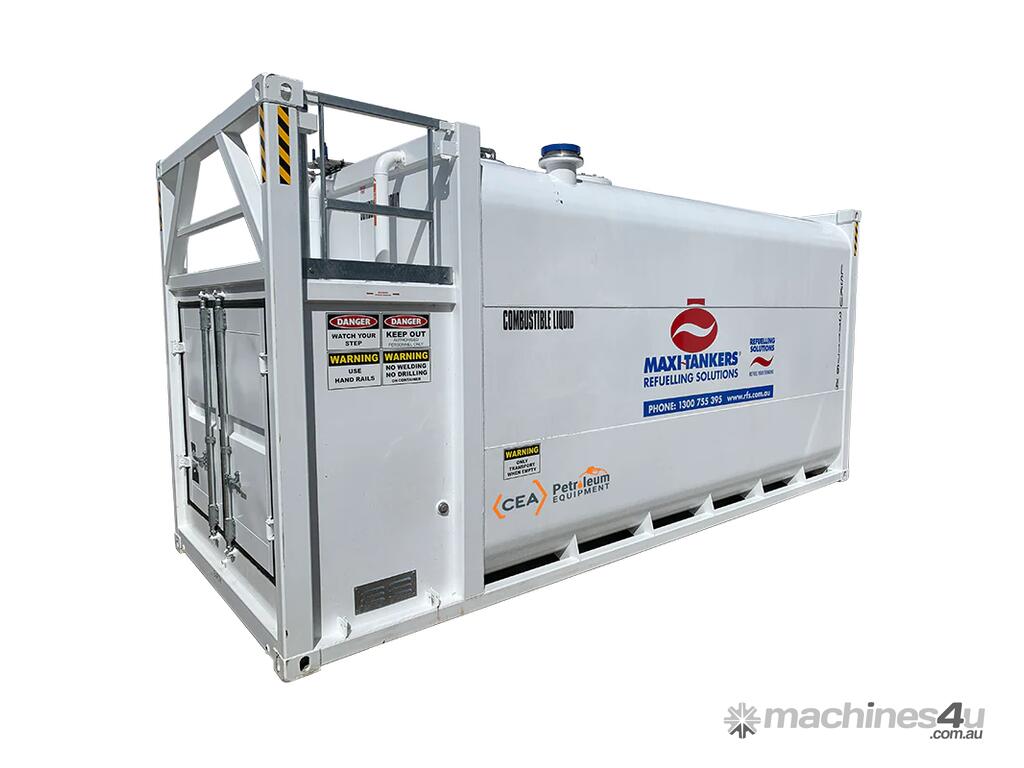

• Lockable Container Doors with option for Roller Door.
• Supplied with Interstitial Emergency Relief Vent that will
relieve the gap between the two tanks in the event of a fire.
• DN80 Fill Point c/w Camlock Male Fitting / Dust Cap / Fire
Safe Full Bore Ball Valve / Wafer Style Non Return Valve.
• DN80 Suction Outlet c/w Anti Syphon Valve and Two Piece
Full Bore Fire Safe Ball Valve.
• DN80 Mechanical Overfill Valve + 12V Battery Operated
Overfill Alarm. 2 x 600mm manways with integrated tank
access ladder assembly.
• Fold out AS1657 designed and approved access ladder.

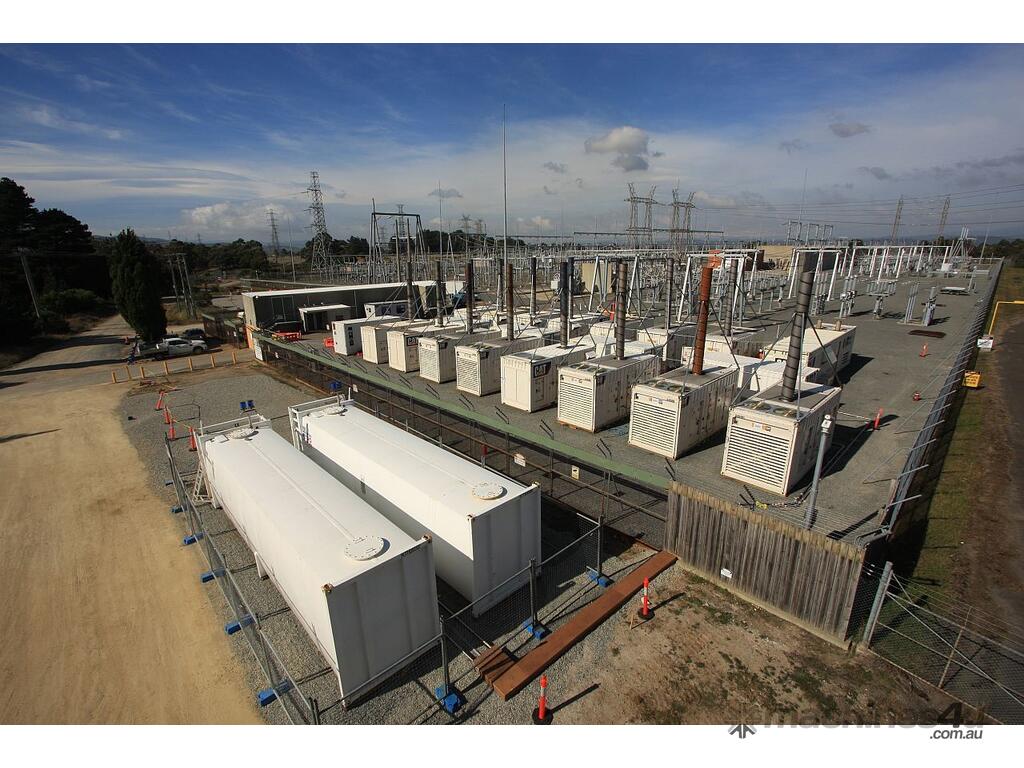

• Removable plate to allow the linking of multiple tanks in tank
farm applications. Full under tank visibility allows for regular
visual inspection of the tank base and prevents the base
rusting by providing unrestricted air flow under the tank.
• Paint Colour RAL9003 Signal White. Tanks are sandblasted
to SA2 Standard. Hempel Marine Paint 3 Stage process.
• Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520.
Final Coat Hempathane Enamel 55100. Finished dry film
thickness no less than 180 um.
• Supplied with all required statutory safety decals for your
region of operation.
