CENTAURO TC1200 Woodlathe

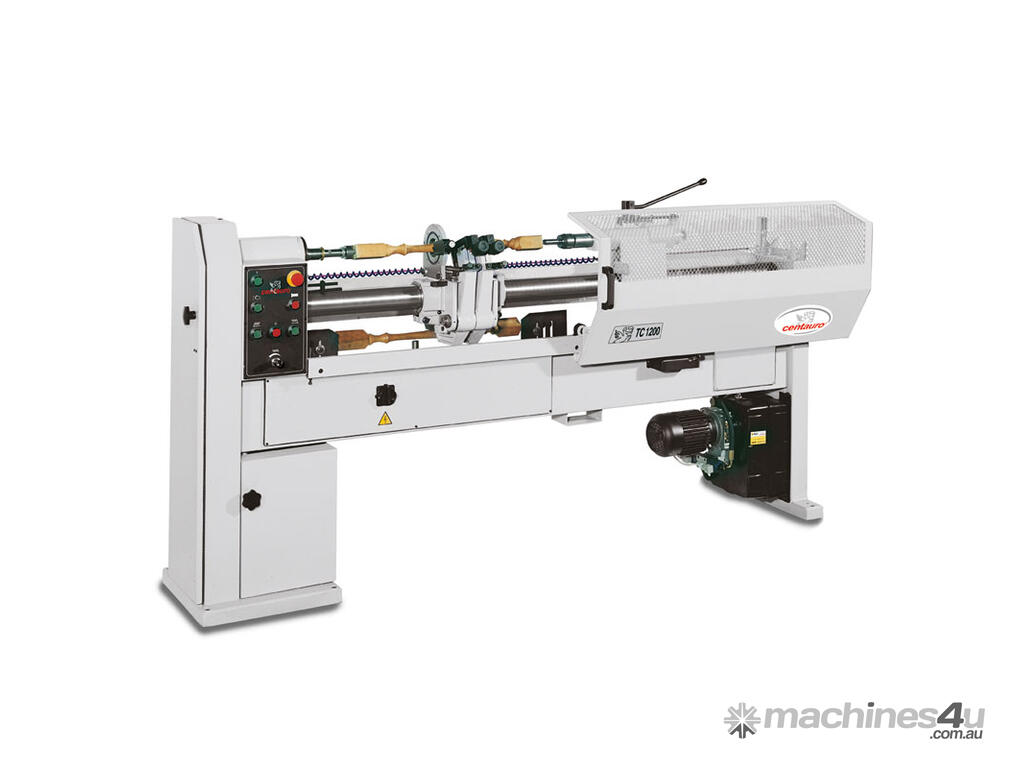

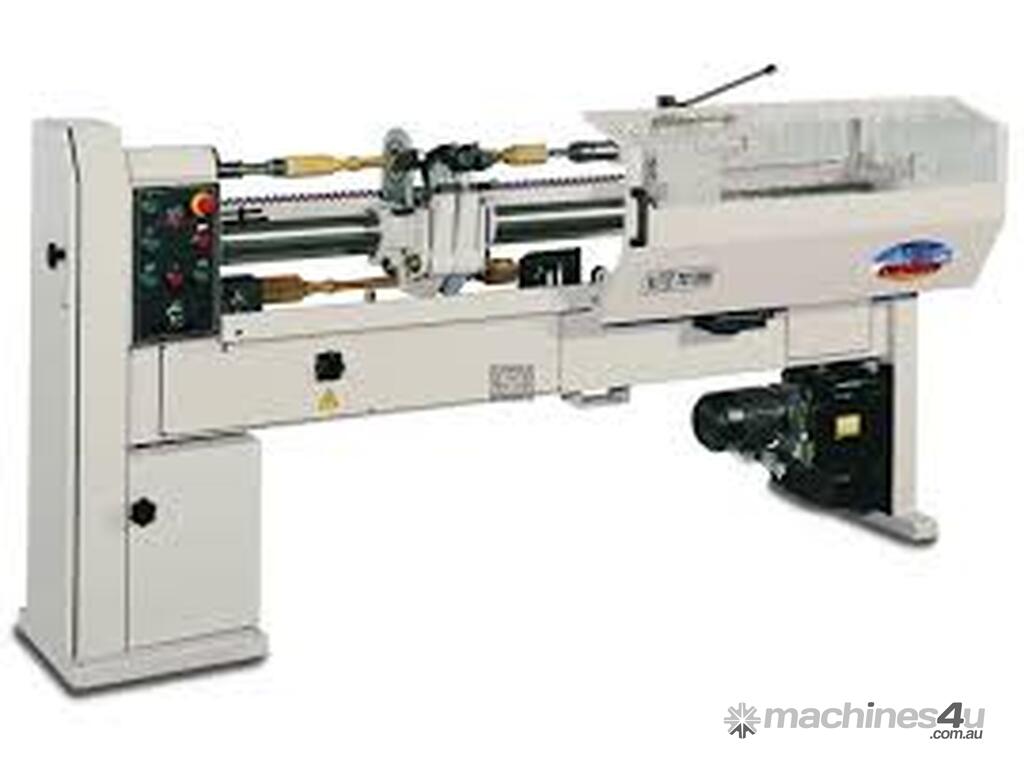

MECHANICAL COPYING LATHE The TC 1200 is a mechanical copying lathe suitable for the small and medium series production of stair columns, table and chair legs, and furniture components in general. The turning group has a double balance with 2 gouges which, together with the mobile bezel mounted on the carriage, allows the copying of even particularly thin pieces without difficulty. The trolley is hydraulically operated and its forward speed is controlled by the operator.
Professional mechanical copying lathe for precise machining up to 1200 mm on wood and non-ferrous metals.
- Distance between centers 1200mm
- Saddle feed and return hydraulically controlled

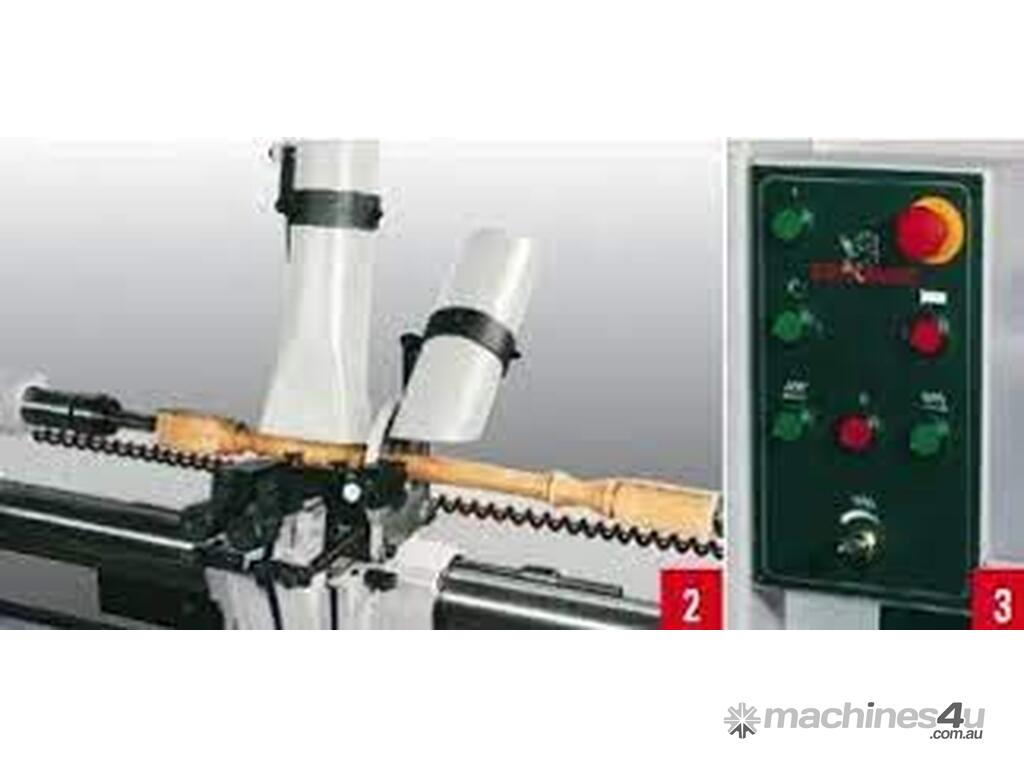

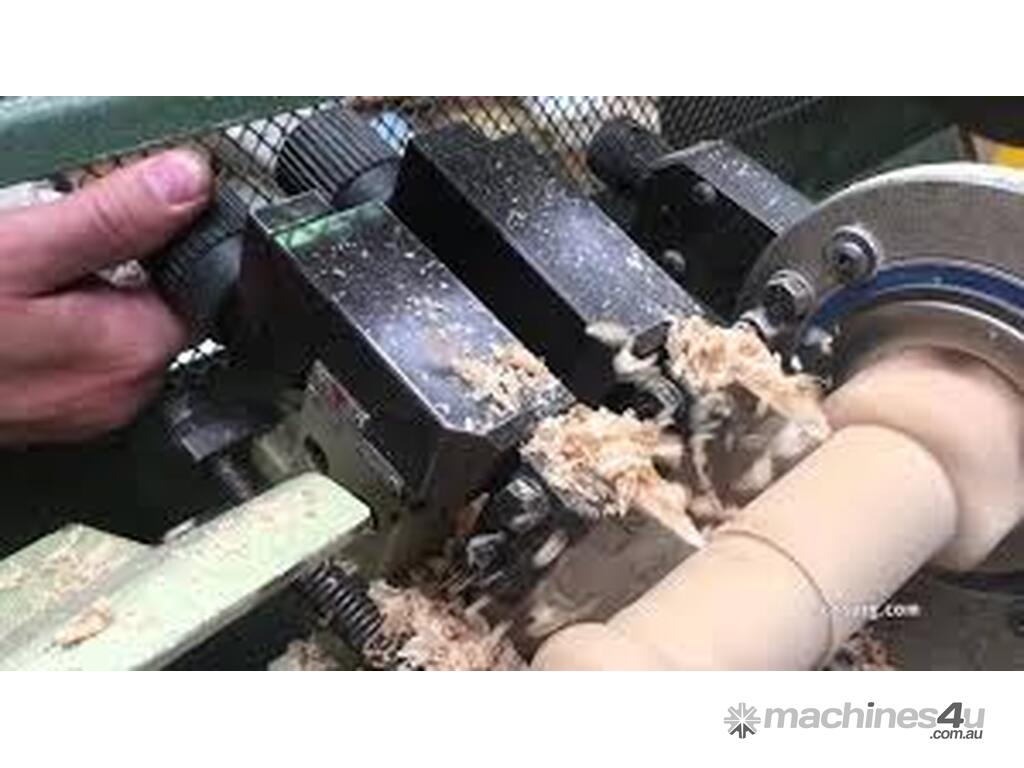

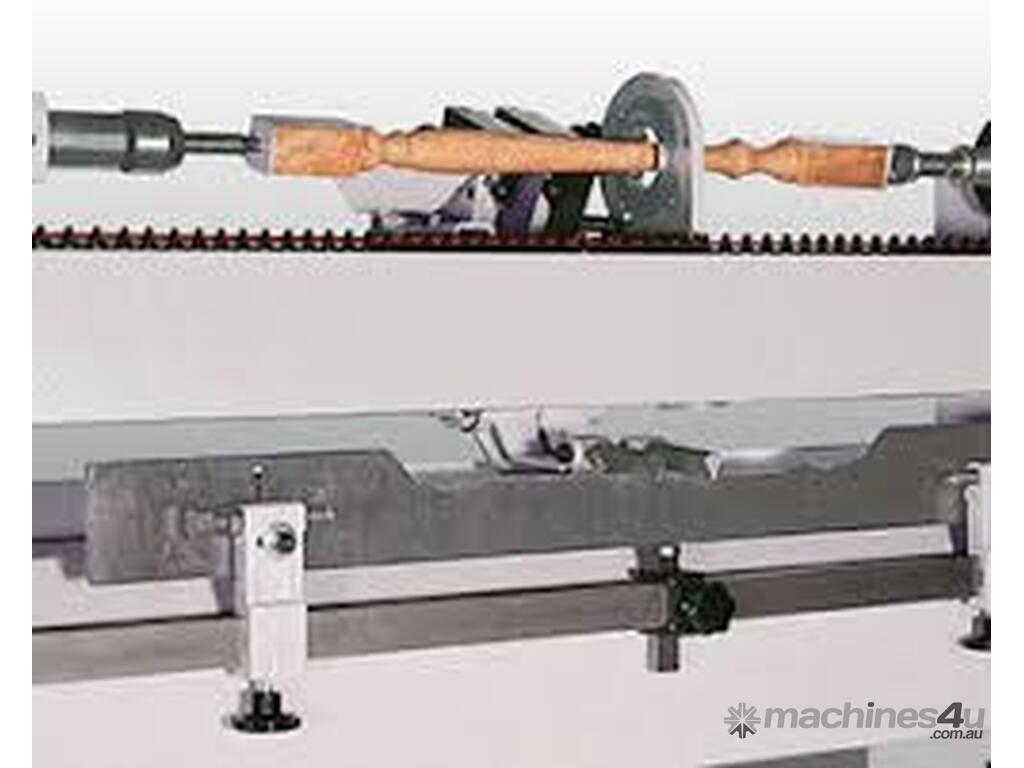

- Mechanical copier with 2 cobalt gouges R. 1,25 mm

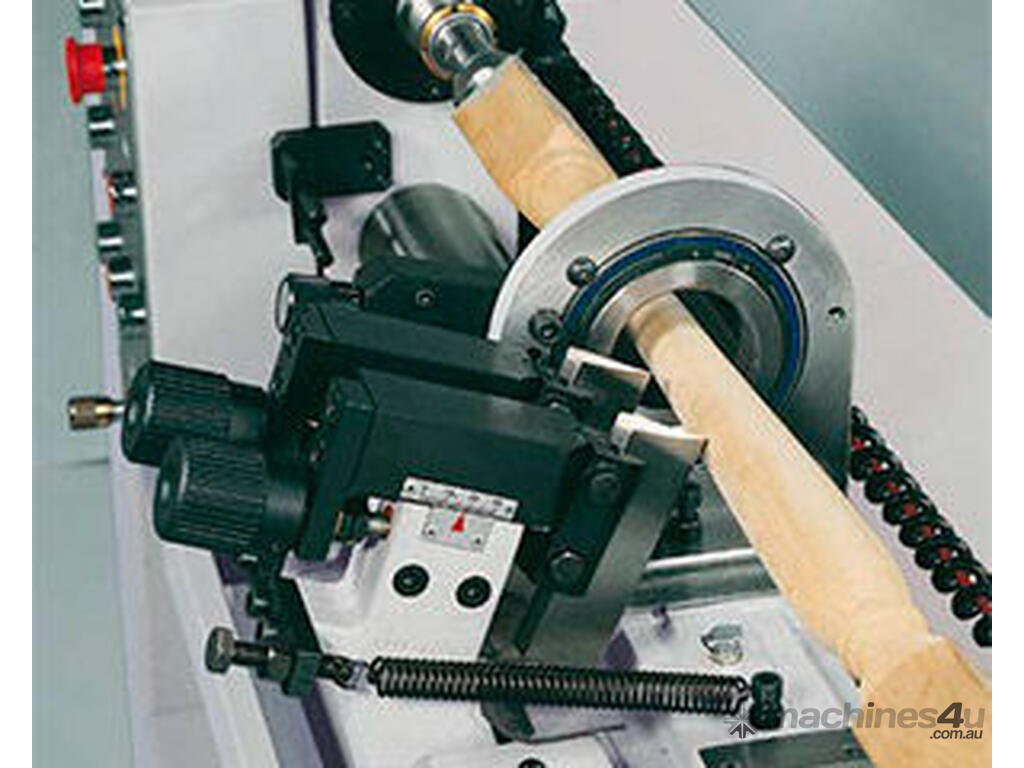

- Revolving steady D. 90 mm for square 65x65 mm
- Reducing bush for revolving steady D. 90 mm
- Pre cutting insert knife Driving centre with 2 interchangeable jaws D.28 & 45mm
