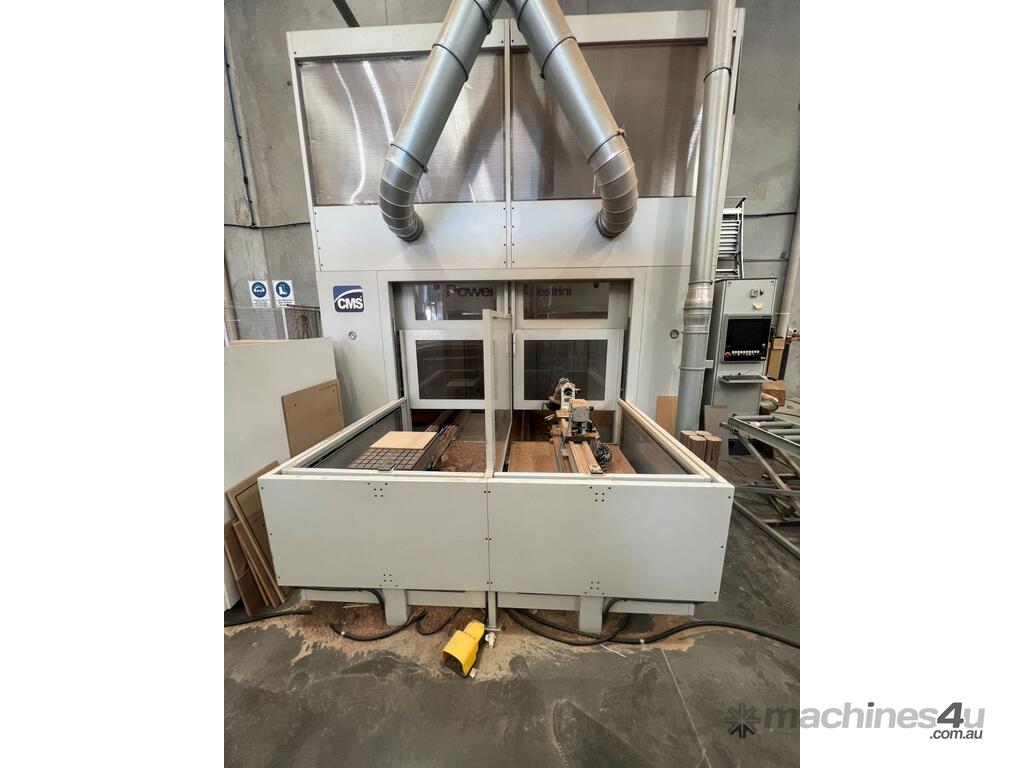

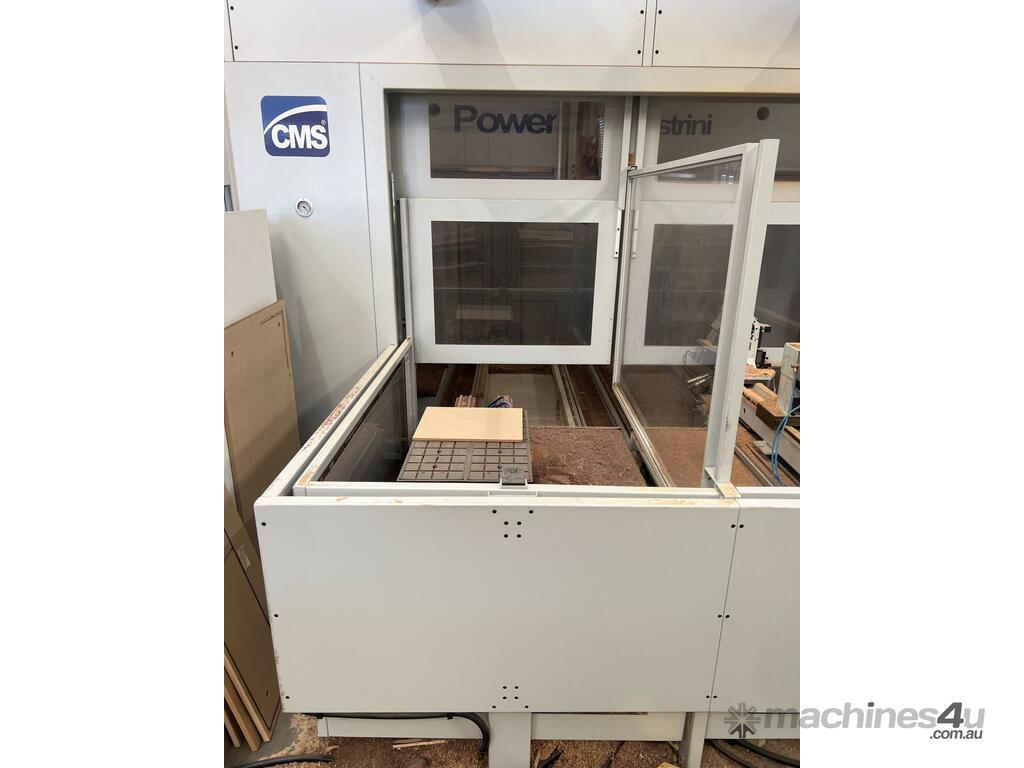

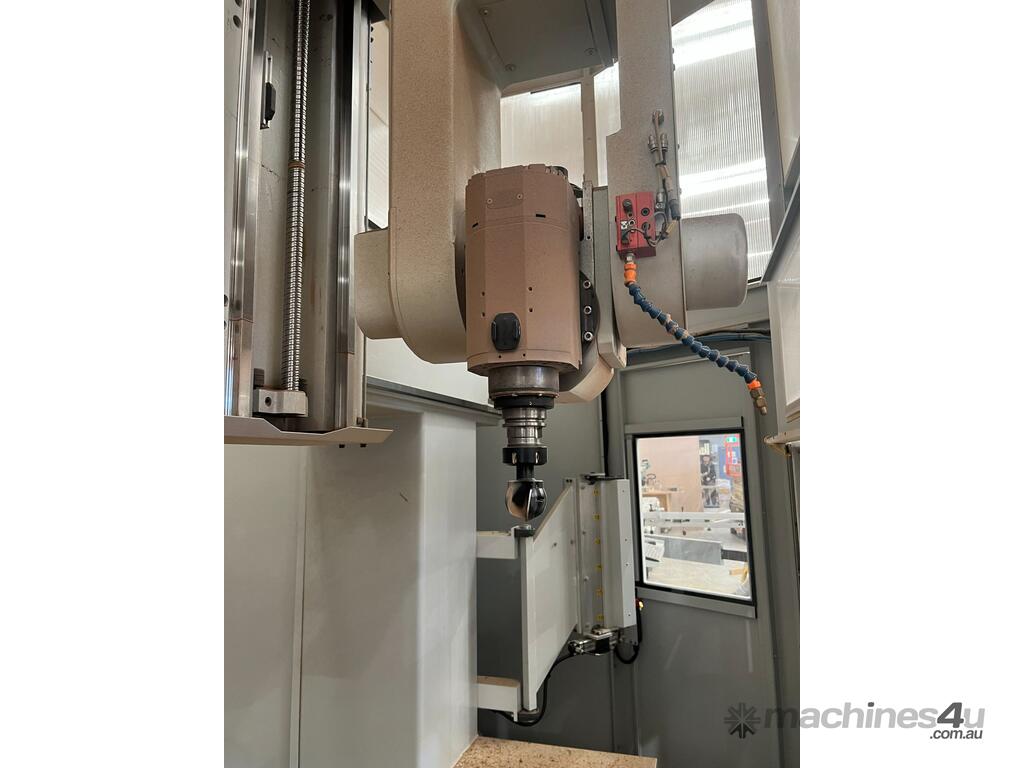

CMS 6 Axis CNC - POWER 200/150 CS33

High-Precision. High-Power. No Limits.

The CMS Model Power 200/150 CS33 is a highly productive 6-axis CNC machining centre engineered for advanced contouring, shaping, milling, drilling, and full 3D machining. Designed with CMS’ renowned focus on precision, reliability, and safety, this machine is built for manufacturers who demand power, speed, and uncompromising accuracy across complex geometries and demanding materials.


Structural Design & Axis Movement
Fixed Bridge Construction

The CNC features a high-thickness welded and stabilised steel frame, delivering exceptional strength, vibration dampening, and long-term stability. The fixed bridge layout offers superior rigidity and machining precision compared to cantilever-style systems.

Axis Dynamics
The Y-axis carriage travels smoothly across the bridge on hardened, ground, and interchangeable linear guides.

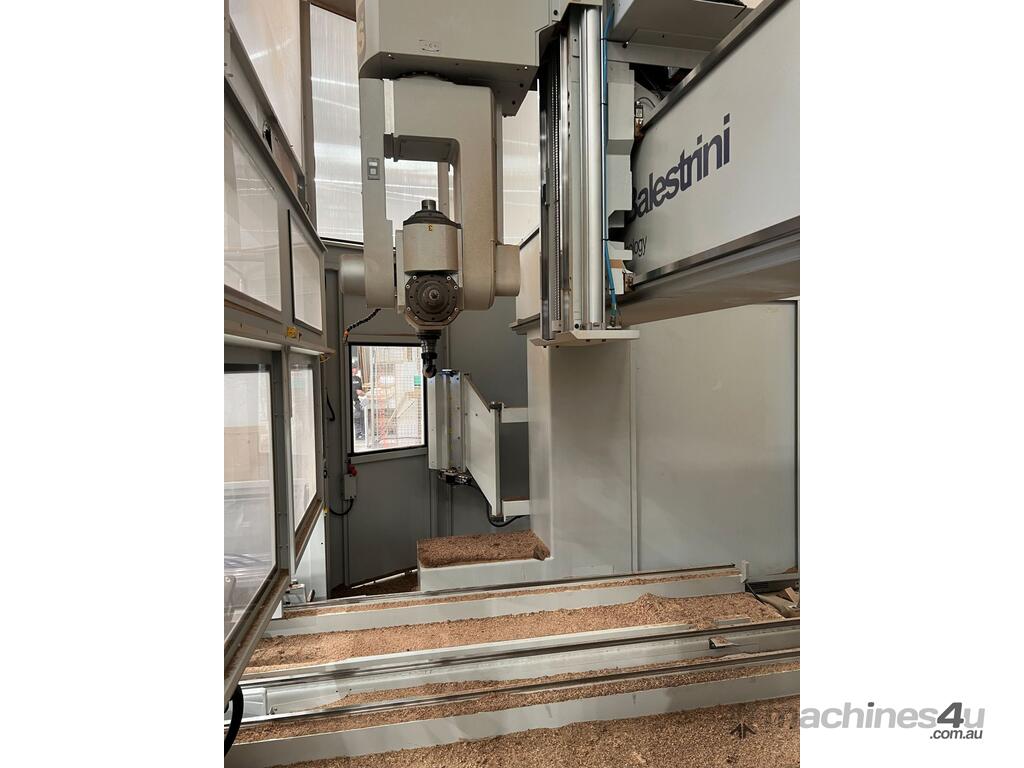

The Z-axis vertical slide is mounted on the Y carriage for optimised control and stability.

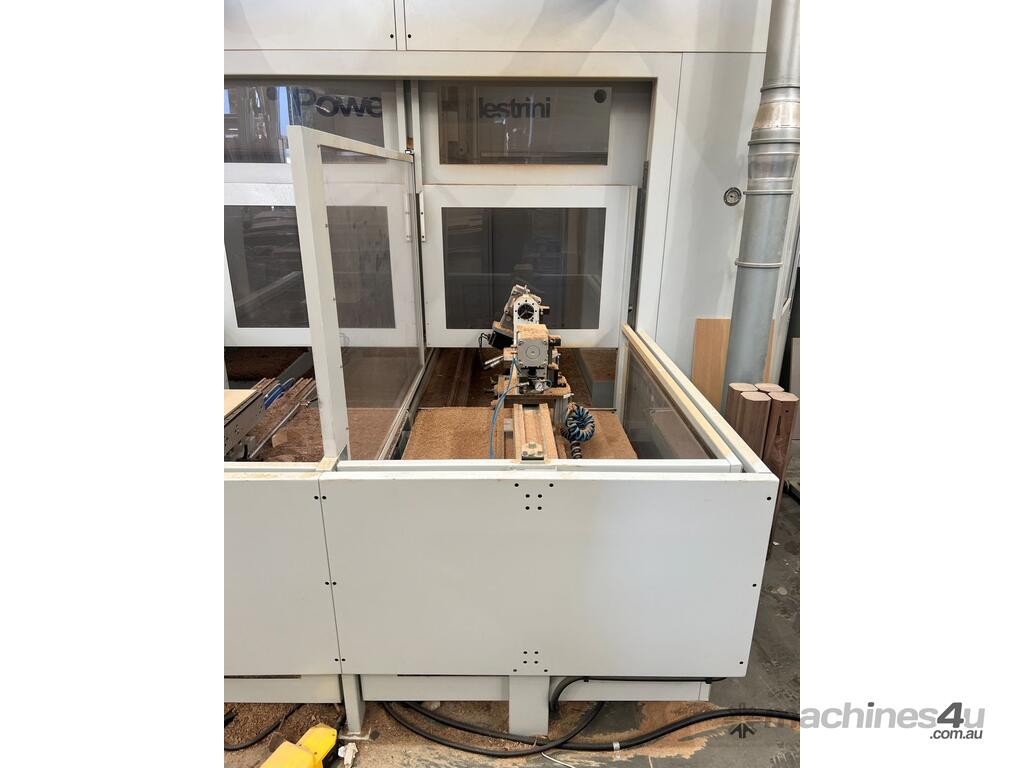

The X and U axes are driven by the movement of the work table, positioned perpendicular to the Y-axis for optimal accessibility and accuracy.

All carriages run on four-way track bearings with ball recirculation, ensuring long life, reduced maintenance, and perfected repeatability.


High-Performance Drive Systems
Y-axis: Rack-and-pinion drive with automatic backlash compensation via a pre-charged elastic system — guaranteeing smooth, precise motion over long travel distances.

X, U, Z axes: High-precision ball screws paired with pre-loaded nuts for exceptional accuracy in multi-axis interpolation.

The entire axis system is powered by AC brushless servomotors, delivering high torque, fast accelerations, and perfect motion integration.



Optimised Z-Axis Stability
The Z-axis assembly is supported by pneumatic balancing cylinders, counteracting the mass of the moving components to reduce wear and improve responsiveness during rapid vertical movements.


Built for Demanding 3D Applications
Whether producing deep reliefs, curved surfaces, large moulds, structural parts or sculpted architectural components, the CMS Power 200/150 CS33 offers:
