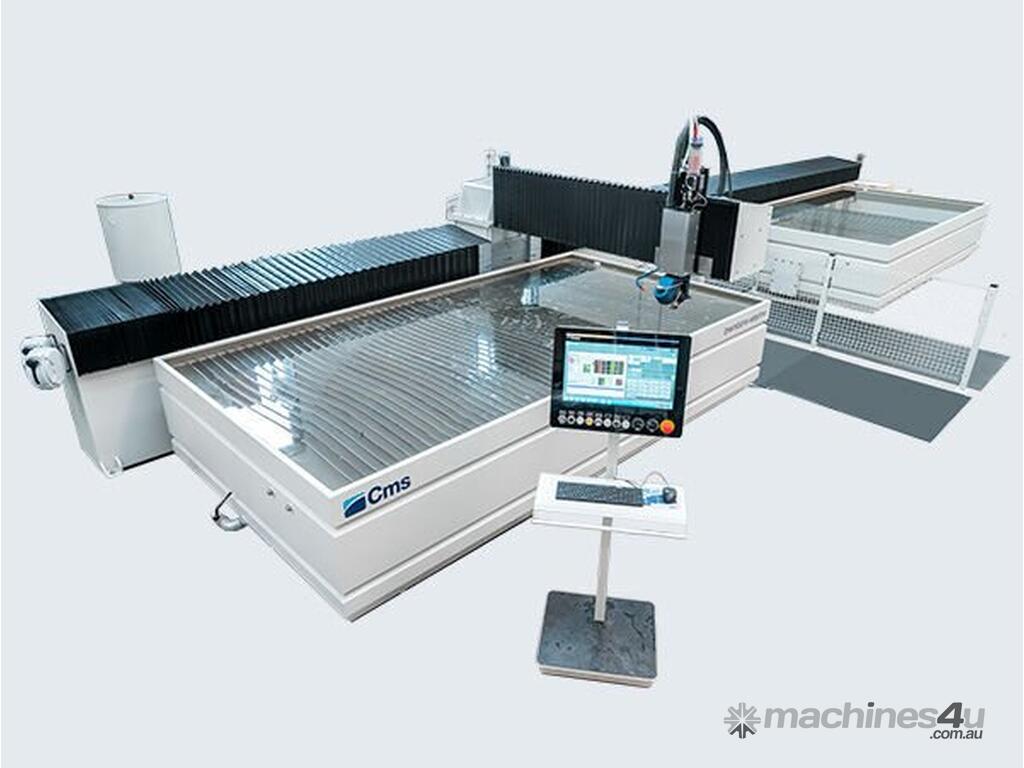

CMS BREMBANA EASYLINE 2040S - 5-Axis Waterjet for Stone Cutting

Innovync is a company with decades of experience with CNC machinery. With offices in NSW and QLD, local spare parts and a team of local technicians, we strive to be the example for excellent customer service.

**QUALITY MADE IN ITALY**

*****The Cms Brembana EASYLINE 5-Axis Waterjet Machine represents high quality engineering coupled with extra functionality to ensure that production is efficient and low cost as well as accurate.

*****The highlights of the EASYLINE 2040S Waterjet Machine are multiple.
Access from 3 sides of the machine gives the operator more control and a higher level of safety. The designers have anticipated things such as automatic changing of the parameters when thicker or different materials need to be cut at different speeds.

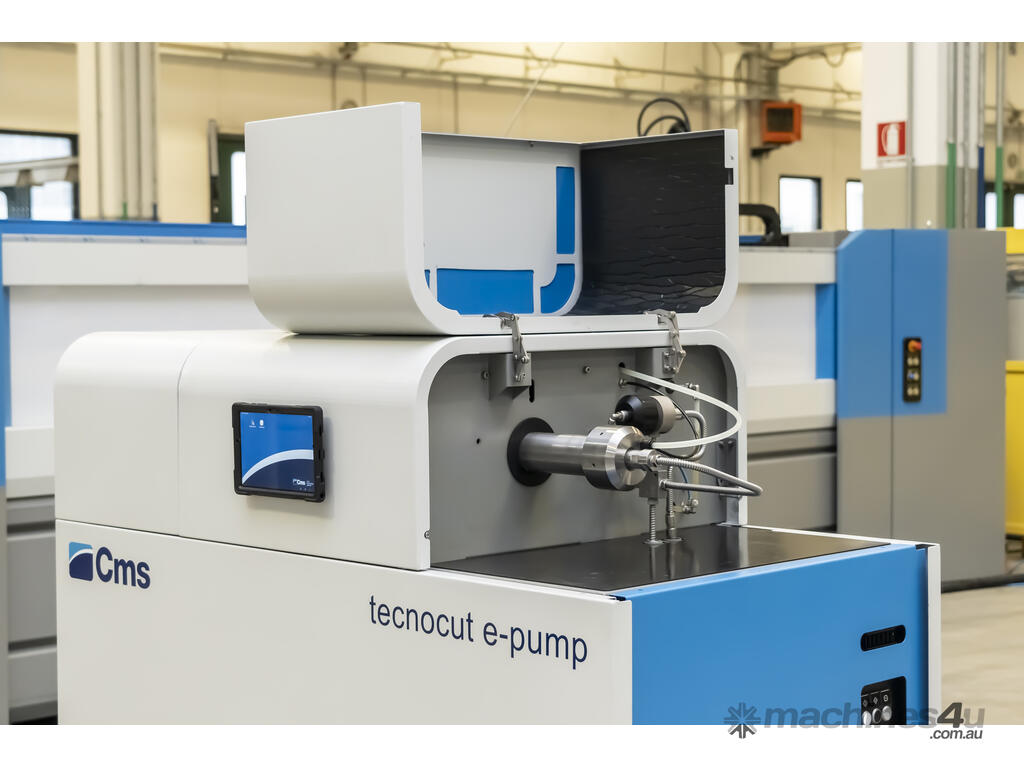

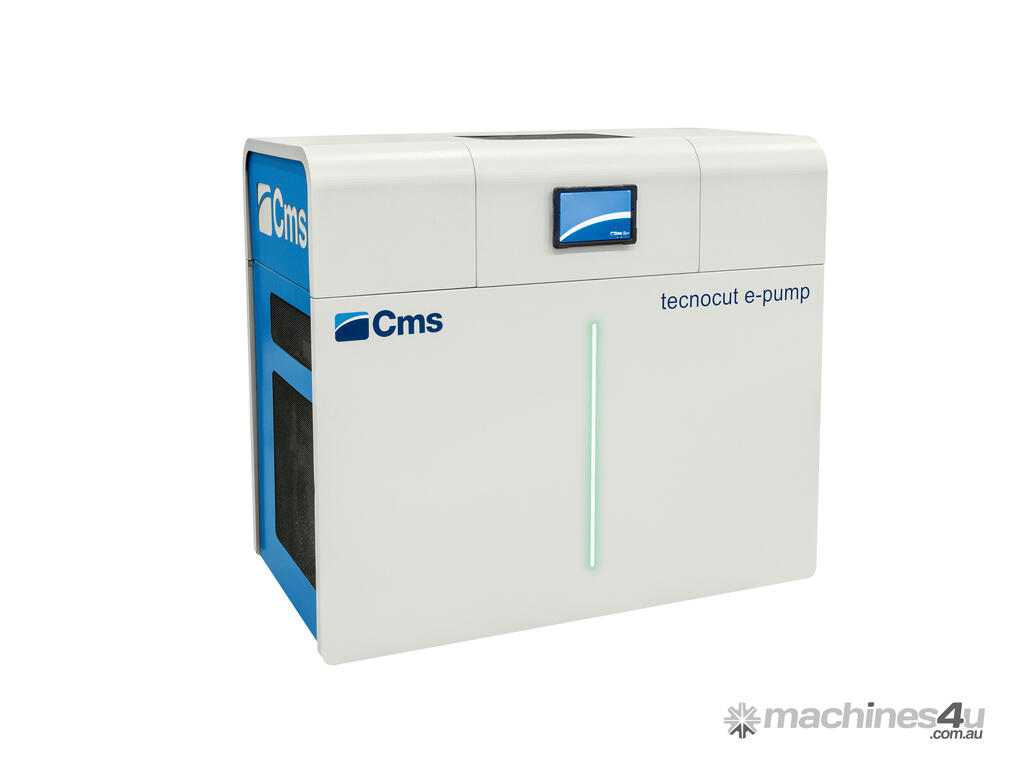

*****The unique E-PUMP HYBRID INTENSIFIER PUMP, designed and manufactured by CMS greatly reduces utilities costs, consumable costs and maintenance costs as well as being able to cut at faster speeds. All this increases production at a much lower overall cost compared to traditional hydraulic intensifier pumps.

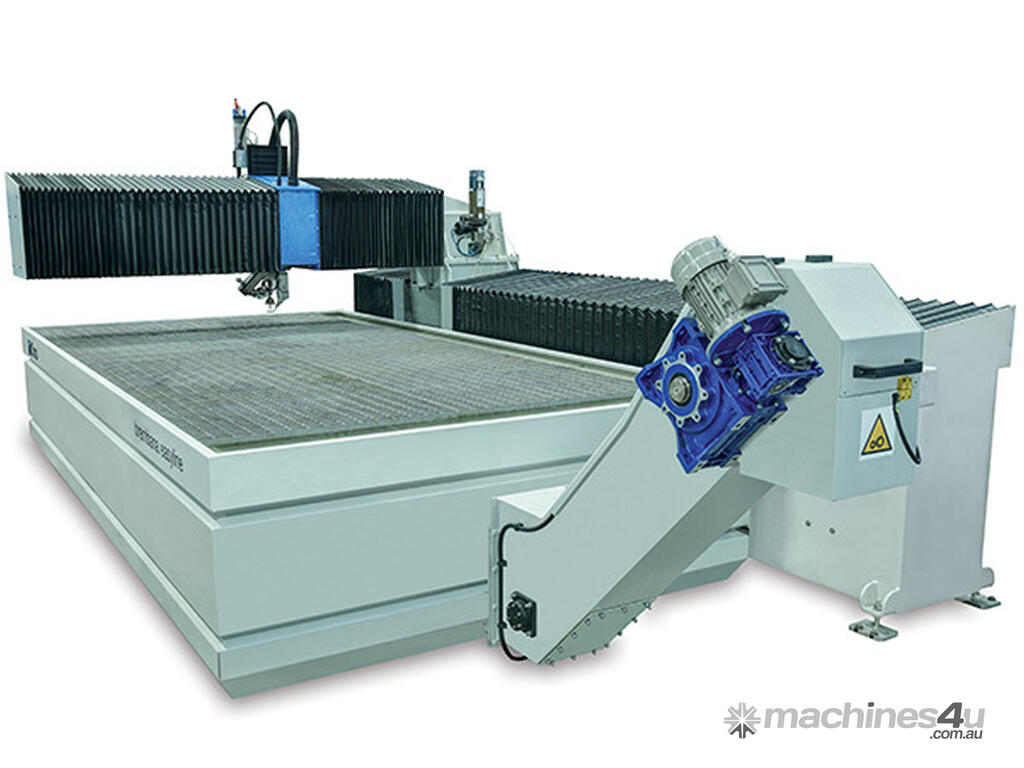

*****Dredging system for “no maintenance” abrasive removal. The removal system inside the tank is protected both by baskets for collecting scraps and by a metal cage.

OTHER UNIQUE DESIGN FEATURES:


*****RELIABLE CONSTRUCTION********

• Maximum loading area = 4000mm x 2000mm,

• ACCESS from 3 sides of the machine

• Mechanical Dredge to remove garnet automatically

• E-PUMP Hybrid Intensifier Pump 30 Kw - 4130 bar allows for lower maintenance and consumables cost and increases production by being capable of much faster cutting speeds. Annual Savings of appx. $12,000/year.

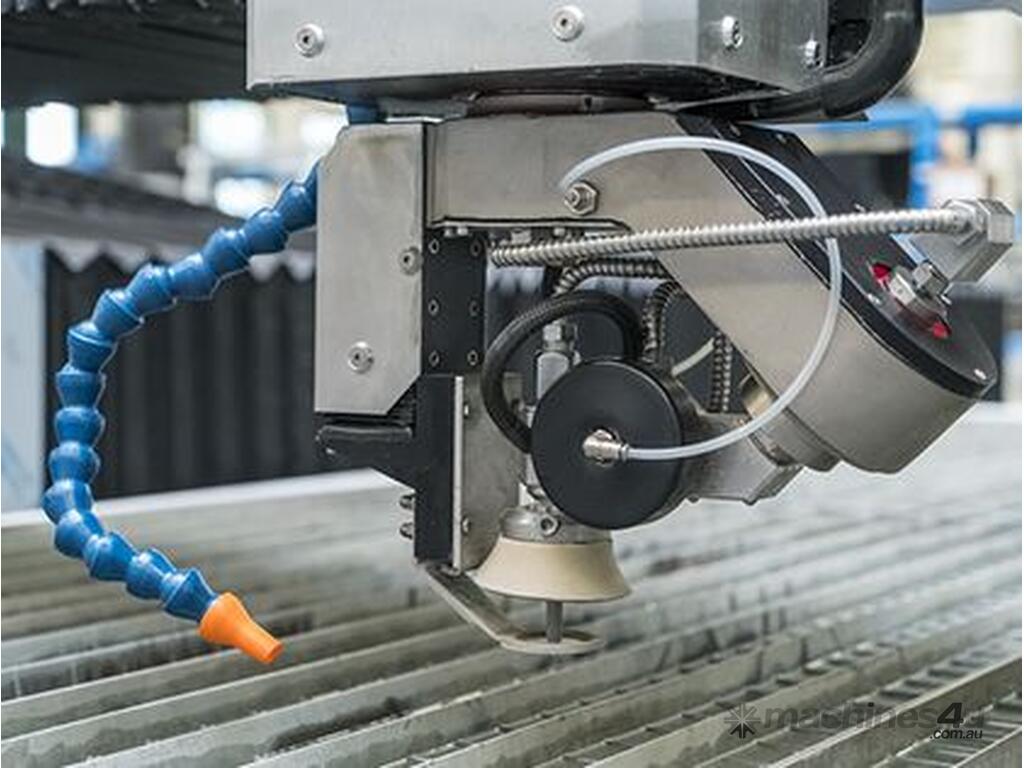

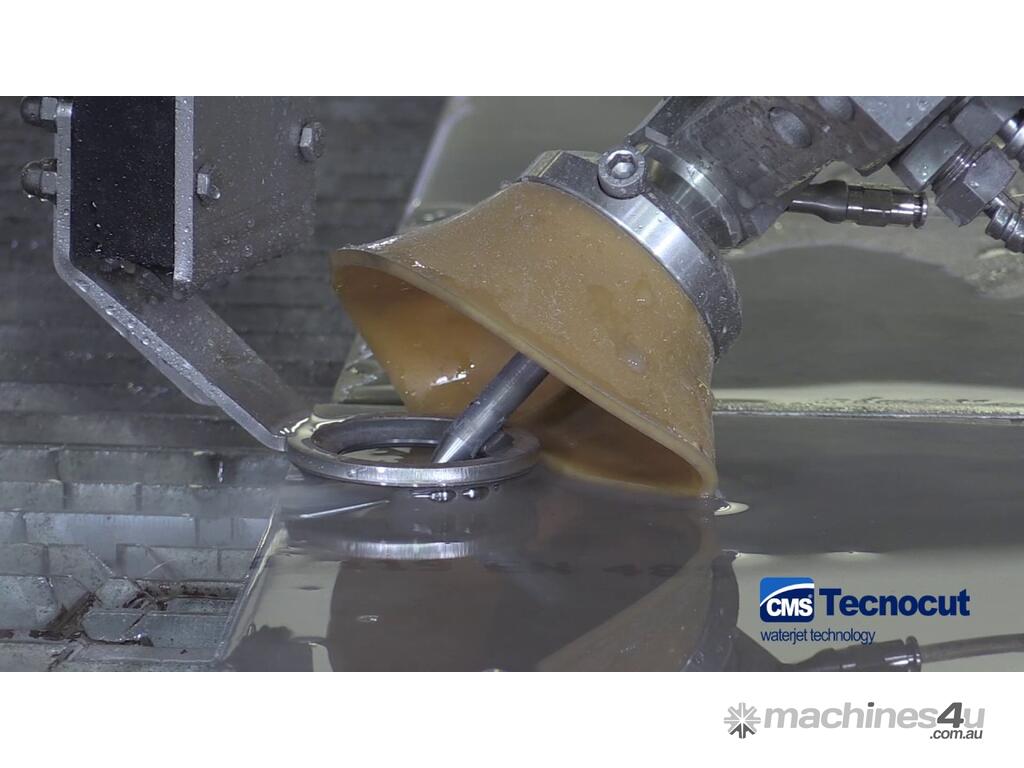

• 5-AXIS CUTTING HEAD with IKC technology ensures perfect cutting angle on every material and every thickness.

• 300Kg PRESSURIZED ABRASIVE HOPPER with warnings for refilling

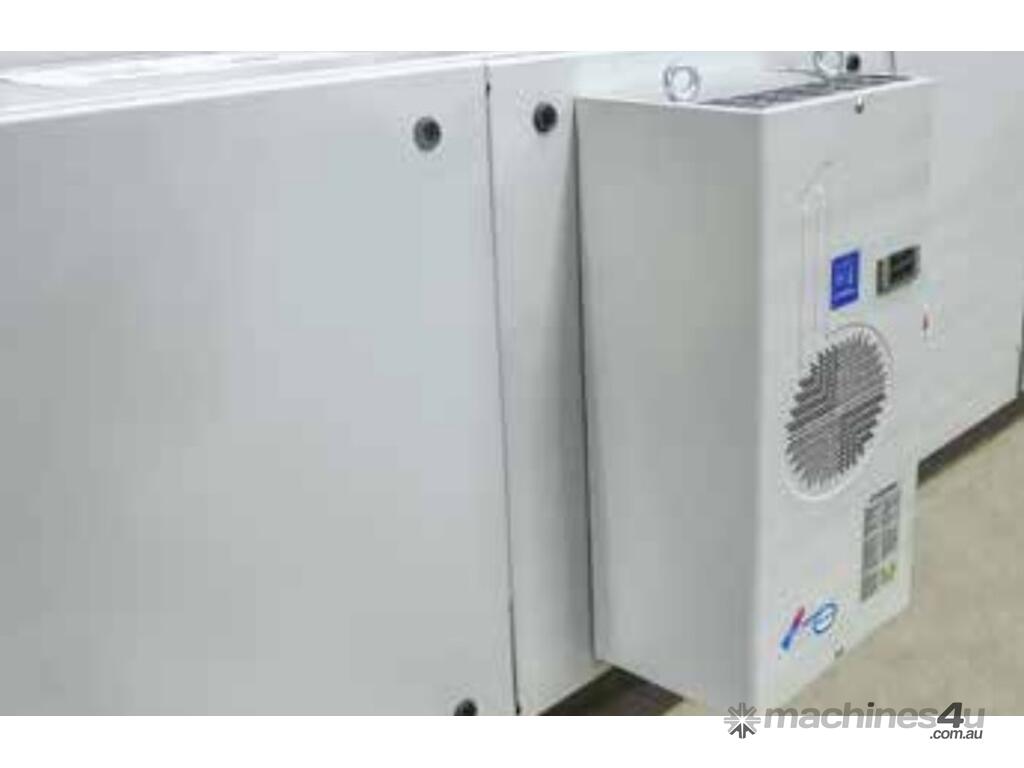

• AIR CONDTIONING of the control console AND the electrical cabinet

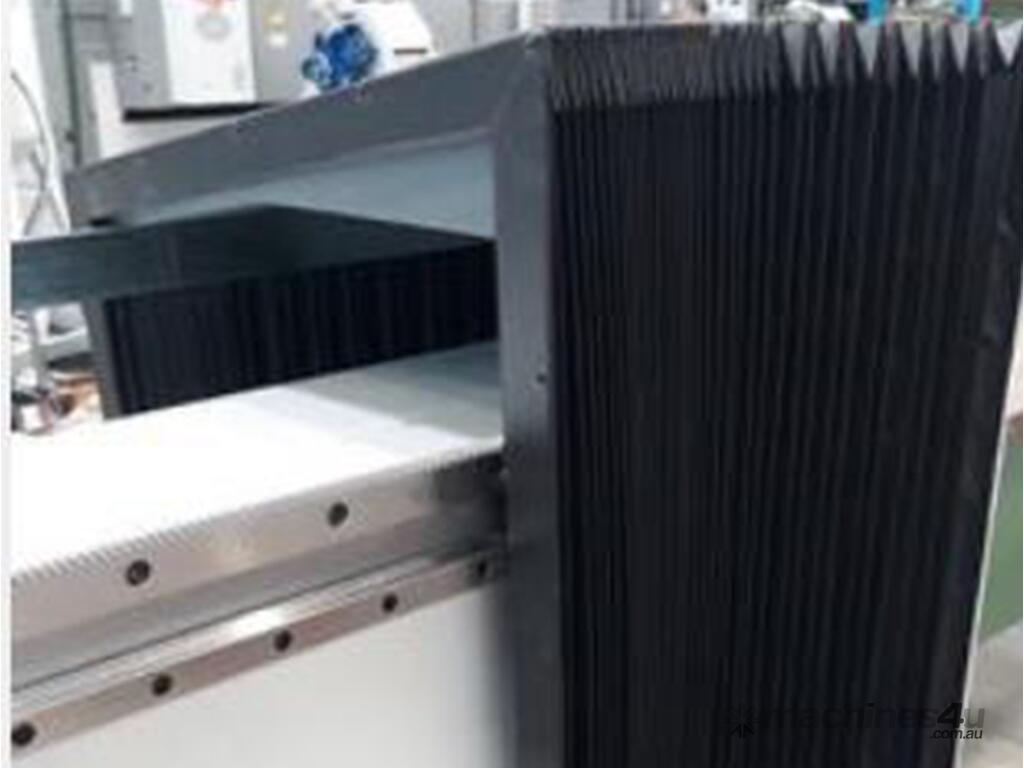

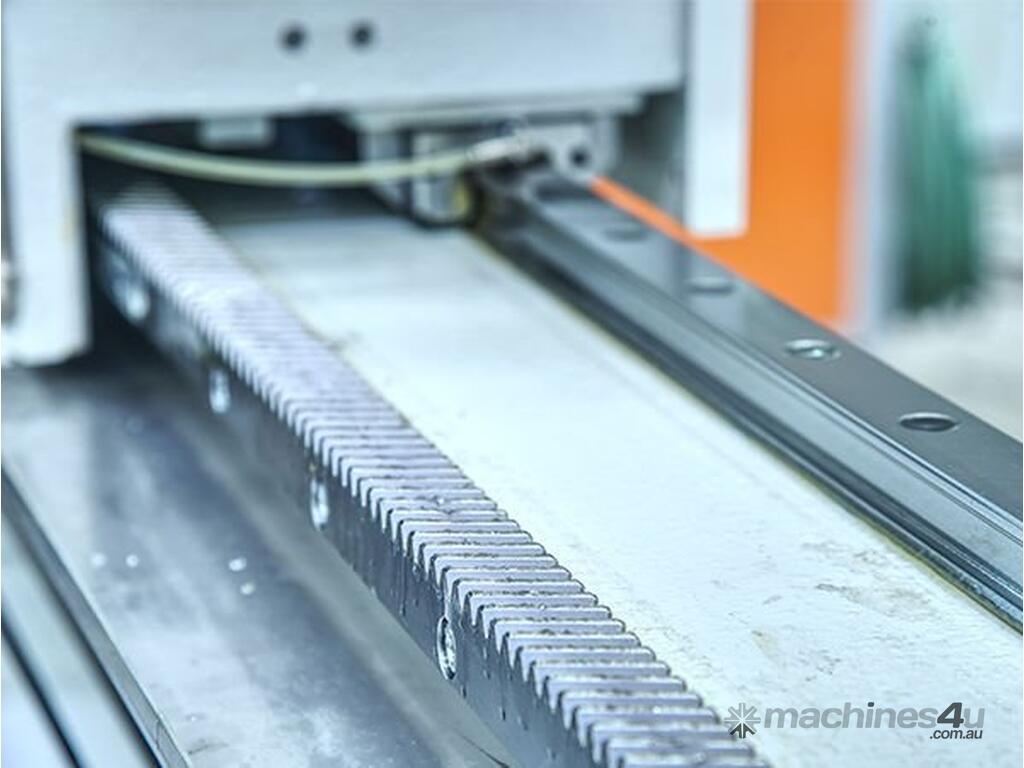

• HELICAL RACK & PINION on the X and Y axis supported by heavy duty linear guides



*****TAKE THE RESPONSIBILITY AWAY FROM THE OPERATOR*********

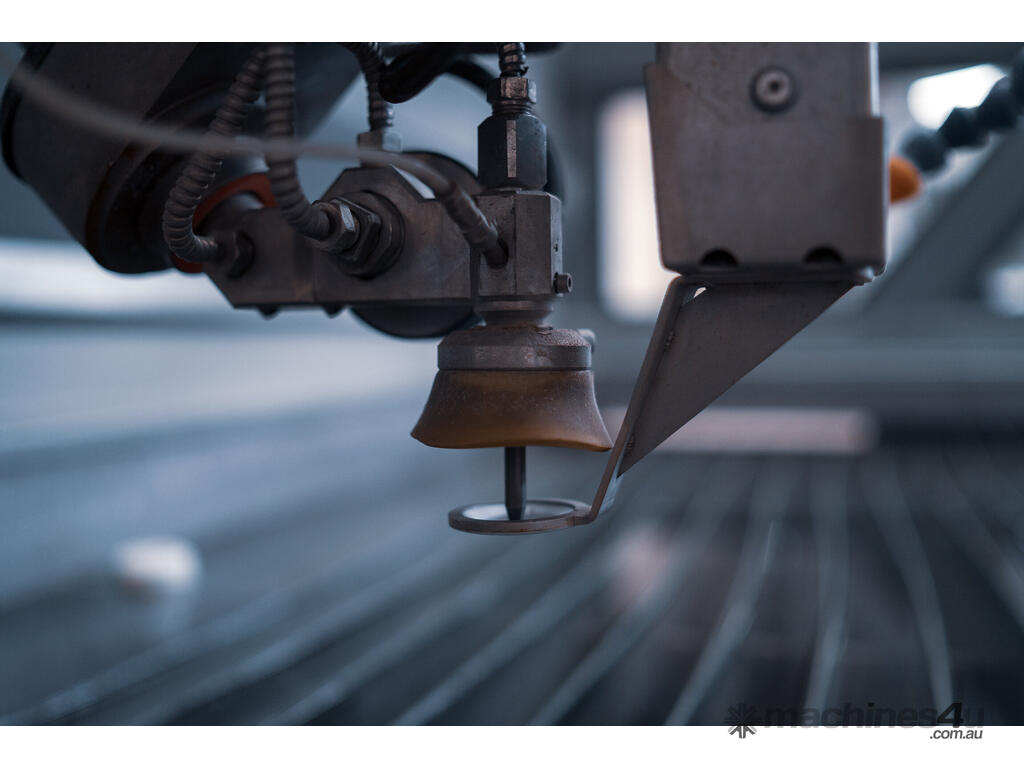

• AUTOMATIC THICKNESS PROBE AND ANTI COLLISION DEVICE constantly checks the thickness of the material ensuring perfect angular cutting on any material of any thickness.

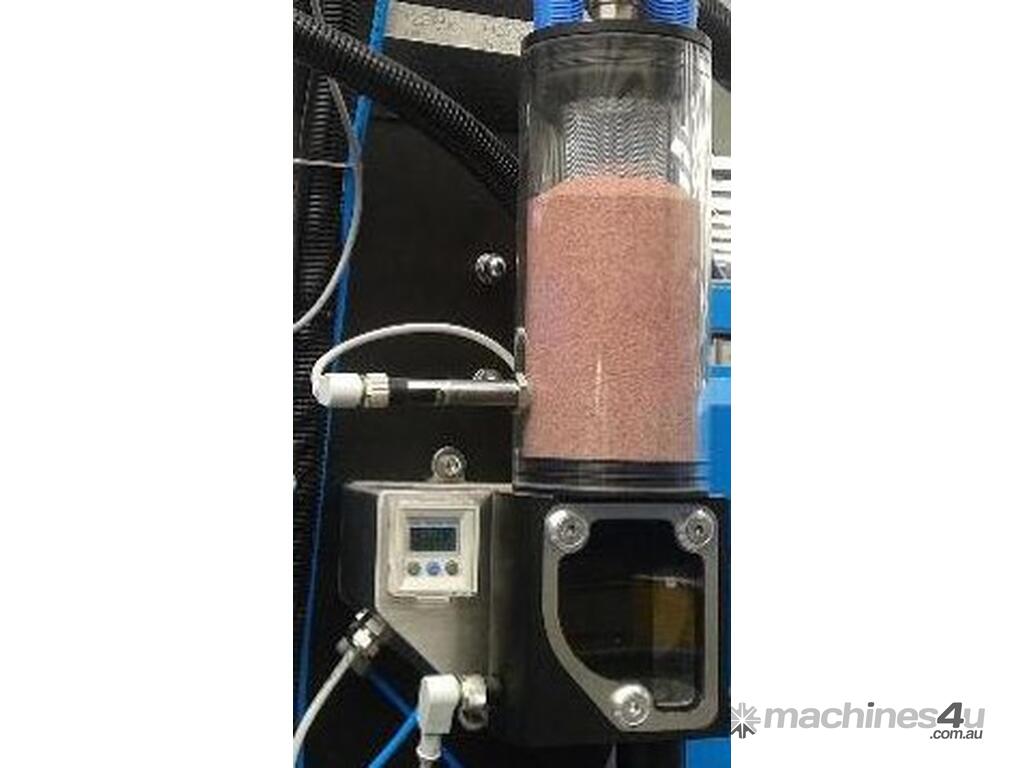

• ELECTRONIC ABRASIVE DOSING SYSTEM allows simple changing of Garnet dosing from the software. Current garnet dosage automatically changes the cutting speed for any material.

• AUTOMATIC ZEROING OF THE AXIS after nozzle and orifice replacements.

• AUTOMATIC SYSTEM TO WARN OF LOW ABRASIVE saving hours of unnecessary maintenance.

• AUTOMATIC LUBRICATION SYSTEM on all the moving parts removing this responsibility from the operator



********MAKE IT EASY *********

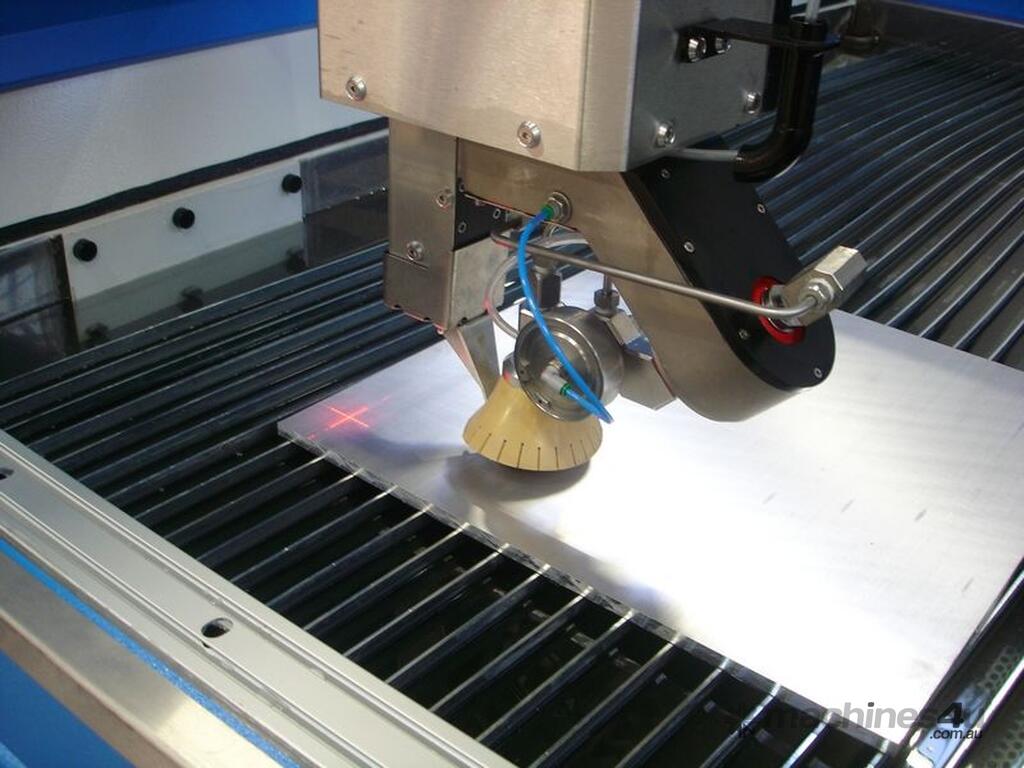

• LASER POINTER for setting the 0,0 point

• WATER NOZZLES for cleaning the cutting area while the cut is being made preventing sludge and abrasive from scratching the surface.

• HAND HELD REMOTE CONTROL giving the operator complete control over all the functionality of the machine.

• USER FREINDLY EasyJET CADCAM Software allowing for a quick learning curve for any novice operator.
