CMS YPSOS - Vertical CNC Machining Centre For Fast & Easy Glass Processing *ITALIAN MADE*

Innovync is a company with decades of experience with CNC machinery. With offices in NSW and QLD, local spare parts and a team of local technicians, we strive to be the example for excellent customer service.

**QUALITY MADE IN ITALY**

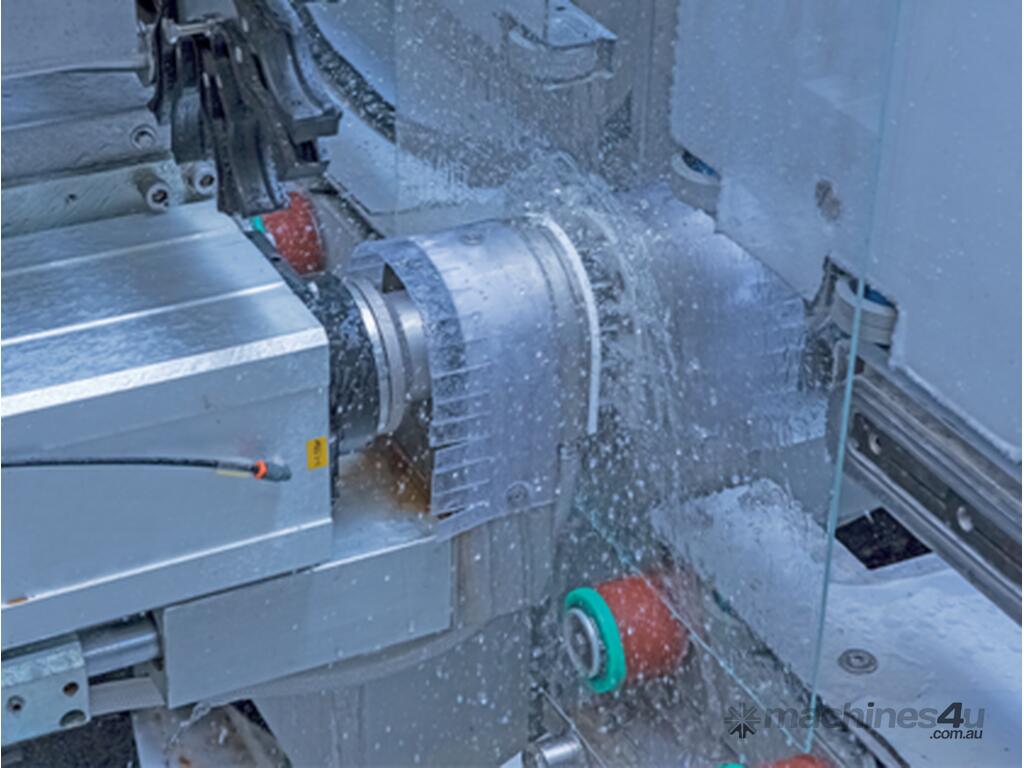

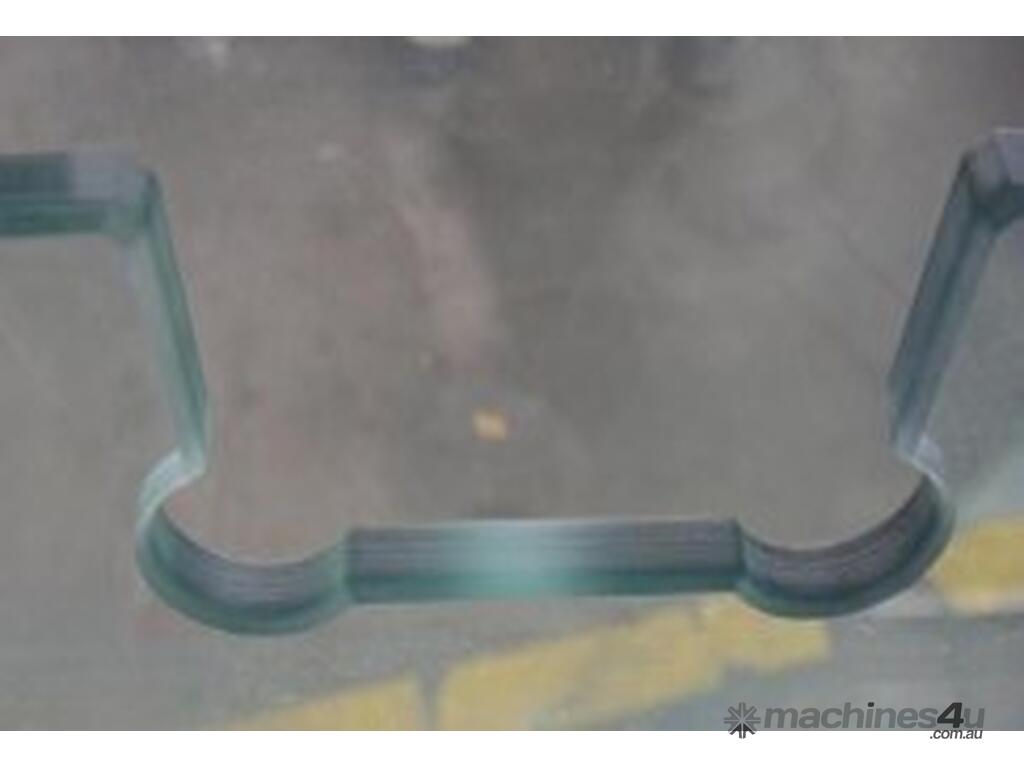

Ypsos is the latest generation of vertical machining centers developed by CMS, ideal to process float and laminated glass sheets, entirely designed thanks to many decades of experience in the glass industry. This is the first vertical CNC machining center capable of grinding and polishing with two heads at the same time. This project was conceived to reach the best reliability ever in the vertical CNC category. The new software has been designed to make the user interface more efficient and intuitive than ever. Based on the configuration selected. Ypsos can carry out seaming, polished and industrial grinding, milling and coaxial drilling operations.

This machine provides absolute accuracy and quality, accompanied by the classic benefits in terms of productivity and versatility given by the vertical machining process. Available in 3 standard sizes, it allows the processing of small and large-sized parts up to 6,000 x 3,300mm max. (additional maximum processable sizes available upon request). Ypsos can be used as a stand-alone machine, in line with a drilling-milling machine (CMS vertec) or inside an insulating line. Can also be automatically connected to an external washing machine.

-The Cms Brembana YPSOS Vertical CNC Machining Centre is undeniably the fastest, most efficient, and easiest to operate machine for the production of residential toughened glass products such as shower and balustrade panels.

-The vertical and ergonomic design has reduced processing times significantly by removing the requirement for machine set up and cumbersome loading operations.

-This type of design and functionality removes the need for highly skilled and expensive operators maximising throughput and return on investment.

FOR MORE INFO PLEASE CLICK THE PDF

THE RANGE --- A Vertical CNC Machining Centre For All Purposes ---

=== Cms Brembana YPSOS 3222===
This machine allows for the production of almost everything required from a glass factory. This machine has been specifically designed for the quick production of balustrade panels and shower panels with very little operator input

=== Cms Bremabana YPSOS 4528 ===
The most popular machine due to its ability to handle the largest of panels required for processing

=== Cms Brembana YPSOS 6033 ===
Largest machine and capable to handle jumbo sized glass.

UNIQUE FEATURES:

******** Remove The Responsibility From The Operator ***********

• Safe handling of Low-E glass
• Automatic system for recognising the thickness and the shape of out-of-square panels removing this responsibility from the operator and eliminating the need for a cycle program
• Automatic measuring unit for the drilling tools allowing continual and uninterrupted production

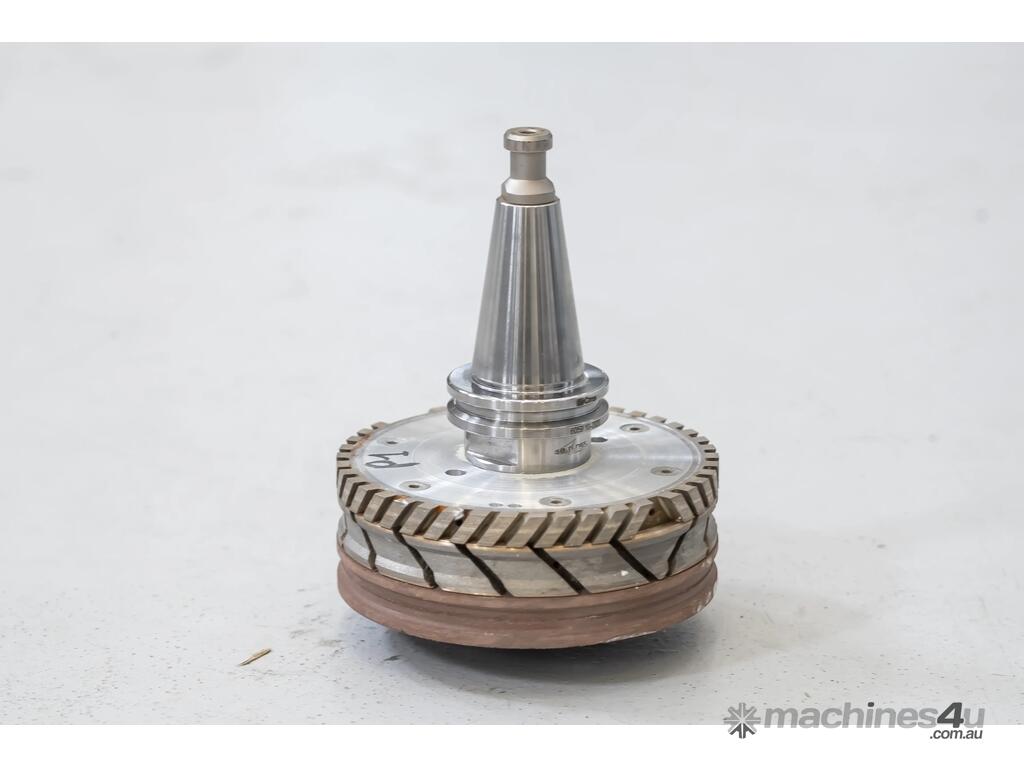

• Automatic system to compensate for the polish wheel wear
• Automatic recalibration unit for the diamond wheels.
• Automatic dressing unit for the polish wheels preventing surface scratching on the glass.

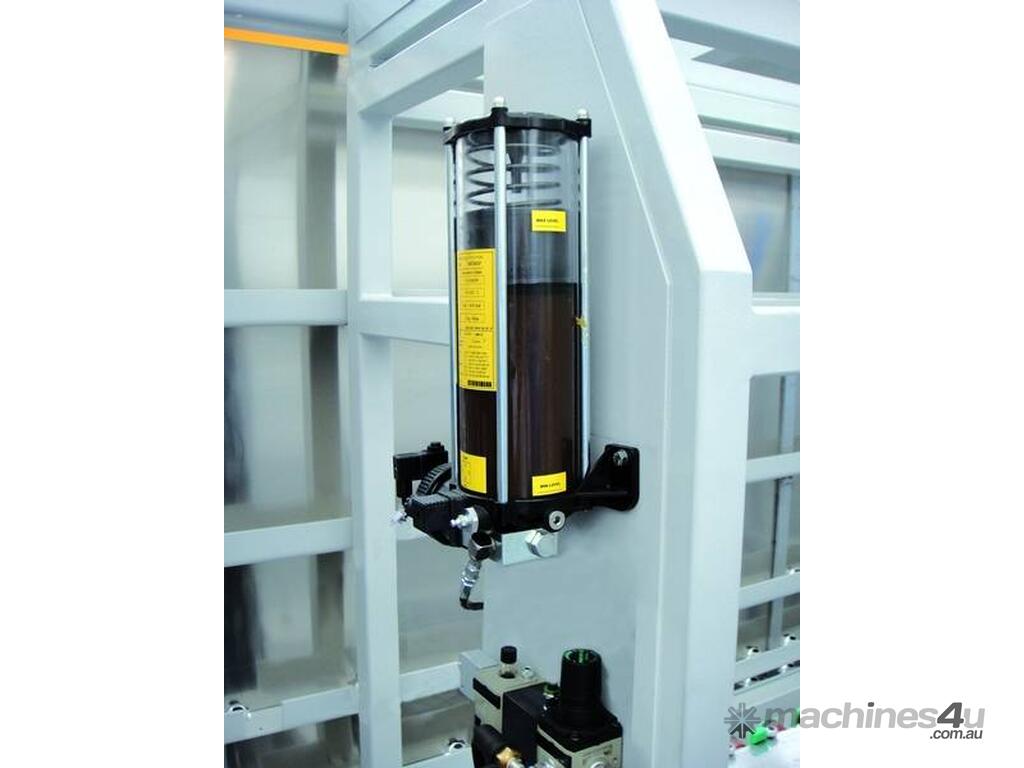

• Automatic Lubrication System servicing all the moving parts.

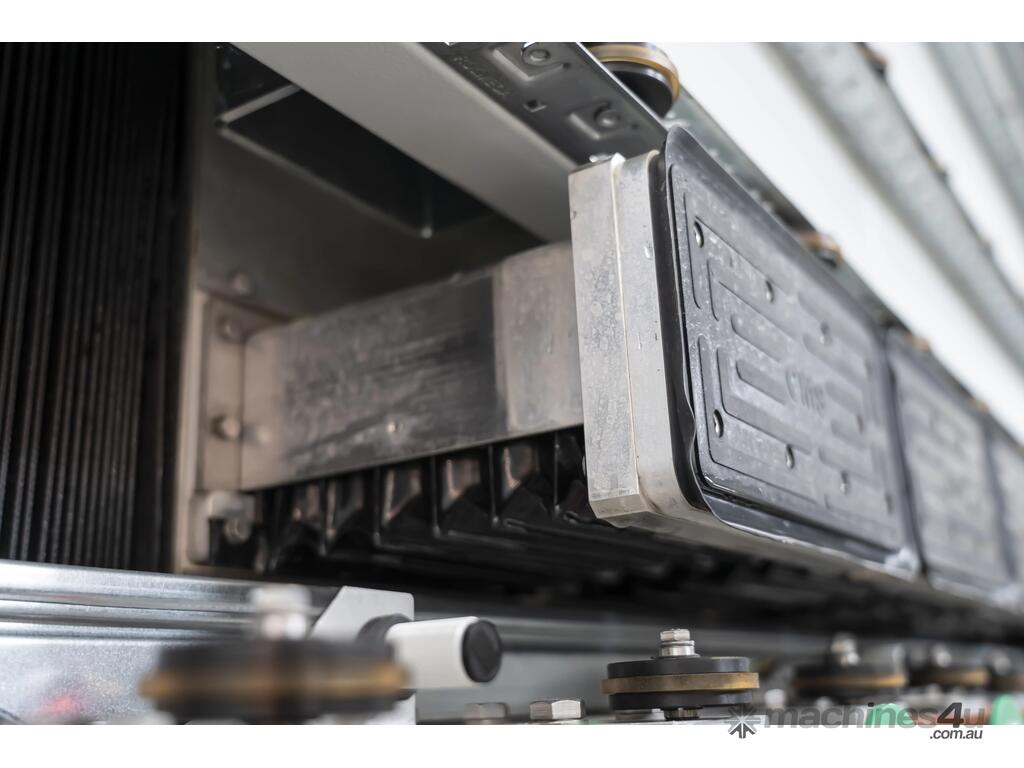

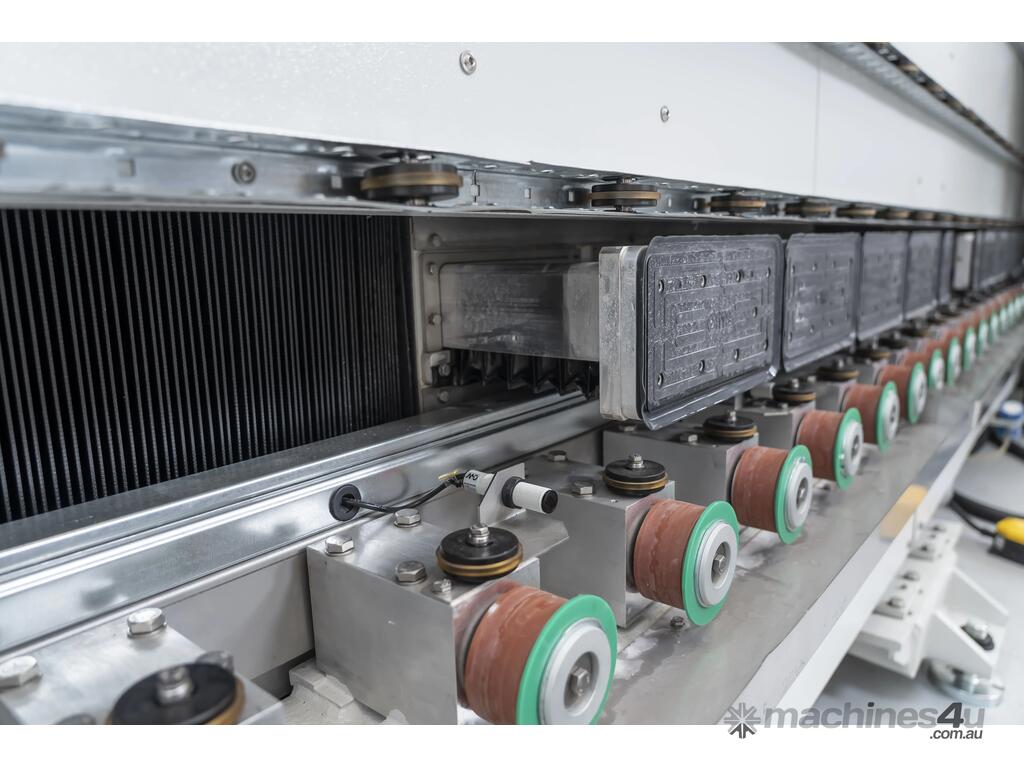

• Suction Cup system automatically recognising the tool path of the program. Extra protection against glass pieces and water from entering the pistons.
• Seamless software link to the company management software to remove any programming responsibility of the operator.

******Rely On Quality*******

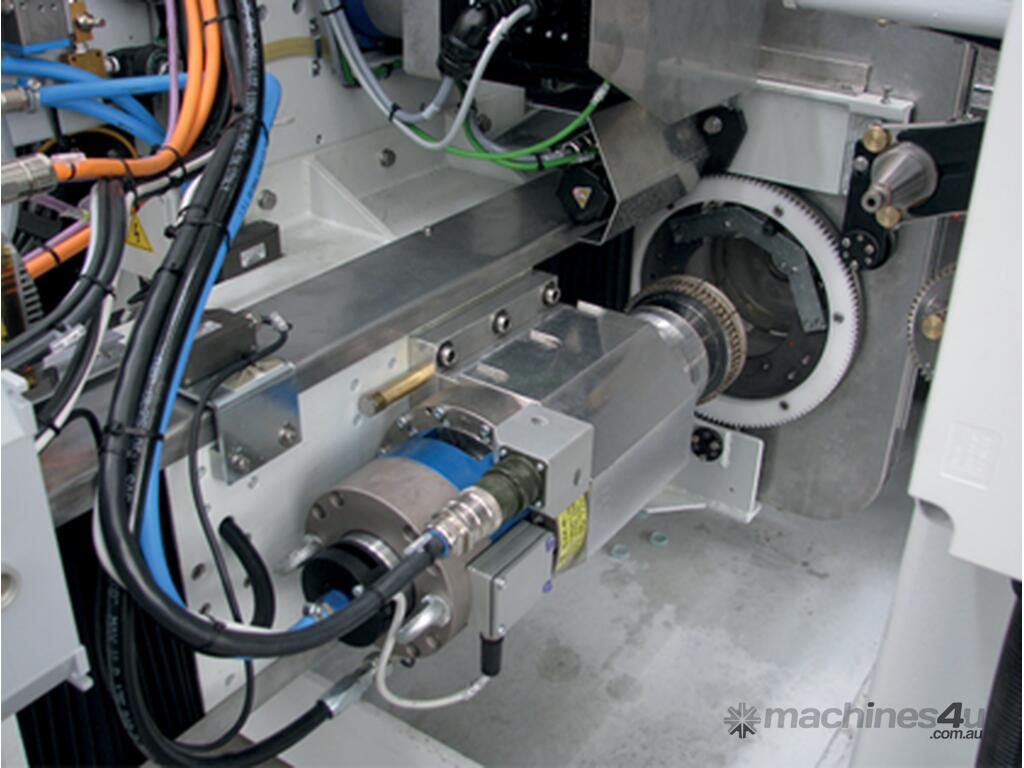

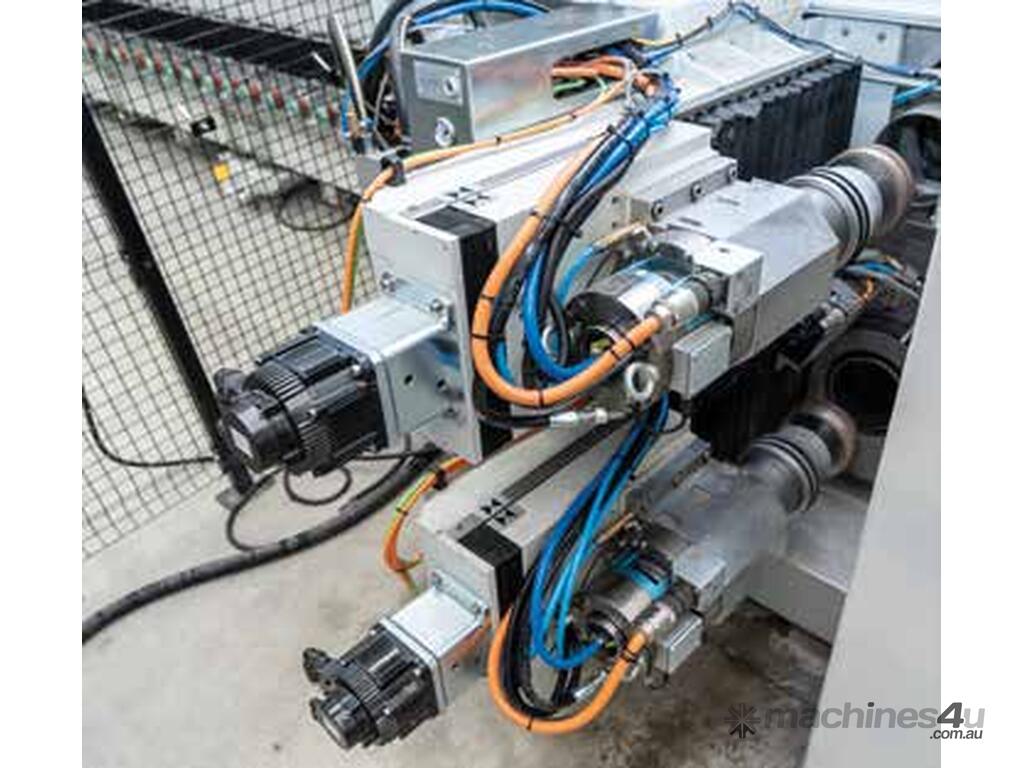

• 13.5 Kw frontal Electro-Spindle designed, manufactured and supported by Cms Brembana carries out most of the milling, drilling, arrising and polishing functions. Optional second processing spindle to reduce cycle times by up to 25%.
• Unique cooling system for the frontal spindle prolongs life and guarantees constant performance

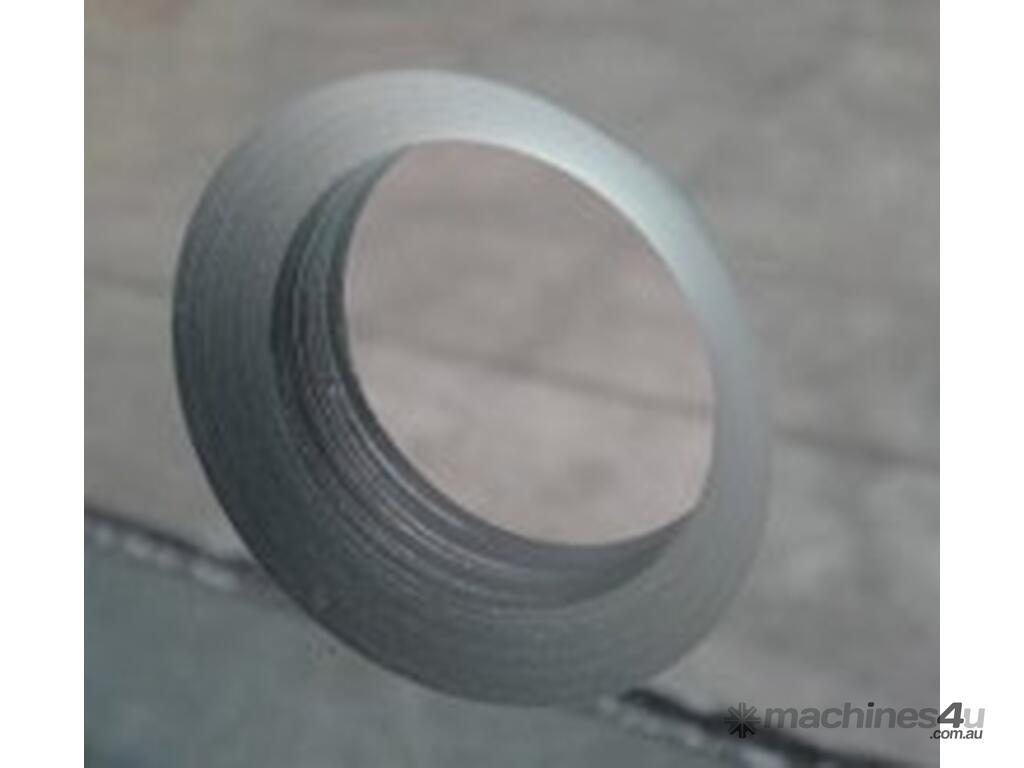

• 5Hp rear drilling unit allows drilling from the front and rear allows faster drilling cycles and automatically arrisses the holes both front and back.

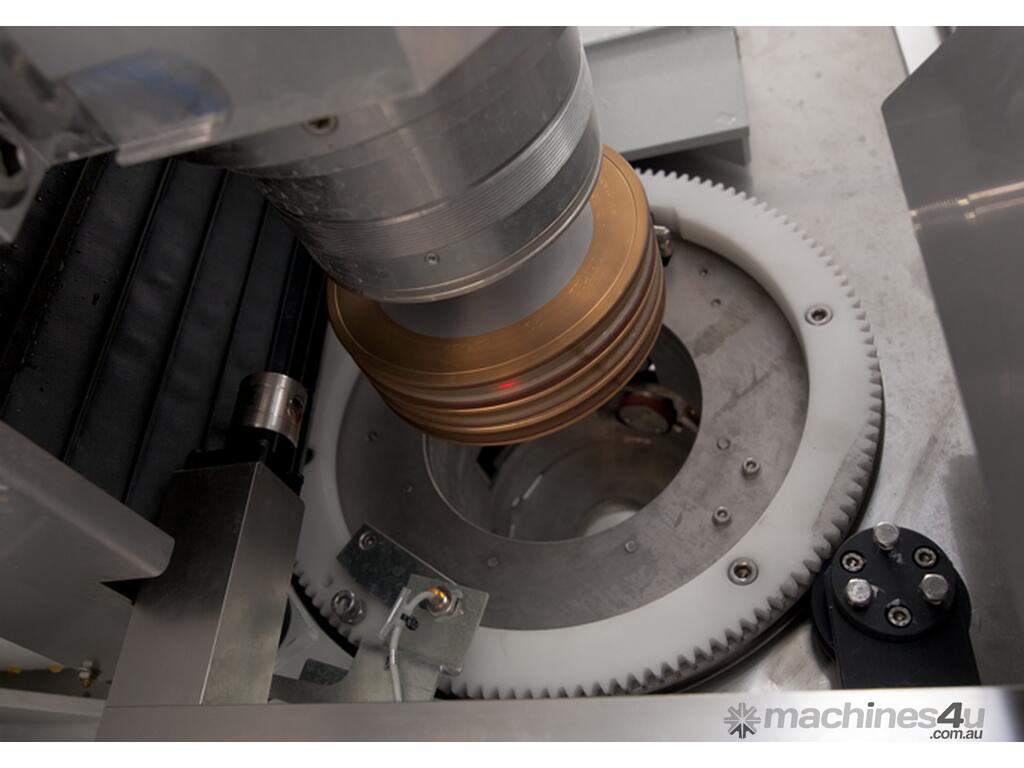

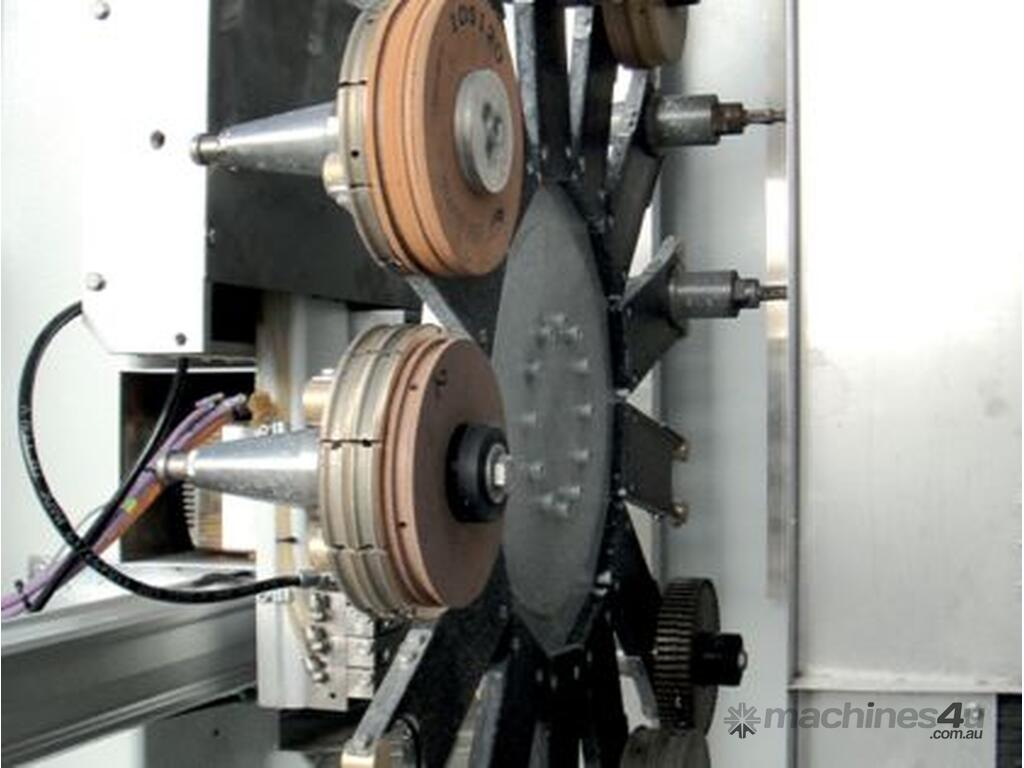

• 1x or 2x 13 position rotating tool carousel at ground level allows for the capacity of multiple production runs

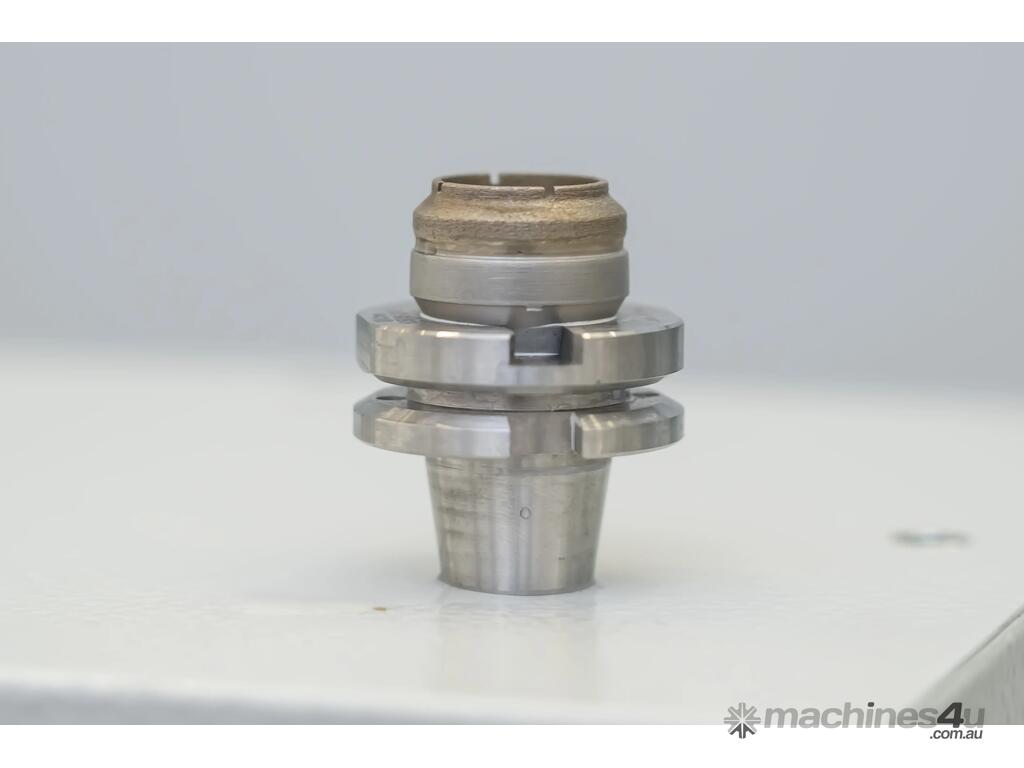

• 6 position rear linear tool rack for the drilling tools allows for ample drilling diameters

*****Make It Easy******

• Integrated internal and external water system
• SPM software module for the organisation of the production seamlessly linked with the customers production management software
• User friendly EasyGlass CADCAM programming software seamlessly linked with the customers production management software
• Software module for automatic CAM processing seamlessly linked with the customers production management software
• Automatic software link to manage the accompanying vertical glass washing machine.

For further information download the PDF brochure
