CNC Lathe FA45N / 50N / 55N /60N / 70N / 80N / 100

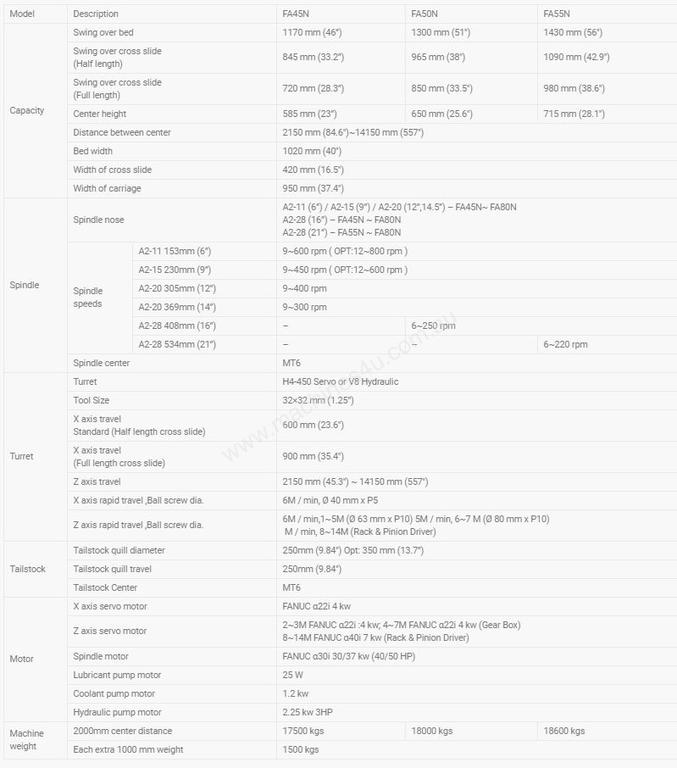

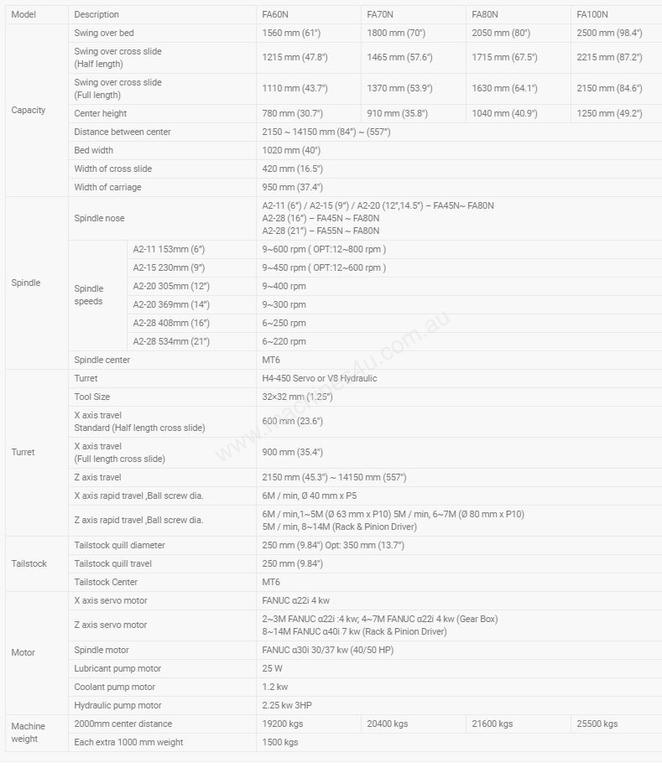

Model Description FA45N FA50N FA55N
Capacity Swing over bed 1170 mm (46”) 1300 mm (51") 1430 mm (56")
Swing over cross slide
(Half length) 845 mm (33.2”) 965 mm (38") 1090 mm (42.9")
Swing over cross slide
(Full length) 720 mm (28.3”) 850 mm (33.5") 980 mm (38.6")
Center height 585 mm (23”) 650 mm (25.6") 715 mm (28.1")
Distance between center 2150 mm (84.6")~14150 mm (557")
Bed width 1020 mm (40")
Width of cross slide 420 mm (16.5")
Width of carriage 950 mm (37.4")
Spindle Spindle nose A2-11 (6”) / A2-15 (9”) / A2-20 (12”,14.5”) – FA45N~ FA80N
A2-28 (16”) – FA45N ~ FA80N
A2-28 (21”) – FA55N ~ FA80N
Spindle
speeds Amm (6”) 9~600 rpm ( OPT:12~800 rpm )
Amm (9”) 9~450 rpm ( OPT:12~600 rpm )
Amm (12”) 9~400 rpm
Amm (14”) 9~300 rpm
Amm (16”) – 6~250 rpm
Amm (21”) – – 6~220 rpm
Spindle center MT6
Turret Turret H4-450 Servo or V8 Hydraulic
Tool Size 32×32 mm (1.25”)
X axis travel
Standard (Half length cross slide) 600 mm (23.6")
X axis travel
(Full length cross slide) 900 mm (35.4")
Z axis travel 2150 mm (45.3") ~ 14150 mm (557")
X axis rapid travel ,Ball screw dia. 6M / min, Ø 40 mm x P5
Z axis rapid travel ,Ball screw dia. 6M / min,1~5M (Ø 63 mm x P10) 5M / min, 6~7 M (Ø 80 mm x P10)
M / min, 8~14M (Rack & Pinion Driver)
Tailstock Tailstock quill diameter 250mm (9.84") Opt: 350 mm (13.7”)
Tailstock quill travel 250mm (9.84")
Tailstock Center MT6
Motor X axis servo motor FANUC ?22i 4 kw
Z axis servo motor 2~3M FANUC ?22i :4 kw; 4~7M FANUC ?22i 4 kw (Gear Box)
8~14M FANUC ?40i 7 kw (Rack & Pinion Driver)
Spindle motor FANUC ?30i 30/37 kw (40/50 HP)
Lubricant pump motor 25 W
Coolant pump motor 1.2 kw
Hydraulic pump motor 2.25 kw 3HP
Machine weight 2000mm center distance 17500 kgs 18000 kgs 18600 kgs
Each extra 1000 mm weight 1500 kgs

STANDARD ACCESSORIES

Fanuc control, motor & 6" spindle bore (FA), 9" (FB)
Spindle oil chiller
H4 or V8 hydraulic turret
Auto coolant, hydraulic & lubrication system
Splash guard
Center, MT6 for tailstock
Work light
Hydraulic tailstock with rotating quill
Chip conveyors (chain type for front & rear)

OPTIONAL ACCESSORIES

Extra spindle bore, motor & speeds
Chuck, Rear chuck adapter & Face plate
C axis or spindle 5° indexing or 15° orientation
Driving tool turret
Driving toolholders
Special boring bar toolholder
Higher coolant pressure
Twin turret
Tool presetter
Other controller
Transformer (power supply except 220V)
Steady rest & follow rest (Capacity, Hydraulic or Manual)
Heavy duty milling attachment
Y axis (with heavy duty milling attachment)
Grinding head on turret or cross slide
CE mark
