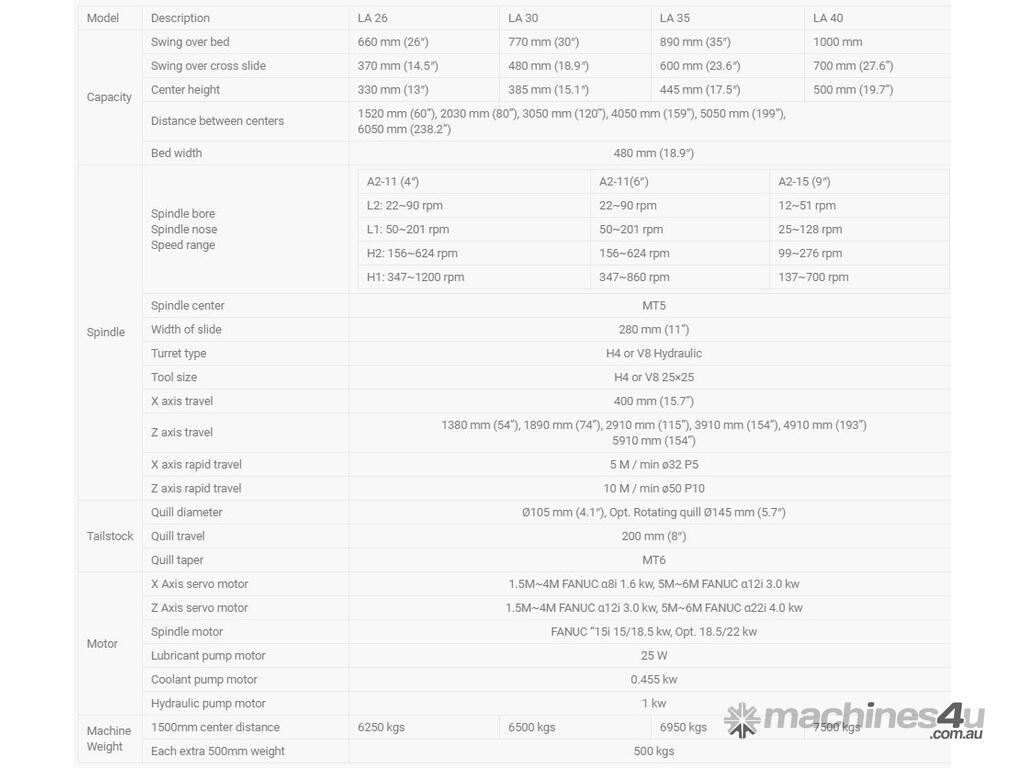

CNC Lathe LA26 / LA30 / LA35 / LA40

Model Description LA 26 LA 30 LA 35 LA 40
Capacity Swing over bed 660 mm (26?) 770 mm (30?) 890 mm (35?) 1000 mm
Swing over cross slide 370 mm (14.5?) 480 mm (18.9?) 600 mm (23.6?) 700 mm (27.6”)
Center height 330 mm (13?) 385 mm (15.1?) 445 mm (17.5?) 500 mm (19.7”)
Distance between centers 1520 mm (60”), 2030 mm (80”), 3050 mm (120”), 4050 mm (159”), 5050 mm (199”),
6050 mm (238.2”)
Bed width 480 mm (18.9?)
Spindle Spindle bore
Spindle nose
Speed range
A2-11 (4?) A2-11(6?) A2-15 (9?)
L2: 22~90 rpm 22~90 rpm 12~51 rpm
L1: 50~201 rpm 50~201 rpm 25~128 rpm
H2: 156~624 rpm 156~624 rpm 99~276 rpm
H1: 347~1200 rpm 347~860 rpm 137~700 rpm
Spindle center MT5
Width of slide 280 mm (11”)
Turret type H4 or V8 Hydraulic
Tool size H4 or V8 25×25
X axis travel 400 mm (15.7”)
Z axis travel 1380 mm (54”), 1890 mm (74”), 2910 mm (115”), 3910 mm (154”), 4910 mm (193”)
5910 mm (154”)
X axis rapid travel 5 M / min ø32 P5
Z axis rapid travel 10 M / min ø50 P10
Tailstock Quill diameter Ø105 mm (4.1?), Opt. Rotating quill Ø145 mm (5.7?)
Quill travel 200 mm (8?)
Quill taper MT6
Motor X Axis servo motor 1.5M~4M FANUC ?8i 1.6 kw, 5M~6M FANUC ?12i 3.0 kw
Z Axis servo motor 1.5M~4M FANUC ?12i 3.0 kw, 5M~6M FANUC ?22i 4.0 kw
Spindle motor FANUC “15i 15/18.5 kw, Opt. 18.5/22 kw
Lubricant pump motor 25 W
Coolant pump motor 0.455 kw
Hydraulic pump motor 1 kw
Machine
Weight 1500mm center distance 6250 kgs 6500 kgs 6950 kgs 7500 kgs
Each extra 500mm weight 500 kgs

Standard Accessories

Fanuc control & spindle motor
H4 or V8 hydraulic turret
Auto lubrication, coolant & hydraulic system
Splash guard
Center, MT5 for spindle & MT6 for tailstock
Work light
Manual tailstock
Tool box with tools

OPTIONAL ACCESSORIES

Extra pindle bore (6? or 9?) & motor
Spindle oil chiller
Chucks & Face plate
Other controller
Transformer (power supply except 220V)
Steady rest & follow rest (Hydraulic or Manual)
Rear tool post
Chip conveyor, chain type
Hydraulic tailstock
Tailstock movable by motor & rack
CE mark
