CNC Lathe LC30 / 35 / 40

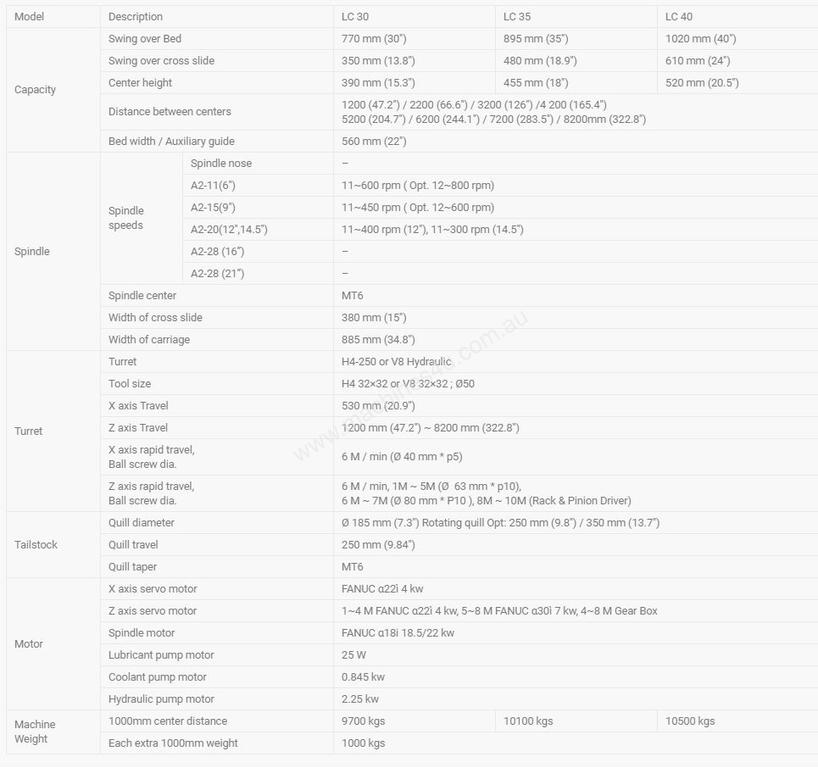

Description LC 30 LC 35 LC 40
Capacity Swing over Bed 770 mm (30") 895 mm (35") 1020 mm (40")
Swing over cross slide 350 mm (13.8") 480 mm (18.9") 610 mm (24")
Center height 390 mm (15.3") 455 mm (18") 520 mm (20.5")
Distance between centers 1200 (47.2") / 2200 (66.6") / 3200 (126") /4 200 (165.4")
5200 (204.7") / 6200 (244.1") / 7200 (283.5") / 8200mm (322.8")
Bed width / Auxiliary guide 560 mm (22")
Spindle Spindle
speeds Spindle nose –
A2-11(6") 11~600 rpm ( Opt. 12~800 rpm)
A2-15(9") 11~450 rpm ( Opt. 12~600 rpm)
A2-20(12",14.5") 11~400 rpm (12"), 11~300 rpm (14.5")
A2-28 (16”) –
A2-28 (21”) –
Spindle center MT6
Width of cross slide 380 mm (15")
Width of carriage 885 mm (34.8")
Turret Turret H4-250 or V8 Hydraulic
Tool size H4 32×32 or V8 32×32 ; Ø50
X axis Travel 530 mm (20.9")
Z axis Travel 1200 mm (47.2") ~ 8200 mm (322.8")
X axis rapid travel,
Ball screw dia. 6 M / min (Ø 40 mm * p5)
Z axis rapid travel,
Ball screw dia. 6 M / min, 1M ~ 5M (Ø 63 mm * p10),
6 M ~ 7M (Ø 80 mm * P10 ), 8M ~ 10M (Rack & Pinion Driver)
Tailstock Quill diameter Ø 185 mm (7.3") Rotating quill Opt: 250 mm (9.8") / 350 mm (13.7")
Quill travel 250 mm (9.84")
Quill taper MT6
Motor X axis servo motor FANUC ?22ì 4 kw
Z axis servo motor 1~4 M FANUC ?22ì 4 kw, 5~8 M FANUC ?30ì 7 kw, 4~8 M Gear Box
Spindle motor FANUC ?18i 18.5/22 kw
Lubricant pump motor 25 W
Coolant pump motor 0.845 kw
Hydraulic pump motor 2.25 kw
Machine
Weight 1000mm center distance 9700 kgs 10100 kgs 10500 kgs
Each extra 1000mm weight 1000 kgs

STANDARD ACCESSORIES

Fanuc control & motors
H4 or V8 hydraulic turret
Auto coolant, hydraulic & lubrication system
Box way on cross slide
Splash guard
6" spindle bore
Work light
Hydraulic tailstock with rotating quill
Tool box with tools
Chip conveyors (auger for front & chain for rear)

OPTIONAL ACCESSORIES

Extra spindle bore, motor & speeds
Spindle oil chiller
Chucks, Rear chuck adapter & Face plate
C axis or Spindle 5° indexing or 15° orientation
Driving tool turret
Special boring bar toolholder
Higher coolant pressure
Twin turret (V8 front +H4 rear)
Tool presetter
Other controller
Steady rest & follow rest (Capacity, Hydraulic or Manual)
Steady rest with cutting pass through equipment
Heavy duty milling attachment
Y axis (with heavy duty milling attachment)
Grinding head on turret or cross slide
Chain type chip conveyor for front
Extra tailstock quill dia. 250mm/350mm (A2-8)
Transformer (power supply except 220V)
CE mark
