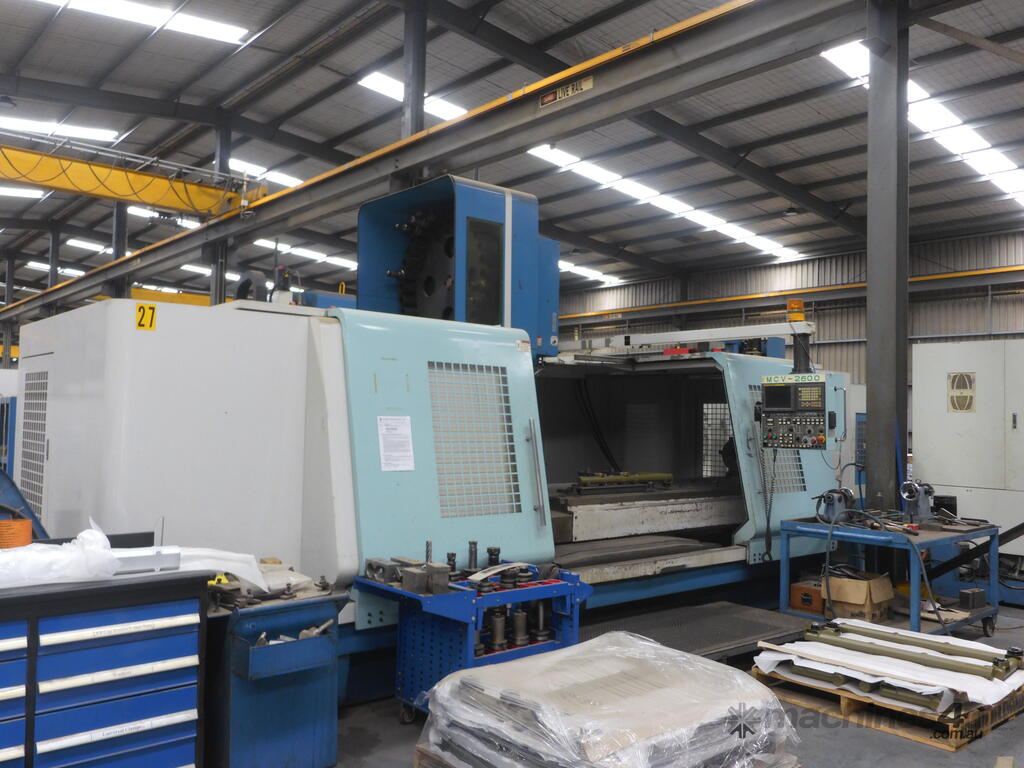

CNC Milling Machining Centre

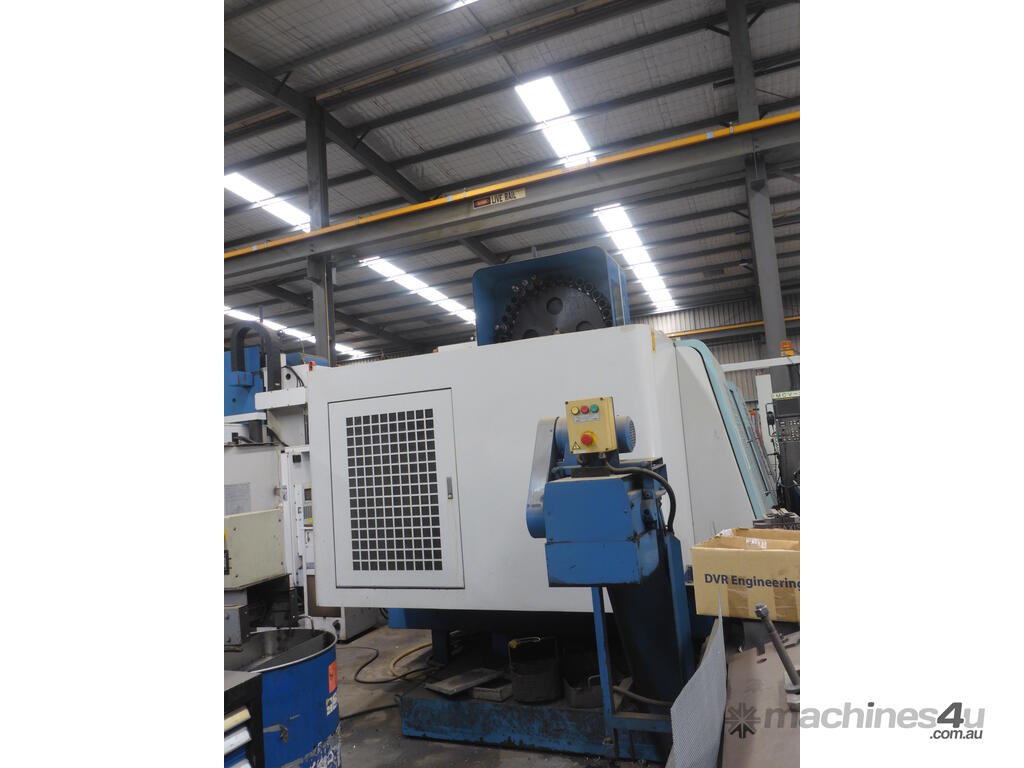

Dahlih DL-MCV2600 – Vertical Machining Centre (circa 2004)
General Description
This heavy-duty CNC vertical machining center is designed to handle large workpieces with excellent rigidity and accuracy. Suitable for die and mold work, large fixtures, and heavy structural components. Part of the well-regarded MCV-2600 heavy-duty VMC family, typiy equipped with 2600 mm X-axis travel, a BT50 high-torque spindle, 32-station automatic tool changer, and a table load capacity of approximately 3 tons. A solid choice for workshops seeking capacity, reliability, and productivity.

Machine Geometry & Travel

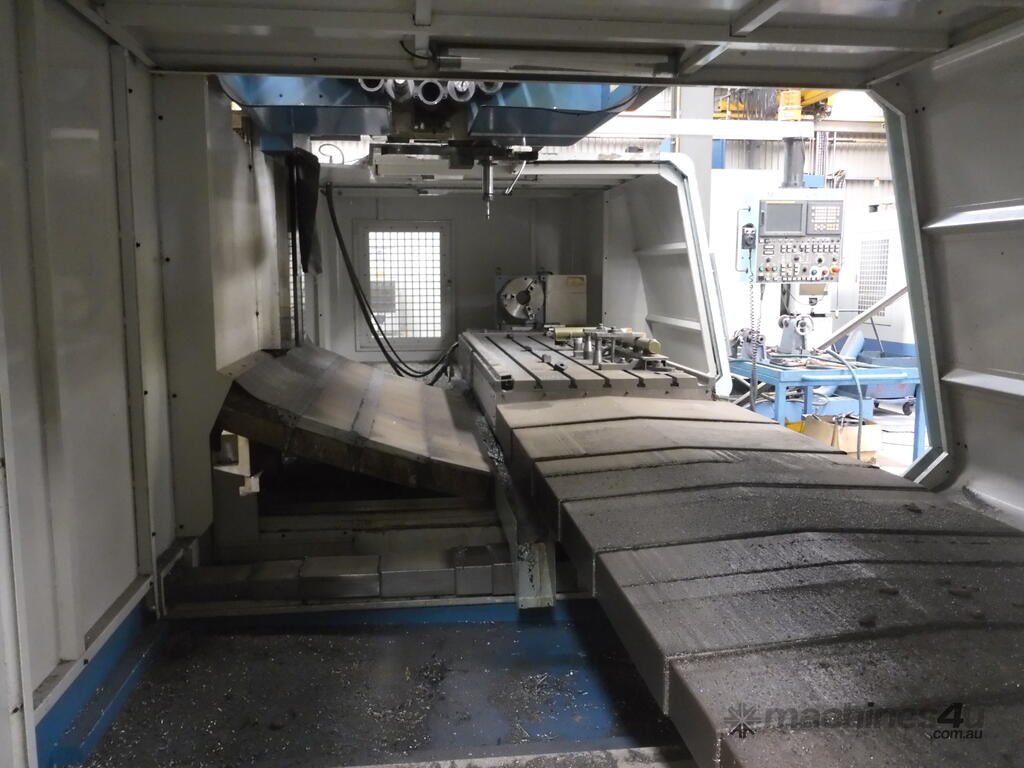

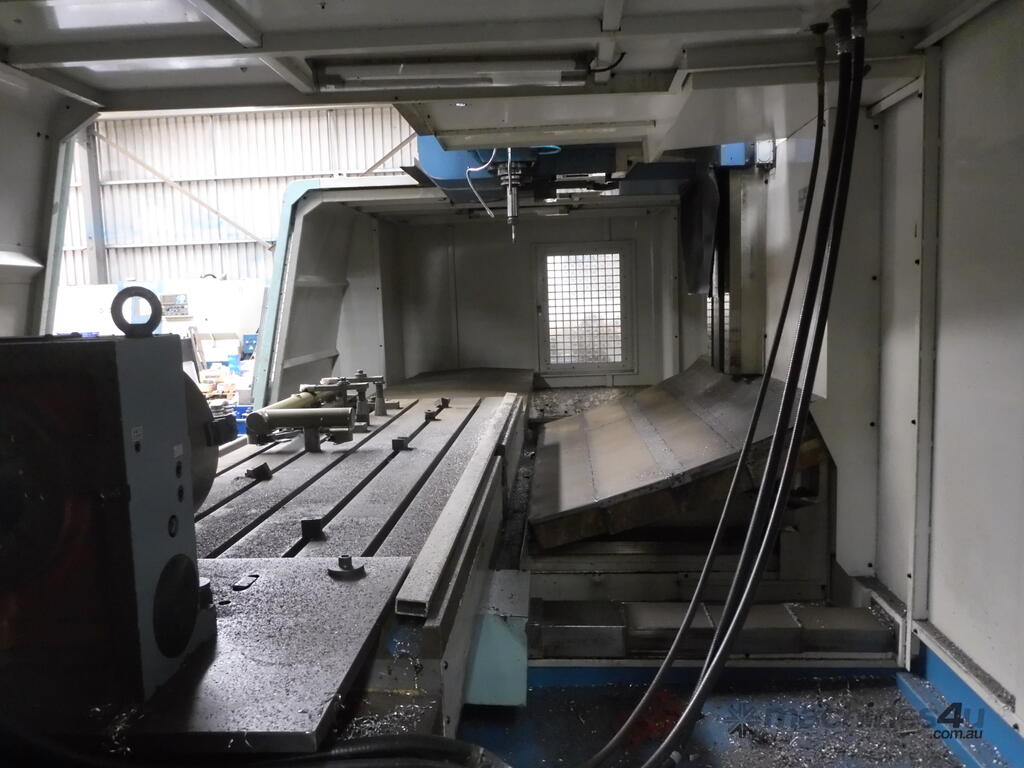

* Table working surface: approximately 2,800 × 970 mm
* Maximum table load: ~3,000 kg
* X-axis travel: 2,600 mm
* Y-axis travel: ~870 mm
* Z-axis travel: ~760 mm
* Distance spindle-to-table: ~200 – 960 mm
* Spindle center to column surface: ~850 mm

Spindle & Power
* Spindle taper: BT50 / N.T.50 (ISO50)
* Spindle speed: 6000 rpm
* Spindle drive motor: roughly 15 kW continuous / 18.5 kW 30-min
* Drive motors (X, Y, Z): ~4.2 kW each

Feeds & Tooling
* Rapid traverse: ~10 m/min (X & Y), ~8 m/min (Z)
* Cutting feed: up to 10,000 mm/min
* Minimum positioning resolution: 0.001 mm



Automatic Tool Changer (ATC):
* Capacity ~32 tools
* Toolholder type BT50
* Maximum tool diameter × length: ~Ø110 × 350 mm
* Maximum tool weight: ~15 kg

Control & Options

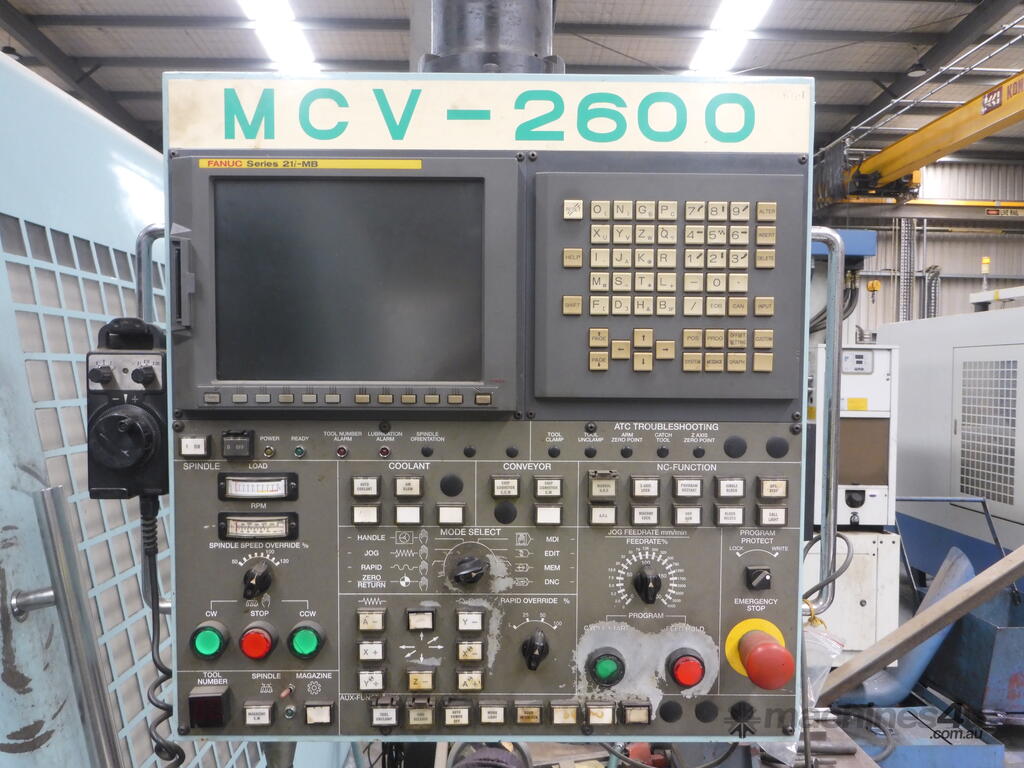

* CNC controller FANUC 25i/MB
* Through-spindle coolant
* Chip conveyor
* 4th-axis rotary tables
* Coolant-through-tool
* Enclosed cabinets and guards

Physical
* Approx machine weight: ~16–19 tons
* Footprint: ~8,600 × 4,694 mm

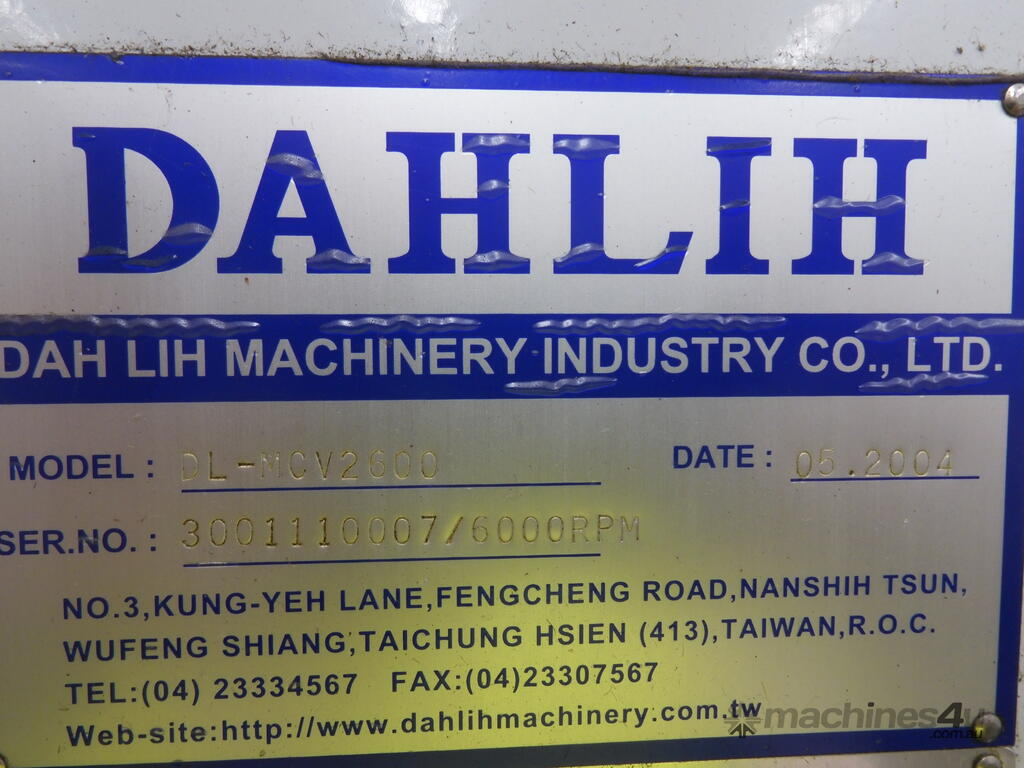

Summary by Serial & Year
* Make: Dahlih
* Model: DL-MCV2600
* Manufacture Date: May 2004
* Serial: / 6000 RPM
