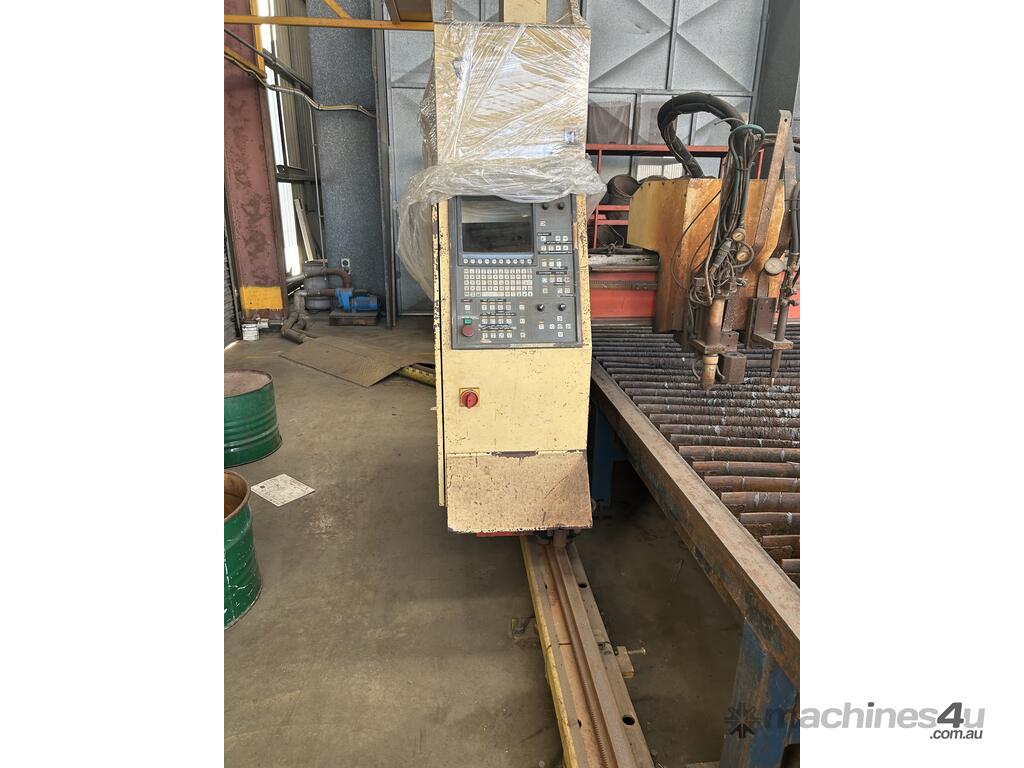

Farley Model Wizard (2) Head 15' x 60' CNC Plasma Cutter
Cutting Length: 60'
Cutting Width: 15'
Max Cutting Capacity: 2"
Complete With
PDF 32 CNC Control
Hypertherm Plasma HD3070
1 1/4" Carbon Cut
2" Max Cutting Capacity
Power Supply Data
Max OCV: 80 VDC
Output Current: 40 - 200 AMPS
Output Voltage: 150 VDC
Duty Rating Cycle: 100% up to 30kW
Input Power: 240/480/3/60 90/45 AMPS
Max Current 100% Duty Cycle: 200 AMPS
Water Control Flow Rate: 0.8 GPM
Machine Torch
Cooling Forced Air (Class F)
Torch Coolant Tank Capacity
Hypertherm 500
3/8" Stainless Capacity
The HT2000 can be configured for air, oxygen, nitrogen, or argon/hydrogen
cutting
A micro-controller on the power supply control board helps to provide
extended life for the torch consumable parts.
All cuts must begin and end on the plate surface; this allows for the
roper ramping of gases and DC current to extend the life of the torch
nozzle and electrode.
The HT2000 system provides the user with capability of locating the power
supply and the torch apart by a maximum of 200 feet.
The HT2000 provides continuously variable current output from 40 to 200
amps for optimum performance on all thicknesses of metal.
This allows the operator wide variations in cutting speeds
on the same thickness of metal.
Comes with everything pictured along with water pump connected to cooling tank
Available from Eagle Farm Brisbane
Buyer to arrange removal and transport
Business is sold building to be vacated
