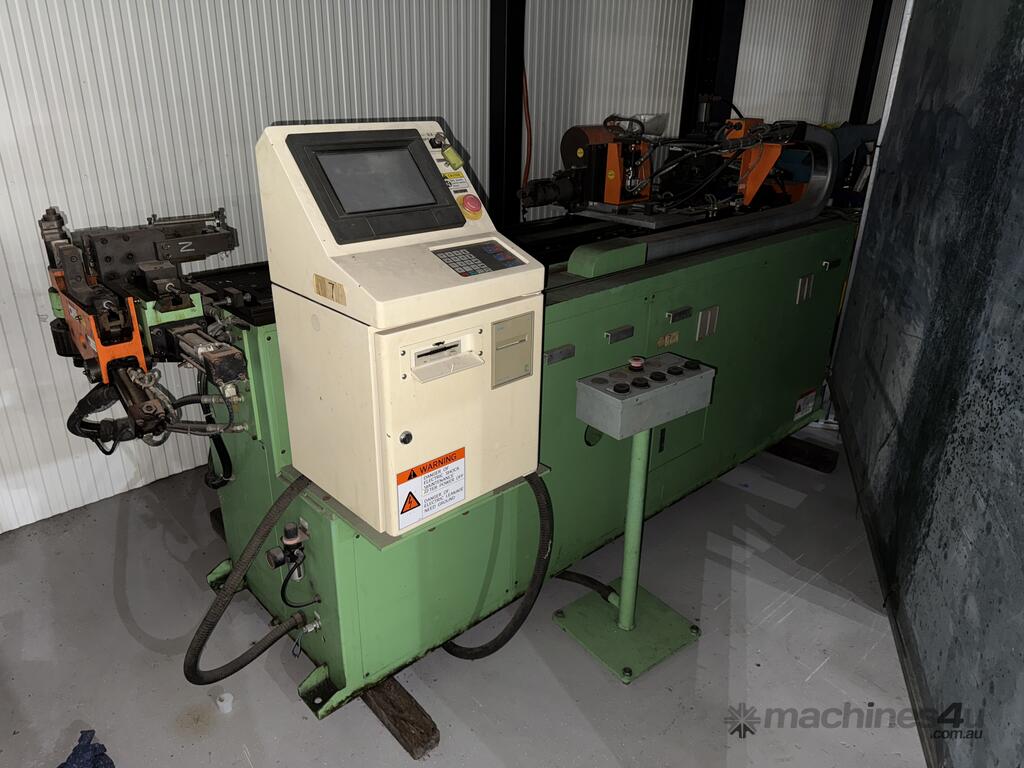

3-Axis CNC Horizontal Tube Bender
Designed for precision bending of small to medium-sized tubes.
Key Specifications:
Bending Capacity:
Up to 0.875" (22.2 mm) OD round steel tube
Wall thickness: 0.062" (1.6 mm)
Suitable materials: Copper, Aluminium, Mild Steel
Maximum Bend Radius: 2.375" (60 mm)
Maximum Tube Length Over Mandrel: Approximately 60" (1,524 mm)
Bend Rotation: Clockwise (right-hand)
Mandrel Length: 1,500 mm
Bending Speed: 200°/sec
Feed Speed: 1,000 mm/sec
Machine Dimensions:
Length: 3,060 mm
Width: 1,000 mm
Height: 1,600 mm
Weight: 1,200 kg
Electrical Requirements:
2.7 kW, 3-phase, 230/460V, 60Hz
Key Features
3-Axis CNC Control for precise and repeatable bends
Electric servo-driven bend head for accurate and consistent bending
Hydraulic mandrel extractor to assist tube extraction post-bending
Head shift mechanism enabling dual-radius bending capabilities

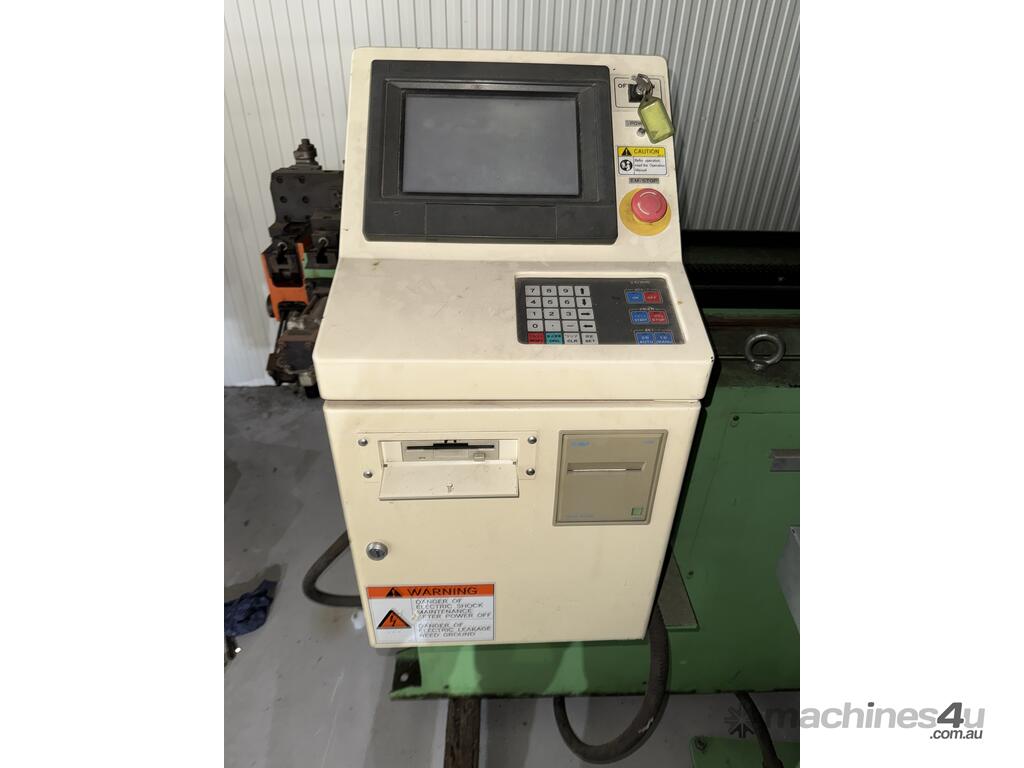

Integrated machine-mounted operator control system for ease of use
