CNC Vertical Lathe TKV-3000

MODELS

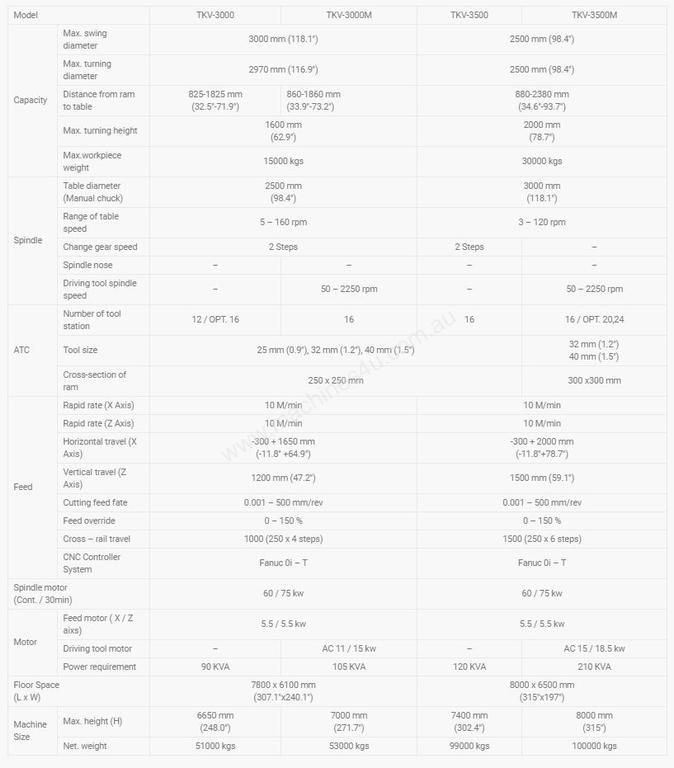

TKV-3000 / 3000M / 3500 / 3500M / 4500 / 4500M / 6000 / 6000M / 7000 / 7000M

STANDARD ACCESSORIES

Spindle orientation
Table with manual 4-jaw chuck
Hydraulic power unit
Electric torque limitation
Foot switch for hydraulic chuck
Automatic lubrication system
Coolant system through tool holder to inserts (3 bar)
Coolant flushing system with tank
Protection door
Heat exchanger for electrical cabinet
Full enclosed splash guard
Work light
Warning light ( R / Y / G )
Workpiece counter
Chain type chip conveyor & chip trolley
Manual of operation & maintenance
Manual of electrical & hydraulic circuit diagram
Manual for controller
Tool box with tool kits
Leveling bolts & pads

OPTIONAL ACCESSORIES

Higher power motor
Extra hydraulic chuck & cylinder
Dual speed gear box for driving tool spindle
High & low pressure chucking
Hard jaws of hydraulic chuck
Manual guide i
Hydraulic chuck & cylinder, diameter as spec
Linear scale on X/Z axis
Lubricant chiller for spindle bearing & gear
Special tool holder
Higher pressure coolant through turret (6 bar)
Tool presetter with cover protection (Turning dia. is reduced)
Tool arrangement
Tool holder base
Air conditioner for electrical cabinet
Oil skimmer (Disk type)
Scrap type chip conveyor with chip trolley
Jig & fixture
Turnkey project
External power transformer
CE mark
