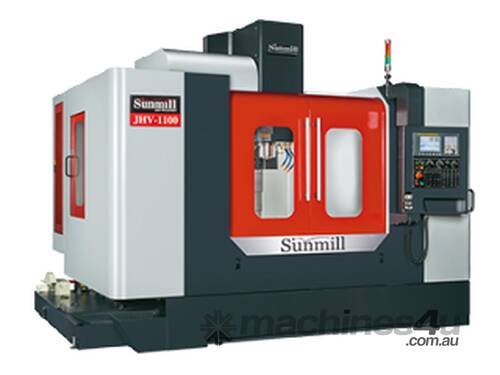

Sunmill - JHV 1100 - Linear way series
Controller : Fanuc 0iMF with Data server 2GB
Chip Conveyor
Coolant Through Spindle 20Bar

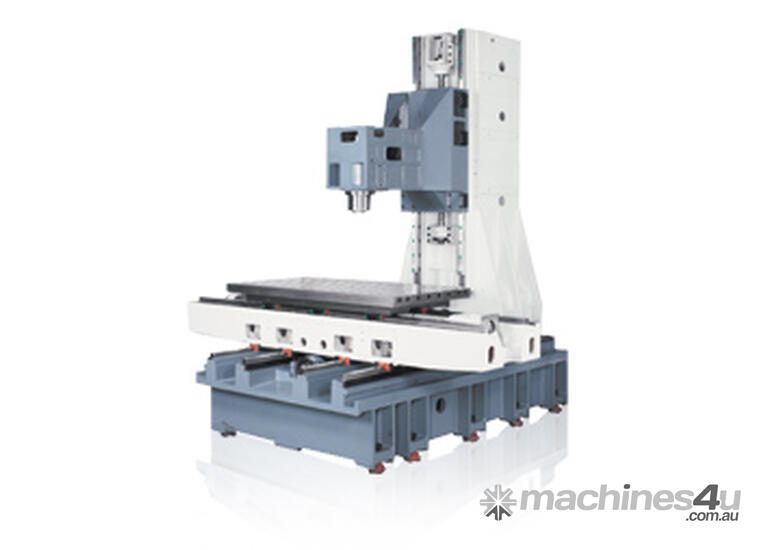

Optimal Structure Design High rigidity! Lifetime Stability!Oversized column
10,000 rpm high speed spindles are designed for high speed machining requirement.
High precision class C3 ball screws feature outstanding vibration dampening capability for high precision machining.
Extra wide column bottom and base ensure superior stability during high speed machining.
Compacted and simplified machine structure for space saving.
X axis Travel(mm) 1100
Y axis Travel(mm) 650
Z axis Travel(mm) 610
Distance From Table Surface to Spindle nose(mm) 120-730mm

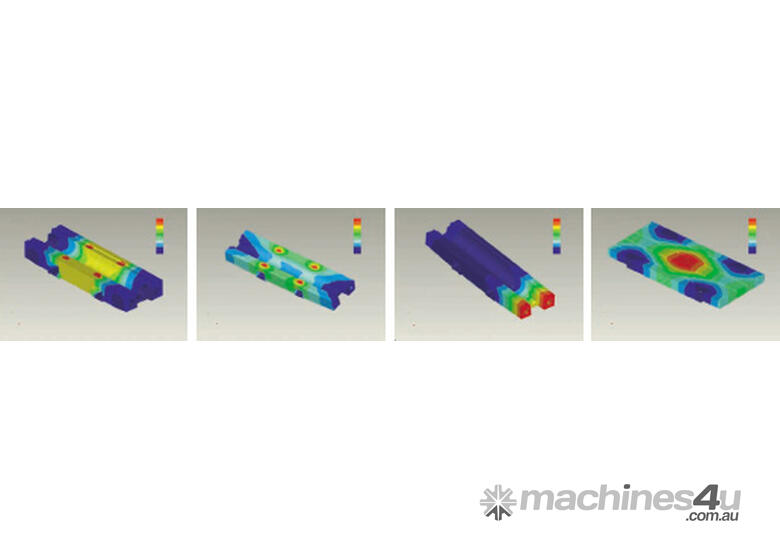

Finite Element Analysis:
The structural parts on JeenXi machine are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity and lifetime stability.

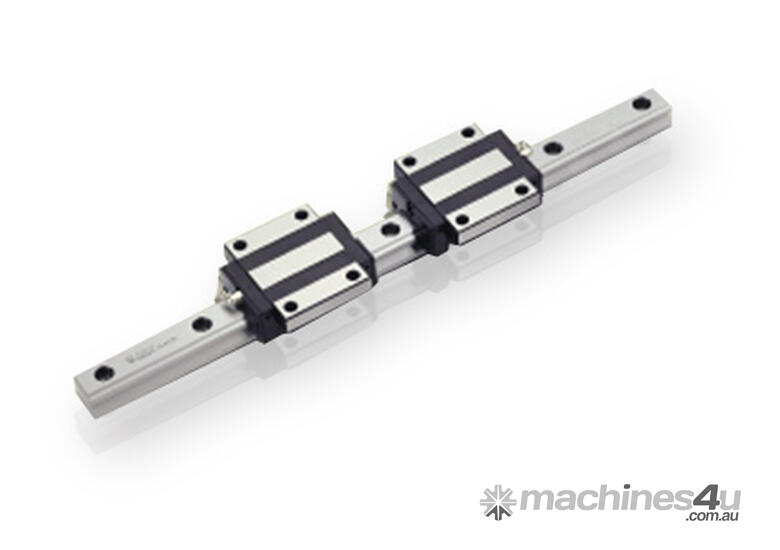

Linear Guide Way:
The machine employs Roller-type linear guide ways.
Precision Ball Screw:
Three axes are transmitted by high precision ball screws, preloaded, hardened and ground-assuring dependable feed accuracy.
