CORREA Milling Machine FP40/40S

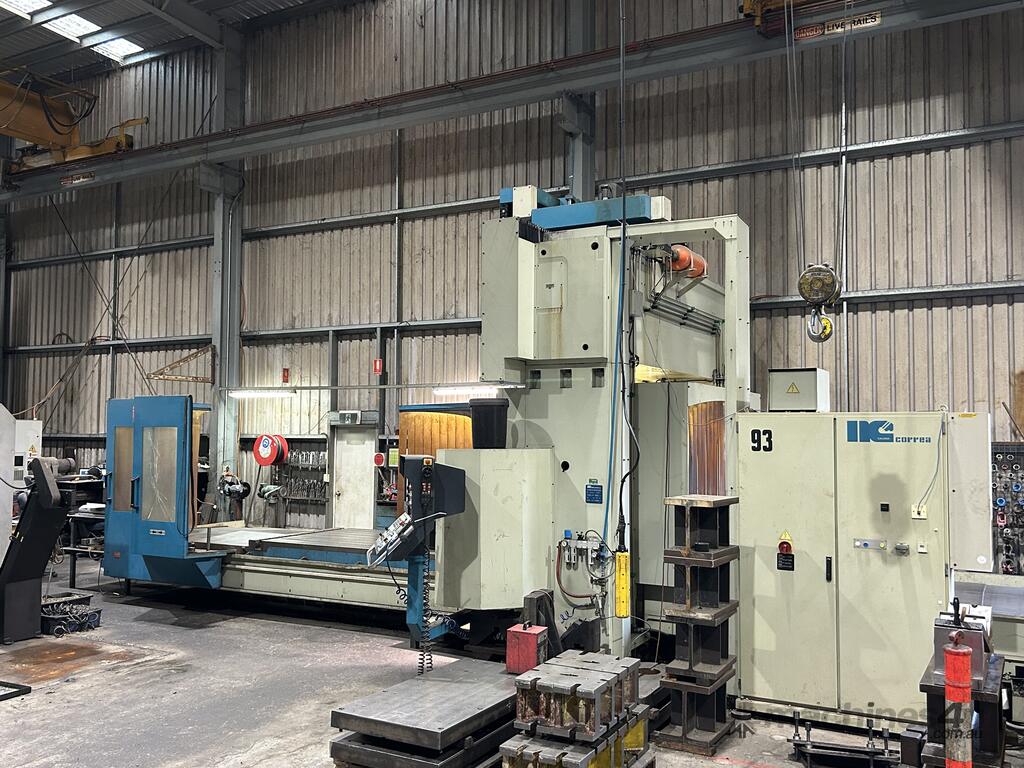

Nicolas Correa FP40/40S Double Column Bridge Mill

Heavy-duty bridge-type milling machine ideal for large workpieces and precision machining. Features robust double column construction, high-torque spindle, and advanced CNC control (Heidenhain). Perfect for mining, energy, and industrial applications.

Key Specs:

X Travel: 4000 mm

Y Travel: 2500 mm

Z Travel: 1000 mm

Spindle Speed: Up to 5000 RPM

Reliable, accurate, and built for high-performance milling.

Type of milling machine
• Type: Bridge type
• Brand: Correa
• Model: FP 40/40S
• Year of manufacture: 2002
• Numerical control: HEIDENHAIN TNC-426 PB

Technical features

Dimensions
• Table dimensions: 4.500 x 1.500 mm
• Number of T slots: 9
• T slots dimensions: 22 mm

Traverses of axis
• X axis traverse: 4.000 mm
• Y axis traverse: 2.500 mm
• Distance between columns: 2.300 mm
• Z axis traverse: 1.000 mm (500/1.500 mm)

Milling head
• Head 1: UAG Manual -indexing orthogonal interchangeable head (2,5º in both planes / Max: 3000 rpm)
• Head 2: Vertical spindle (Max: 5000 rpm)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Spindle power: 44 kW

Feedrates
• Feedrate: 12.000 mm/min
• Rapid feedrate (X / Y,Z): 15.000 / 12.000 mm/min

Weight and dimensions
• Maximum weight on table: 10.000 Kg
• Machine weight: 30.000 Kg
• Machine dimensions: 10.748 x 4.762 x 5.300 mm

Accesories
• Electronic handwheel: HR-410
