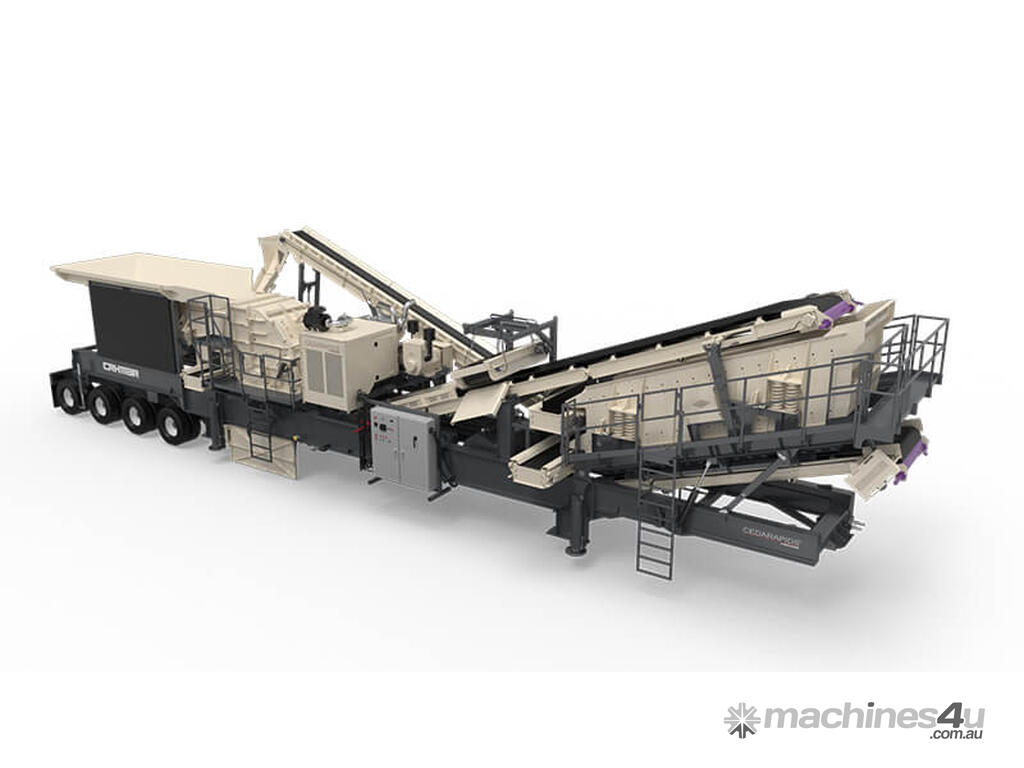

The CRH1113R Portable Closed Circuit Impactor/Screen Plant features the TI4250 impact crusher and a 6x16 2-deck inclined screen. The crusher is hydraulic clutch driven direct from a 450hp Scania diesel. All other components are electric driven from the 150kw generator. With its large screen, wide conveyors, and low maintenance electric driven components, this is a high production, high value plant.
Weight: 133,485 lbs
/ 60,535 kg
Transport Dimensions: 75'11"x11'11"x13'11" (LxWxH)
/ 23140x3632x4240 mm (LxWxH)
Working Dimensions: 74'4"x14'x18'10" (LxWxH)
/ 22660x4267x5740 mm (LxWxH)
Axles: 4 Axle
/ 4 Axle
