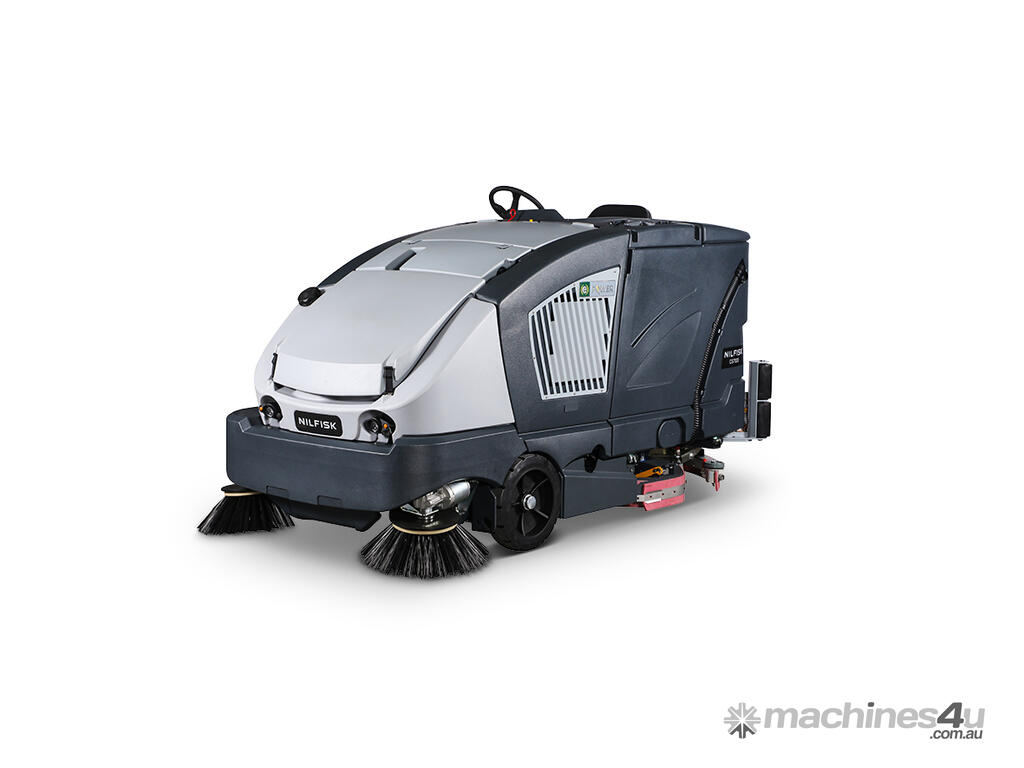

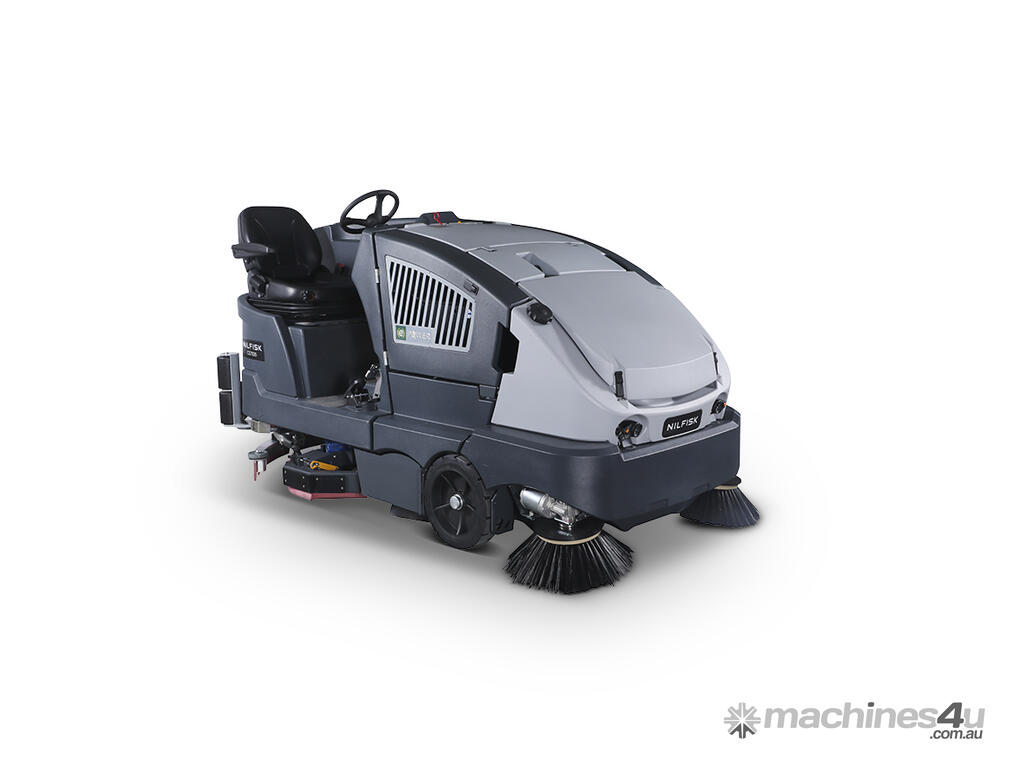

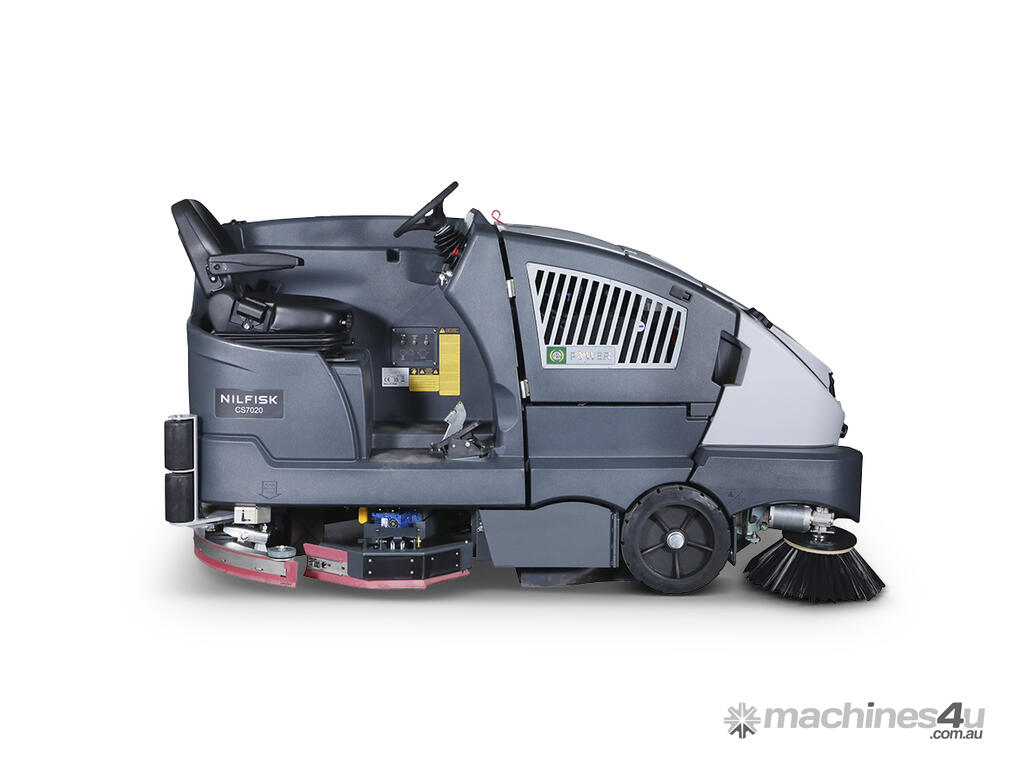

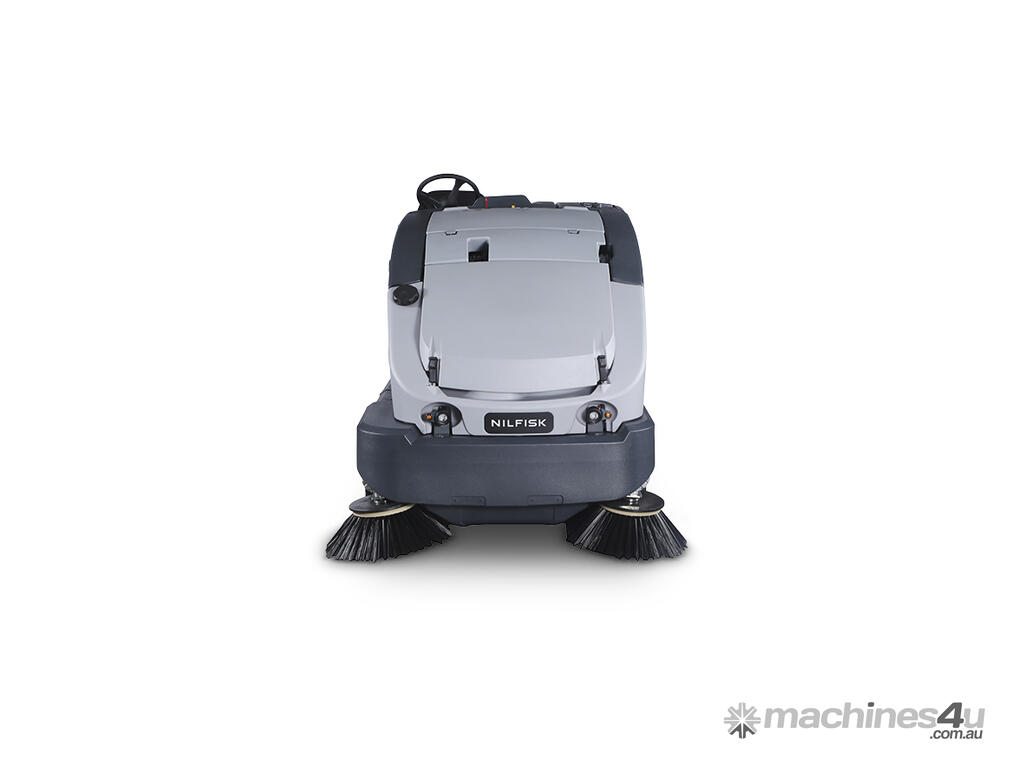

CS7020 BATTERY SWEEPER/SCRUBBER/DRYER COMBO

Environmentally-friendly & economical - the CS7020 combination machine can halve cleaning time by scrubbing and sweeping at the same time.
Integrated SmartFlow™ and EcoFlex™ technology reduces water and chemical usage.
• Dedicated sweeping and scrubbing functions keep debris dry without introducing scrub solution to the debris hopper.
• Unbeatable cleaning uptime and efficiency, powered by Lithium-Ion batteries. Li-Ion power maximises run time, recharges more quickly, can be opportunity charged, has a superior battery lifespan and reduces maintenance costs.

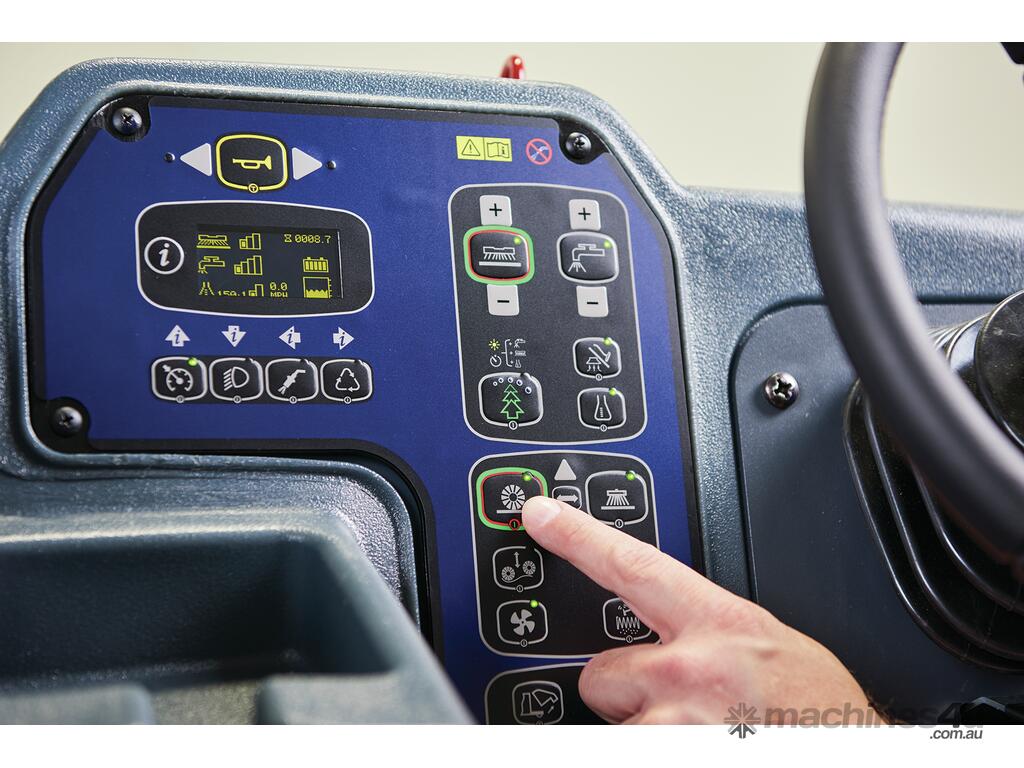

• An intelligent system of electronically controlled, low maintenance electric drives

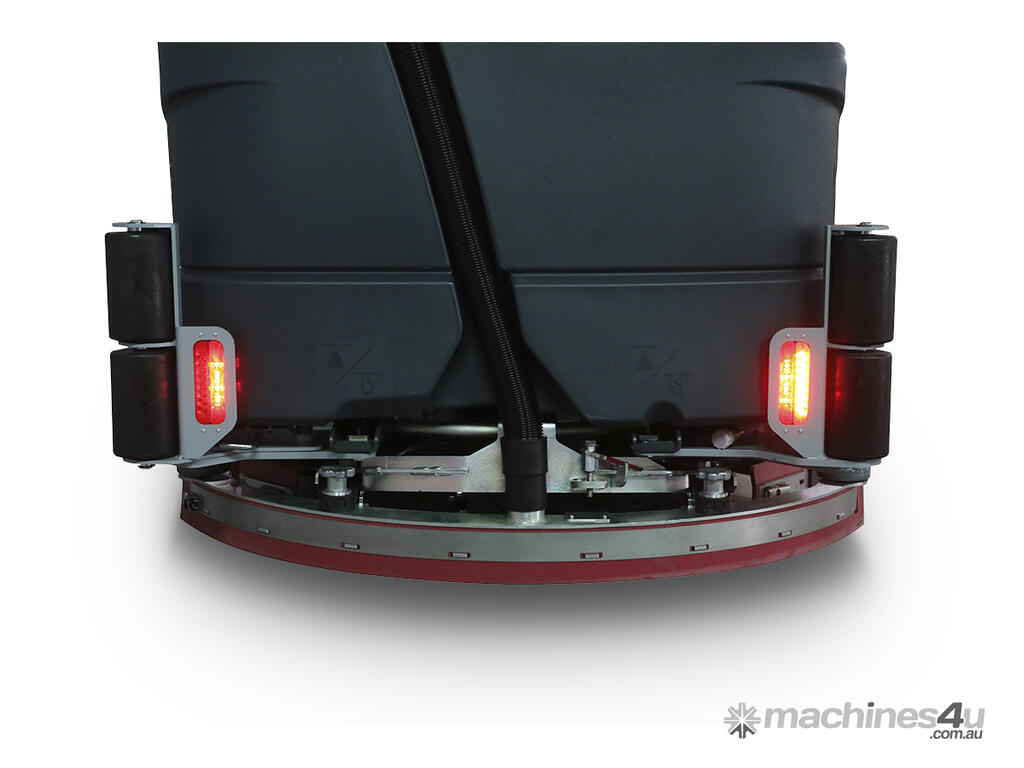

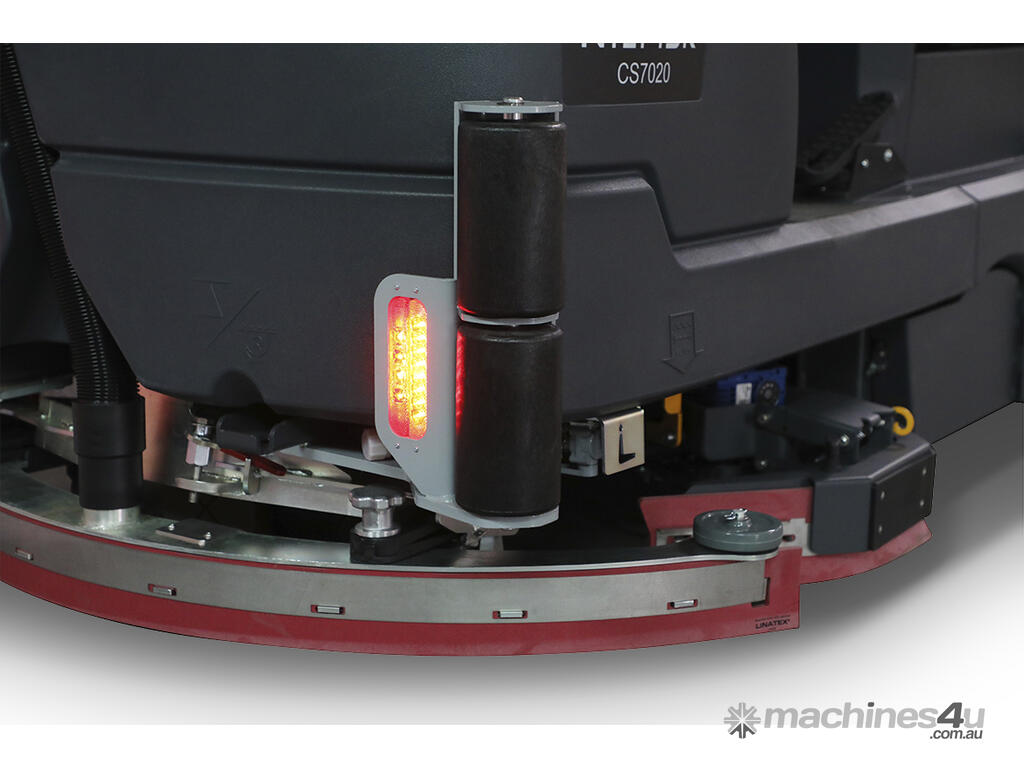

• Retractable offset deck and patented breakaway squeegee



TECHNICAL SPECIFICATIONS
CS7020

Power Source Traction Battery
Input Volts 36V
Scrubbing Width mm 1245
Sweeping Path mm 1540
Hopper Volume L 198
Main Broom Width mm 900
Brush/ Pad Diameter mm 430
Side Broom Diameter mm 381
Maximum Brush Pressure kg 181
Solution/ Recover Tank Capacity L 284/284
Squeegee Width mm 1350

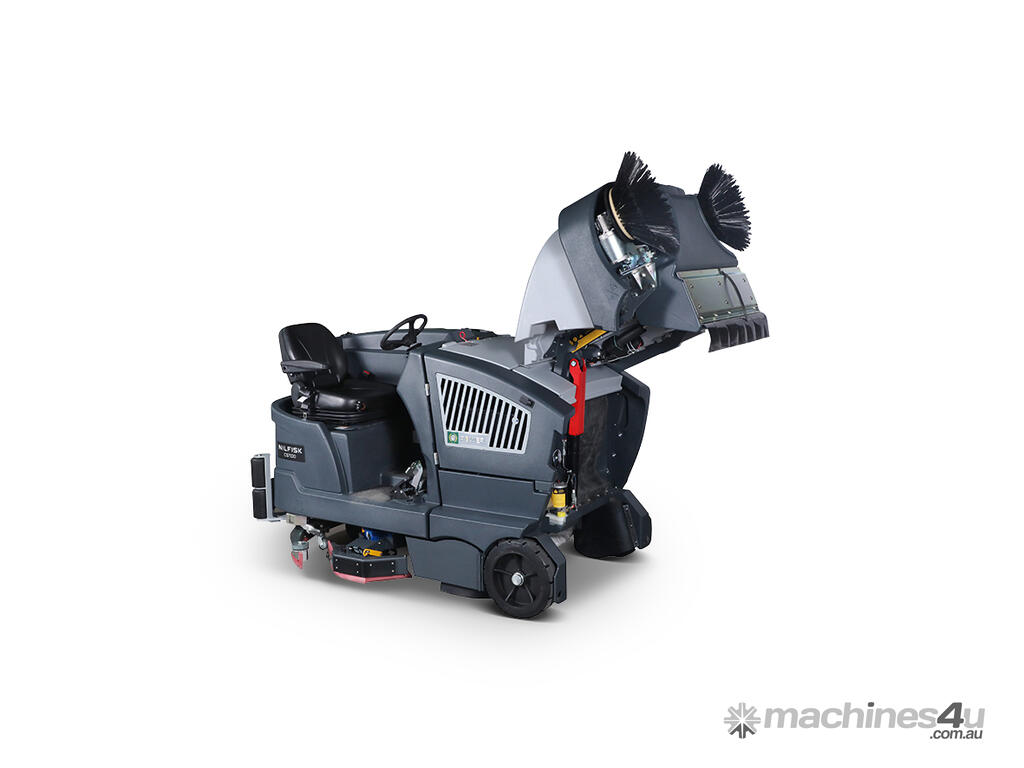

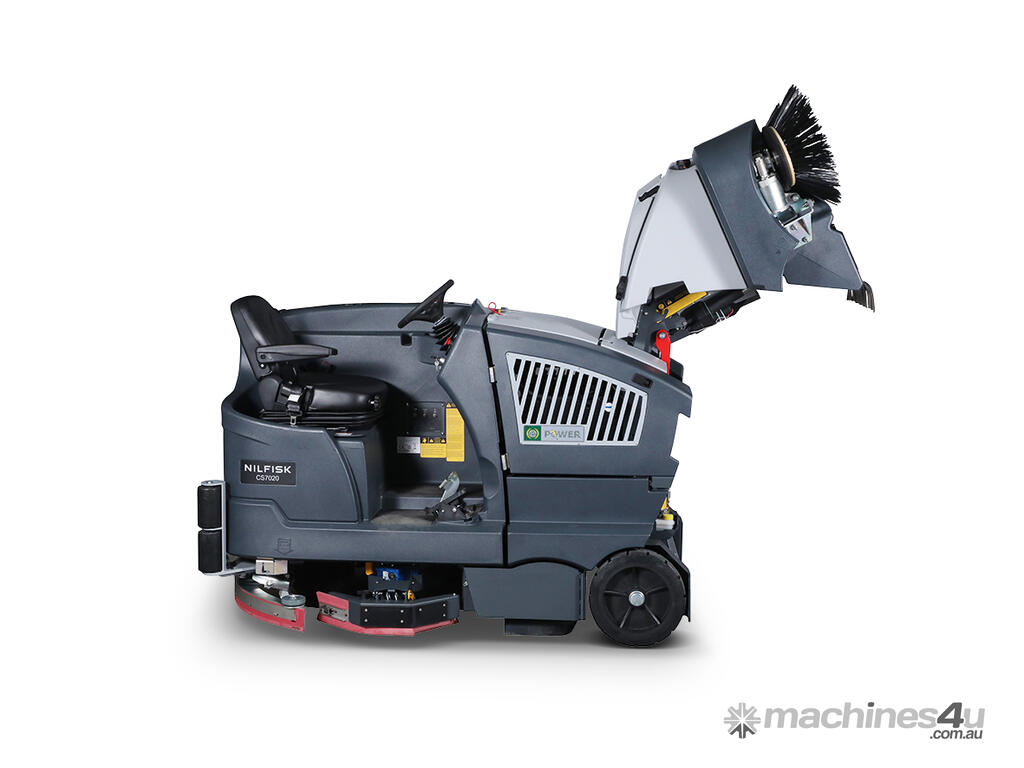

Maximum Dump Height mm 1520
Maximum Hopper Capacity L / kg 198 / 136
Dust Filter Surface m² 11
Productivity (theoretical) m²/hr Scrub up to 11,080 Sq m per hour / Sweep up to 13,600 Sq m per hour
Sound Pressure Level dB(A) 72
Dimensions mm 2620 x 1220 x 1500
Operating Weight kg 2343
Minimum Aisle Turn mm 2590
