CUTTING AND SPLITTING FIREWOOD PROCESSOR WOODPECKER WITH CONVEYOR RP-300 4M

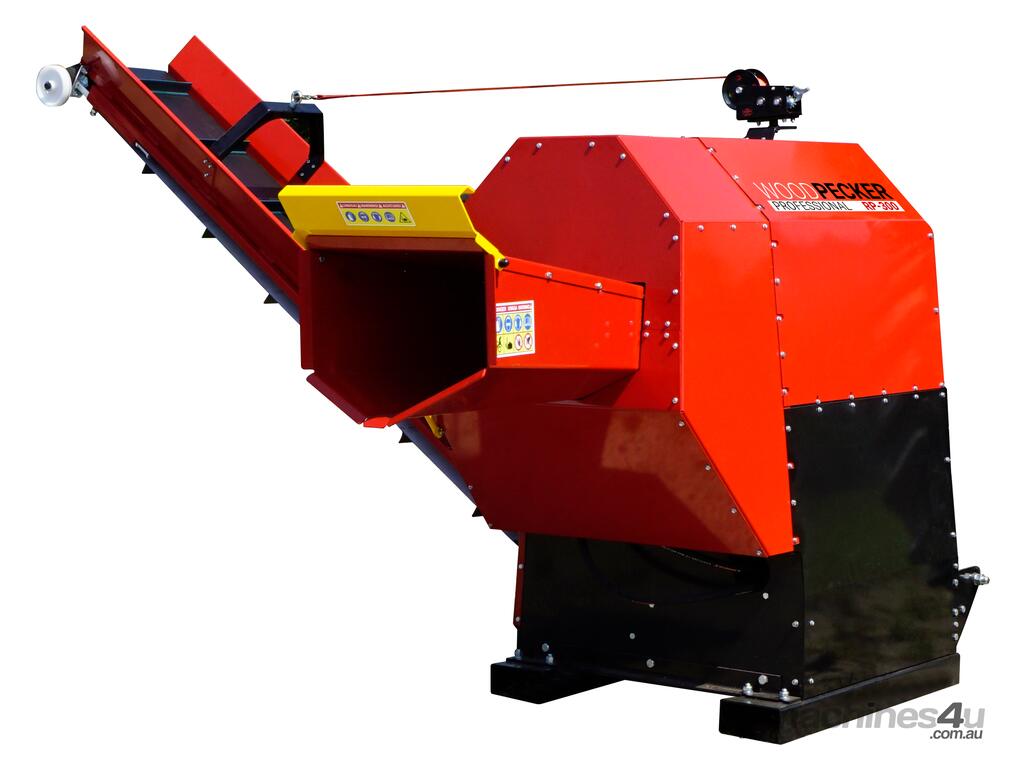

RP-300 4m CUTTING & SPLITTING WOOD PROCESSOR
The WOODPECKER RP-300 cutting and splitting chipper is designed for cutting and splitting tree trunks with a diameter of up to 20 cm. The chipper has hydraulic feed rollers with adjustable feed, thanks to which you can obtain pieces of wood with a length of 20 to 50 cm.

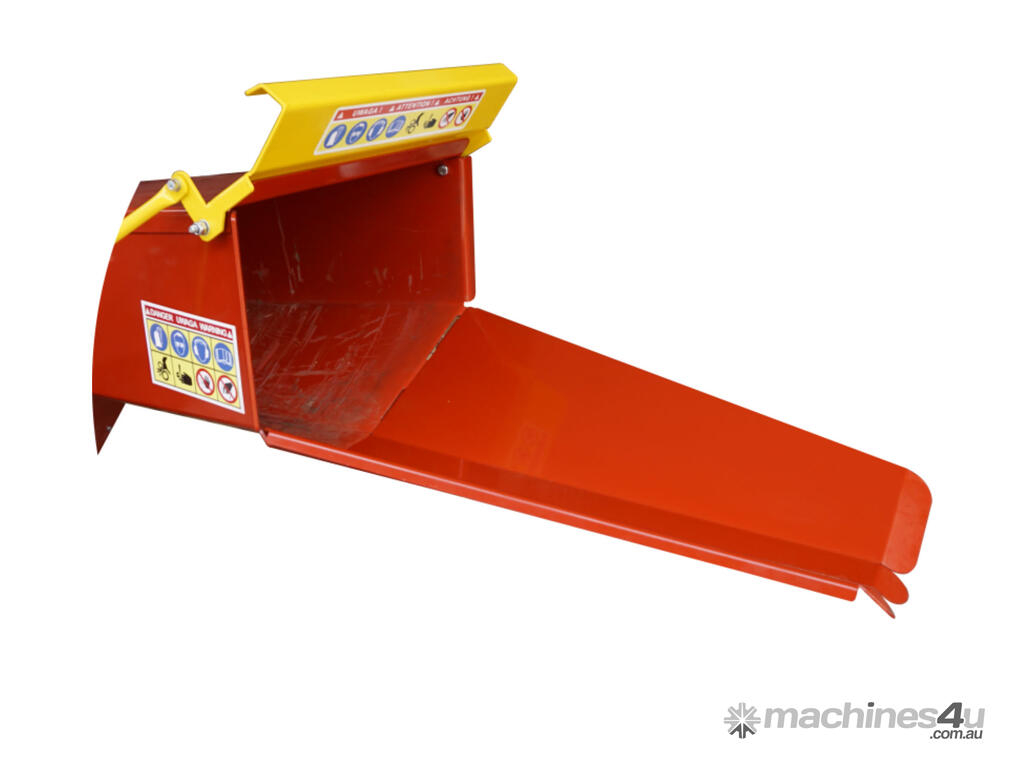

The chipper is equipped with a safety switch and covers to ensure safe operation. The chipper has a system for withdrawing material from the feed hopper. The device is equipped with a 3m or 4m long belt conveyor for discharging the processed material. The shredder is characterized by high efficiency and high comfort of work. The obtained pieces of wood work great as fuel.

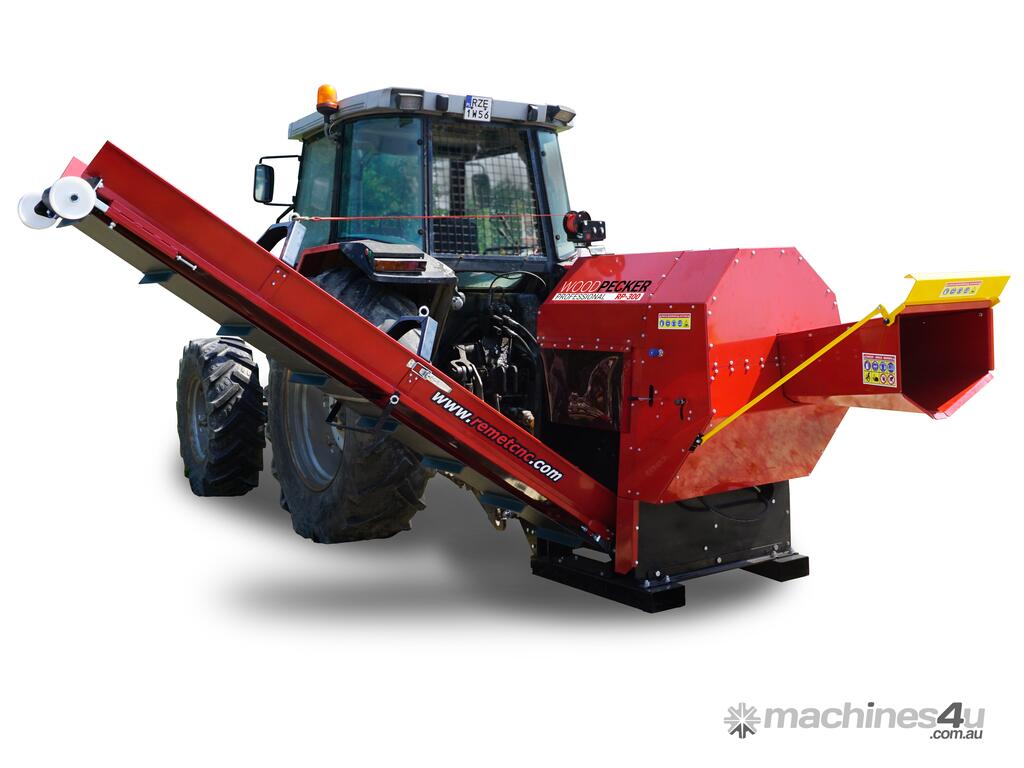

The drive of the chipper is transmitted through the power transmission shaft of the tractor's PTO shaft (right-hand rotation). We recommend using power transmission shafts equipped with a shear pin clutch (available in our offer). If the machine is overloaded, the pin is sheared and the drive is disconnected.

TECHNICAL SPECIFICATIONS
Minimum/recommended power 55/80 HP
Max. branch cutting diameter (fresh soft wood) 200mm European Timbers
Max. branch cutting diameter (fresh hardwood) 190mm "
Max. branch cutting diameter (dry hardwood) 180mm "
Libra 900 kg
Recommended PTO shaft revolutions 300-500 rpm

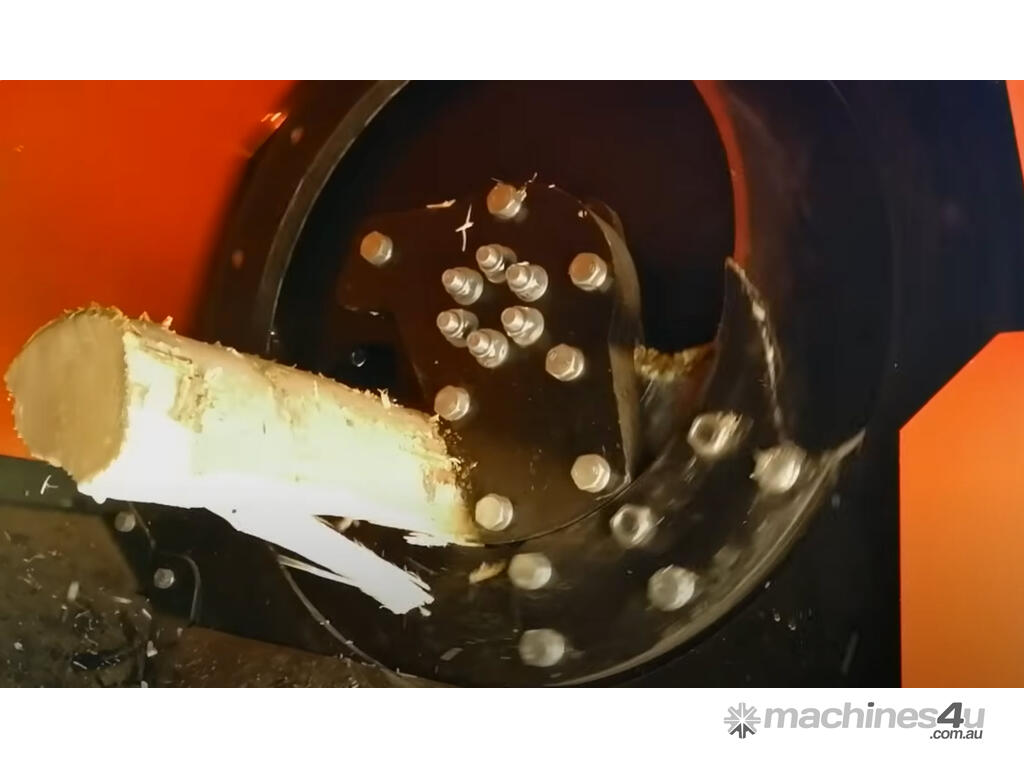

Cutting Knives Wear-resistant steel with increased hardness
Chipper mounting system Three-point suspension system
Length/width of the conveyor 300/40 cm or 400/40 cm
