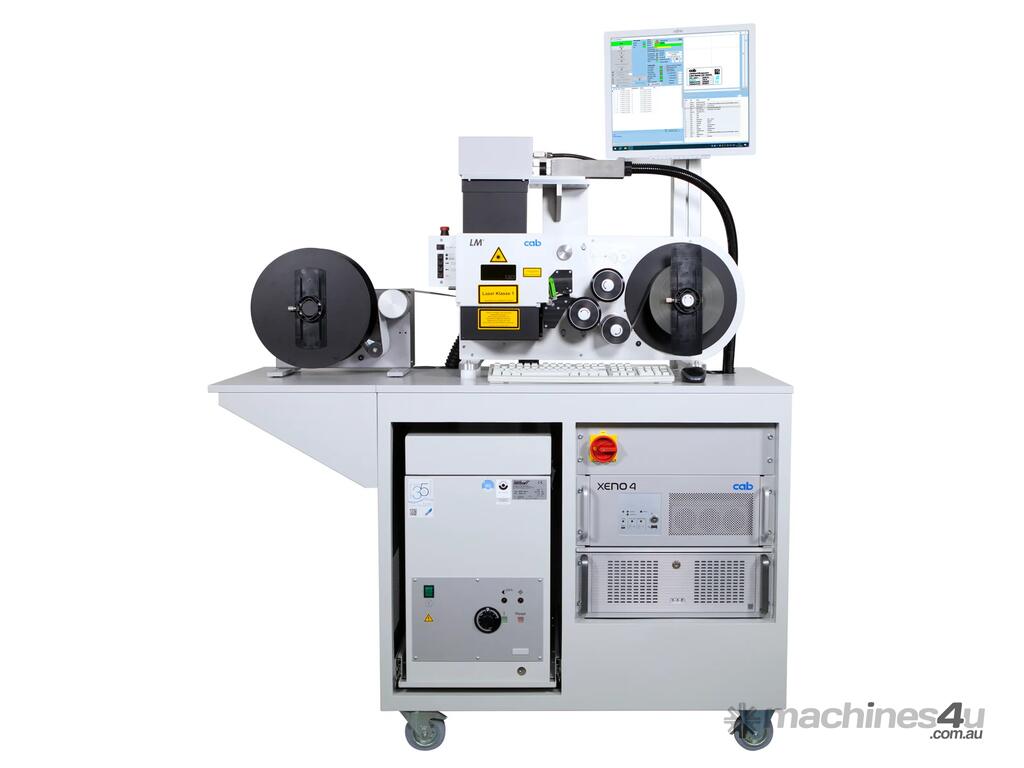

Cab LM+ XENO 4 / XENO 4+ Automated Fibre Laser Marking System

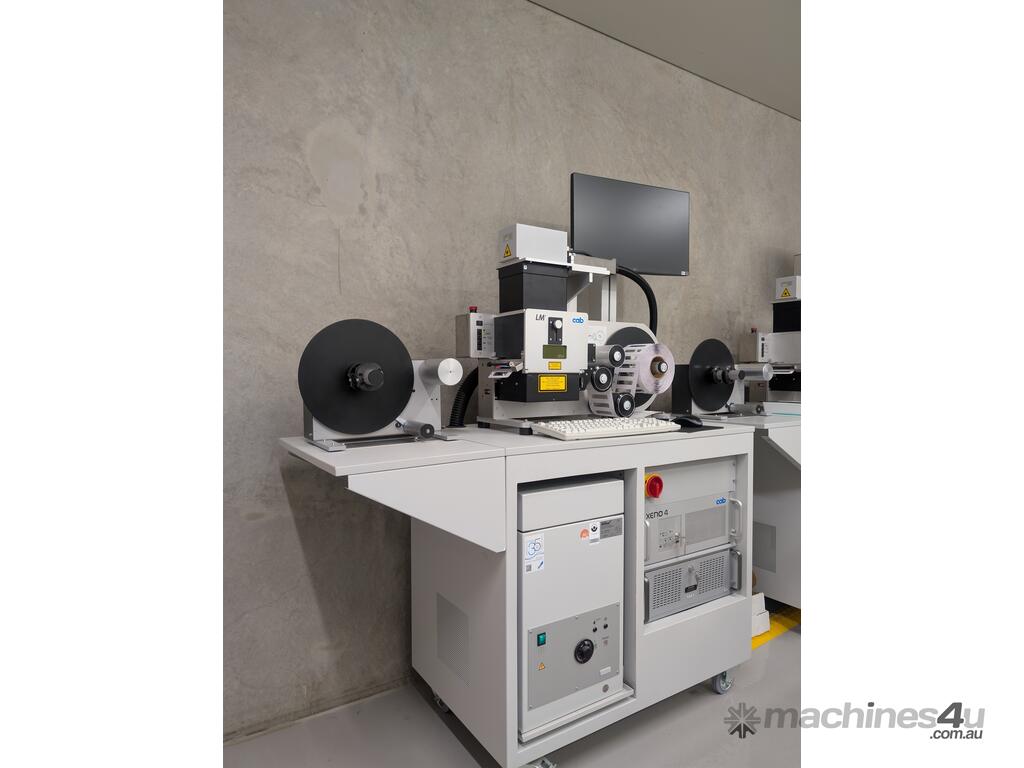

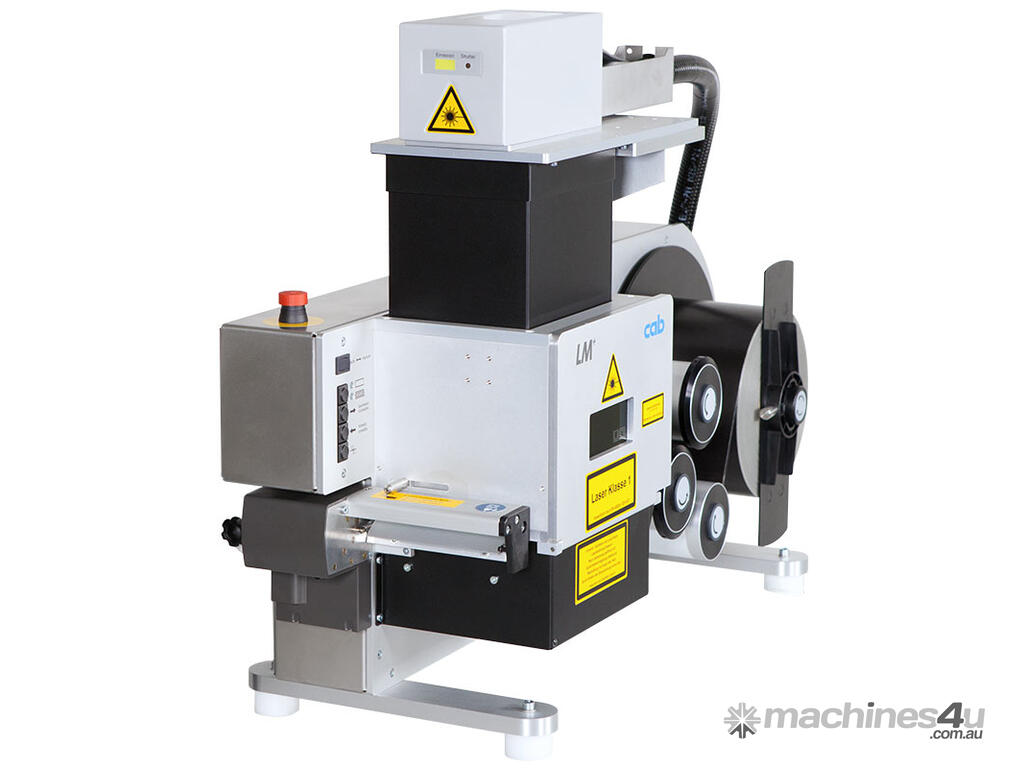

cab LM+ Fibre Laser Marker & Cutter

The cab LM+ system is a high-precision fibre laser marker and cutter from cab Germany, powered by the XENO 4 or the upgraded XENO 4+ laser unit. It enables permanent marking on plastics, metals, and painted surfaces.

Key Features
Integrated Focus Finder: Automatically adjusts the laser focus to the workpiece for simplified positioning.

Flexible Marking Fields: Using different plano-spherical lenses, marking fields range from 69 × 69 mm up to 290 × 290 mm, with resolutions from 1000 dpi to 300 dpi, respectively.

Industry 4.0 Ready: TCP/IP control and monitoring for seamless integration.

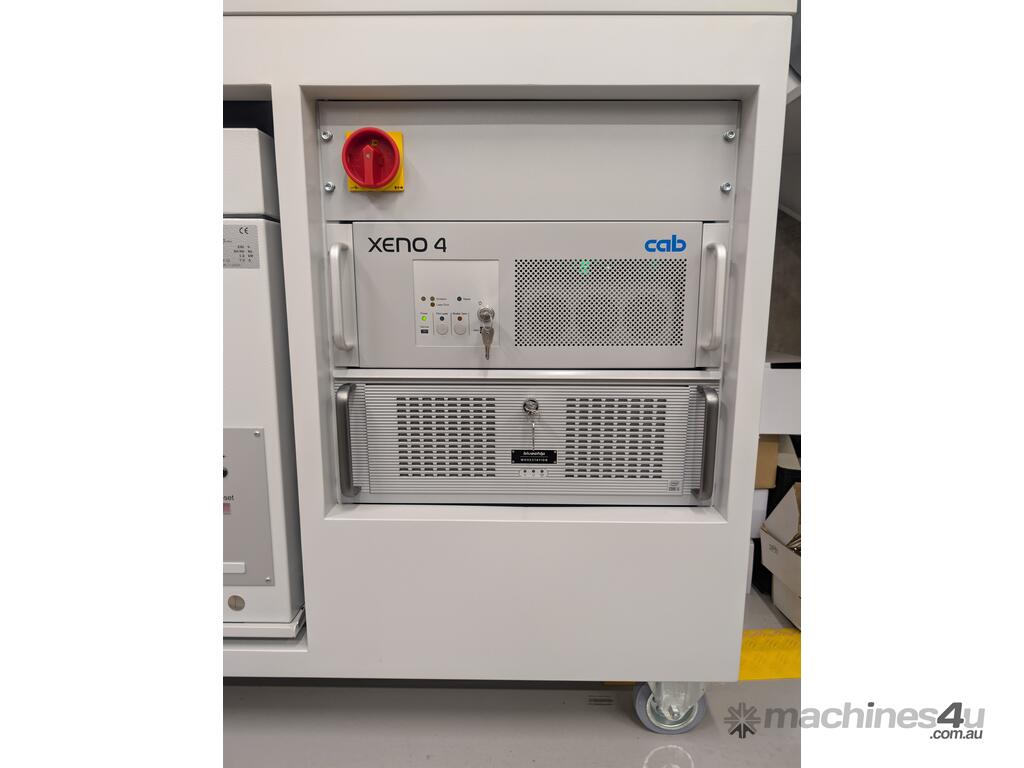

XENO 4 Laser Source
Laser source manufactured by Raycus, Made in Germany
Air-cooled Ytterbium Fibre Laser
Available powers: 20 W / 30 W / 50 W, with frequencies:
20 W ? 20–60 kHz
30 W ? 30–60 kHz
50 W ? 50–100 kHz
High operation speed
Integrated Focus Finder

XENO 4+ Laser Source
Laser source manufactured by IPG, Made in Germany
Ytterbium Fibre Laser
Available powers: 20 W / 30 W / 50 W, with frequencies: 2–500 kHz
2-year warranty

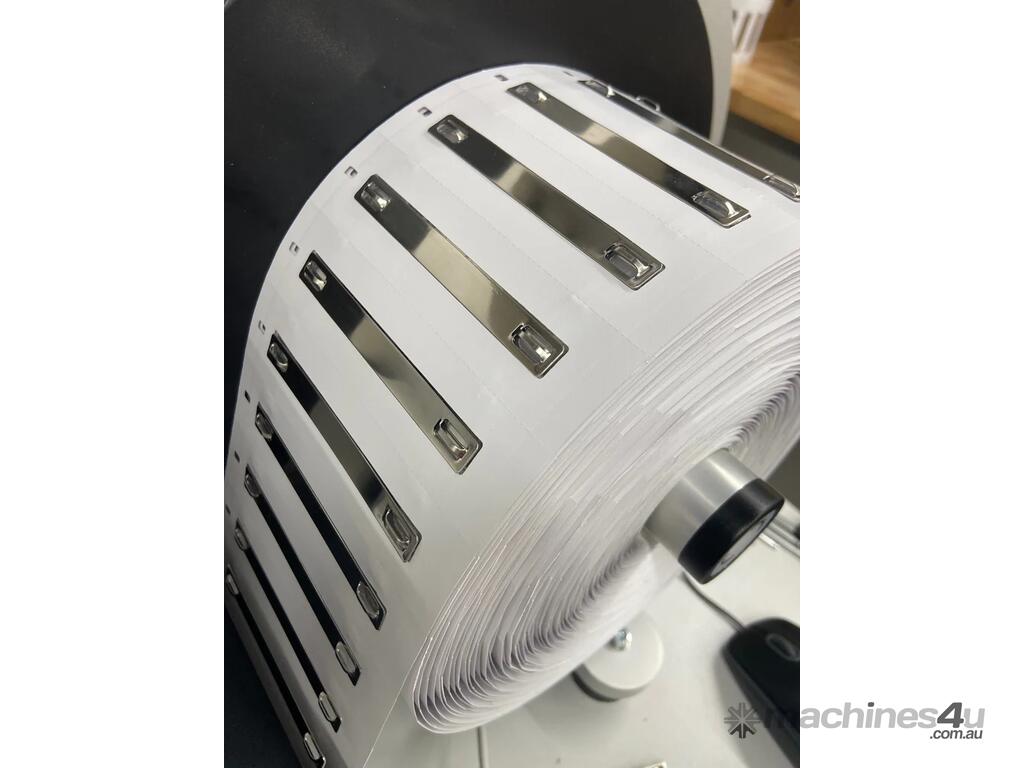

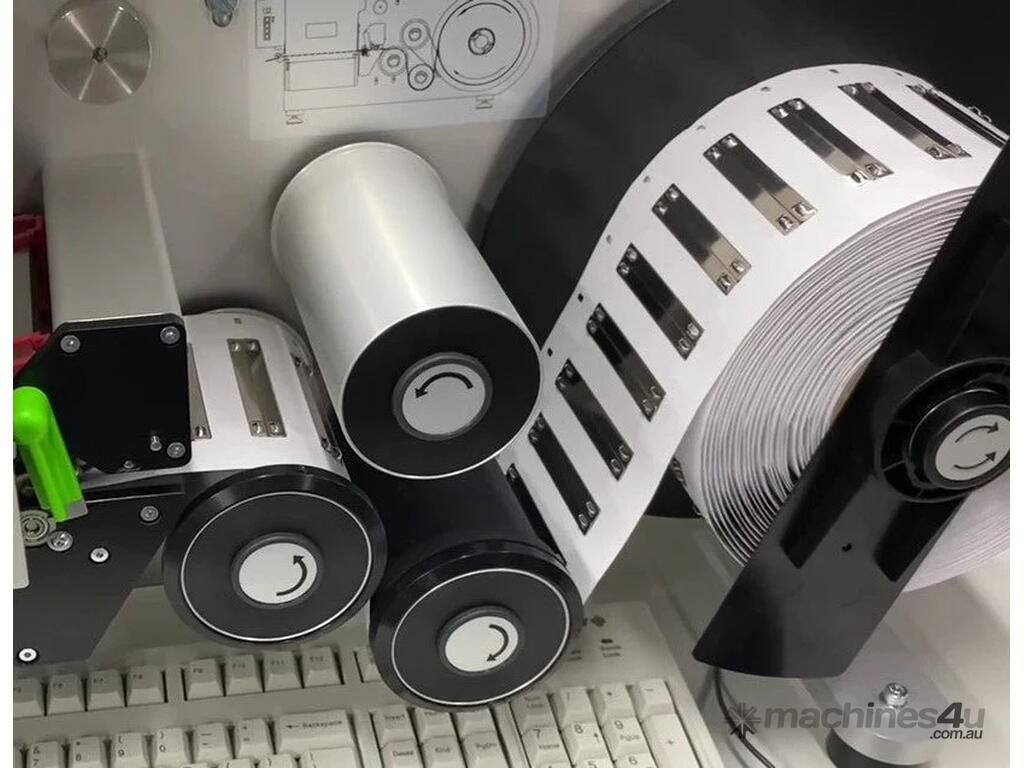

Wiremarkers™ Cable Tag Rolls

Our exclusive Wiremarkers™ patented cable tag rolls allow for enhanced on-site batch sorting and organization, saving valuable time. Designed exclusively for use with the cab LM+ Laser system.
