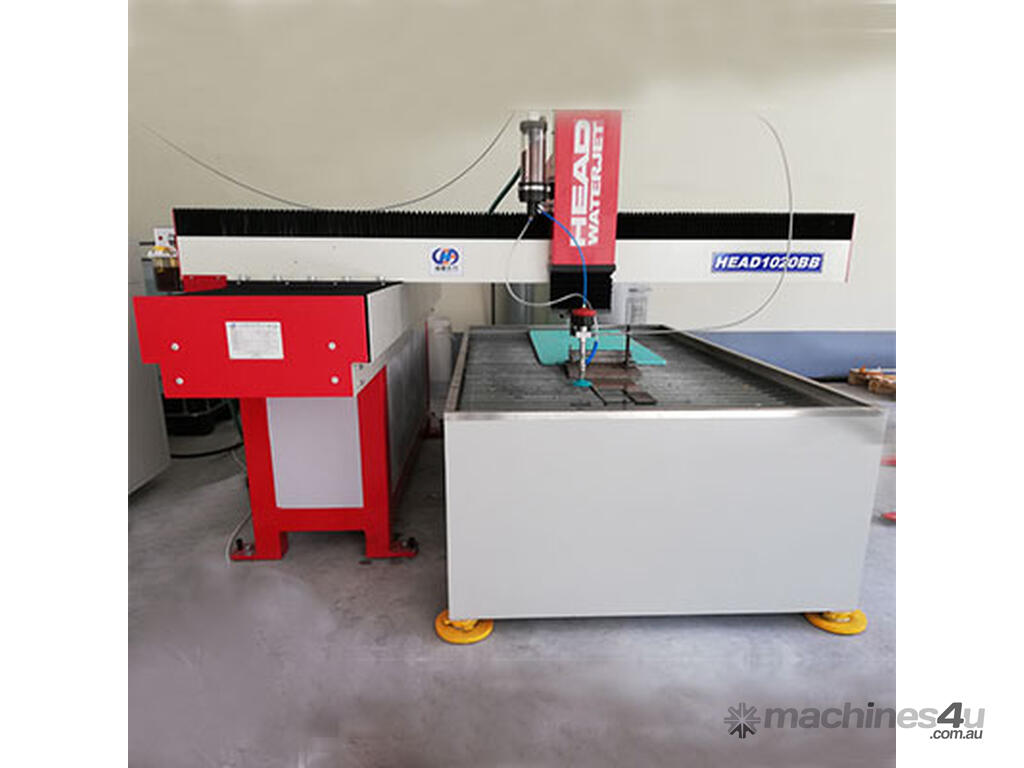

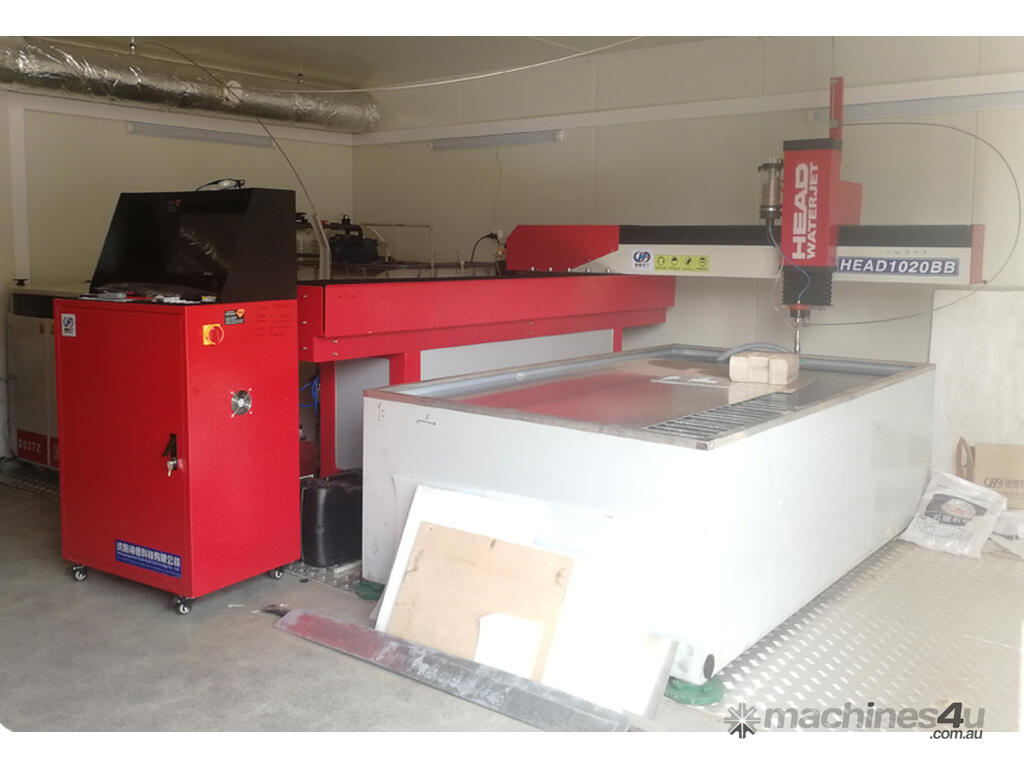

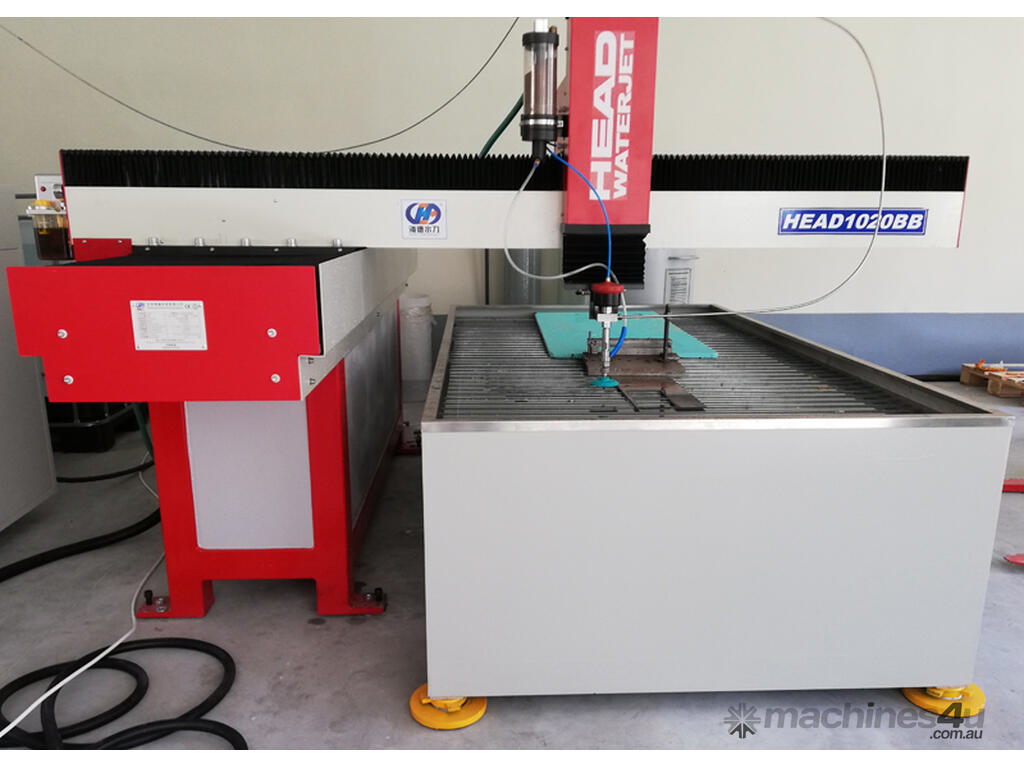

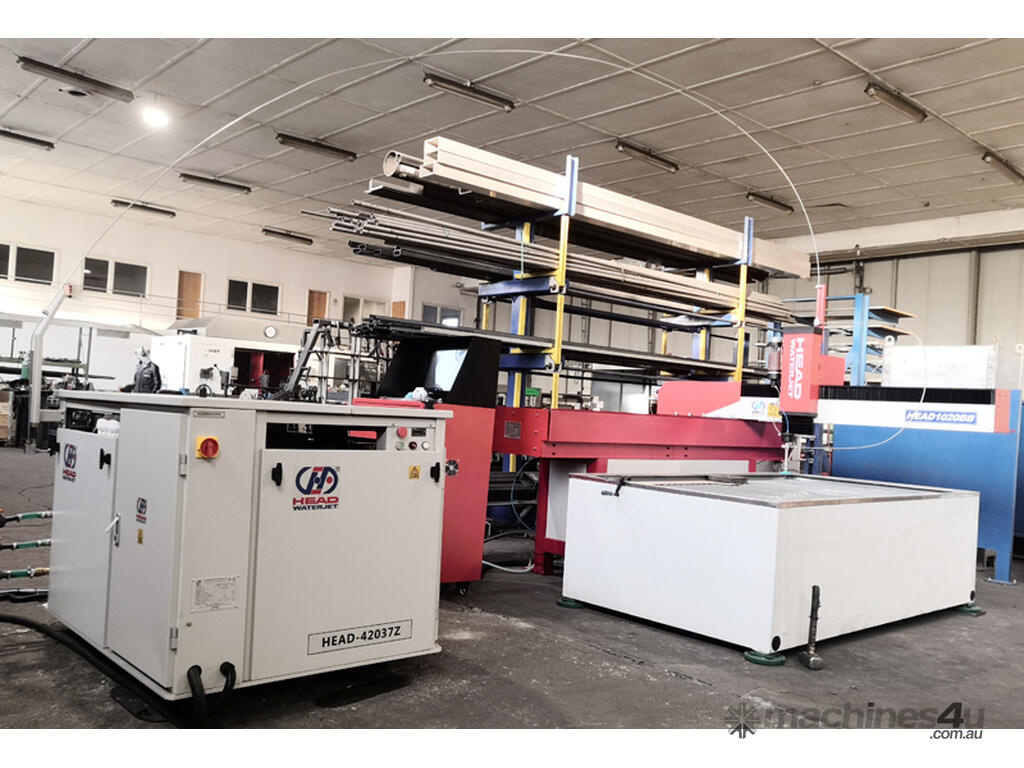

Cantilever Waterjet Cutting Machine (1000×2000mm Cutting Table)

This cantilever-style waterjet cutting machine brings high efficiency and precision to small-to-medium scale cutting applications. Its open-frame design allows easy loading/unloading from three sides while maintaining compact dimensions—ideal for workshops where space is at a premium

Key Advantages
Open Cantilever Structure

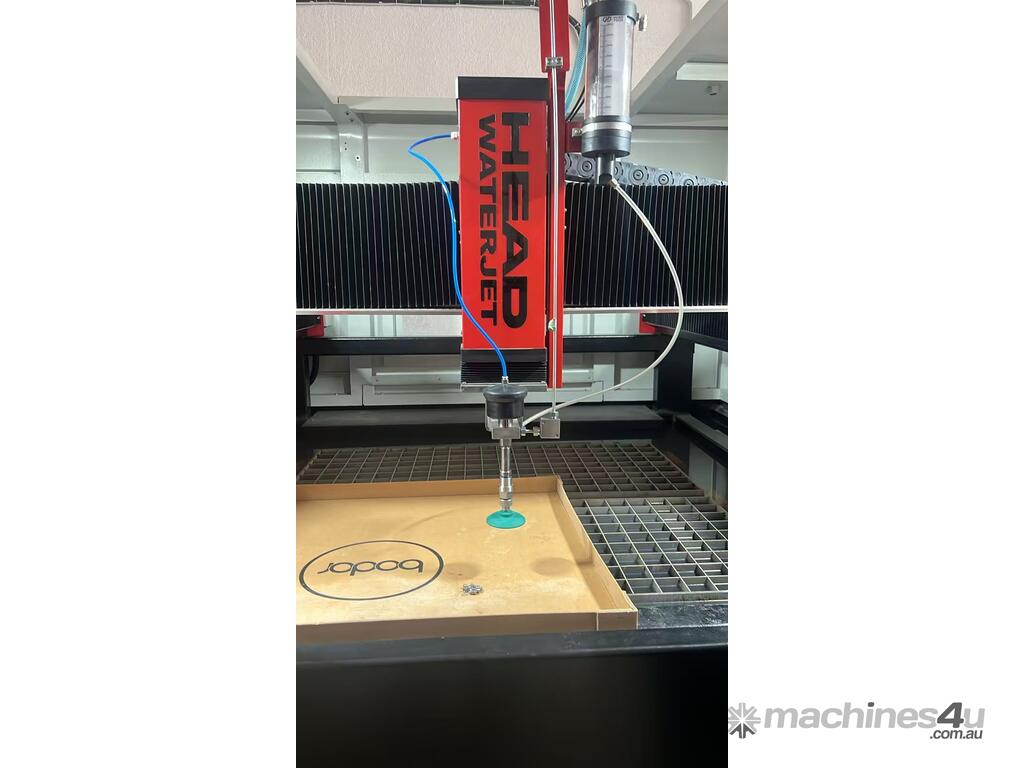

Featuring a single overhanging beam supporting the cutting head, this design enables accessible loading from three sides without sacrificing stability or cutting performance
wonlean.cn
.

Compact Footprint, Big Performance
With a 1000×2000 mm cutting table, it's perfect for mid-size jobs. The compact layout saves floor space yet offers full-featured capability like larger machines .

High Precision & Accuracy
Equipped with precision ball screws, linear guides, and Yaskawa (Japan) servo motors, it maintains cutting accuracy of ±0.1
mm and repeatability at ±0.02–0.05?mm depending on configuration

Stable and Robust Construction
Heavy-duty welded steel or cast concrete frames absorb vibrations and eliminate stress—ensuring precision and long-term structural integrity


Flexible Material Handling
Ideal for cutting metals, stone, glass, composites, ceramics, and more, supporting a wide assortment of industrial and artistic applications


User-Friendly CNC Control
Integrated systems support CAD import, job queues, bevel/taper compensation, and optional multi-head or 5?axis cutting for complex geometries


Technical Specifications
Specification Details
Cutting Table Size: 1000×2000mm
X-Axis Travel :1000 mm
Y-Axis Travel :2000 mm
Z-Axis Travel :50–200 mm
Cutting Accuracy :±0.1mm
Repeat Positioning: ±0.02–0.05 mm
Control Accuracy ±0.01 mm
Max. Speeds ~6000–18000 mm/min (varies by model)
Drive System AC servo (Yaskawa/Japan), ball screws & linear guides

Structure Materials Welded steel/cast concrete frame
Loading Accessibility Accessible from 3 sides
Optional Features Multi-head, bevel/5 axis cutting, drilling, rotary axis etc.


Who It's For
Workshops & Small Manufacturers looking for a cost-effective, precise waterjet system with easy access and compact footprint.

Makers & Fabricators who require versatility in cutting metals, stone, glass, composites, plastics, or ceramics.

Prototyping & Artistic Studios needing precise, clean cuts with zero heat-affected zones, suitable for intricate designs.

This cantilever waterjet cutter with a 1000 ×2000 mm cutting table provides top-tier precision, versatility, and ease of use in a compact, cost-effective package. Perfect for users who require both performance and accessibility in diverse cutting applications.
