Category 3-Guarded Pan Brake: 2500 x 2mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

The proven design of the EPIC 2500 x 2.0mm Hydraulic Pan Brake provides accurate bends and folds in automatic or manual mode. The careful construction means this machine is made to last. Optional features can deliver a true 2-axis pan brake.

The EPIC Hydraulic Pan Brakes are designed and manufactured in the company's NSW workshop. EPIC has been manufacturing sheet metal processing equipment for more than 40 years, and the company’s high quality Australian-made machines are built for precision and reliability – and are made to last.

EPIC has technical services Australia-wide. Plus, EPIC offers personal customisation and modification of all machines.

CATEGORY 3 GUARDING

EPIC can apply Australian-approved guarding systems to any of its existing pan brake models. Laser guarding can be integrated into the existing electrical and mechanical systems without impacting work efficiency, machine speed, job accuracy or ease of control. All the standard features are included with or without the guarding.

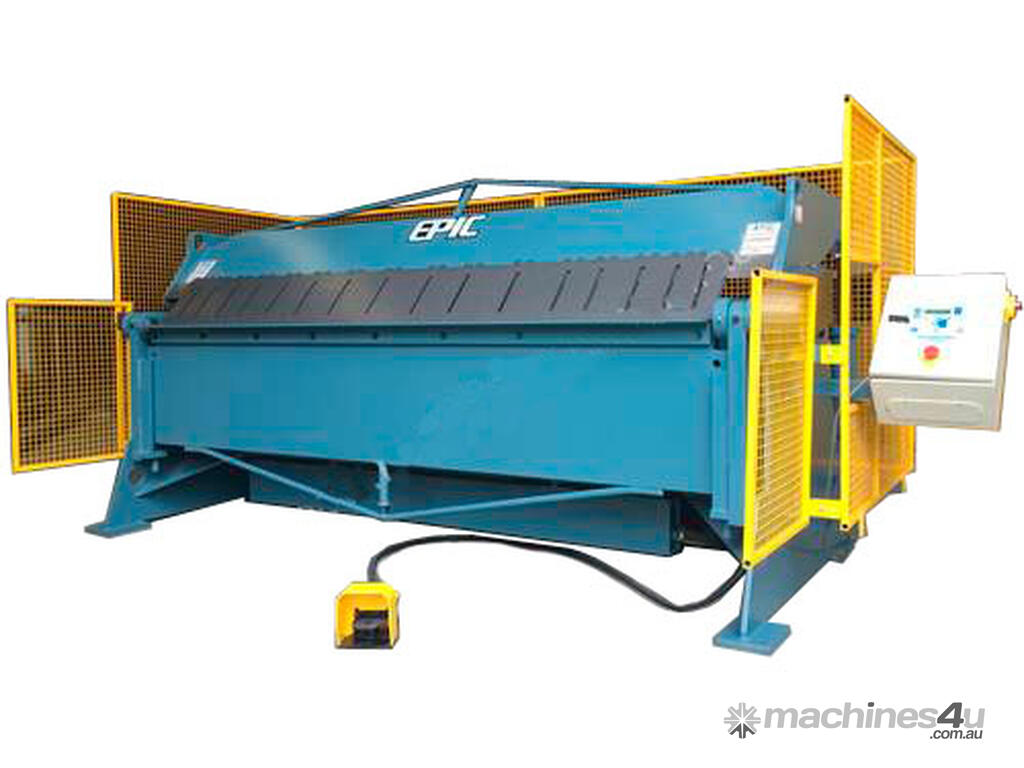

This particular machine is an EPIC 2500mm x 2.0mm Hydraulic Pan Brake with AS4024 Laser guarding to Category 3.

HYDRAULIC RAM MOUNTING SYSTEM

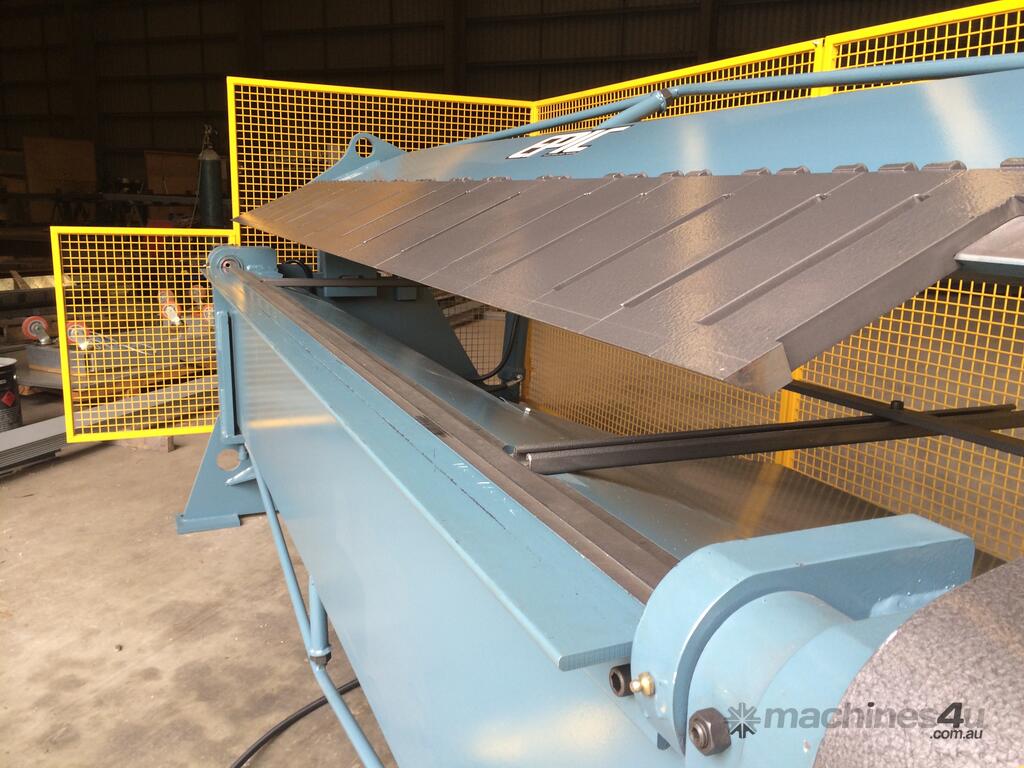

EPIC's hydraulic ram mounting system is designed for minimal deflection under recommended loads. The full tonnage delivered by the clamping rams is transferred to the head through the trunnion bearings. The bearings are mounted to the side frames of the machine providing support even at the centre of the machine head and minimising any side movement. When bending at full capacity this achieves a smaller radius and a nice straight bend/fold.

AUTOMATIC OR MANUAL CONTROL

The pan brake can be operated in automatic or manual mode. In the auto cycle, the operator sets the angle, clamps the material, and then triggers the switch to automatically raise the apron to the designated angle. Once the fold is made the apron will lower automatically and the head will unclamp.

In the manual mode, the clamp is operated via a foot switch. The material is clamped and the bend is made; the angle of the apron (bending beam) is displayed on the controller screen. The apron can be raised or lowered at any time via the foot switch, enabling the operator to set the angle required for the fold. The desired angle can be saved in the controller so that the fold can be easily replicated.

Manual settings on the controller can be overridden, allowing the operator to complete a fold without changing or losing a setting. This is useful when production has to be interrupted for a rush job.

Standard Features:
- 3-station electronic angle control – Australian-made
- Electrics – low 24volt foot switch with overload protect

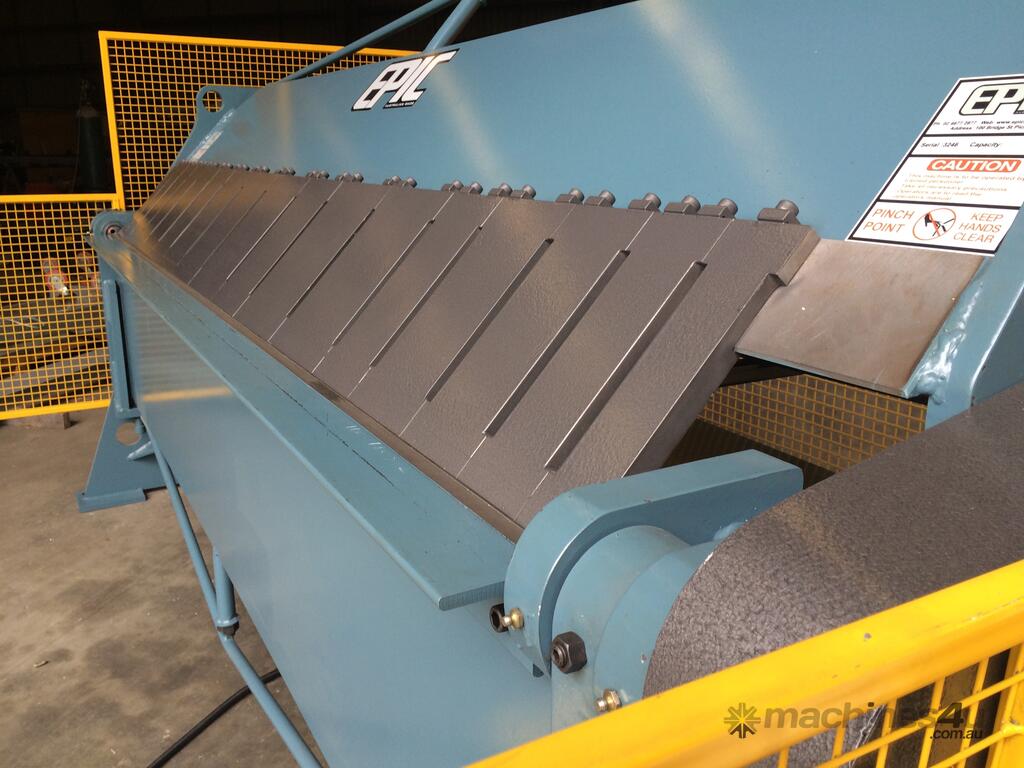

- Bed head and apron are uniquely designed to provide maximum strength and a straight fold
- 5.5KW motor
- Hydraulics and electrical components from European suppliers with branches Australia-wide
- Clamping provided by large rams
- Clamp and unclamp with single easy-to-operate foot pedal
- Unclamp is controlled to allow the operator to regulate the open height
- High-carbon steel flame-hardened fingers machined from one solid piece
- High-tensile steel apron blade – for long life even when used for stainless steel

Optional Features:
- 10-station angle control with storage for 99 jobs – user-friendly, quickly mastered
- One-piece blade on head
- Hand wheel-operated back gauge – lead screw or ball screw options
- Electronic ball screw back gauge, standard 1200mm travel control via 10-station angle control providing a true 2-axis pan brake

Custom lengths available on request:

- 1250mm x 4mm mild steel capacity
- 1860mm x 4mm mild steel capacity
- 3070mm x 4mm mild steel capacity

Contact EPIC today for more information on all our customisable sheet metal fabrication equipment.
