Caterpillar CAT C18 850kVA Diesel Generator – Brand New Open Set 50Hz

CAT C18 KVA Diesel Generator Set

Specifications:

Condition: New
Category: Industrial Generators
Make: Caterpillar
Model: C18 Generator Set (DE850E0)
Year:
Fuel: Diesel
Frequency: 50 Hz
Configuration: Open Set

Generator Set Specifications

Maximum Rating (Standby): 850 KVA
Prime Rating: 770 KVA

Usable Electrical Output (0.8 power factor):

Standby Power: 680 eKW
Prime Power: 616 eKW

Voltage Options:
415 V
400 V
380 V
Motor Starting Capability (30% Voltage dip, 0.6 PF)
up to 2268sKVA at 415V
Current Output:
approx. 1182.5 amps at 415V
Duty Cycle:
Standby
Prime Power Operation
Description
Brand new Caterpillar CAT C18 diesel generator set supplied in open set configuration.

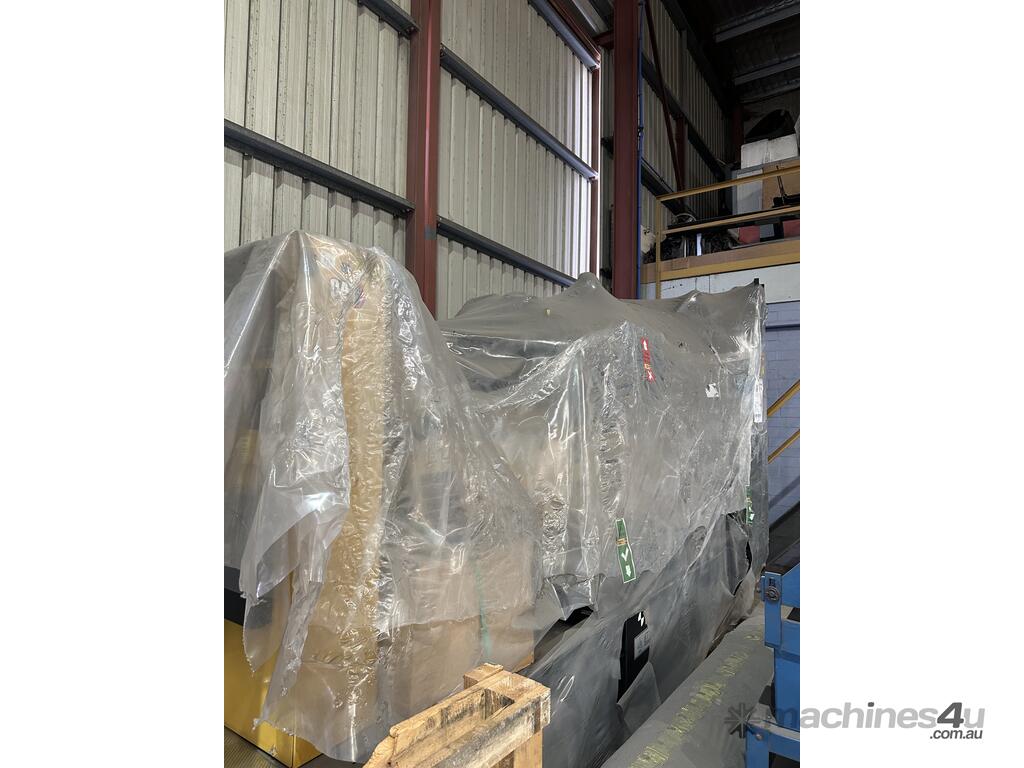

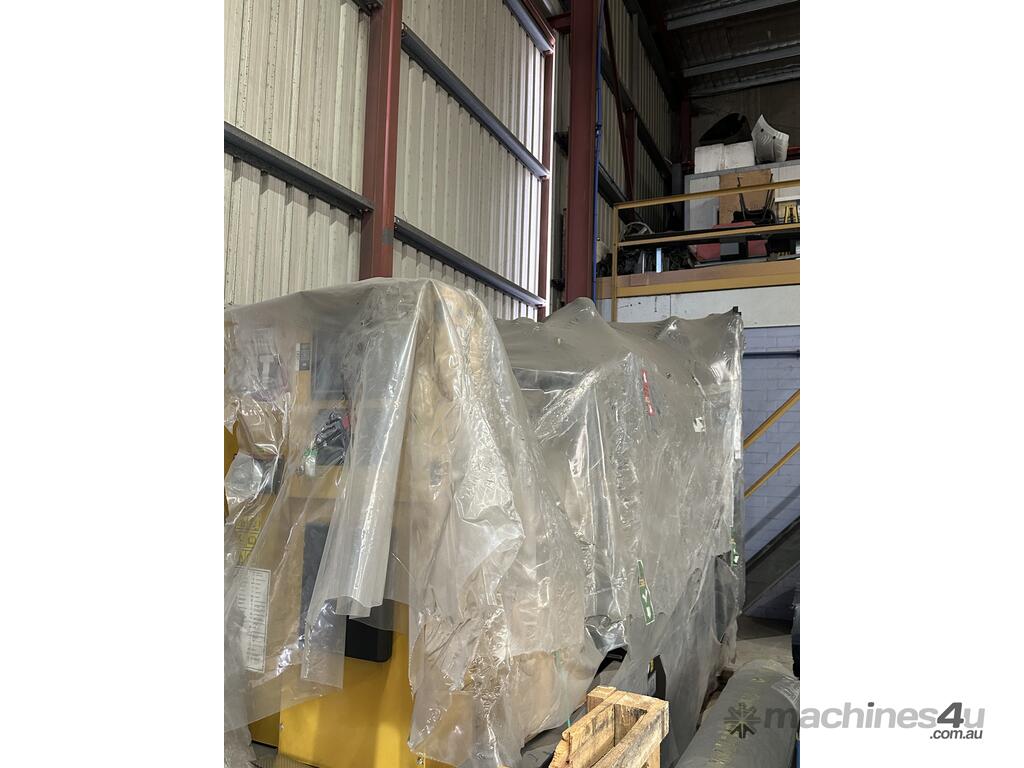

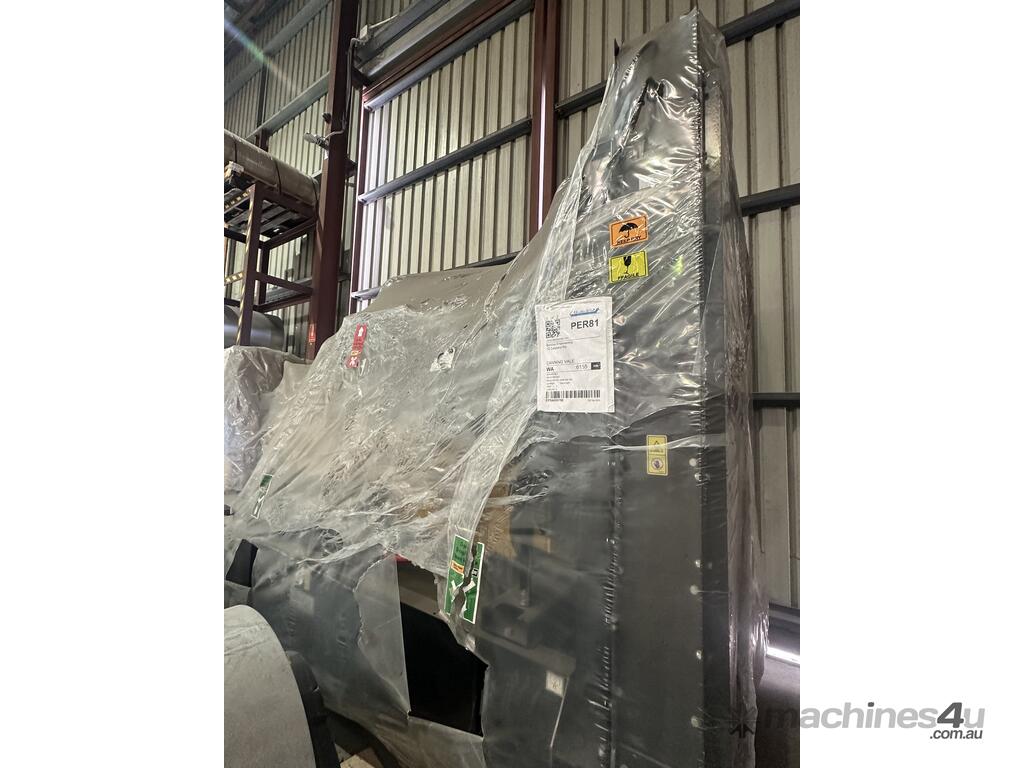

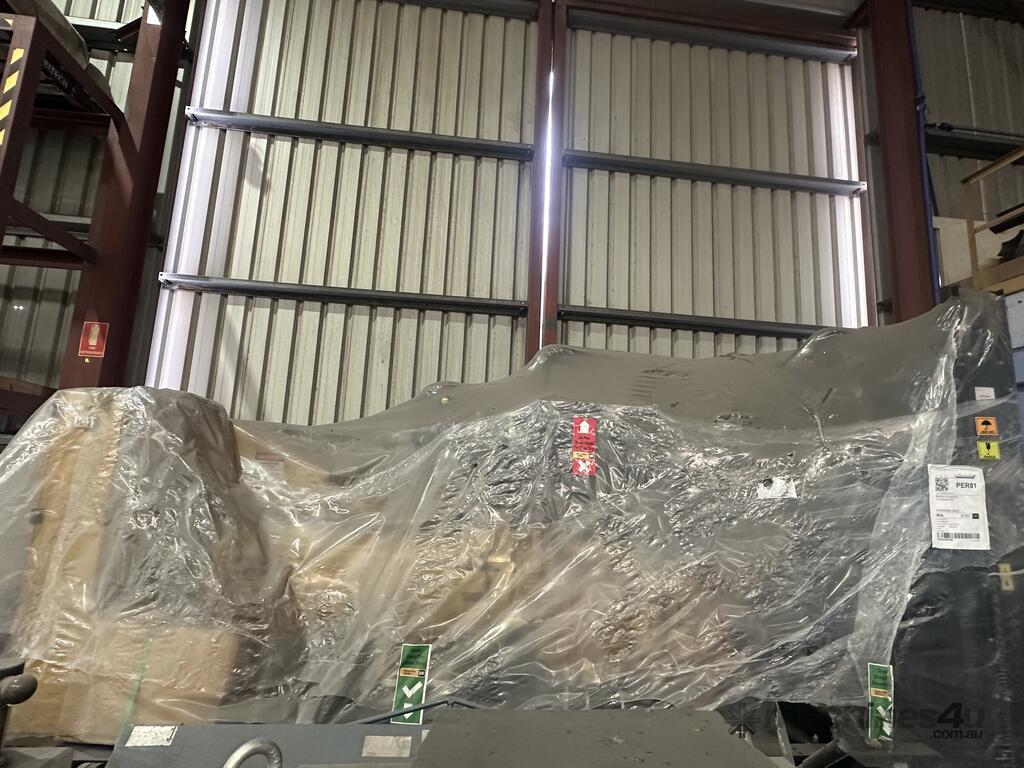

The unit is still wrapped in protective plastic and stored indoors in our workshop.

Price: $230,000 + GST

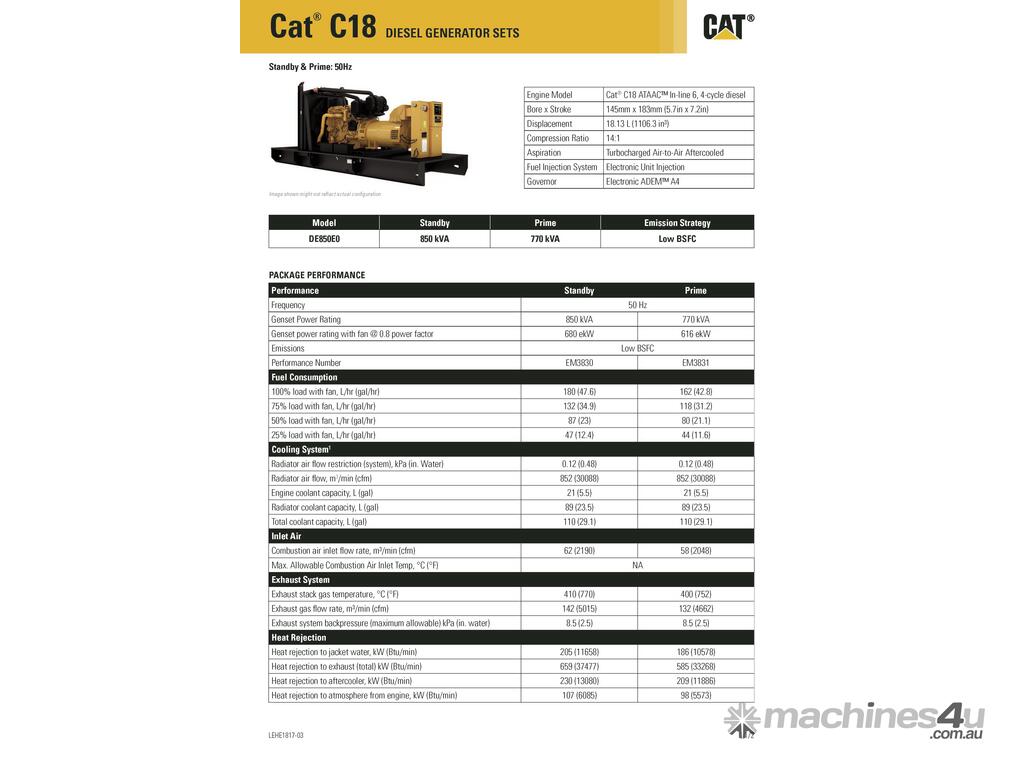

Datasheets for the engine and control system are available.

Engine

Engine Model: CAT C18 ATAAC

Configuration: Inline 6 cylinder diesel
Cycle: 4-stroke
Displacement: 18.13 L
Aspiration: Turbocharged air-to-air aftercooled
Fuel System: Electronic Unit Injection
Governor: Electronic ADEM A4

Fuel Consumption

Approximate fuel consumption depending on load:


100% load: 180 L/hr
75% load: 132 L/hr
50% load: 87 L/hr
25% load: 47 L/hr
Alternator
Frame Size: LC7224L

Excitation System: AREP

Motor starting capability:

Up to 2268 skVA at 415 V (30% voltage dip, 0.6 PF)

Control System

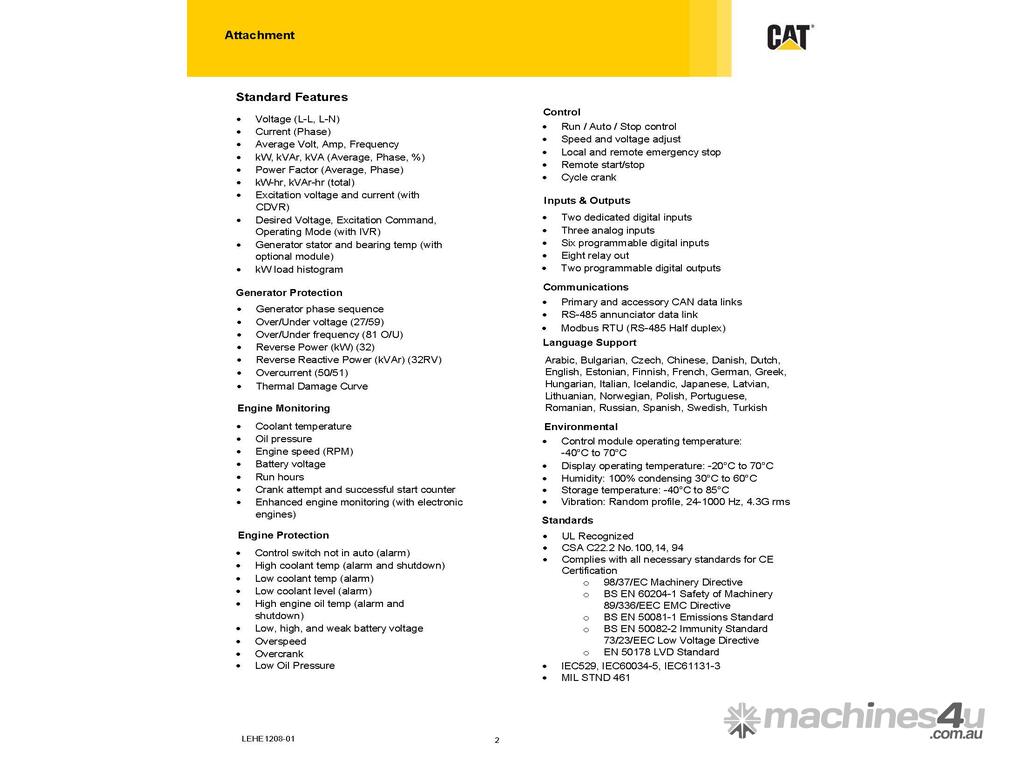

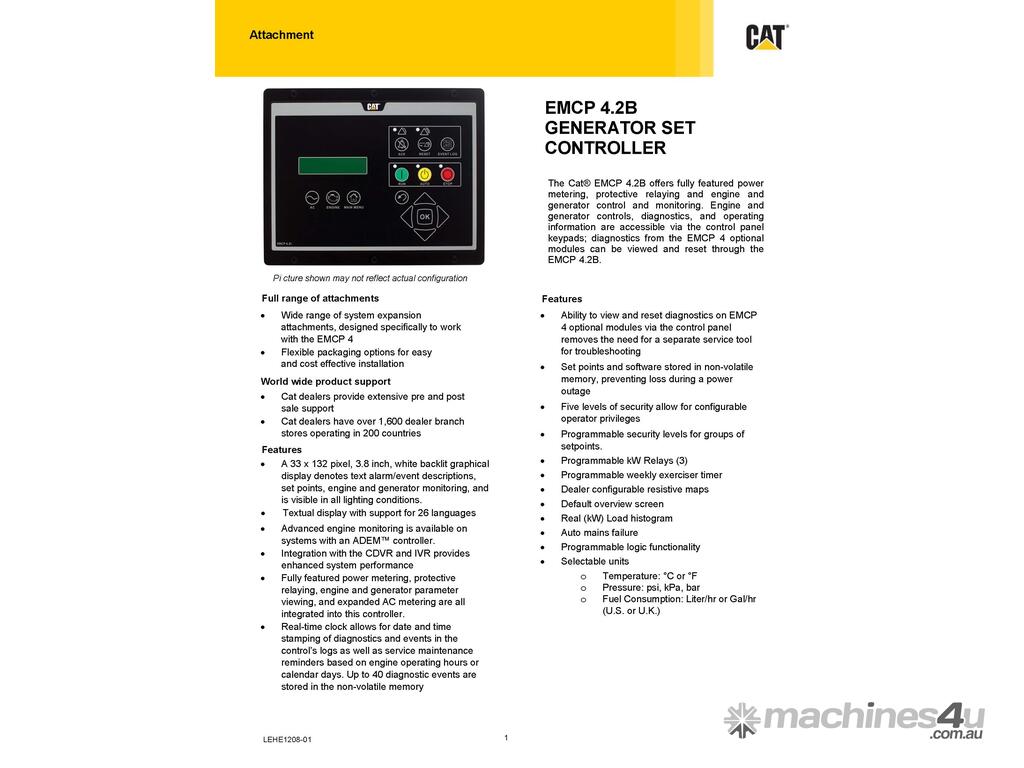

Controller: CAT EMCP 4.2B

Features include:


• engine monitoring
• generator protection functions
• electrical metering
• alarm and diagnostic logging
• local and remote start / stop capability

Cooling System

Radiator airflow: 852 m³/min

Engine coolant capacity: 21 L
Radiator coolant capacity: 89 L


Total coolant capacity: 110 L

Dimensions

Length: 4130 mm
Width: 1689 mm
Height: 2570 mm


Dry Weight: 4532 kg



Optional Acoustic Enclosure (Not Included)

Depending on the installation and required noise levels, an acoustic enclosure can be supplied as an additional option.

Example configuration:

• 20 ft containerised acoustic enclosure
• acoustic doors
• small electrical package included

Estimated budget:

$125,000 – $130,000 + GST

Enclosures can be further customised depending on application and noise requirements, including:

• custom acoustic enclosures
• drop-over enclosures
• containerised generator enclosures


Final pricing will depend on the specific design and installation requirements.

Condition


• Brand new
• Open set configuration
• Stored indoors
• Still wrapped in protective plastic

Further information, photographs and technical documentation can be provided upon request. Inspection welcome by appointment.
