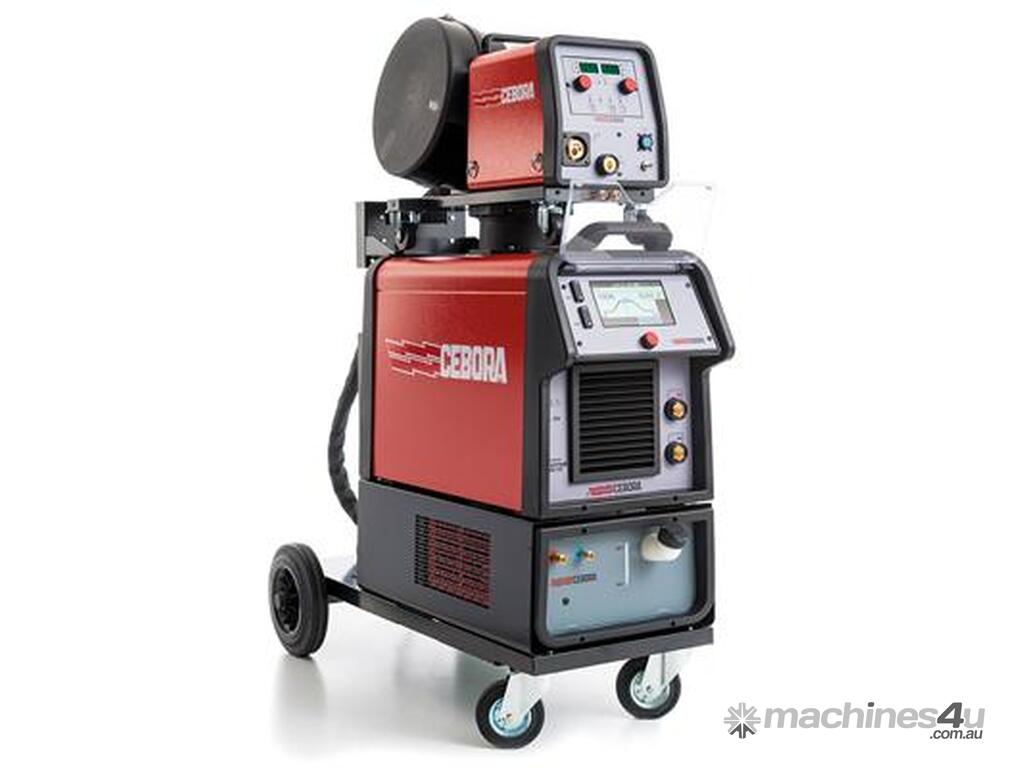

Cebora KINGSTAR 520 TS

KINGSTAR 520 TS is a multiprocess inverter three-phase (400 V 50/60 Hz +15% / -20%) power source for MIG/MAG, DC TIG (with 'Cebora lift' ignition) and MMA welding. Equipped with devoted connection for a standard TIG torch and solenoid valve welding

Features
Cebora aluminium 4-roller-wire feed unit (Ø 37 mm)
Equipped with transportation trolley, ground lead and clamp ( 3,5 m - 70 mm2 ) and cooling unit
7 "LCD touchscreen control panel
MIG SHORT HD (High Deposit) and MIG ROOT (First Pass) functions
Upgrade MIG Pulse and HD Pulse [Art. 231] INCLUDED
Upgrade MIG double current level function [Art. 233] INCLUDED
Upgrade MIG Double Pulse [Art. 231 + 233] INCLUDED
Upgrade full TIG [Art. 804]
Pre-arranged for MIG SRS standard welding process (Spatter Reduction System) in order to completely achieve spatters free welds and with reduced heat input [Art. 443]
Upgrade MIG 3DPulse [Art. 814]
Advanced users: software package for the advanced users management [Art. 809]
Quality control: software package for the quality control [Art. 273]
Production mode: software package for production management [Art. 817]
SWPS Package according to ISO 151612 which meets the qualification requirements of the procedures according to EN 1090-1; [Art. 808]
System calibration procedure which allows complete adjustment of all welding parameters and process variables (from the features of the welding torch to the extension lead used between the transporting trolley and the power source);
Easily removable cooling grille
Power source / wire feed connection with bayonet connector compliant with MIL-C-SS 116 standards that eliminates the problem of inserting and fixing the signal cable;
USB port for software update
Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
Remote control mode from personal computer, tablet or smartphone
Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices
MIG/MAG torch with "Euro" adapter + TIG torch adapter
Second gas connection and additional dedicated solenoid valve when using the power source in TIG mode
[Art. 374.55] Strong version on request with 50/60 Hz, (200) – 220 – 440 – 480 V, three-phase autotransformer
