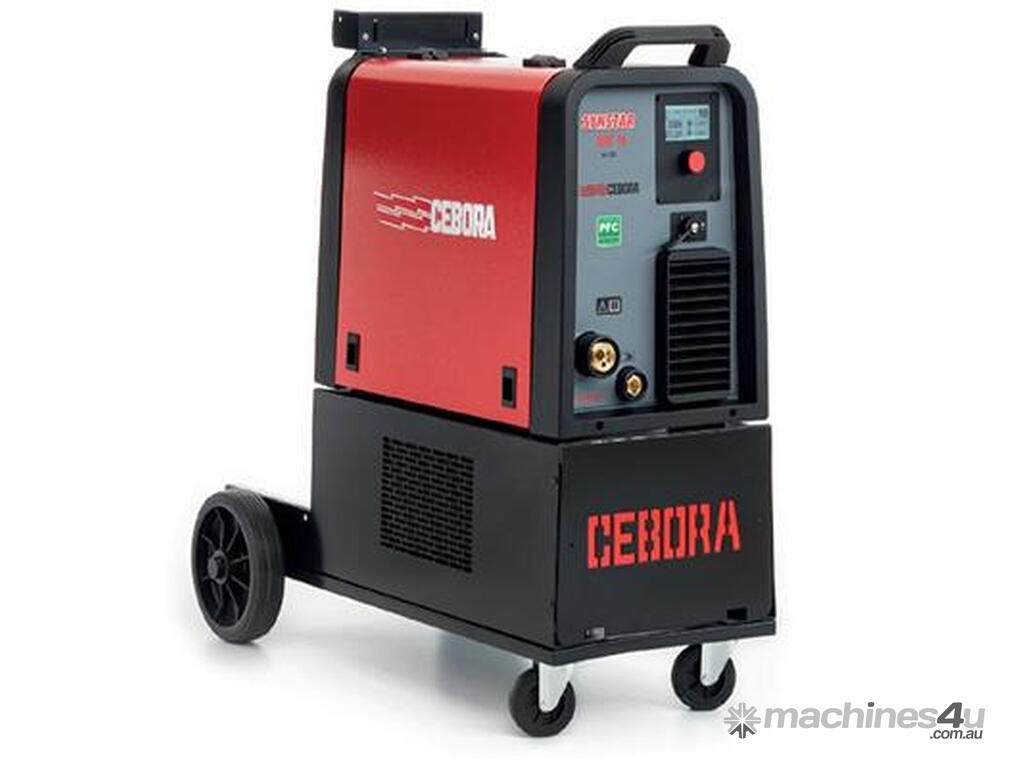

Cebora SYNSTAR 250 M

INVERTER SINGLE-PHASE COMPACT POWER SOURCE FOR MIG/MAG WELDING

icons8-electrical-35.png 230 V 50/60 Hz +15% / -20%
Features
Aluminium 4-roller-wire feed unit (Ø 30 mm)
Equipped with power source transportation trolley, ground lead ( 3 m - 35 mm2) and clamp
43 synergic curves for Solid wire ( Ø 0,6/0,8/0,9/1,0 /1,2 mm) and flux-cored (Ø 0,9 mm). Flux-cored wires can be welded, either with or without shielding gas, by simple polarity inversion
Pulse function upgrade [Art. 238] NCLUDED ,which allows to activate synergic curves dedicated to solid, mild steel, stainless steel, aluminum and CuSi3. It has got more than 80 welding programs
Double current level function upgrade[Art. 813], The Double Pulse function can be achieved by enabling the Pulse upgrade
The LCD Display shows in real time the machine set up and allows the operator to read wire and gas type, current and thickness, voltage and wire speed
The power source is supplied with many adjustable functions which can be accessed from the panel, including:
- Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc - SHORT or PULSE process
- Three important specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler)
The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 one. ( In this case, the current supplied by the power source is automatically limited to 200 A
It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm
