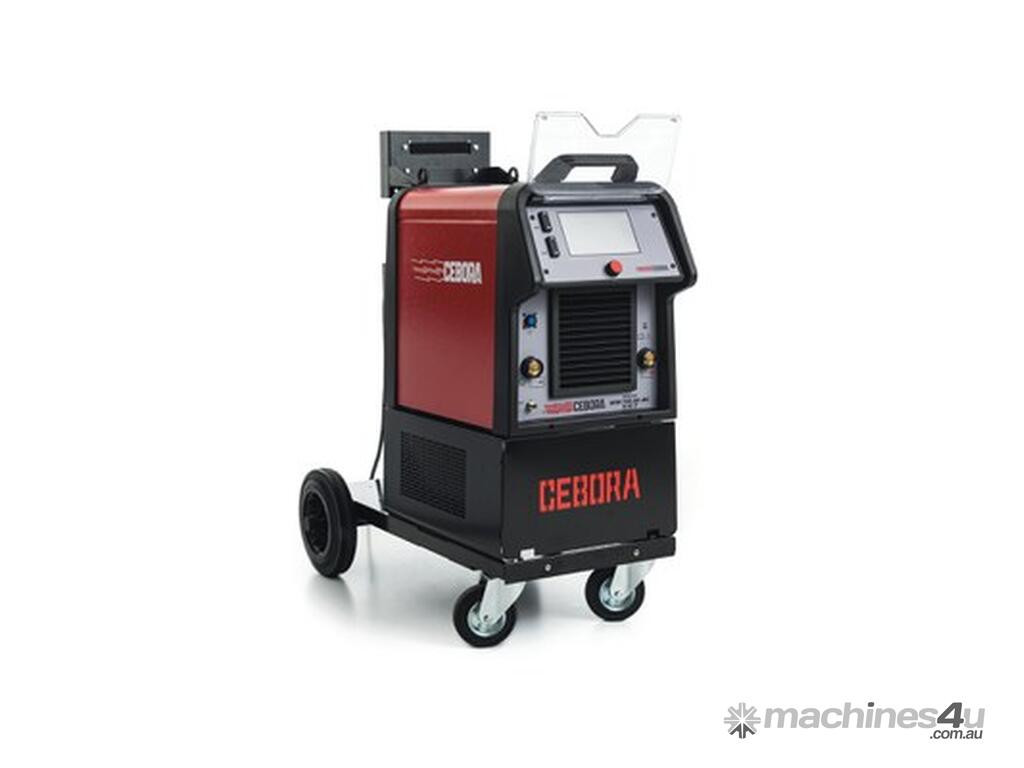

Cebora WIN TIG AC-DC 270 T

INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MMA AND TIG AC-DC WELDING. HIGH FREQUENCY IGNITION

Features
7” LCD touchscreen Display
Equipped with transportation trolley
Pre-equipped with cooling unit
EVO LIFT function allowsto place the electrode in the exact position avoiding the piece oxidation and the heat control
EVO START function in order to optimize edge junction
APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
Pulse function to be adjusted up to 2,5 kHz
eXtra Pulse (XP) function: avery high frequence pulse that works on small thicknesses where the transferred heat must be minimal
Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses.
JOB function which makes it possible to save up to 99 welding programs
Minimum DC current equal to 3 A
Advanced users: software package for the advanced users management [Art. 809]
Quality control: software package for the quality control [Art. 273]
Production mode: software package for production management [Art. 817]
In AC TIG mode, it is possible to independently adjust the width and duration of the penetration and cleaning of half-waves
AC+DC TIG process for aluminium welding and its alloys
AC frequency from 50 to 200 Hz
In AC mode, possibility of selecting several combinations of the three waveforms (square, triangular, sine-wave)
AC MMA welding process suitable for welding electrodes on magnetized sheet metal, prevents the "magnetic blow" in the welding of iron boxes and it is usually employed in maintenance work
VRD function: reduces the vacuum voltage ensuring the use of the welding machine in environments with high electrical risk thus offering maximum safety to the operator
Compliant with Industry 4.0 the new hardware structure implements a web server (through the Ethernet LAN port or, with an external kit, via Wi-Fi) that allows the operator to carry out all those activities that require the collection and processing of data, welding parameters configuration, diagnostics and remote assistance
Remote control mode from personal computer, tablet or smartphone
2 USB ports for download and software update
Equipped with digital ammeter/voltmeter with 1% accuracy and thermal protection devices
Easily removable cooling grille
[Art. 394.55] Strong version on request with 50/60 Hz, (200) – 220 – 440 – 480 V, three-phase autotransformer
