Centre Lathe 660 x 2040mm Turning Capacity, 104mm Bore

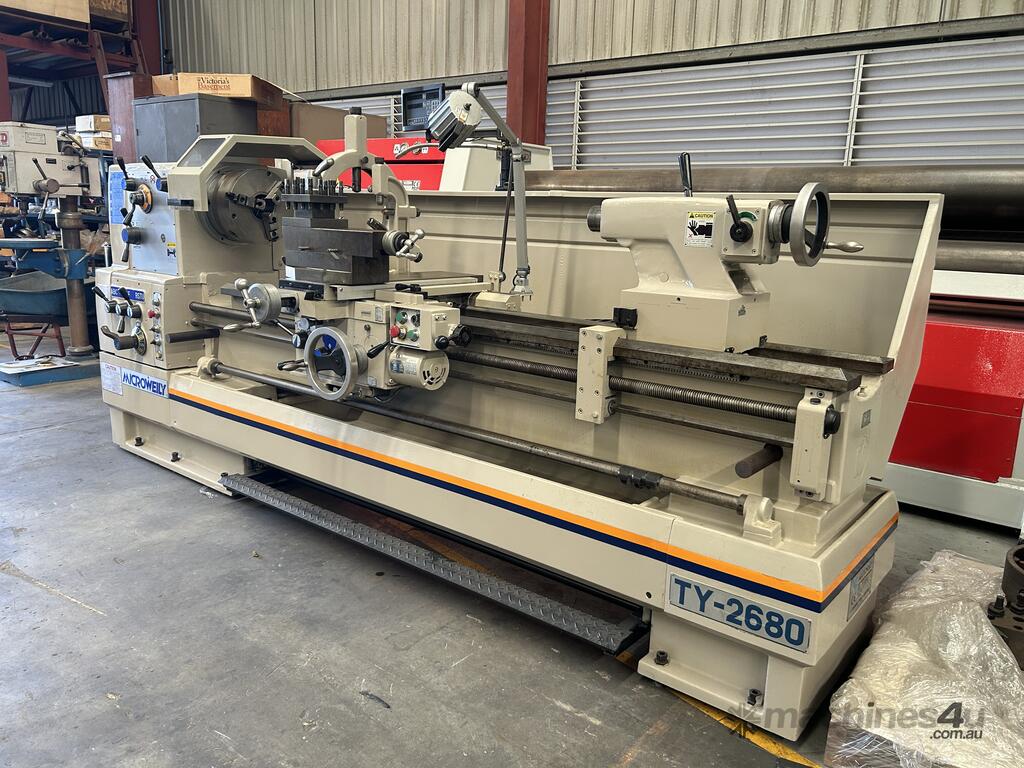

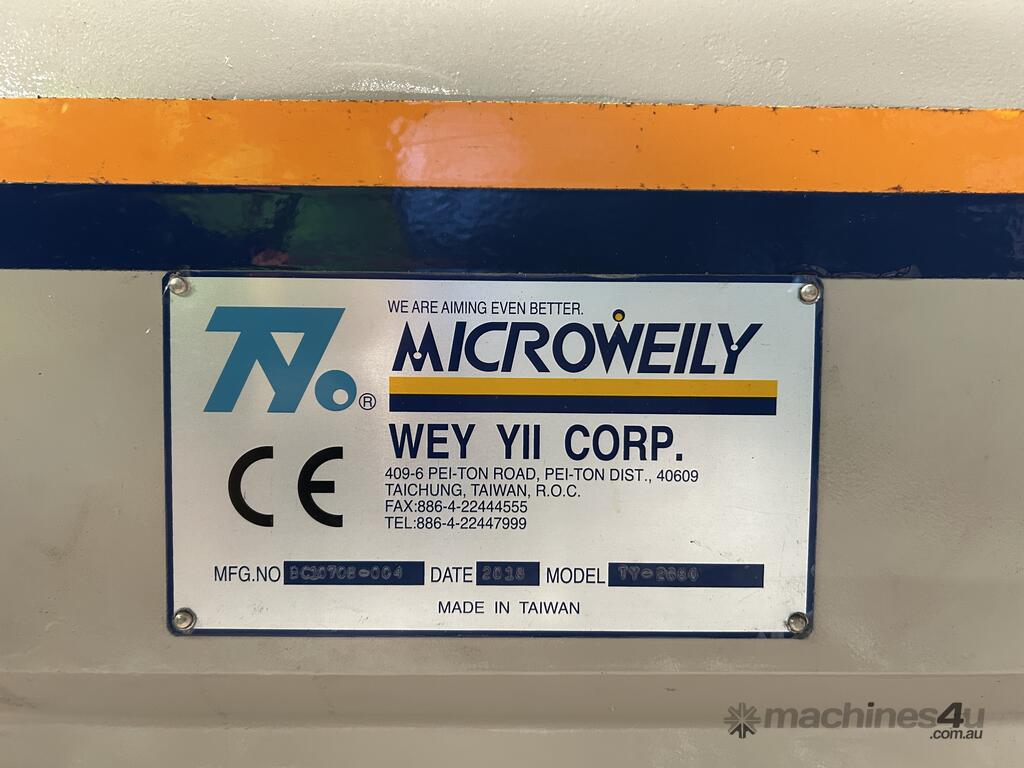

This used Microweilly TY-2680 Precision Lathe combines durability and precision for versatile machining needs. With - advanced features like TURCITE B coated slideways, a hardened cross slide, and a two-speed tailstock, it’s designed to enhance efficiency and ensure high-quality results across various operations.

Specifications:
* Swing over bed 660mm
* Swing over cross slide 460mm
* Swing in gap 845mm
* Spindle bore 105mm (D1-11)
* Distance between centers 2040mm
* Bed width 400mm
* Number of speeds 12
* Speed range 15-1,200 rpm
* Thread range 0.2 -14mm / 2 - 112 TPI

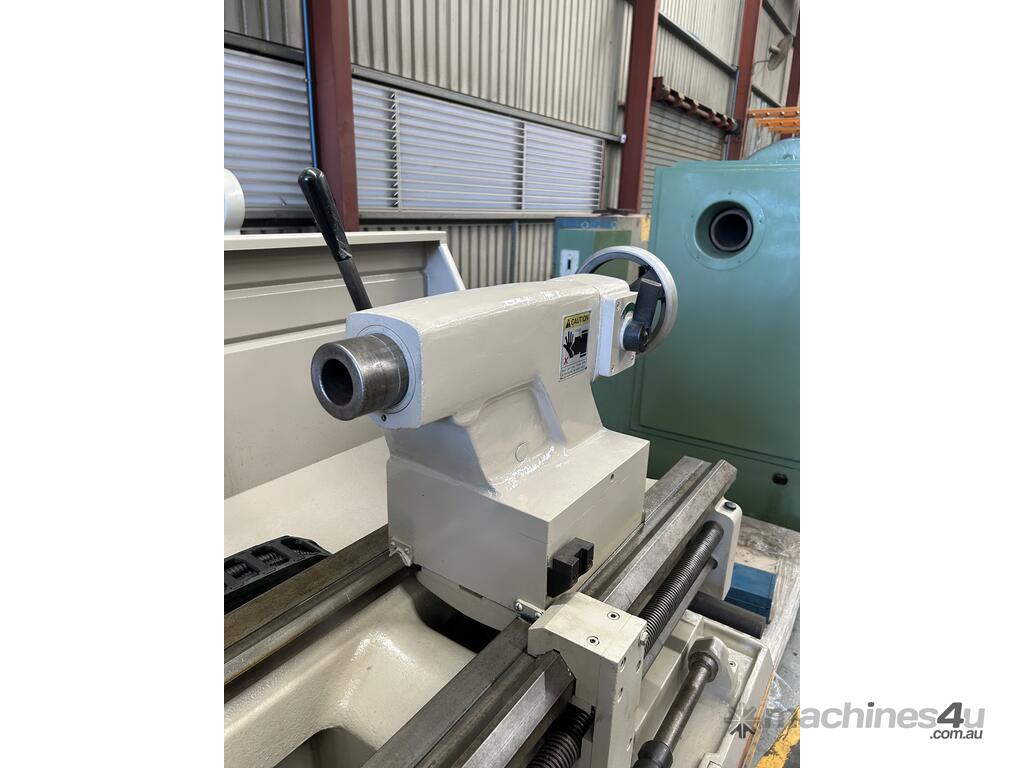

* Tailstock taper 5MT
* Motor power 15HP 415v
* Weight (kg) 2580kg
* Floor space (l x w x h) 3560mm x 1280mm x 1355mm

Standard Equipment:
- Newall NMS300 2 axis digital readout system

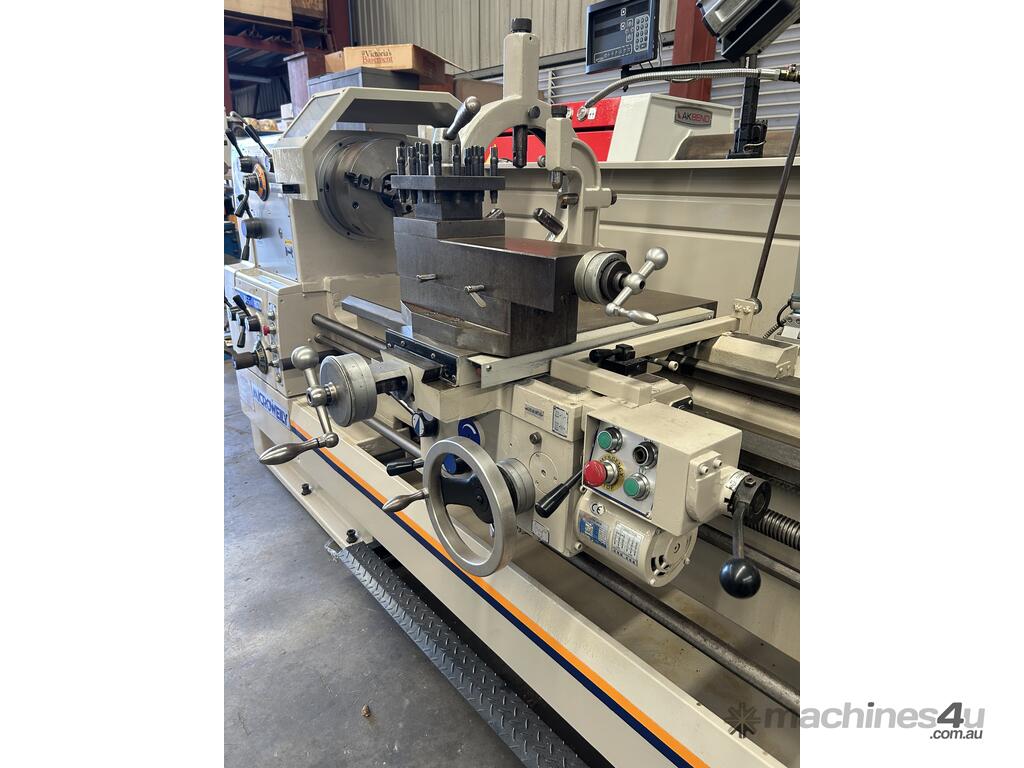

- Italian Style quick change toolpost (C) c/w 4 holders accepts 25 x 25mm tooling.
- 3 Jaw chuck 310mm "Strong" (Taiwanese D1-11)-
- 4 Jaw chuck 400mm direct mounting (D1-11)

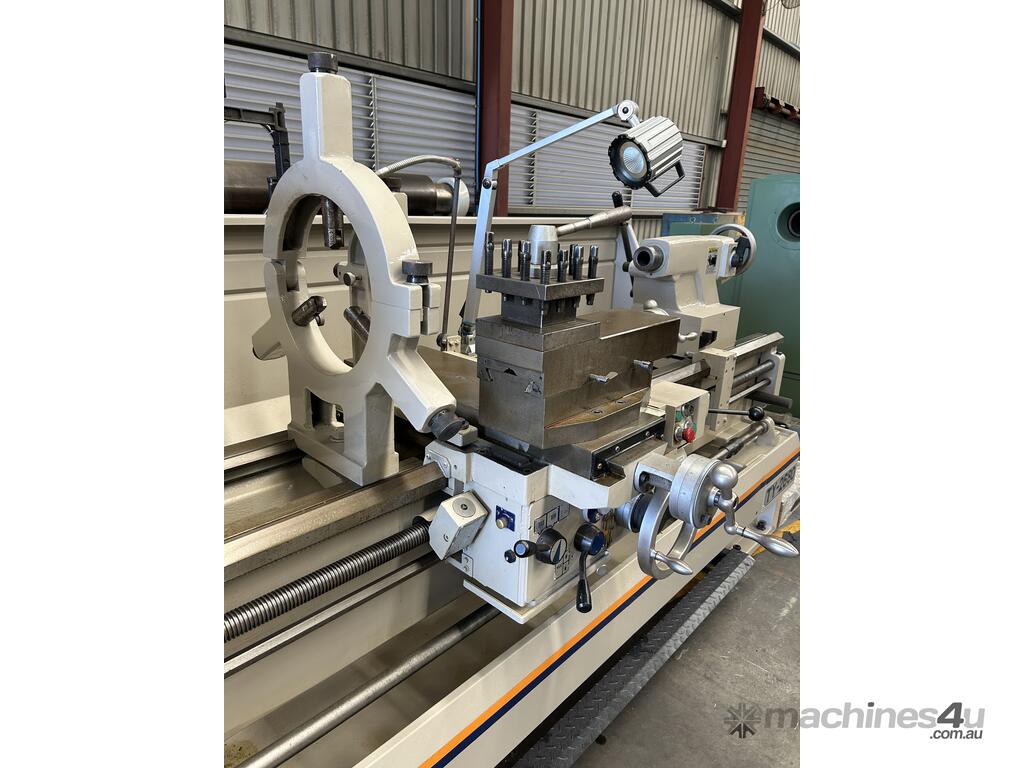

- Fixed steady rest (105mm-300mm)
- Following steady rest (10 - 100mm)
- Coolant system
- LED lamp
- Longitudinal positional stops
- Chuck guard with microswitch

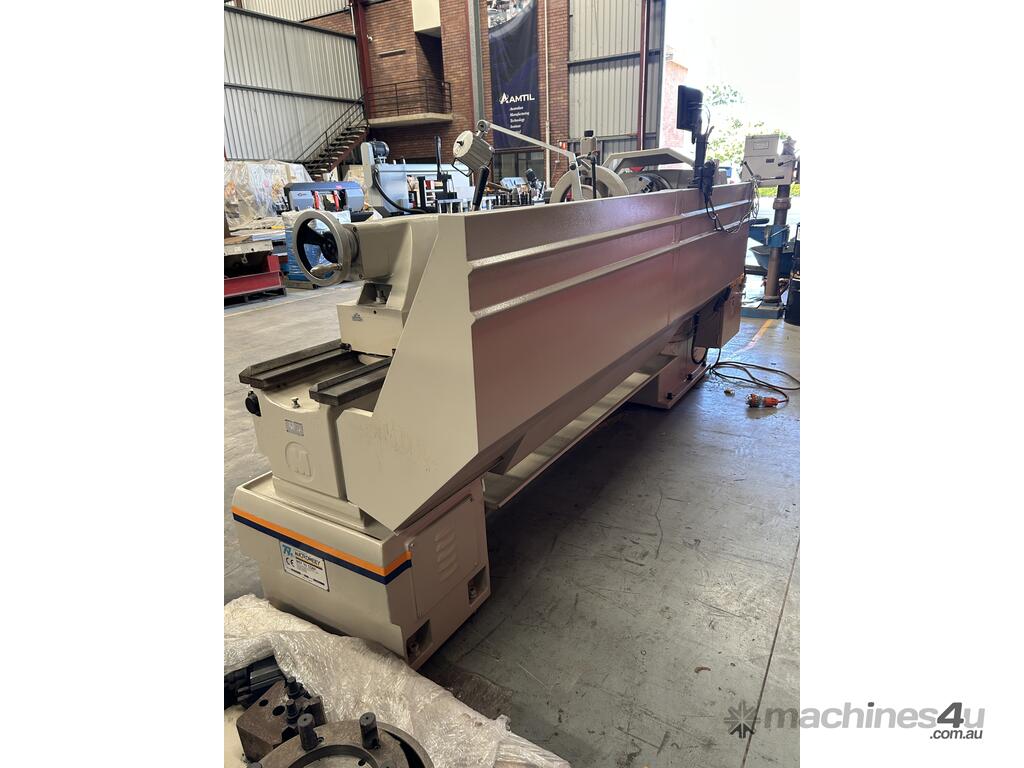

- Full length splash guard
- Thread dial indicator
