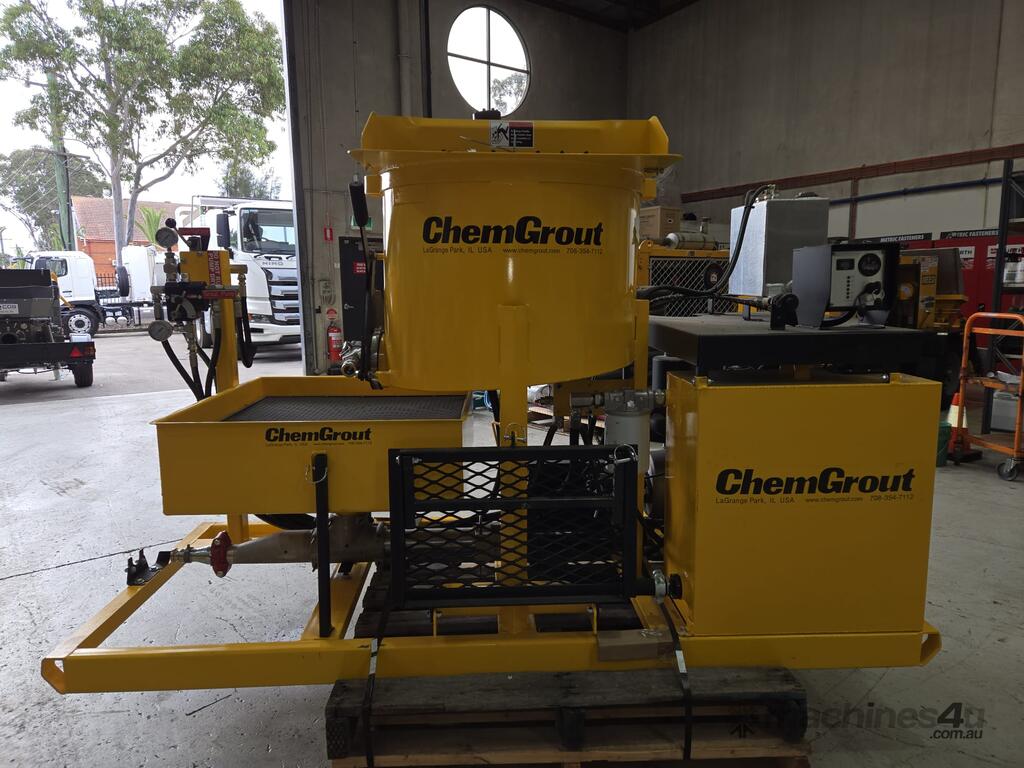

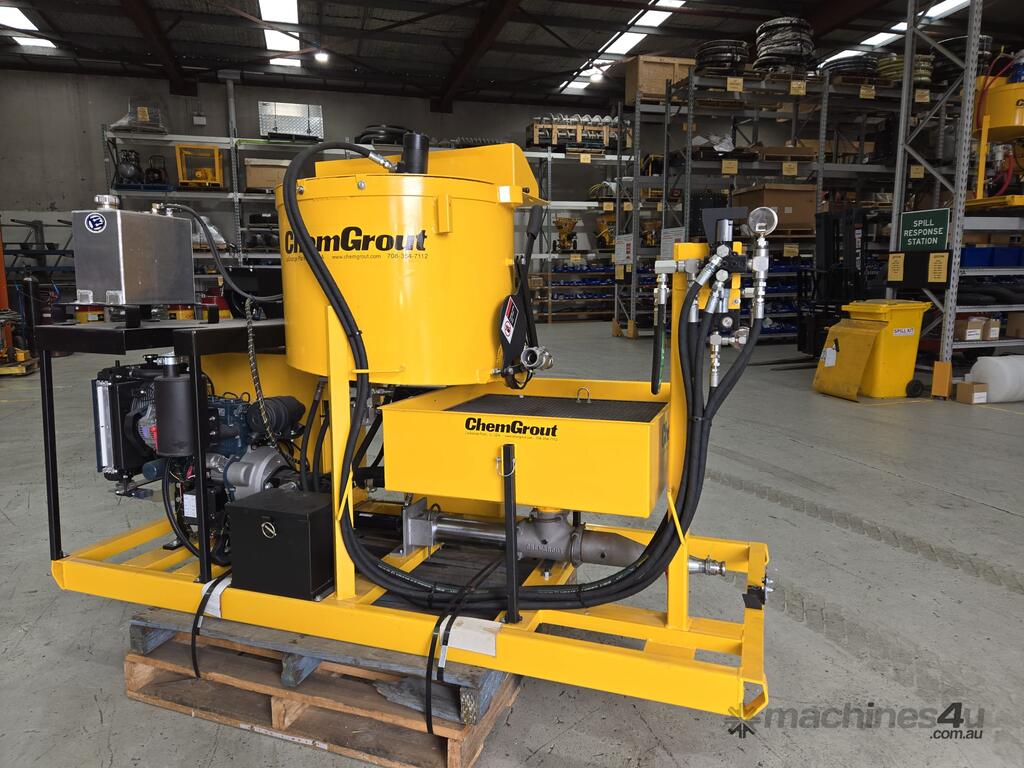

The ChemGrout CG-550/031/DHS/GT is a skid-mounted, self-contained diesel/hydraulic grout plant designed for efficient mixing and pumping of grout materials, featuring a 70-gallon mixing tank and a 45-gallon holding hopper with a rugged 3-inch single-acting piston pump.
Key Features
Model: CG-550/031/DHS/GT (Skid Mounted Diesel/Hydraulic Grout Plant)

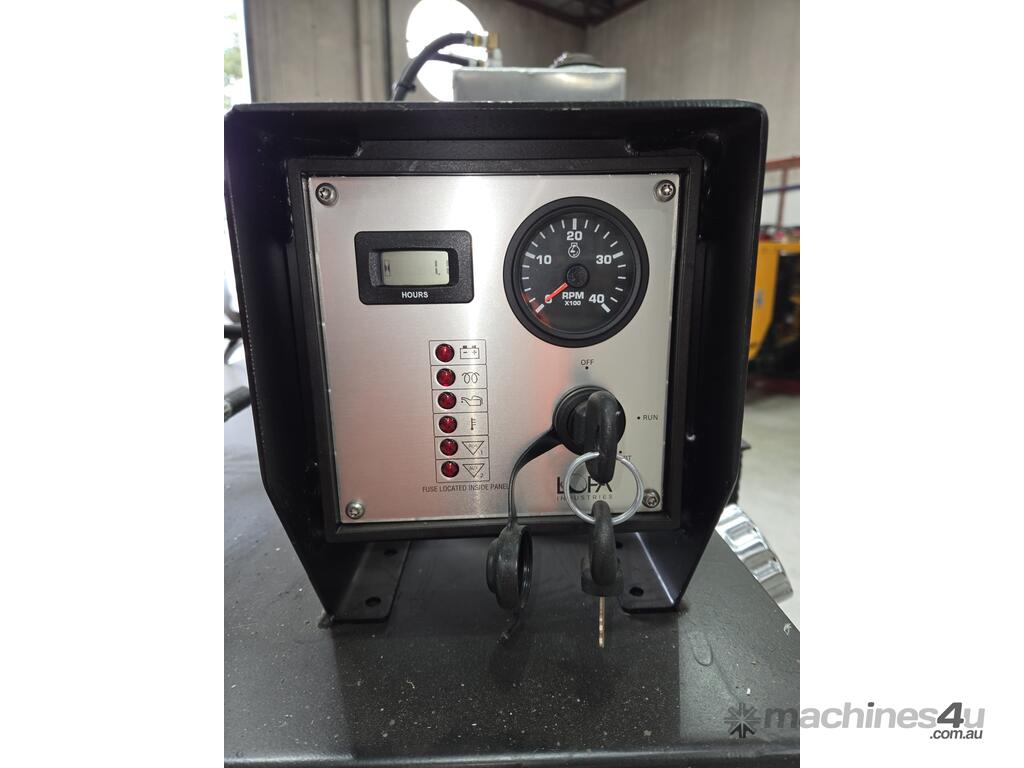

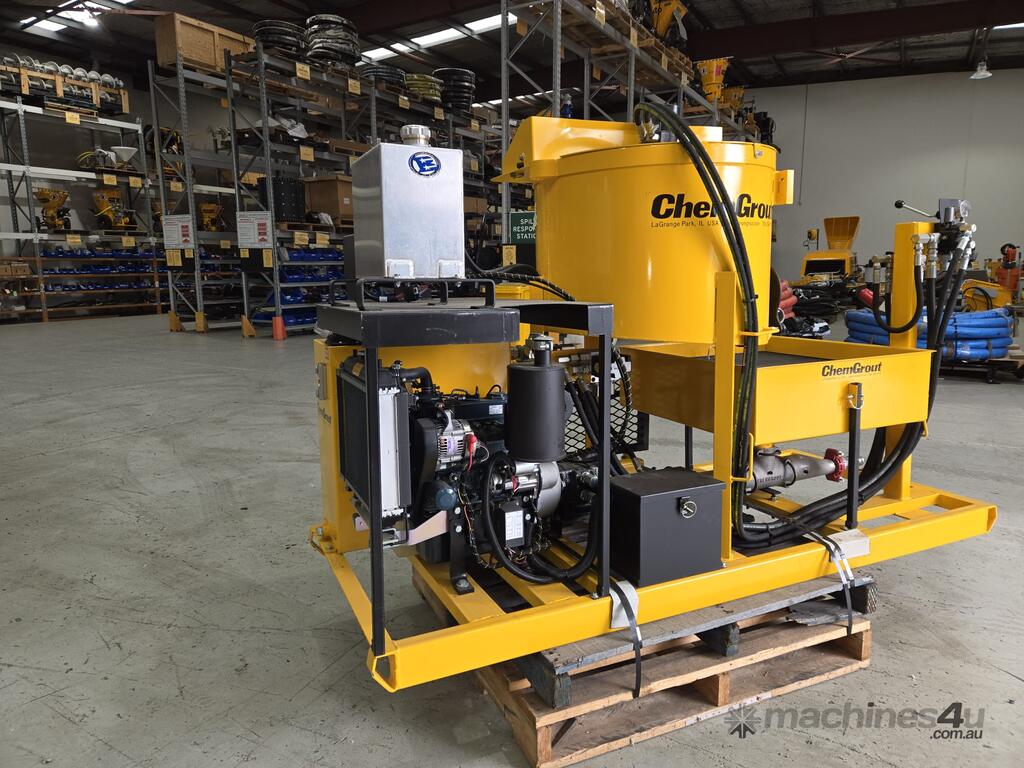

Power: 20 HP Diesel Engine with Electric Start powering hydraulic systems for both pump and mixer
Mixing Tank Capacity: 70 gallons (265 liters) with baffles and bag breaker for rapid, thorough mixing

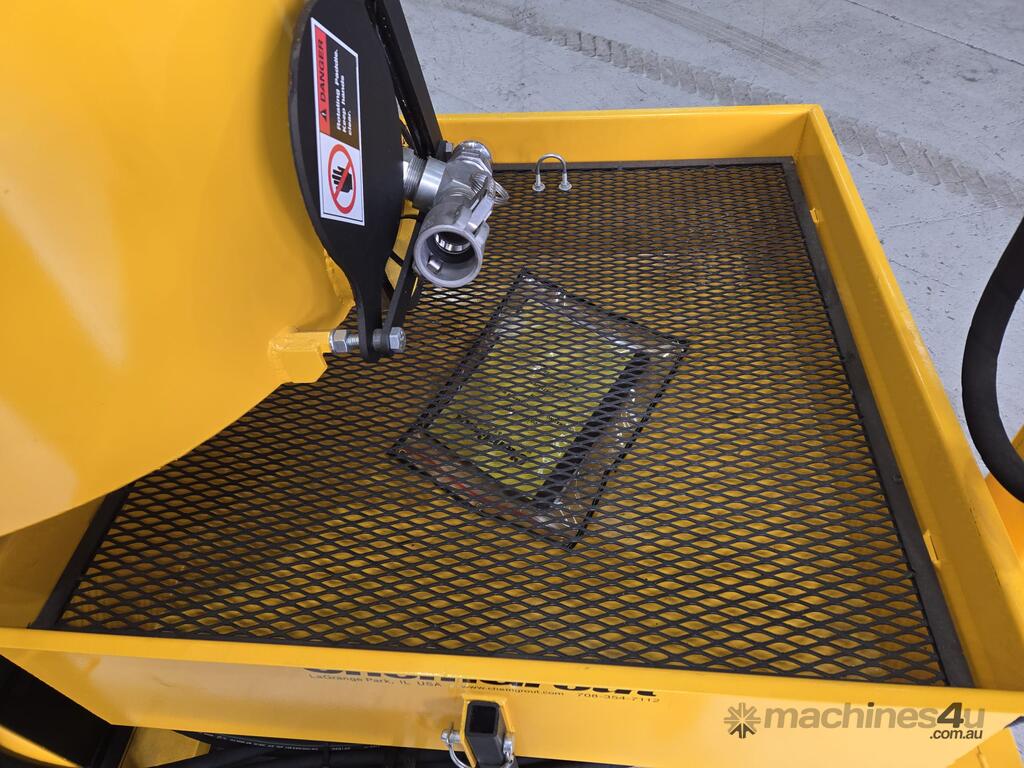

Holding Hopper Capacity: 45 gallons (170 liters) sized to enable continuous pumping — the mixer charges the hopper while the hopper feeds the pump
Pump: 3" positive displacement, single-acting piston pump capable of handling a wide range of materials (neat cement, bentonite, sand/cement mixes, non-shrink, and more), designed for fast operation and easy cleaning (disassembles with just a hammer)

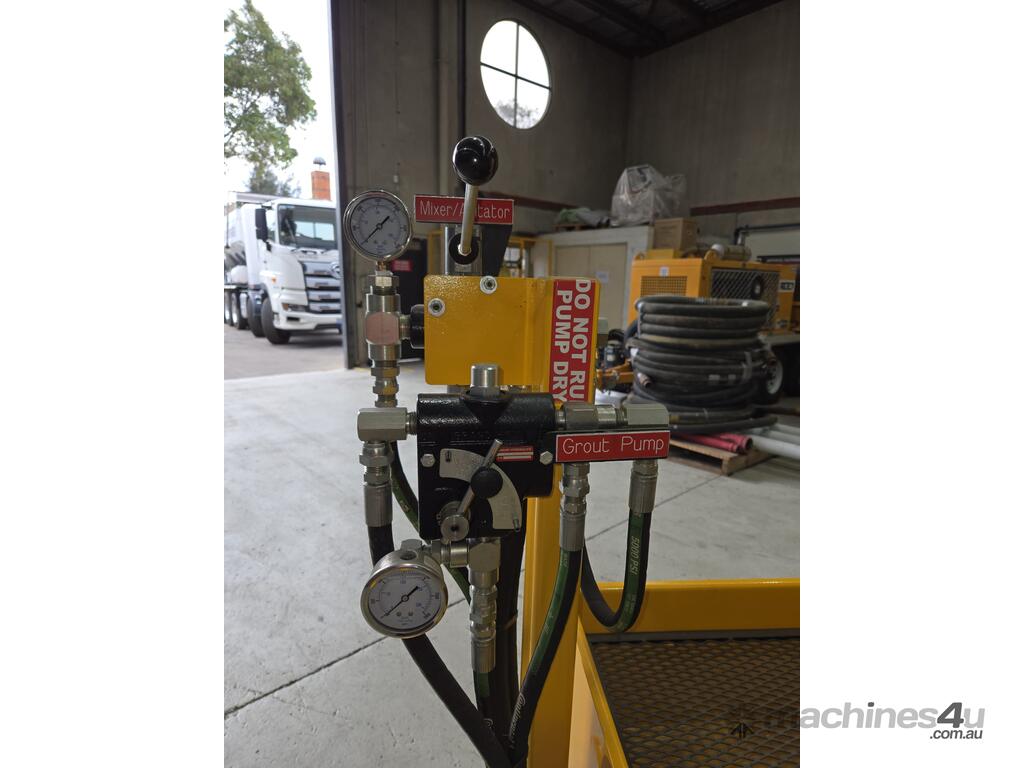

Controls: Centrally located variable speed controls for both the mixing paddle and the pump for precise adjustment and efficient single-operator use

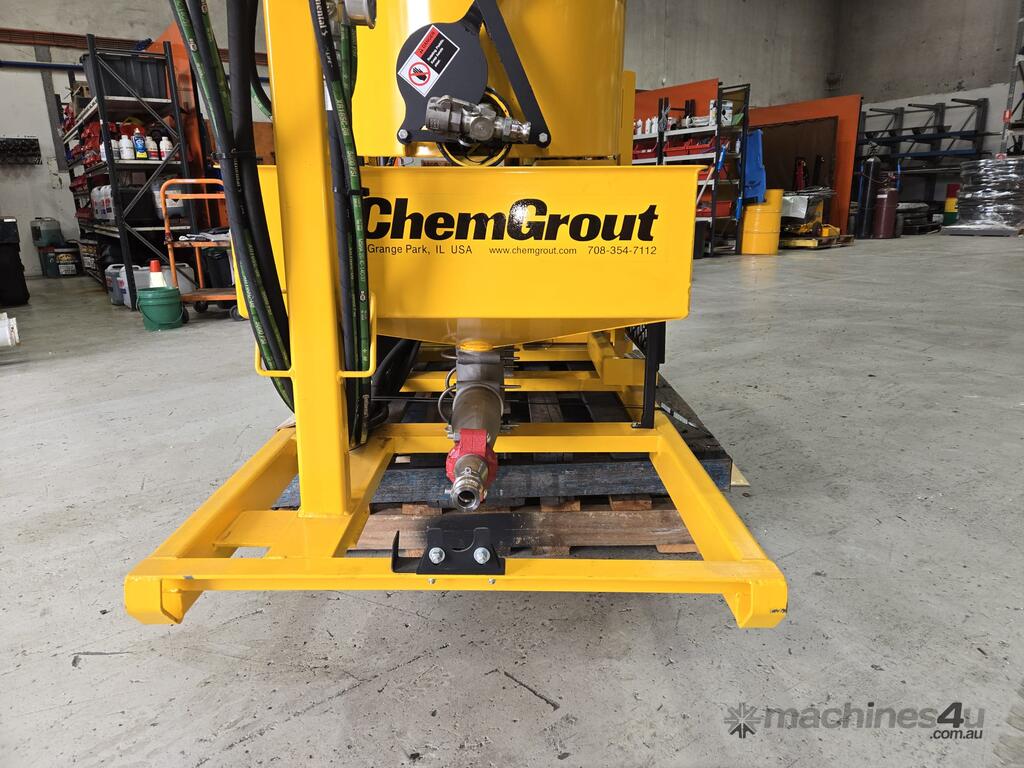

Frame: Rugged steel construction to withstand job site conditions
Dimensions: Approximately 90" (L) x 34" (W) x 58" (H)
Weight: Around 1300 lbs (590 kg)
Applications
This grout plant is ideal for:
Geotechnical works such as geothermal grouting, deep well casing, monitor wells, abandonment, and sealing
Marine applications including underwater foundations, piers, shoreline protection
Utilities like encasements, waterproofing, slope line grouting
Civil construction tasks such as soil compaction, soil and rock grouting, void filling, soil anchors, cable and rock bolts, slab raising, and foundation stabilization
