Chocolate Automatic moulding line

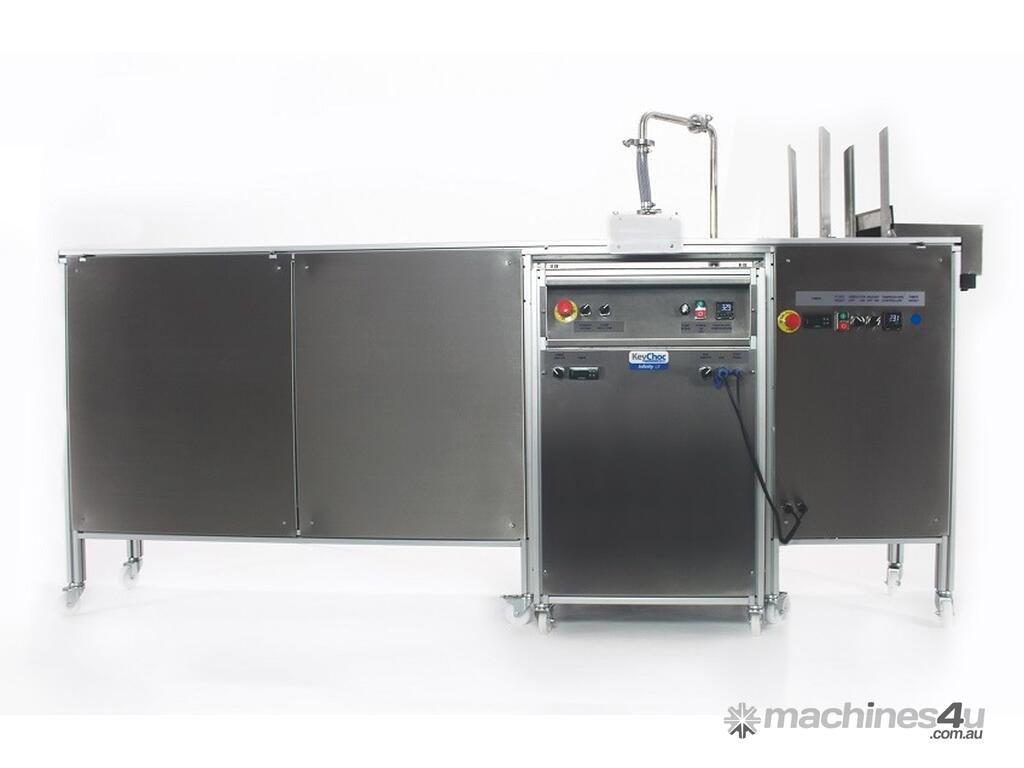

Infinity AML Automatic Moulding Line

Automate your moulding process with precision and ease
Made in the United Kingdom – 12-month parts & labour warranty

The Infinity AML Automatic Moulding Line takes the labour out of chocolate moulding — automating the time-consuming process of filling, vibrating, and finishing polycarbonate moulds with perfectly tempered chocolate.

Designed to work seamlessly with the Infinity LX, MX, or AX tempering machines, the AML delivers precision control, consistent quality, and effortless operation. With integrated digital timing and dosing, it can deposit up to 100g per second, achieving a throughput of up to 600 moulds per hour.

Two Models to Suit Your Production Needs

Infinity AML-1 – without mould pre-heating?
$23,400 + GST & shipping

Infinity AML-2 – with mould pre-heating?
$25,600 + GST & shipping

The AML-2 includes a pre-heating station ideal for production environments where lower ambient temperatures can impact the finish of moulded bars, ensuring flawless gloss and texture every time.

Key Features

- Automates mould filling and vibration for consistent, professional results
- Compatible mould sizes: 175 × 275 mm and 135 × 275 mm polycarbonate moulds
- Up to 600 moulds/hour throughput
- Deposits up to 100 g per second
- Integrated digital timer for precise dosing control
- Built-in vibrating station – no separate vibrating table required
- No air supply needed – electric motor drive replaces compressed air
- No additional power supply – plugs into your Infinity LX, MX, or AX tempering machine
- Quick machine swaps – easily roll in different tempering units to change chocolate types or flavours

Production Zones
- Both AML models feature four automated work zones:
- Mould stacking zone with motorised feeder
- Chocolate depositing zone for accurate filling
- Integrated vibration zone to remove air bubbles and ensure perfect surface finish
- Manual decorating zone for artistic customisation

The AML-2 adds a mould pre-heating station before depositing, providing optimal results even in cooler environments.

Specifications
Specification AML-1 AML-2
Length 2700 mm 3100 mm
Depth 400 mm 400 mm
Height 1050 mm 1050 mm
Deposit Rate Up to 100 g/sec Up to 100 g/sec
Throughput Up to 600 moulds/hr Up to 600 moulds/hr
Power Source Via Infinity LX/MX/AX Via Infinity LX/MX/AX

Supplied with a custom depositing head and one mould-specific depositing plate, made to match your chosen polycarbonate mould dimensions.

Seamless Integration for Modern Chocolate Production

At the end of the line, moulds can feed into a cooling tunnel or be manually removed for rack cooling — offering full flexibility for your production flow.

Compact, efficient, and built from high-grade stainless steel, the Infinity AML helps you increase output, reduce labour, and maintain immaculate consistency in every moulded product.
