Chocolate Bar Automatic Moulding Line

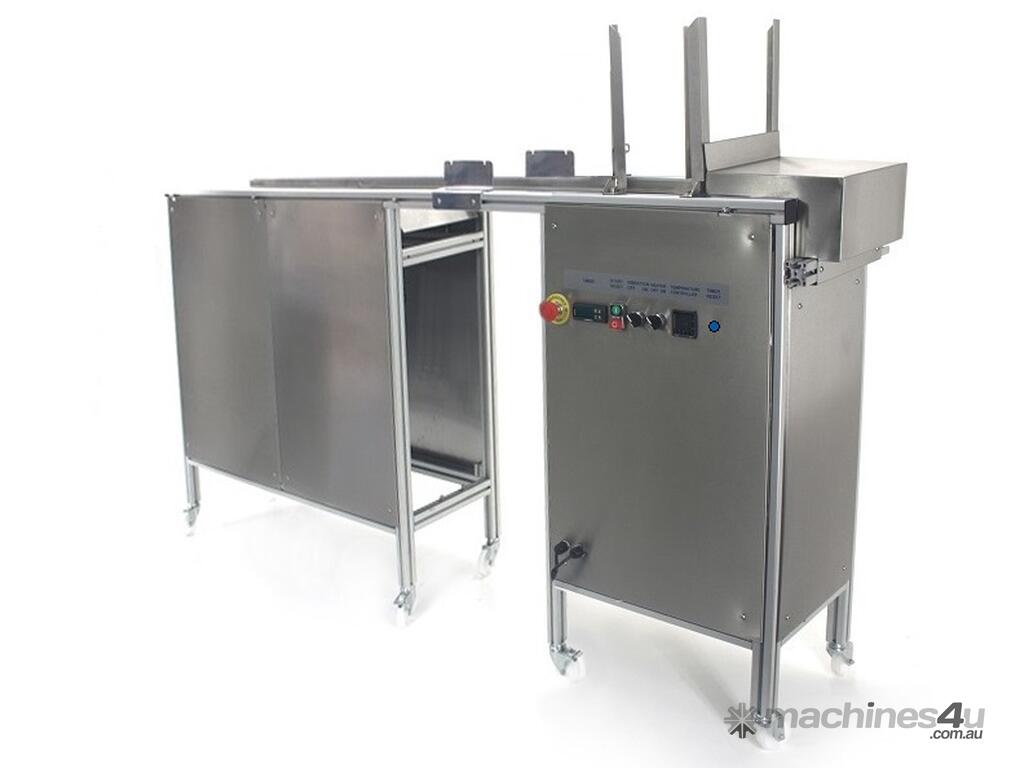

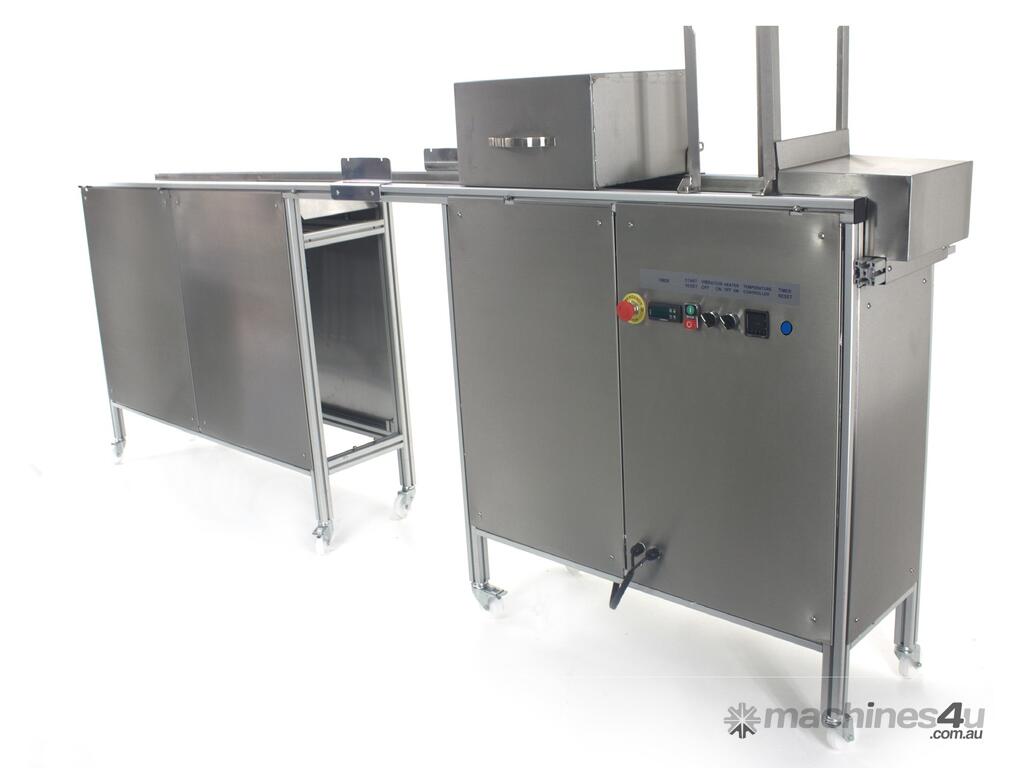

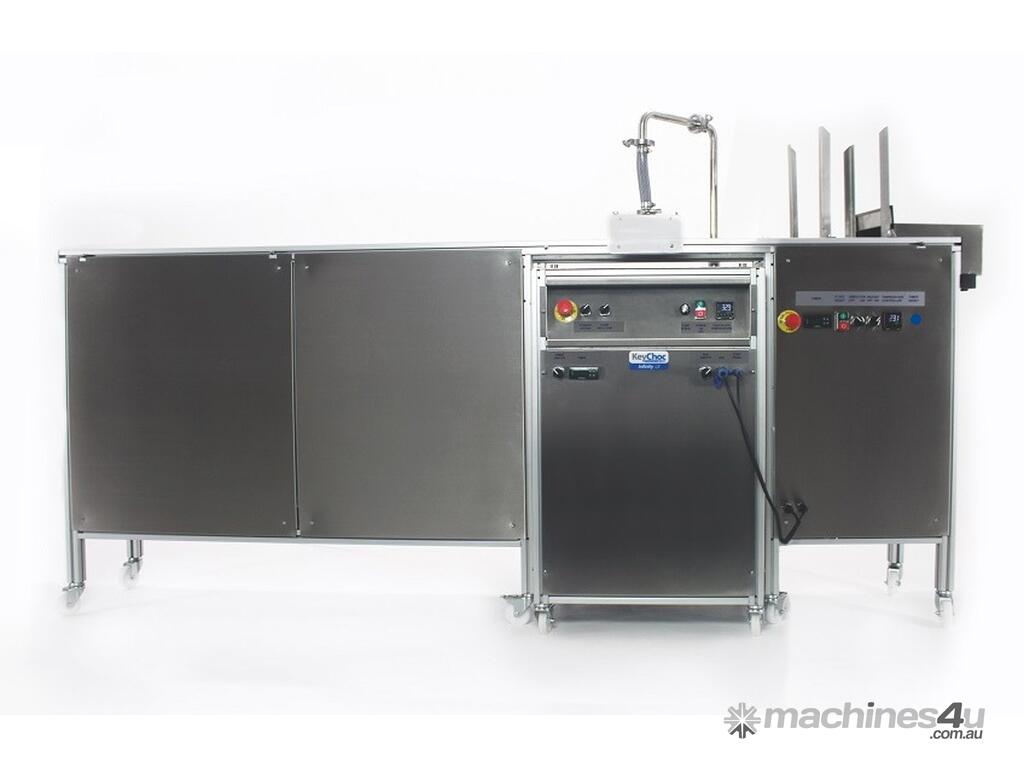

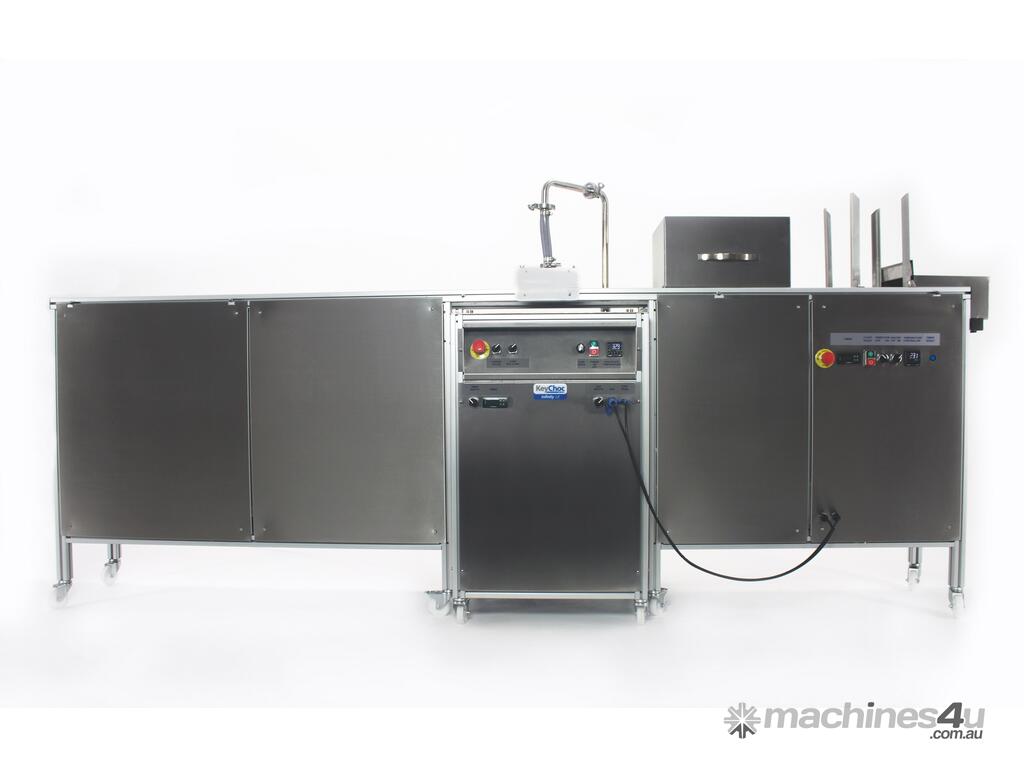

KeyChoc Infinity AML – Automatic Chocolate Moulding Line

The Infinity AML is an automatic solid chocolate moulding line designed for high-speed production using standard 275 × 175 mm or 275 × 135 mm polycarbonate chocolate moulds. Capable of depositing up to 100 g per second and achieving throughput rates of up to 900 moulds per hour, the AML gives chocolate manufacturers a compact, efficient, and cost-effective way to automate solid mould production.

Designed to work seamlessly with the Infinity AX or MX tempering machines, the AML requires no independent power supply and no compressed air, making integration simple and maintenance minimal. With mould feeding, depositing, vibrating, and decorating all combined into one continuous line, the AML provides reliable, consistent output ideal for growing chocolate businesses.

Key Features
- Maximum deposit: 100 g per second
- Throughput: up to 900 moulds per hour (depending on deposit weight)
- Electrically driven mould-feeding system (no air supply required)

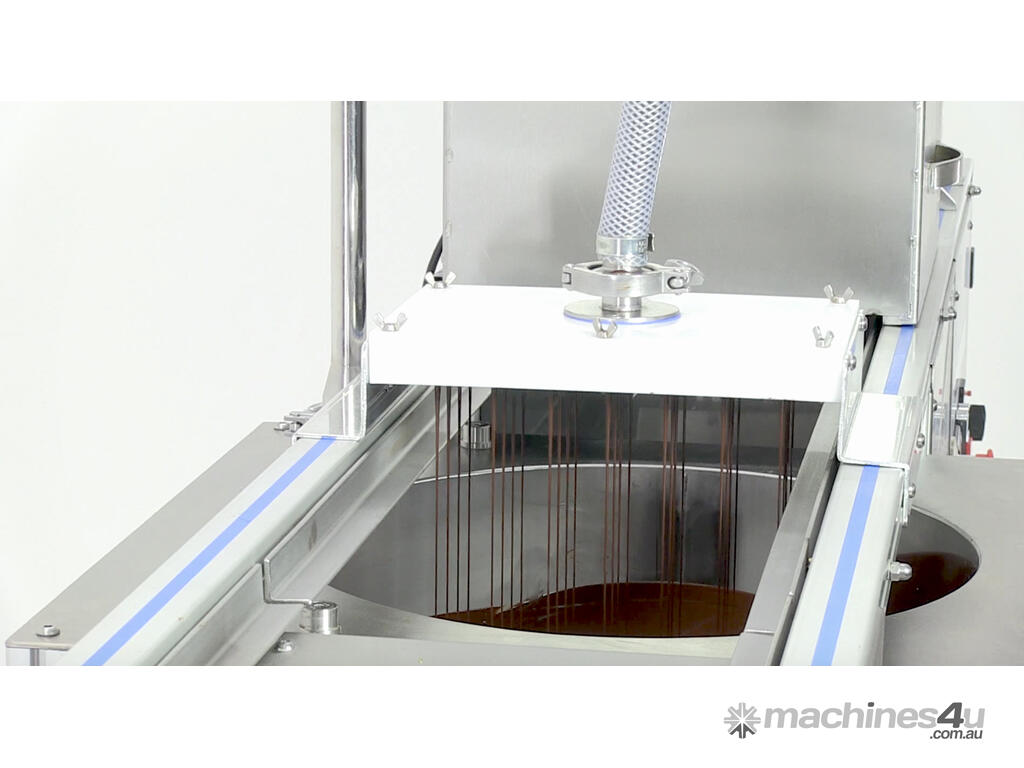

- Integrated depositing head and custom depositing plate
- Built-in vibrating station (no separate table required)
- Digital timer for accurate deposit control
- Ball-screw driven mould feeder for smooth, precise operation

Dimensions: 2700 (L) × 400 (D) × 1050 (H) mm

Powered by Infinity AX or MX tempering machines—no external power source

Production Flow
- Automatic mould feeding
- Precision chocolate depositing
- Integrated vibration for release of bubbles and even distribution
- Manual decorating station (optional stage)

Moulds can then be placed on cooling racks or run into a cooling tunnel.

Why Choose the Infinity AML?
- High-speed automation for moulded chocolate production
- Compact, simple, and efficient design
- Ideal for producers making solid bars, tablets, single-origin lines, or flavoured varieties
- Perfect for facilities running multiple tempering machines (AX/MX) for different chocolate types
- Provides a cost-effective and scalable upgrade from manual moulding processes
- Capable of continuous production up to 200 kg/hr when paired with multiple tempering machines

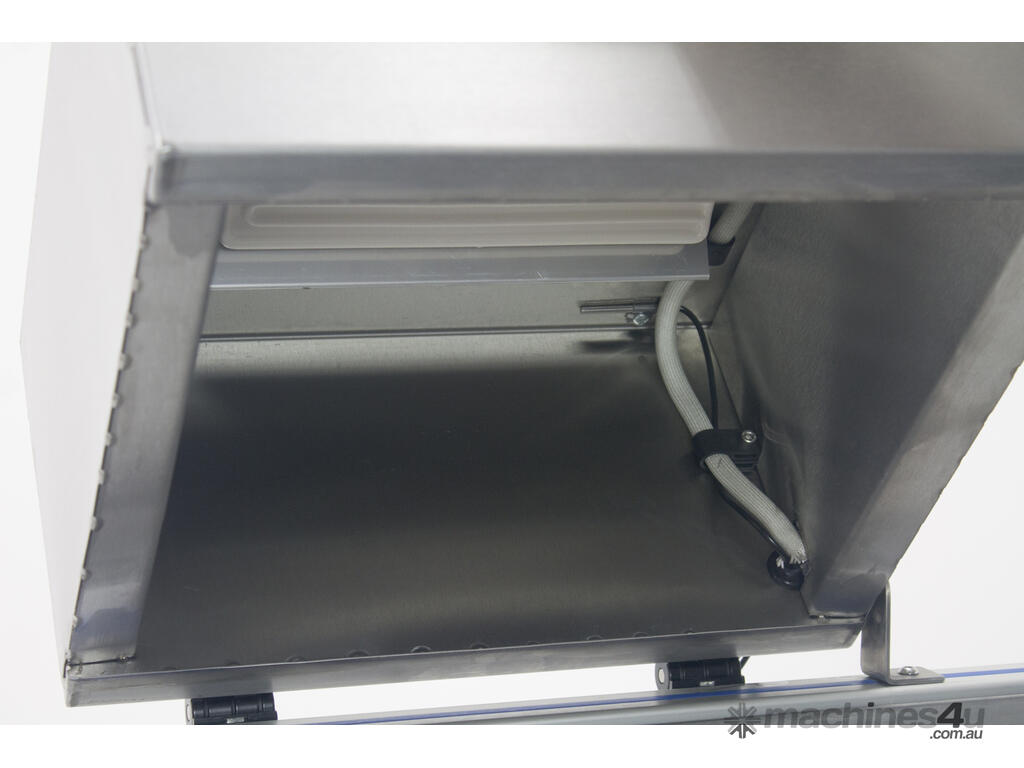

Also available with optional in-line mould heater and optional heated cabinet for mould storage.
