Chocolate Melting Tank - 1000kg

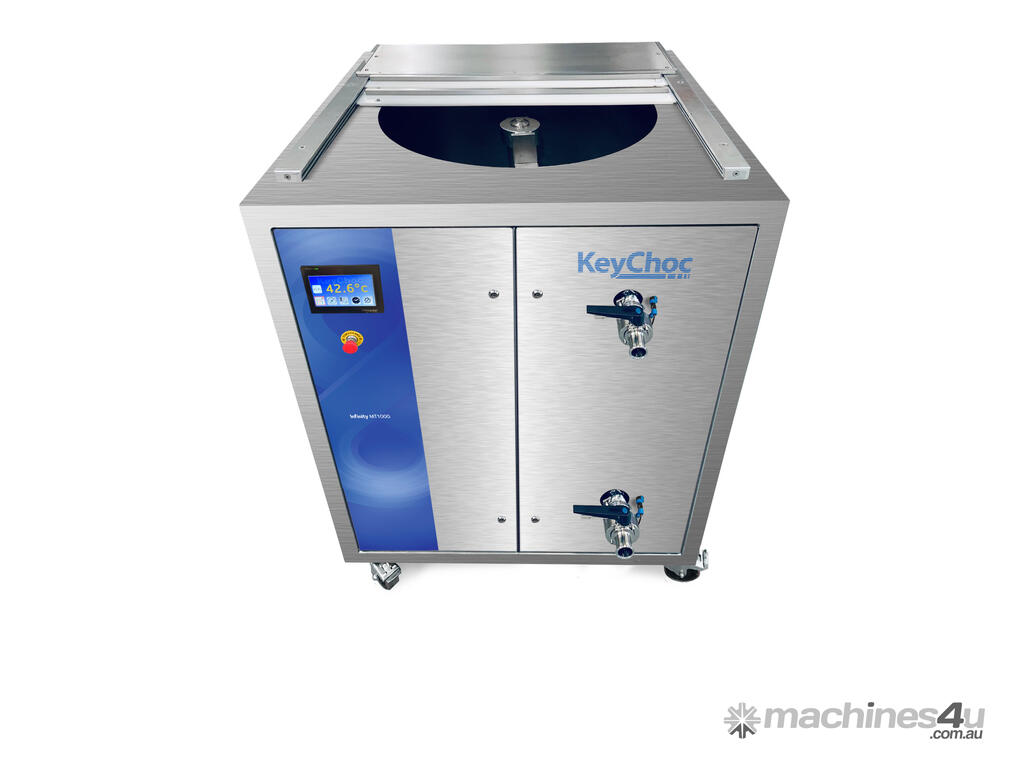

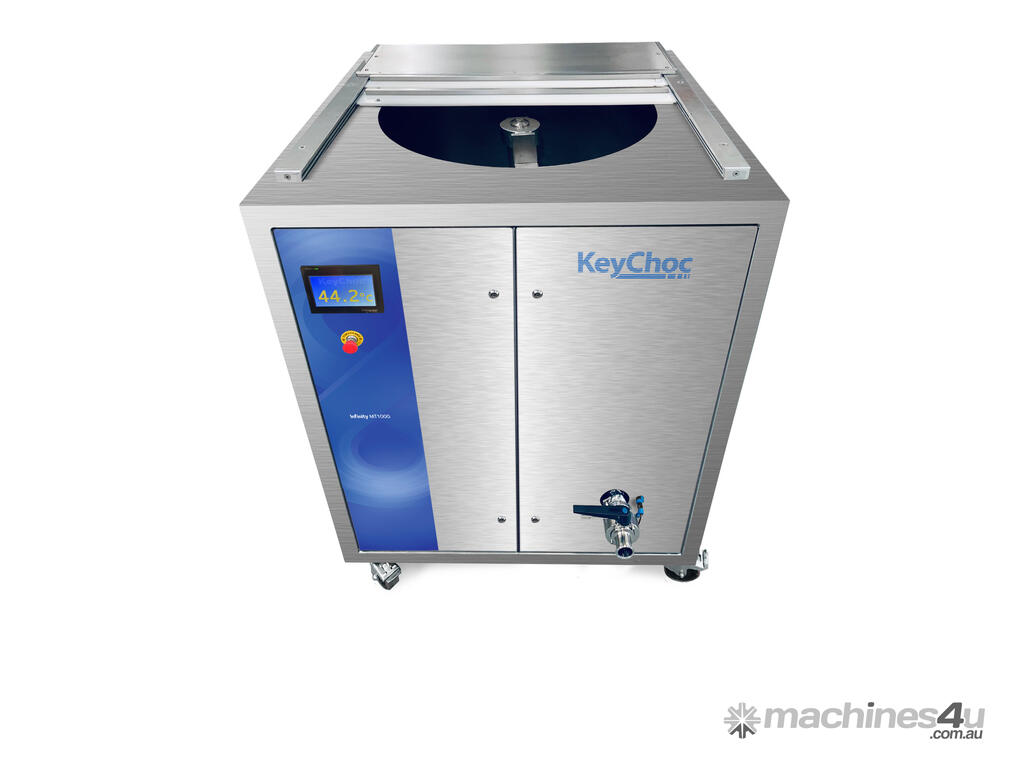

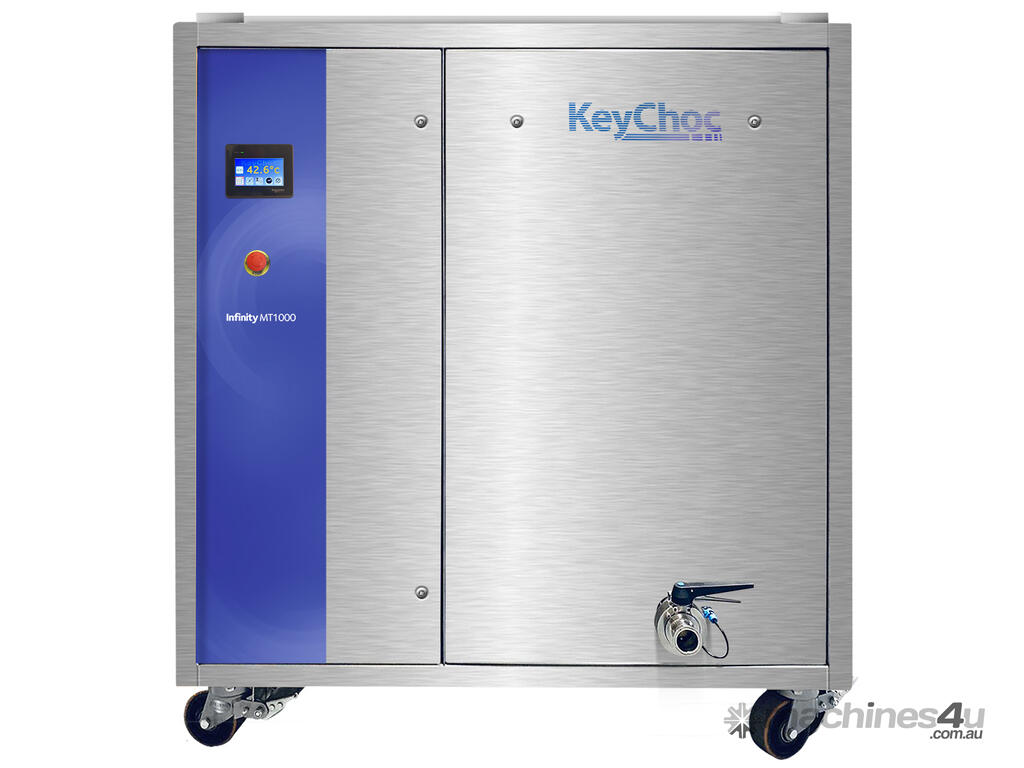

KeyChoc Infinity MT1000 – 1000 kg Chocolate Melting Tank

The Infinity MT1000 is a fully jacketed, temperature-controlled melting tank designed for large-scale chocolate and fat-based product processing. With a 1,000 kg capacity, the MT1000 provides the thermal stability, build quality, and hygienic design required for continuous, industrial-level production.

Precise digital temperature control and constant agitation ensure your chocolate remains uniformly heated and ready for downstream use in tempering systems, moulding lines, enrobing lines, depositing equipment, and batch production. Built in the UK, the MT1000 is engineered for maximum durability, reliability, and ease of maintenance.

Ideal for large commercial chocolate factories, large bean-to-bar operations, industrial bakeries, confectionery manufacturers, and processors working with chocolate, compounds, fats, oils, and waxes.

Key Features
- 1,000 kg fully jacketed tank (2200 lbs)
- Continuous agitation with gate-type stirrer

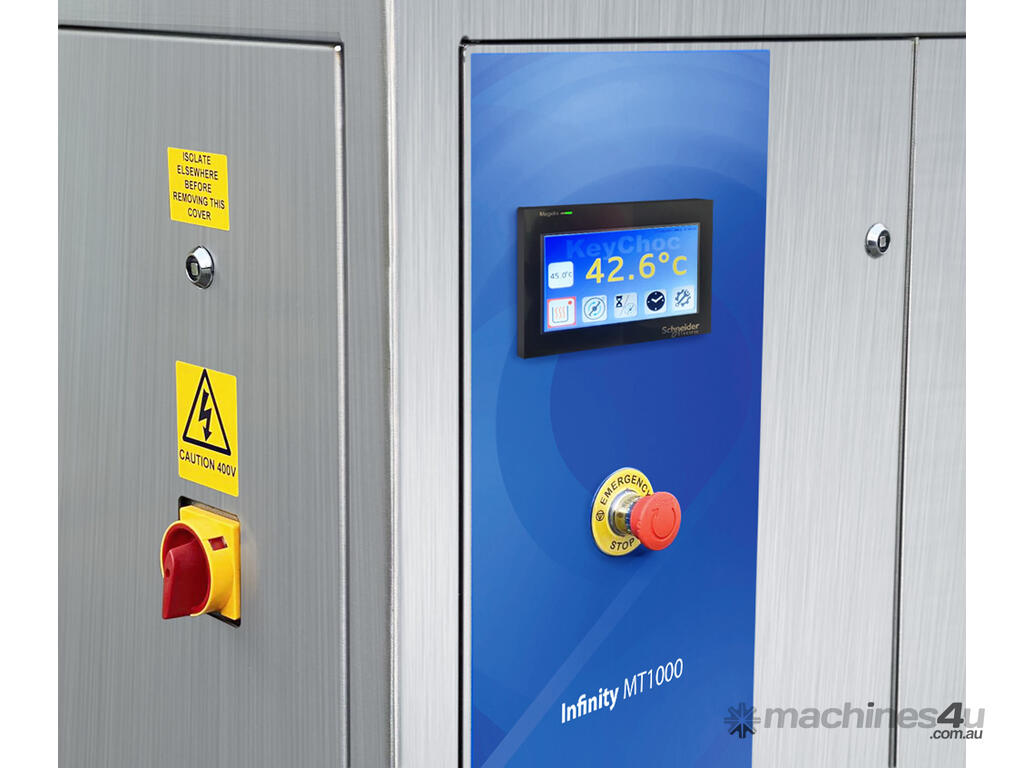

- Touchscreen PLC control for precise temperature management
- Bottom-mounted motor for improved hygiene
- Sliding lid for full access and easy agitator removal
- 50 mm heated butterfly discharge valve, approx. 400 mm above ground level
- Digital thermostatic temperature control
- Hinged access lid with electrical safety cut-out
- Contact parts in 304 stainless steel; frame in 303 S/S
- Heavy-duty castor-mounted frame, forklift-liftable

Dimensions: 1400 (W) × 1400 (D) × 1550 (H) mm

Power: 3-phase, 380–415 V, 32 A, 50 Hz

Heating: 6.6 kW

Motor: 1.1 kW

Made in the UK with a 12-month parts & labour warranty

Why Choose the Infinity MT1000?
- High-capacity melting for industrial-scale chocolate production
- Stable, uniform heating—ideal for continuous processes
- Suitable for chocolate, compounds, fats, oils, waxes, and similar masses
- Designed for fast cleaning and reduced downtime
- Perfect for feeding tempering machines, moulding lines, enrobers, and bulk production lines

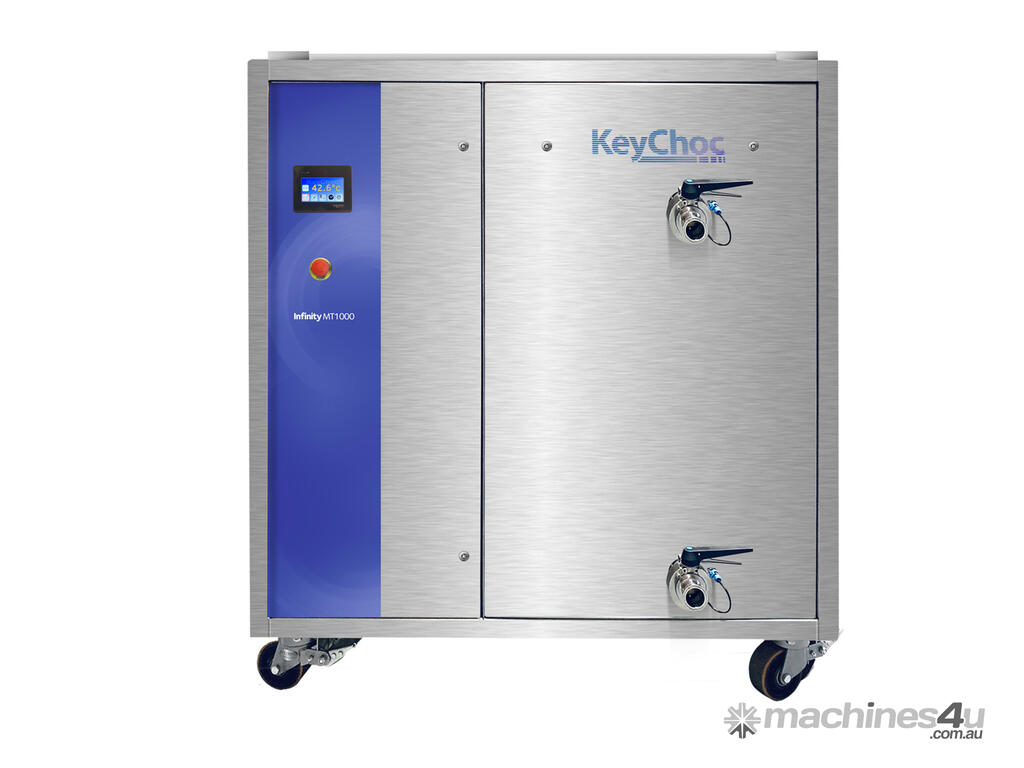

Optional auger-driven pump and high-level discharge spout available (MT1000-P)

Also available in 250kg and 500kg sizes.
