Chocolate Melting Tank - 250kg

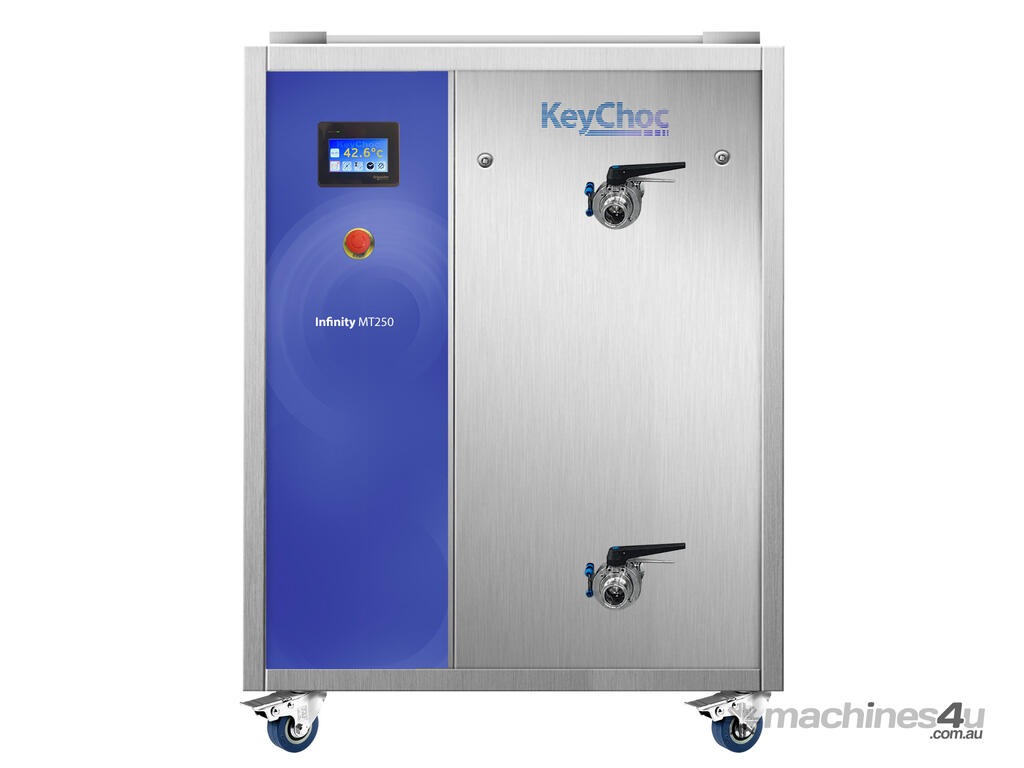

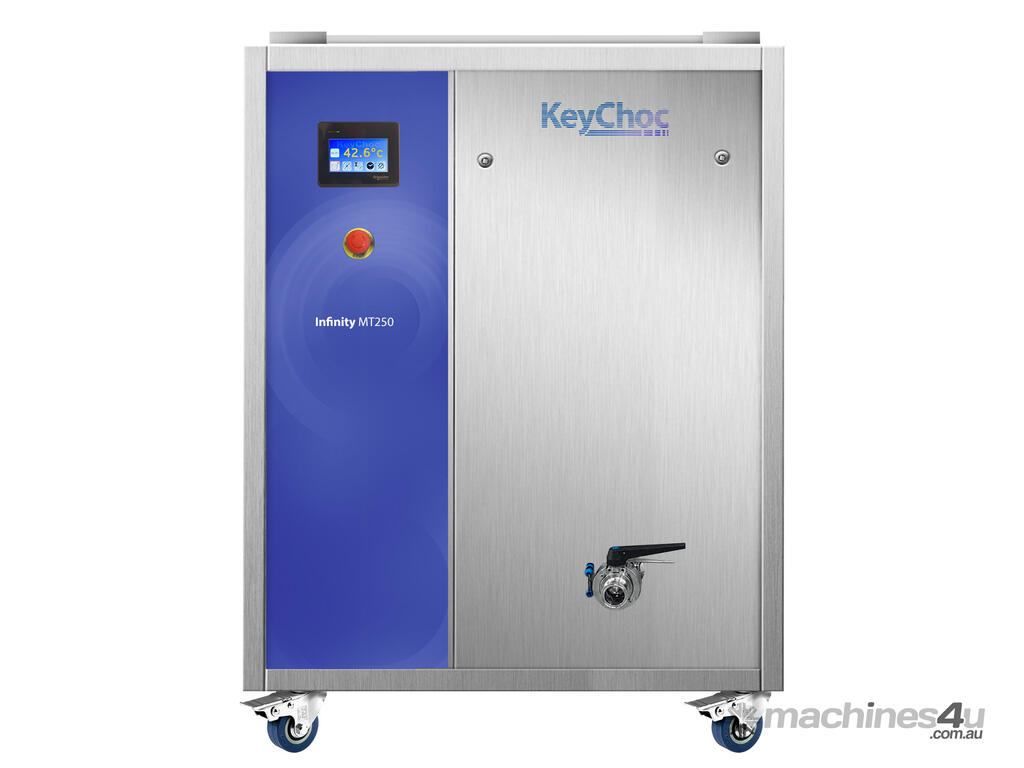

KeyChoc Infinity MT250 – 250 kg Chocolate Melting Tank

The Infinity MT250 is a temperature-controlled, fully jacketed melting tank designed for businesses requiring large-volume chocolate melting and holding capacity. With a 250 kg tank and continuous agitation, the MT250 keeps chocolate at a stable pre-set temperature all day—ready for tempering, moulding, enrobing, depositing, or ingredient preparation.

Built in the UK to industrial standards, the MT250 provides excellent thermal stability, hygienic design, and fast access for cleaning. It is ideal for bean-to-bar makers, large chocolatiers, confectionery kitchens, bakeries, and manufacturers working with chocolate, fats, waxes, or other temperature-sensitive masses.

Key Features
- 250 kg fully jacketed tank

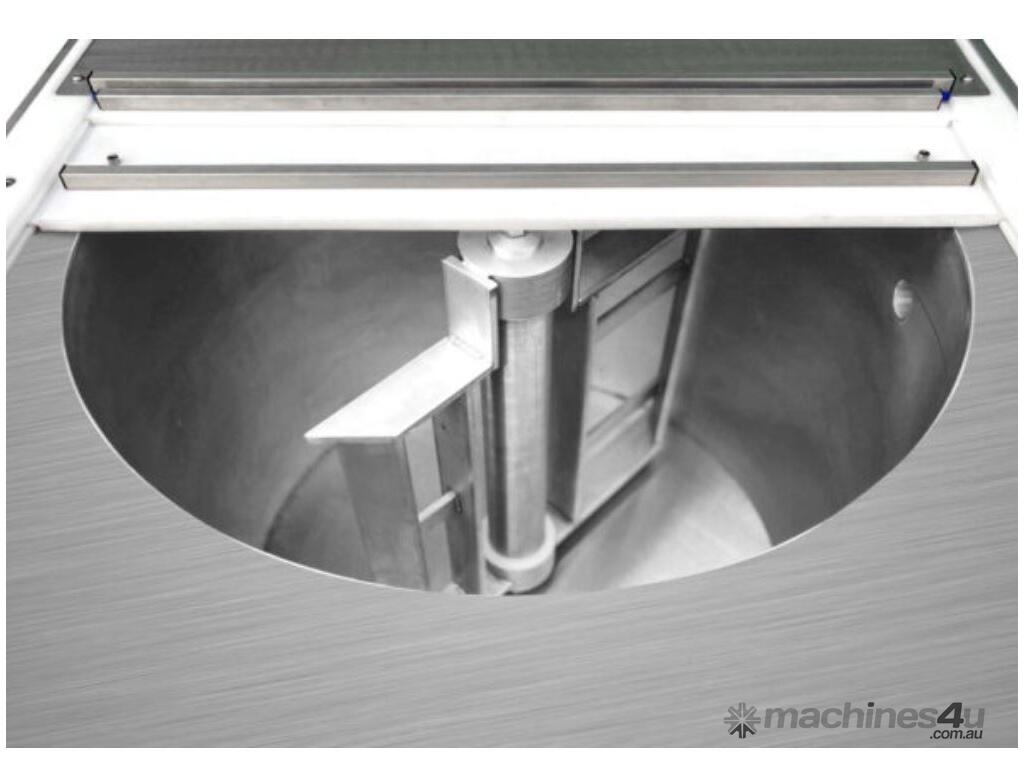

- Continuous agitation with gate-type stirrer

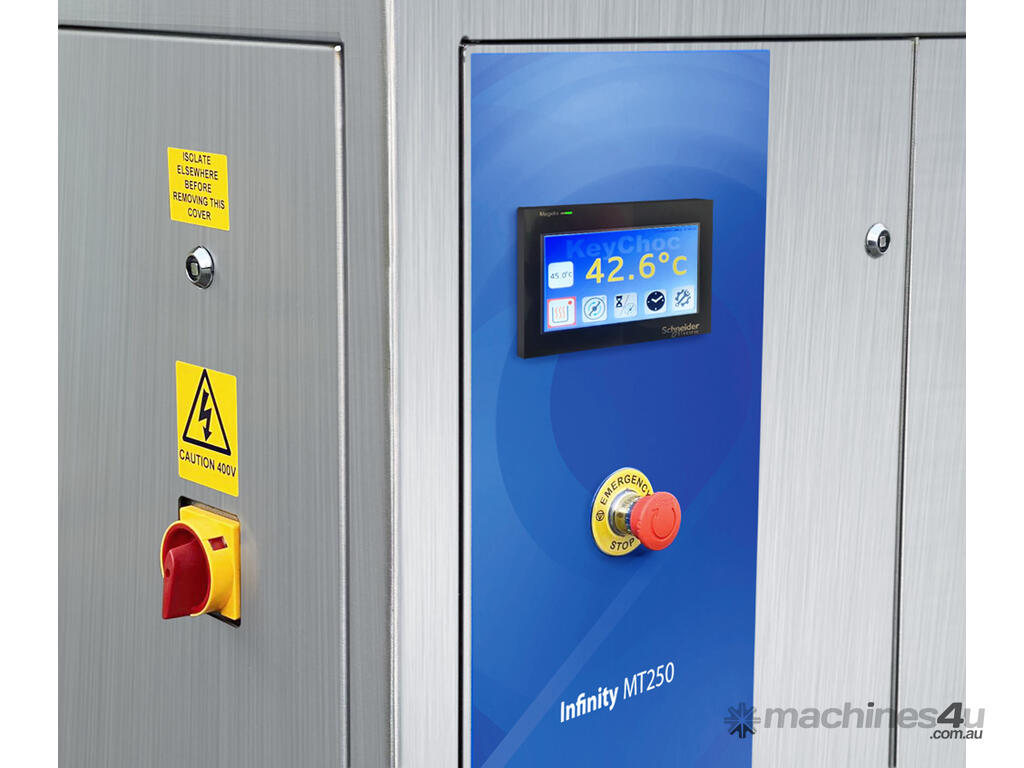

- Touchscreen PLC control for precise temperature management
- Bottom-mounted motor for improved hygiene and easier servicing

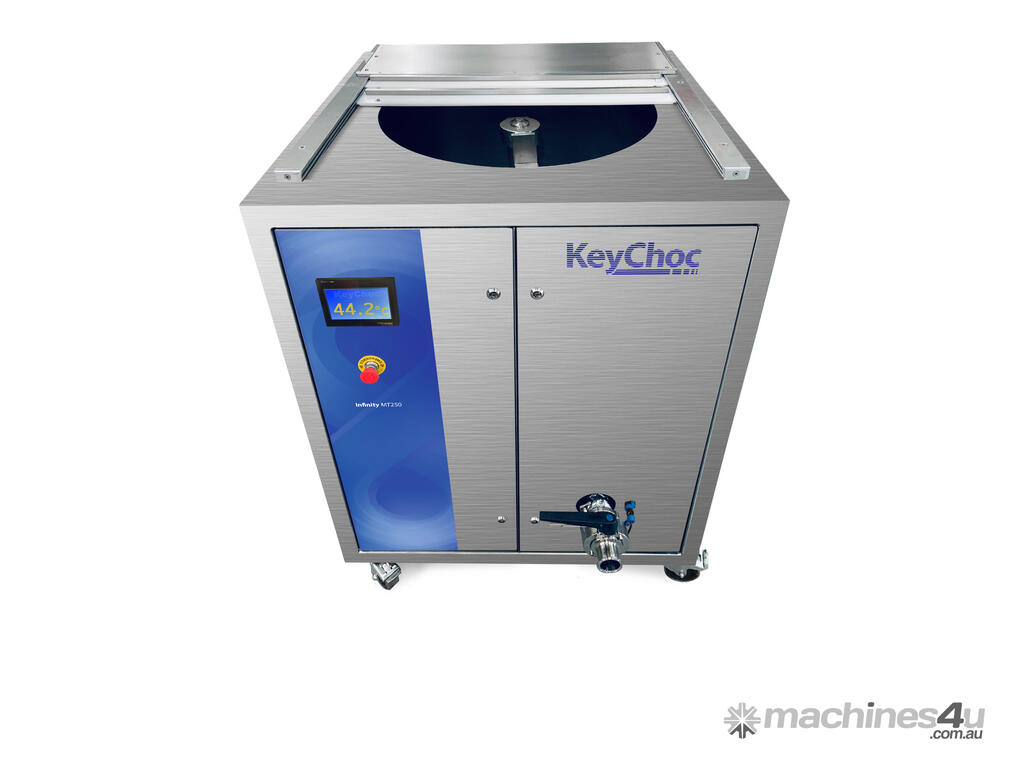

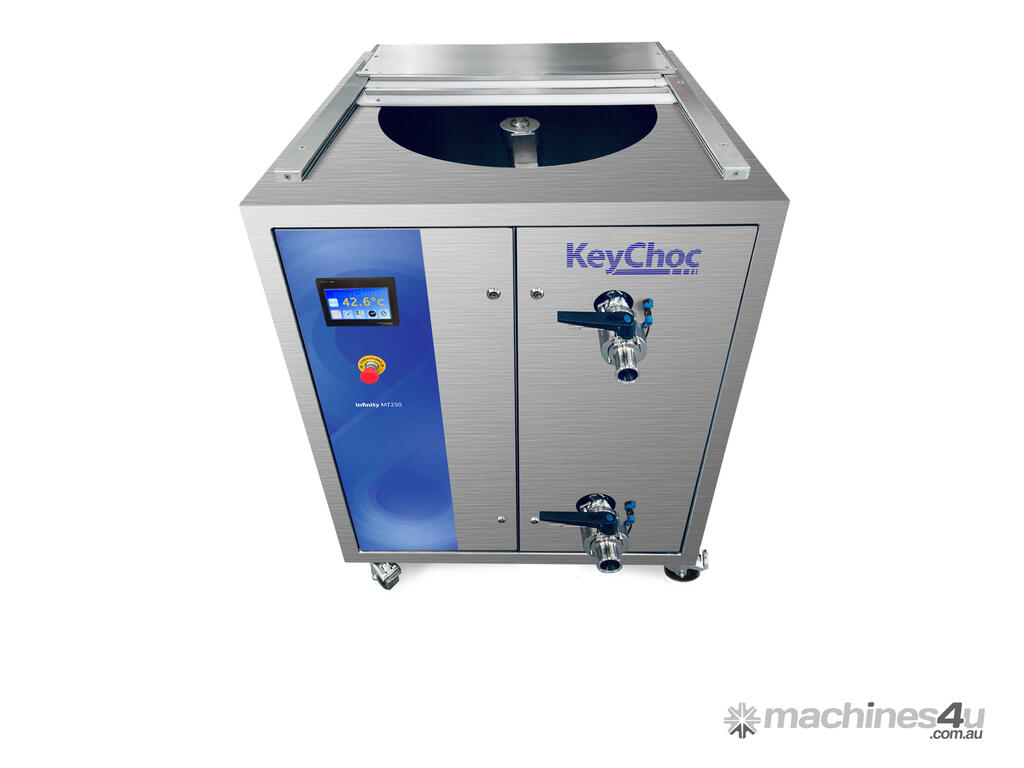

- Sliding lid for quick access and agitator removal

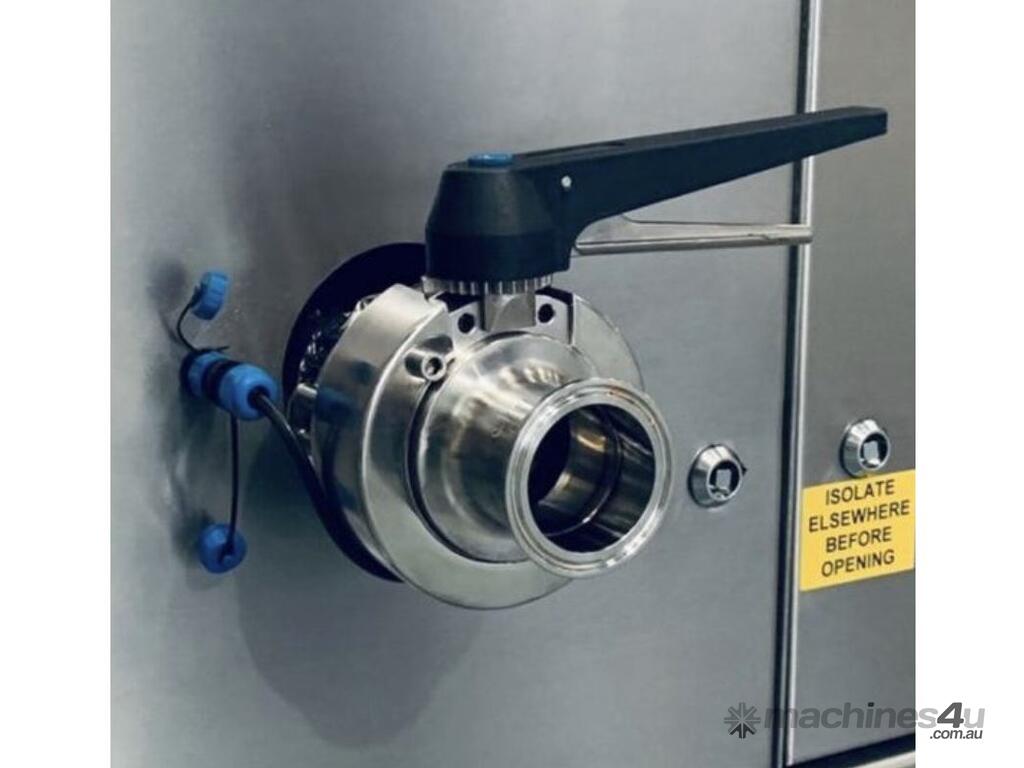

- 50 mm heated discharge valve positioned 400 mm above ground level
- Non-immersion ceramic heaters for simple maintenance
- Hygienic 304 stainless-steel contact parts throughout
- Robust frame (303 stainless steel) with forklift-friendly design
- Hinged access cover with safety cut-out

Dimensions: 1000 (W) x 1000 (D) x 1200 (H) mm

Power: 3-phase, 380–415 V, 16 A, 50 Hz

Heating: 4.4 kW

Motor: 0.75 kW

Made in the UK with a 12-month parts & labour warranty

Why Choose the Infinity MT250?
- Reliable high-volume production support
- Stable, even heating with no hot spots
- Suitable for chocolate, compounds, fats, waxes, and similar materials
- Designed for easy cleaning and reduced downtime
- Ideal for feeding tempering machines, enrobers, moulding lines, or batch production

Optional outlet pump

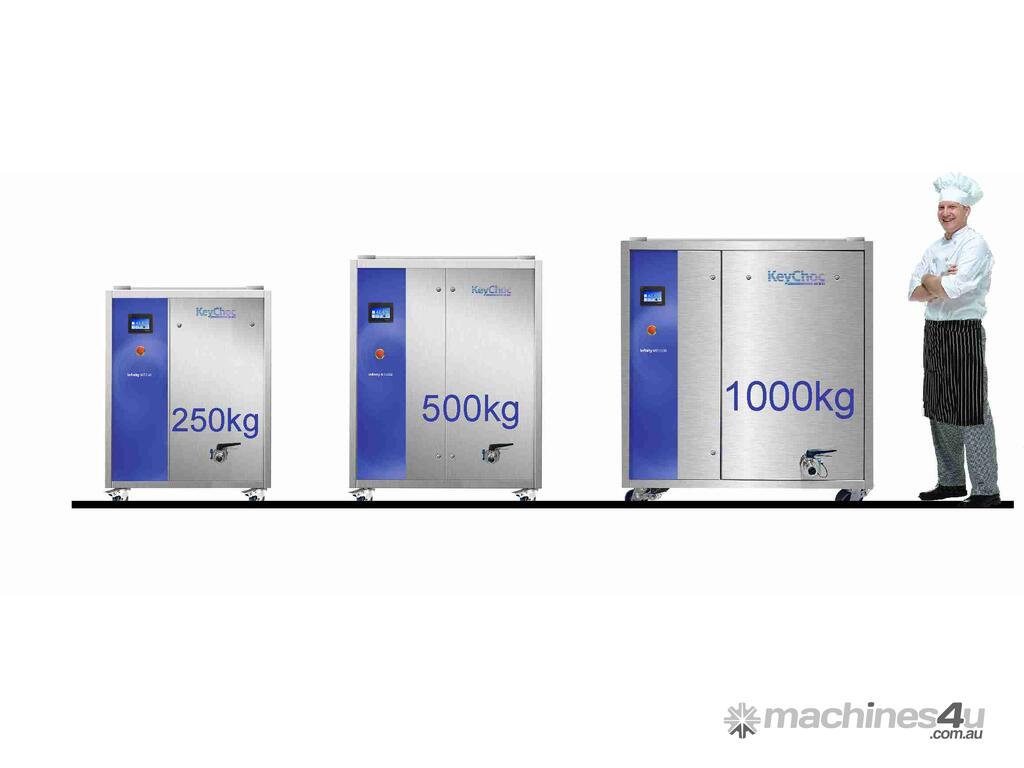

Available in three sizes 250kg, 500kg, 1000kg
