Chocolate Melting Tank - 500kg

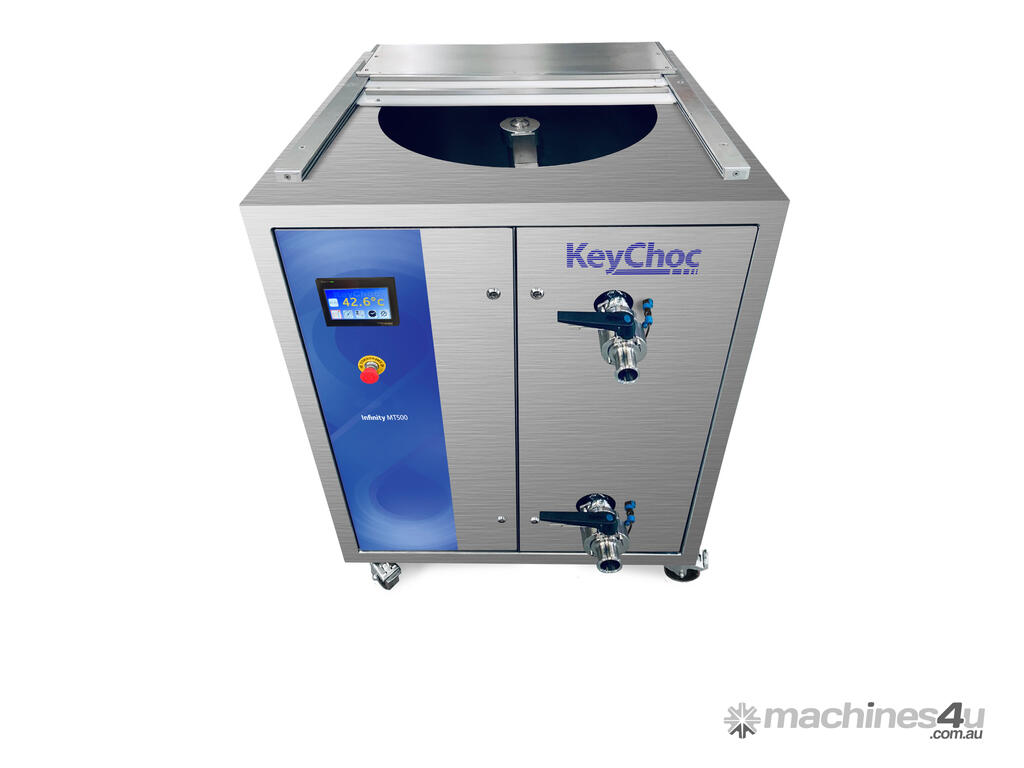

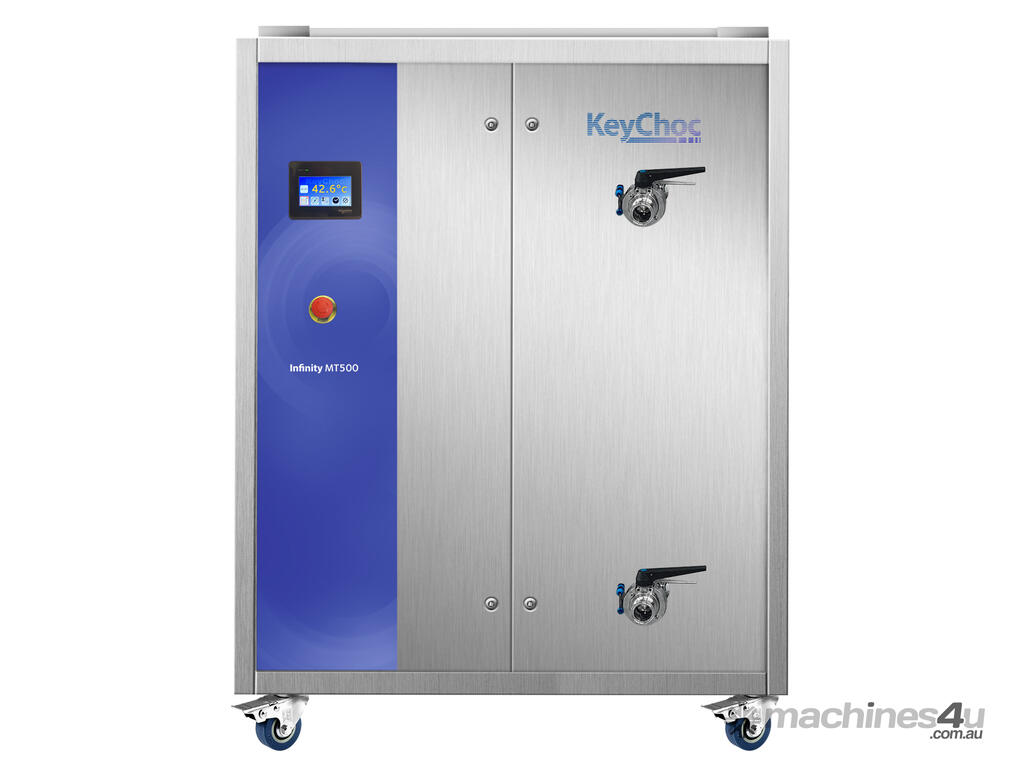

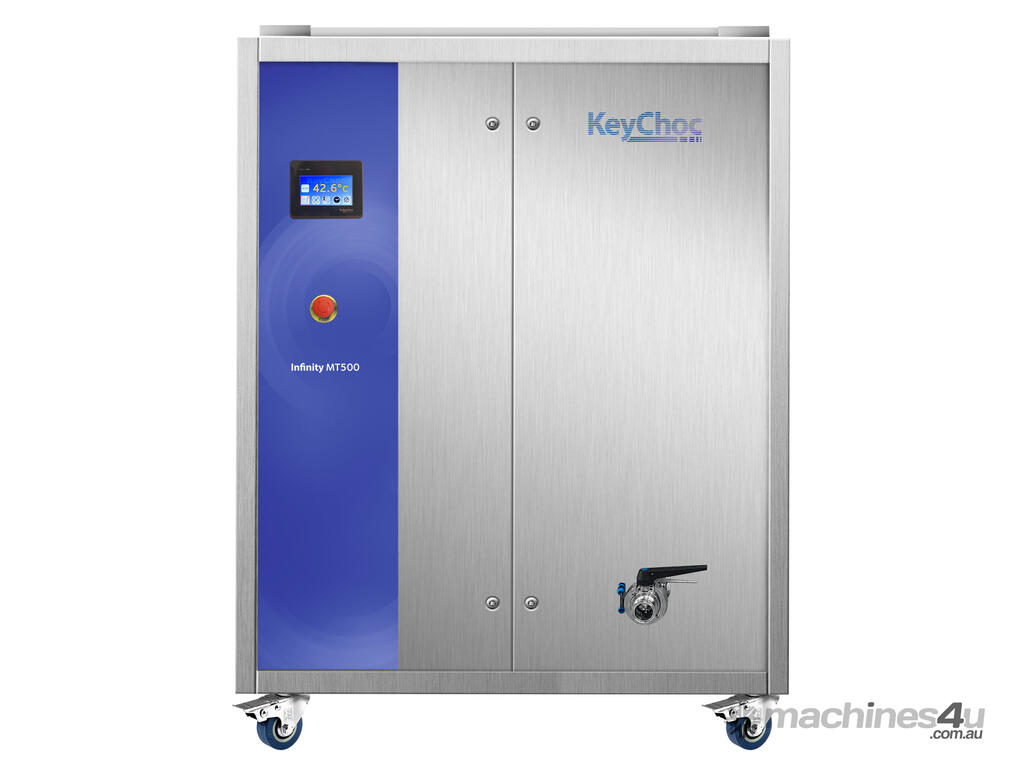

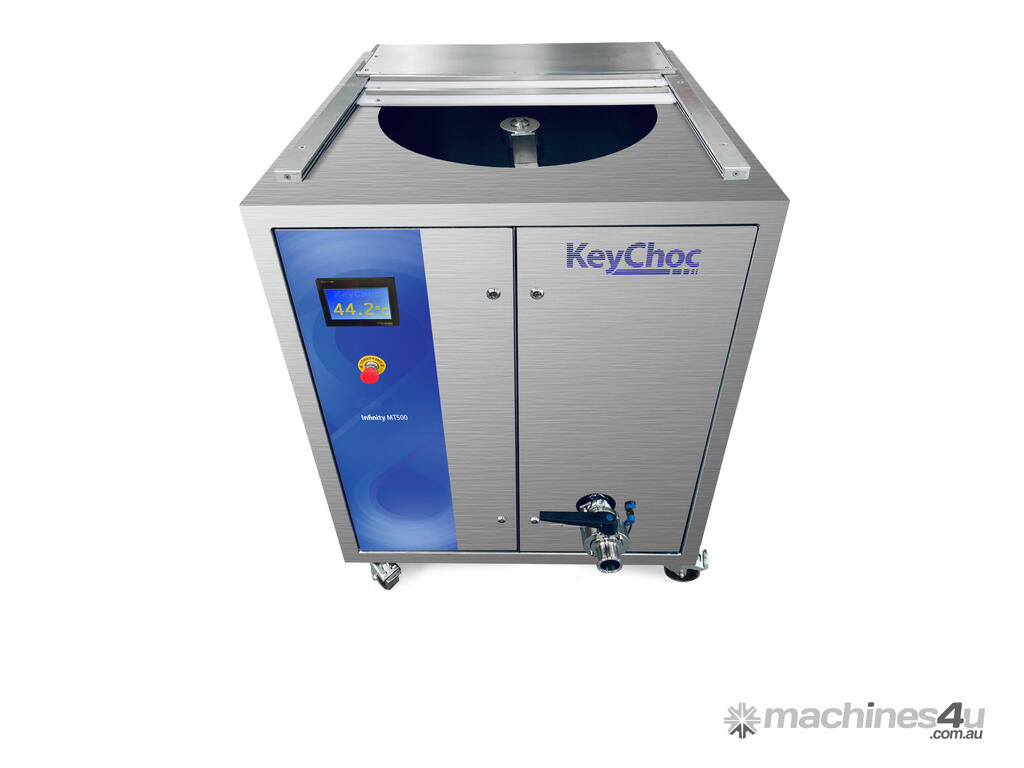

KeyChoc Infinity MT500 – 500 kg Chocolate Melting Tank

The Infinity MT500 is a temperature-controlled, fully jacketed melting tank designed for large-scale chocolate production and other fat-based materials requiring precise, stable heat. With a 500 kg capacity, digital temperature control, and continuous agitation, the MT500 keeps chocolate in perfect condition for moulding, tempering systems, enrobing lines, and ingredient preparation—ensuring uninterrupted workflow throughout the day.

Built in the United Kingdom to industrial standards, the MT500 provides excellent thermal uniformity, hygienic construction, and easy access for cleaning. It is ideal for high-volume manufacturers, commercial kitchens, confectionery producers, bakeries, and factories handling chocolate, fats, waxes, and similar materials.

Key Features
- 500 kg fully jacketed tank (1100 lbs)
- Continuous agitation with gate-type stirrer

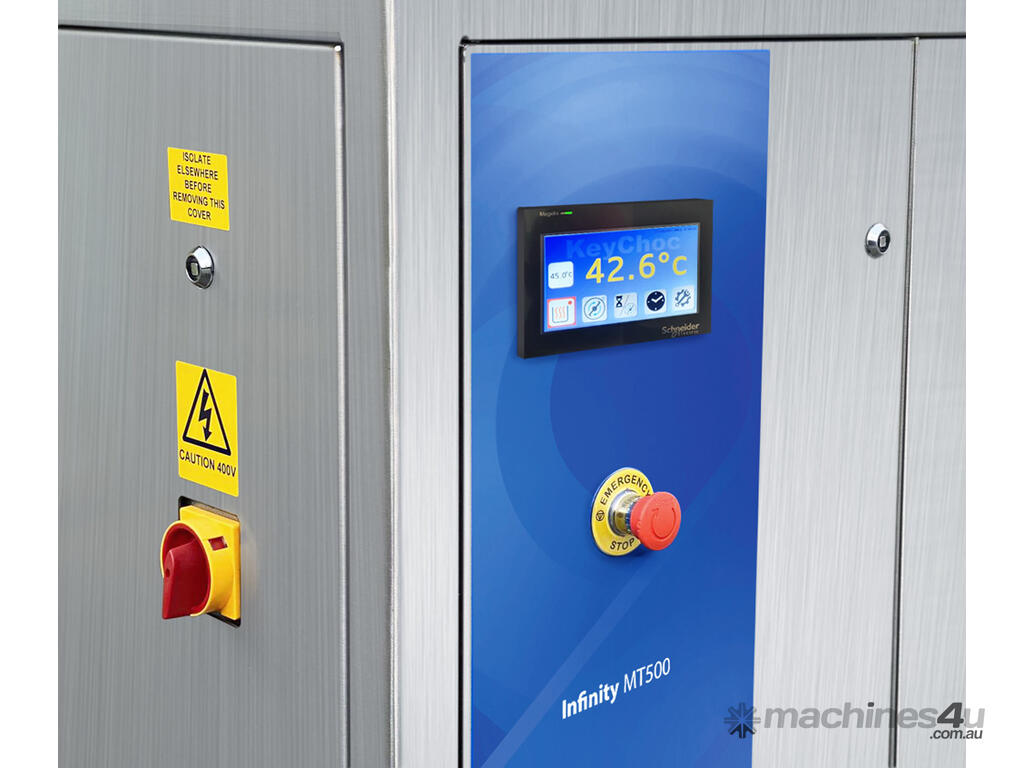

- Touchscreen PLC control for accurate temperature management
- Bottom-mounted motor for improved hygiene and simple maintenance
- Sliding lid for full tank access and easy stirrer removal
- 50 mm heated butterfly discharge valve, approx. 400 mm above ground level
- Digital thermostatic temperature control
- Hinged cover with electrical safety cut-out
- All contact parts in 304 stainless steel; frame in 303 S/S
- Sturdy, heavy-duty design on castors; forklift-friendly construction

Dimensions: 1150 (W) × 1150 (D) × 1370 (H) mm

Power: 3-phase, 380–415 V, 16 A, 50 Hz

Heating: 4.4 kW

Stirrer Motor: 1.1 kW

Made in the UK with a 12-month parts and labour warranty

Why Choose the Infinity MT500?
- Reliable, high-capacity melting for commercial-scale production
- Stable, even heating with no hot spots
- Suitable for chocolate, compounds, fats, waxes, and similar heated masses
- Easy-clean design reduces downtime during batch changeovers
- Perfect for feeding tempering machines, moulding lines, and enrobing systems

Optional high-level discharge pump (MT500-P) available

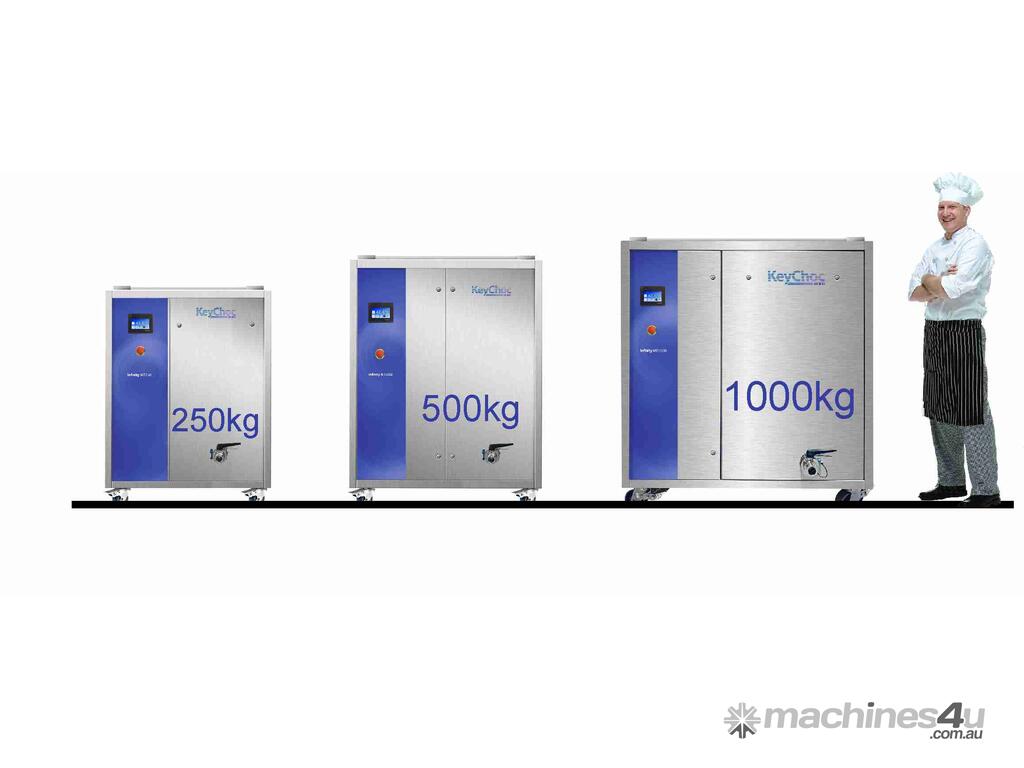

Also available in 250kg and 1000kg sizes.
