Chocolate Melting Tank with pump

Precision-engineered in the United Kingdom

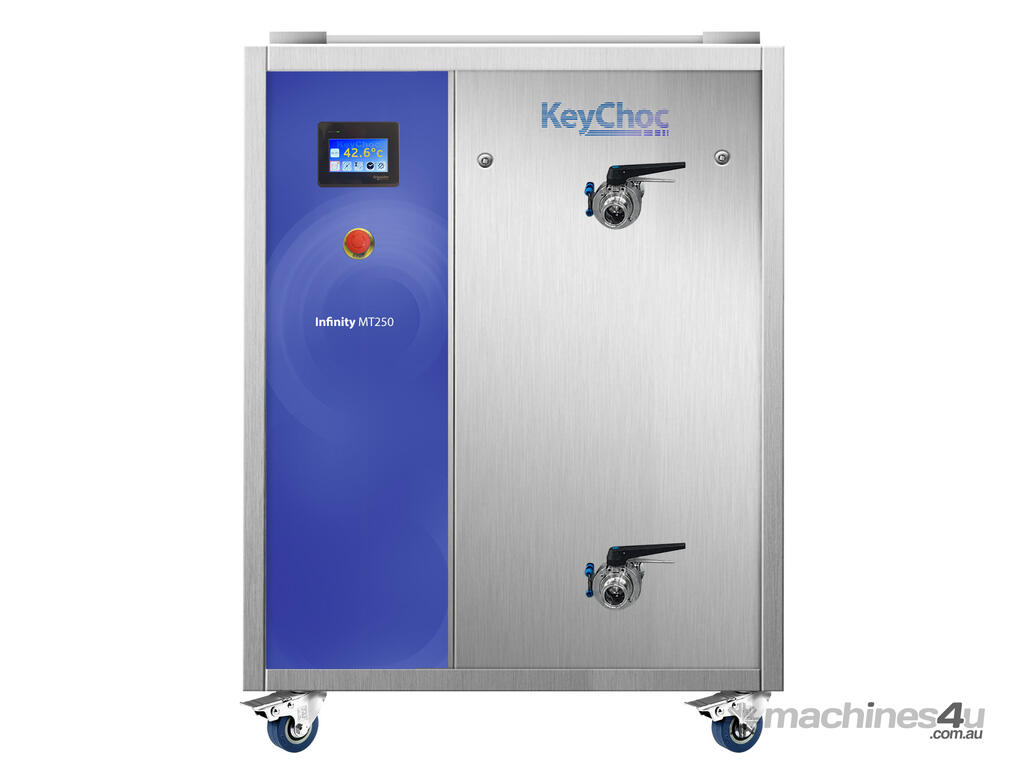

The Infinity MT250-P with pump is a robust, temperature-controlled melting tank designed specifically for professional chocolate makers and chocolatiers. With a 250kg (550 lbs) capacity, it provides consistent, reliable performance for melting and maintaining chocolate or other fat-based products at precise working temperatures.

Built from high-quality UK stainless steel, the MT250-P combines durability, hygiene, and smart engineering in one versatile unit.

Key Features

- 250kg capacity – ideal for small to mid-scale chocolate production.
- Digital temperature control – ensures precise, stable heat for consistent results.

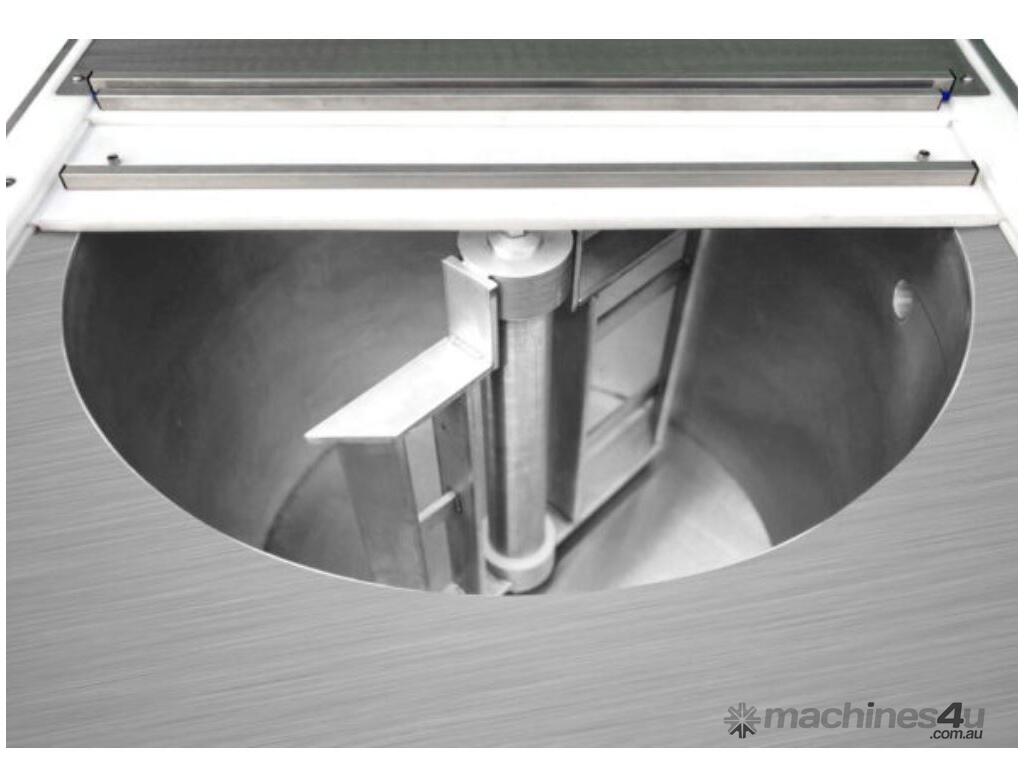

- Fully jacketed and continuously stirred – keeps chocolate perfectly fluid and ready for use.

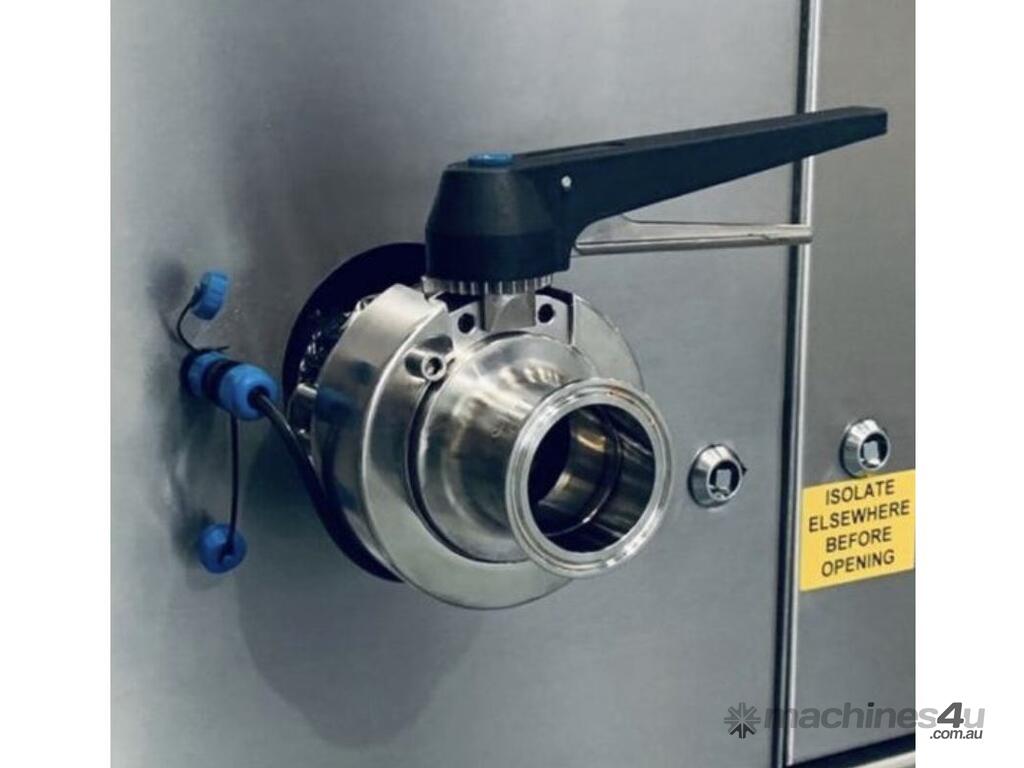

- 50mm heated butterfly valve – allows smooth product discharge without solidification or blockages.
- Hygienic bottom-mounted motor – reduces contamination risk and simplifies cleaning.

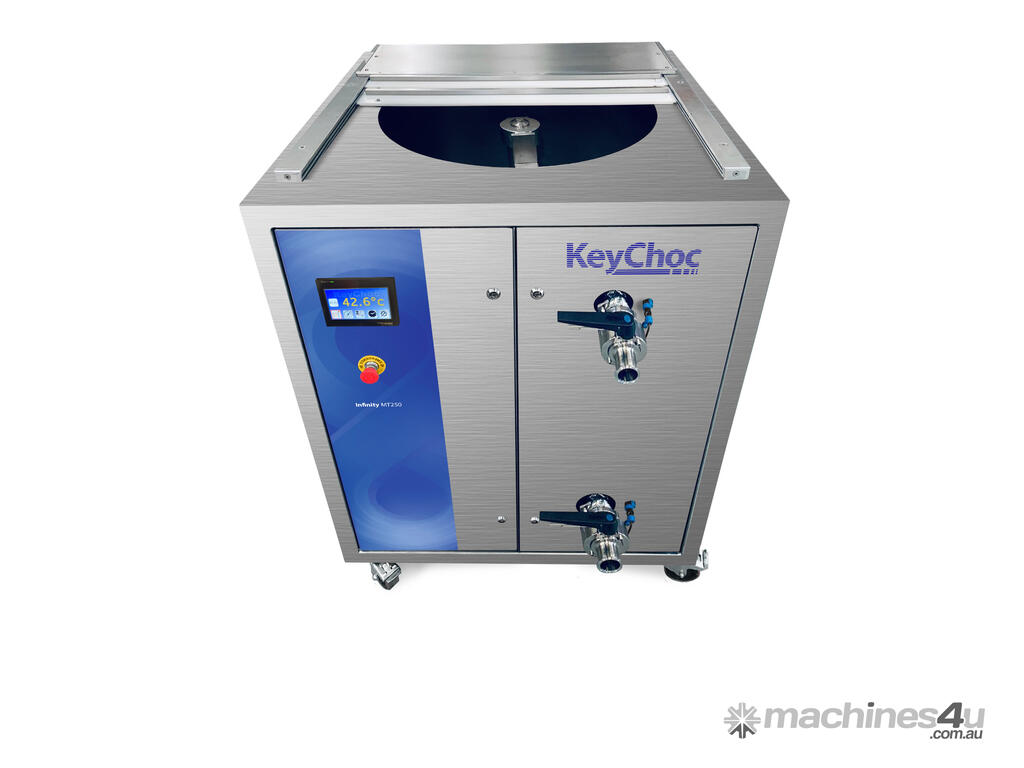

- Sliding and hinged lid design – offers easy access for filling, maintenance, and cleaning.
- Heavy-duty construction – mounted on strong castors for mobility and designed for forklift handling.
- Non-immersion ceramic heaters – deliver efficient, low-maintenance heat transfer.

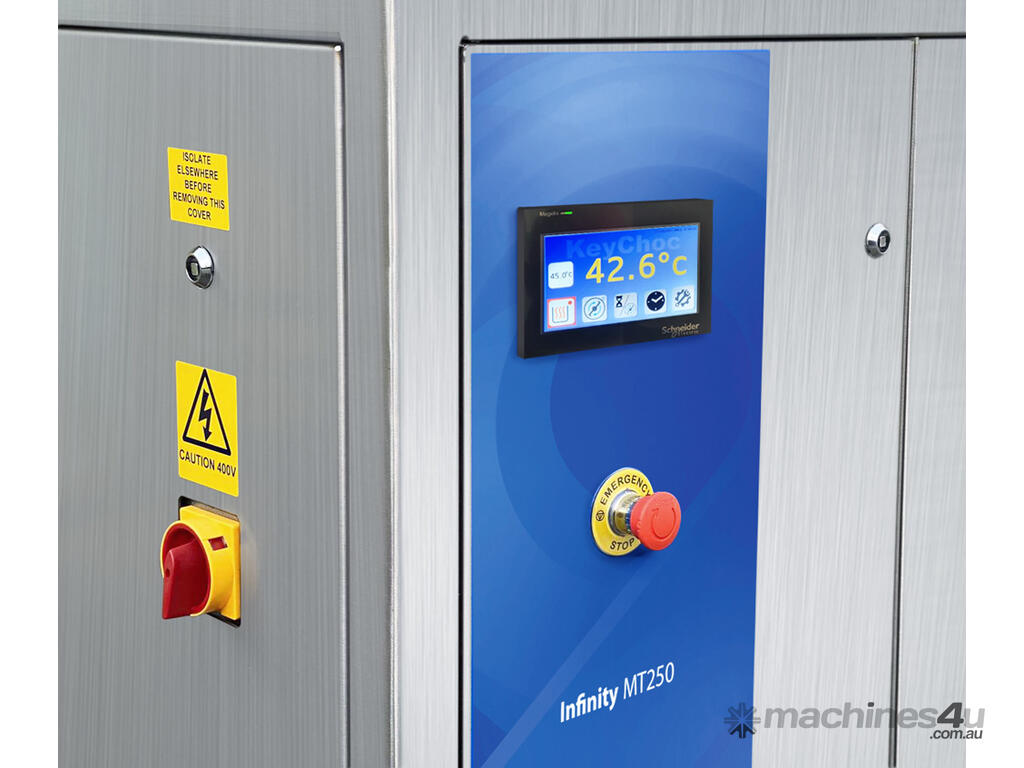

- PLC-driven touchscreen controls – user-friendly operation with complete process oversight.

Technical Specifications
Specification Detail
Tank Capacity 250kg
Dimensions (W x D x H) 1000 x 1000 x 1200 mm
Heating Power 4.4 kW
Motor Power 0.75 kW
Power Supply 3 Phase, 380–415V, 16A, 50Hz
Construction 304 S/S contact parts, 303 S/S frame
Discharge Height 400mm from ground
Temperature Control Digital thermostatic
Warranty 12 months parts & labour

Applications

Perfect for melting and maintaining:
- Couverture chocolate
- Compound coatings
- Cocoa butter and other fat-based food masses
- Wax and similar temperature-sensitive materials

The Infinity MT250 is engineered for reliability, hygiene, and ease of use — everything a modern chocolate kitchen needs to keep production flowing smoothly.

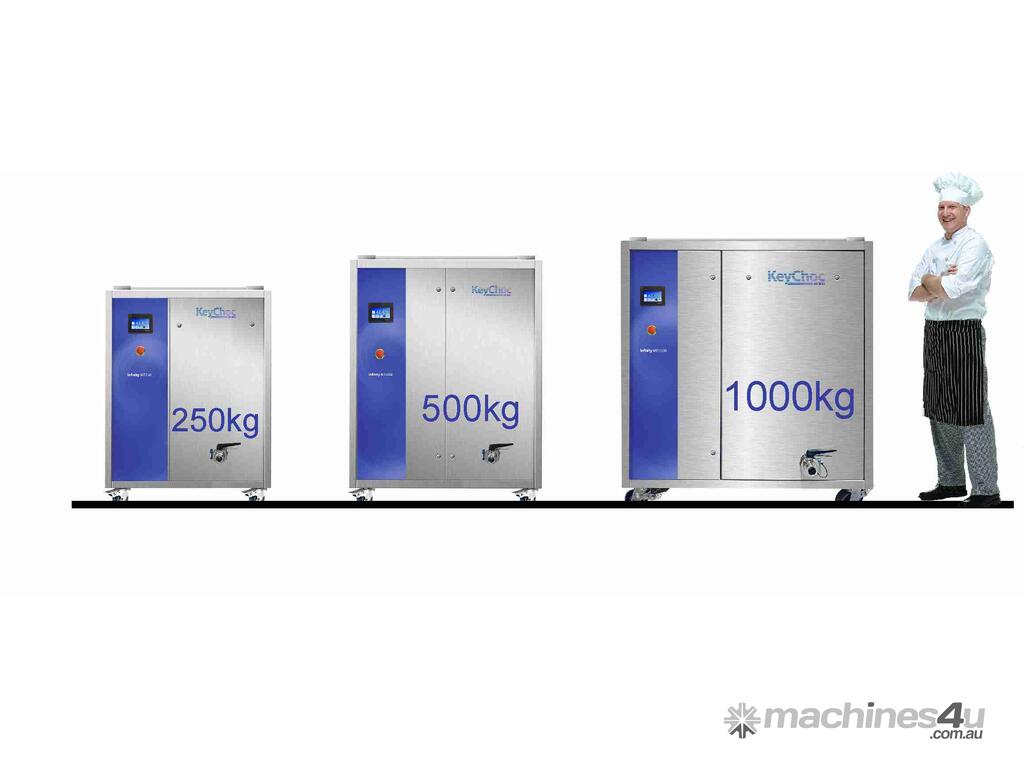

Comes in three sizes MT250-P, MT500-P and MT1000P
