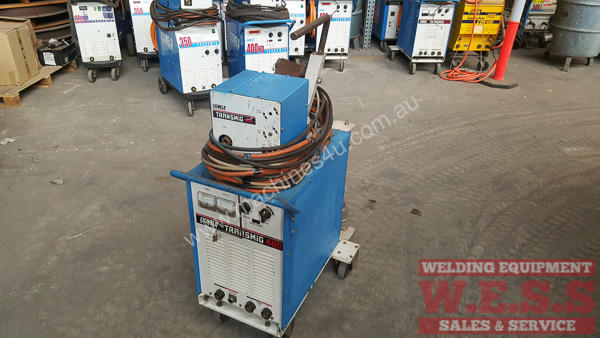

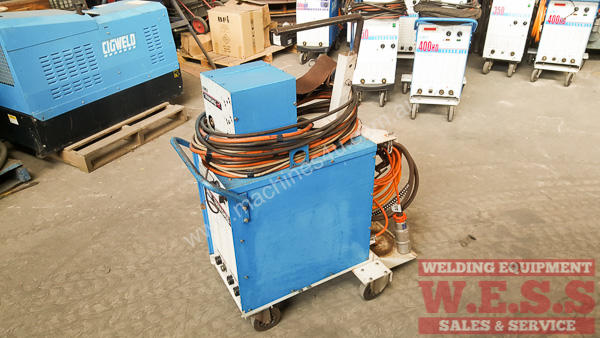

The Transmig 400HD MIG Welding plant has been designed to increase the productivity of the metal fabrication industry. Performance, Ruggedness and Simplicity have been combined in this versatile MIG welding plant. Solid wires up to 1.6mm, diameter can be run at high duty cycles together with the ability to provide high deposition performance with flux cored wires of up to 2.4mm.
Features:
36 fine welding voltage control settings
Trigger latching
Heavy duty design and construction
Dual inductance

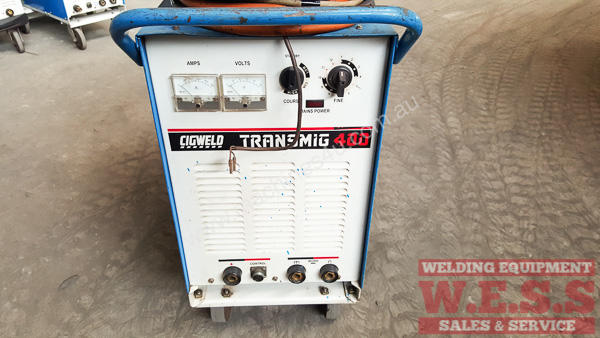

Volt and Amp Meters

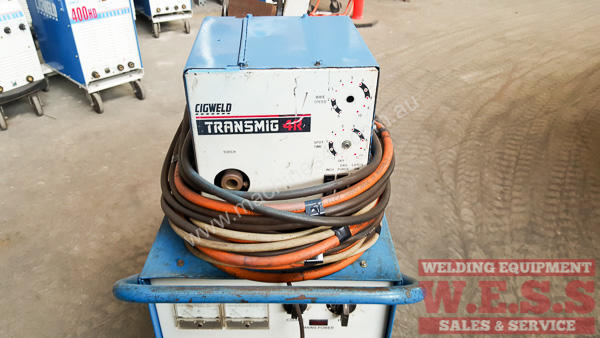

4 Roll Wire Feeder
SPECIFICATIONS
SUPPLY VOLTAGE:
380 / 415Volt
3 phase 50Hz
SUPPLY LEAD:
20 amps
MINIMUM RECOMMENDED GENERATOR:
20 kVA for maximum welding current
NUMBER OF OUTPUT VOLTAGE STEPS:
36
WELDING CURRENT RANGE:
22-400 amps
WIRE SPEED:
2.0-20 m/min
DUTY CYCLES:
60% at 350 amps
46% at 400 amps
WELDING ARC VOLTAGE RANGE:
16-33 Volt
DUTY CYCLE TEST PERIOD:
5 minutes
WIRE DIAMETER:
(Hard) 0.8-1.6 mm
(Soft) 0.8-1.6mm
(Cored) 0.8-2.4mm
WIRE SPOOL SIZE:
300mm or 200mm & 400mm coil
PACKED WEIGHT:
222kg
POWER SOURCE ASSEMBLED DIMENSIONS:
H840mm x W440mm x D1050mm
4R FEEDER DIMENSIONS:
H294mm x W243mm x D555mm
