Circa 2015 500hl Steinhecker Brewhouse & Brewhouse Mill Equipment

Circa 2015 500hl Steinecker Brewhouse



2hr 45m brew cycle


Brew House, Comprising:

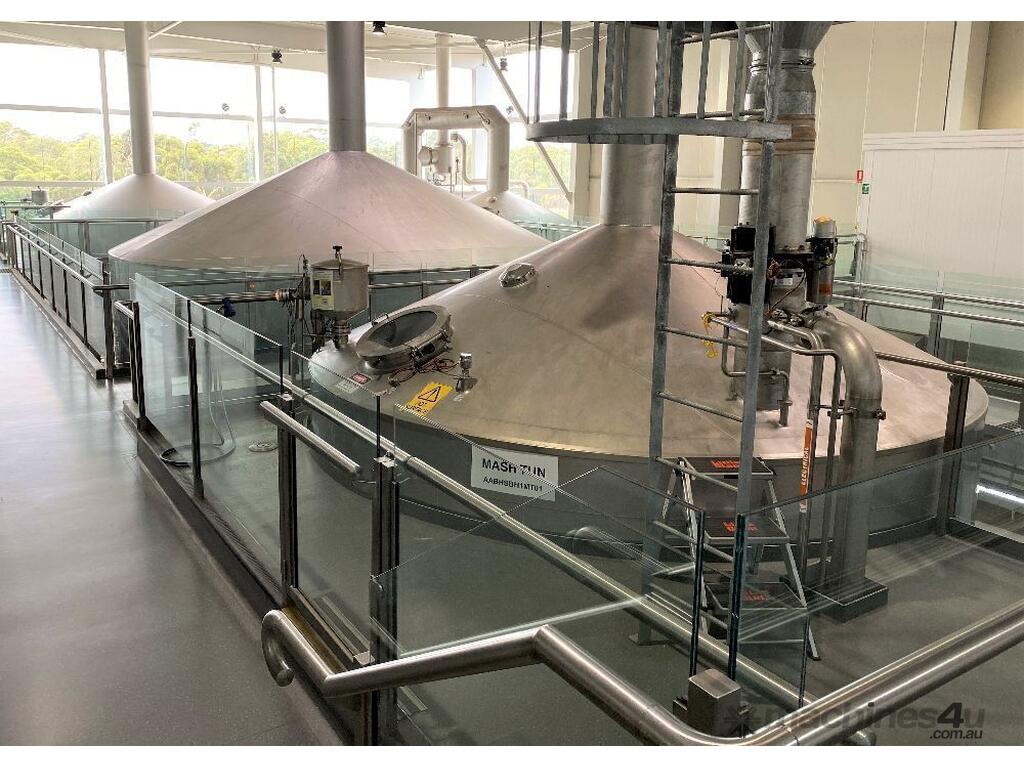

Mash Tun, stainless steel, Steinecker viewpoint, associated valves, actuators, process valves with control heads & pipework
Mash Pump, KSB, CIP return pump
2014 Lorenz Kondensat Tank, 1500L, with 2018 Flowserve motorised pump
2014 Ponndorf Receiving Vessel with pneumatic conveyor, type: 150-5-XBL, serial: BA28009, max capacity: 170Kg/min
Lauter Tun, Krones, Model: Pegasus, stainless steel, motorised geared drive agitator, electric control box, density motor, associated pumps, process valves, control heads
Whirlpool Tank, stainless steel, on steel stand with associated valves, control leads
Krones Trub Tank, Serial No: 276662, capacity: 4570L, with process valves & control heads
2 x KSB VCR80-160 Motorised Pumps, with process valves and control heads
Wort Kettle, stainless steel, jacketed, vapour condenser, KSB Siemens motorised pumps, process valves, control heads, density meter, valves, actuator & associated pipework
2014 IGEFA Weinbrenner Heat Exchanger (energy recovery system), S/N: 50157
GEA Type NT50XCD5A-150 Heat Exchanger, S/N: 112/14132
2014 Krones Weak Wort Tank, stainless steel, jacketed, 13800L capacity, S/N: 276645, 2 x KSB Pumps
2014 Krones Wort/Hops Tank, S/N: 276676, stainless steel, 231L capacity, with process valves & control heads
Schenk Process Finings Hopper, with agitator, auger, load cell, APV motorised pump

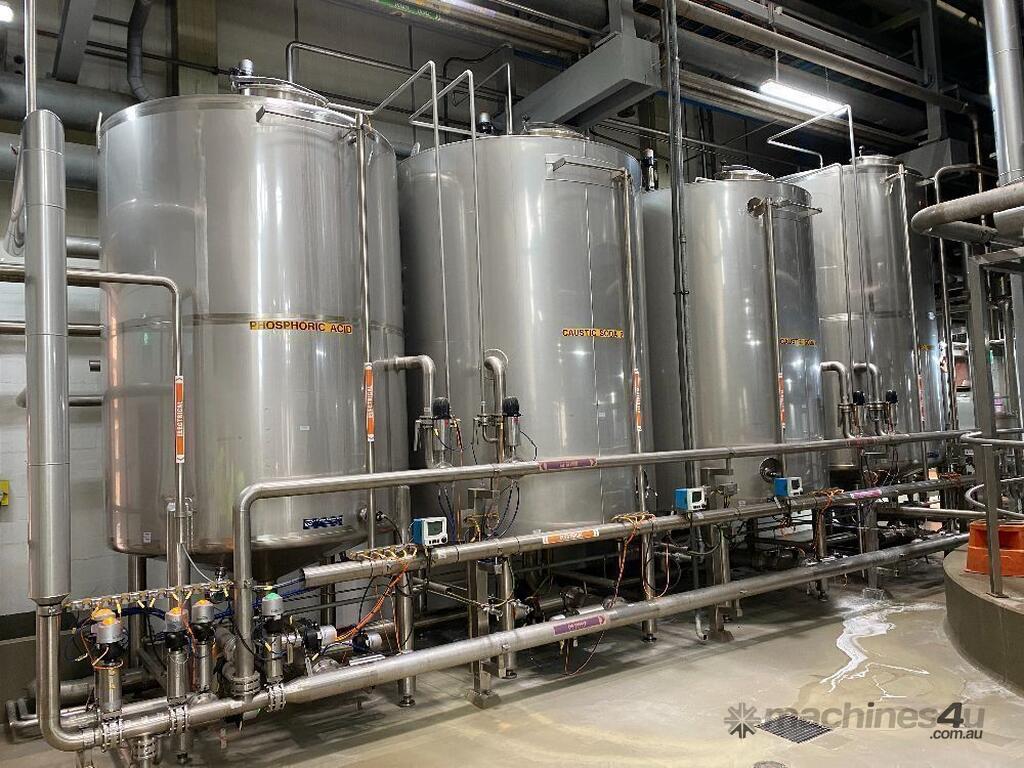

Brew House CIP Tank Farm comprising; stainless steel phosphoric acid tank, caustic soda 2 tank, caustic soda 1 tank, rec water tank, with associated process valves, control heads & pipework
Hop Dissolving Vessel, stainless steel, with agitator, feed hopper, vacuum pump & motorised pump, weigh scale
2014 APV Heat Exchanger (wort cooling), APV, Type: Q 055, S/N: 521002, stainless steel, titanium plates
With associated valves, positioners, control heads, pumps & pipework

Mill Equipment Comprising:

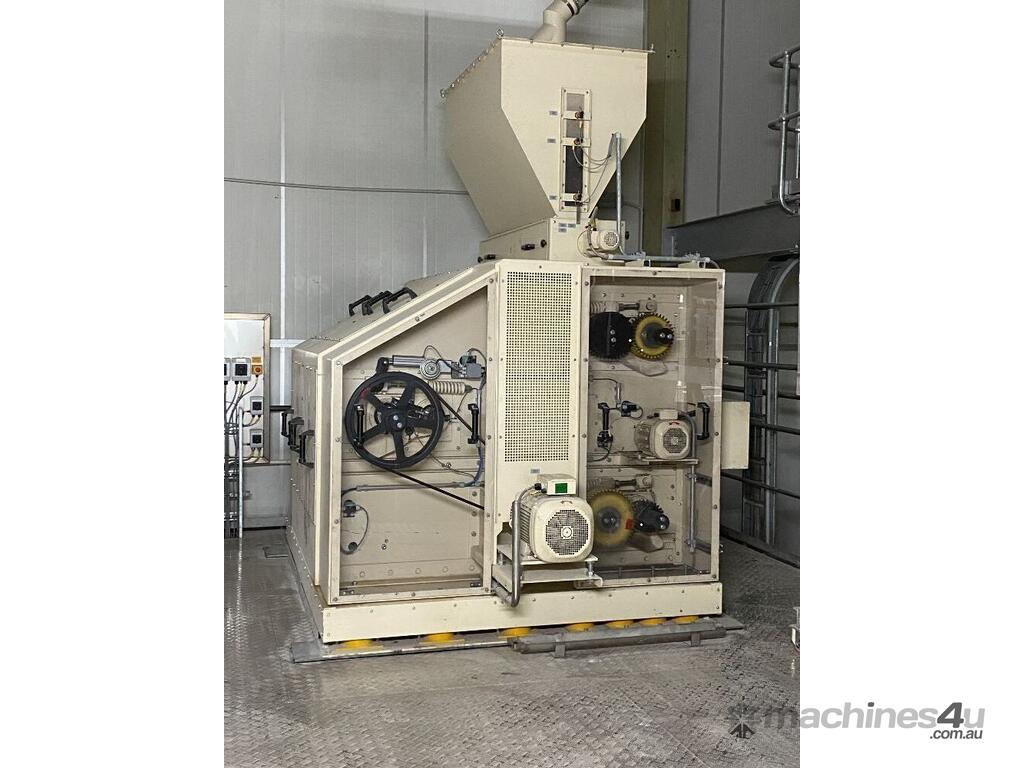

2014 Kunzel Malt Mill, 18.5Kw & 11Kw, Type: 6 Roller Mill E, With Siemens Siamatic HMIPLC, Size: 25/150, order: 1153215/33549, S/N: 34076 (GH1)
2014 Kunzel Flat Screen, Size: 1102, order: 1153215/33549, S/N: 34025
Grist Bin, bolted construction Enzyme Dosing System, with stainless steel 200L tank,
Micronotion system
Kunzel FG Casing Filter, Size: , S/N: 75678 Plus various screw conveyors & elevators.

Item Location : Robinvale Vic
