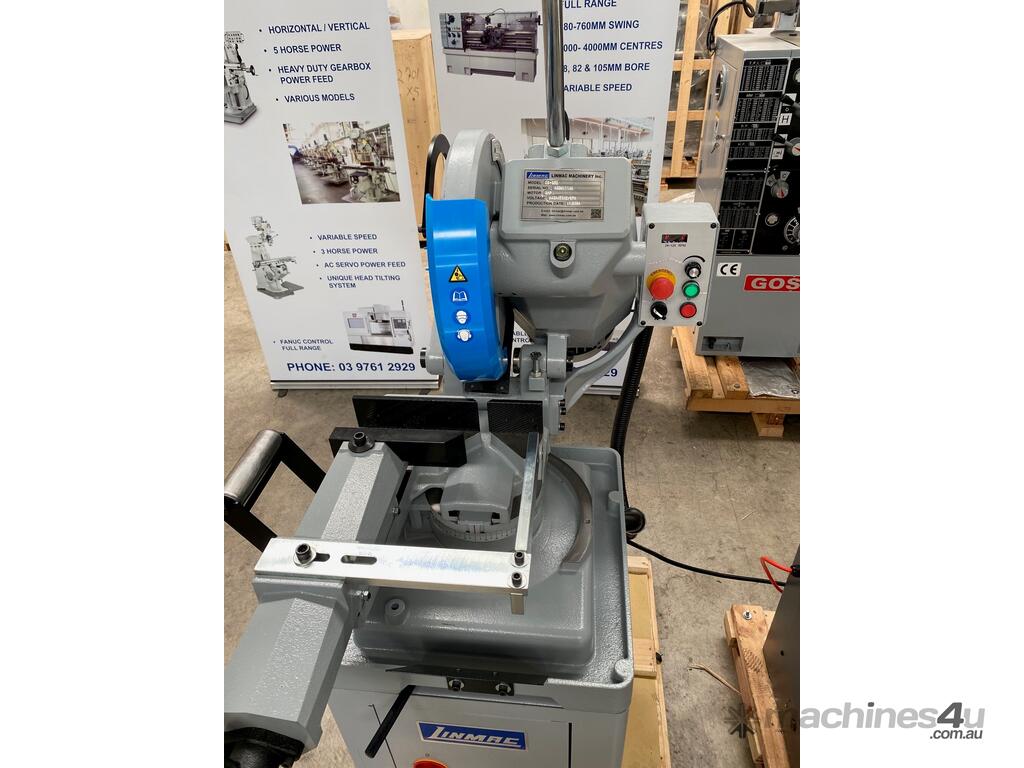

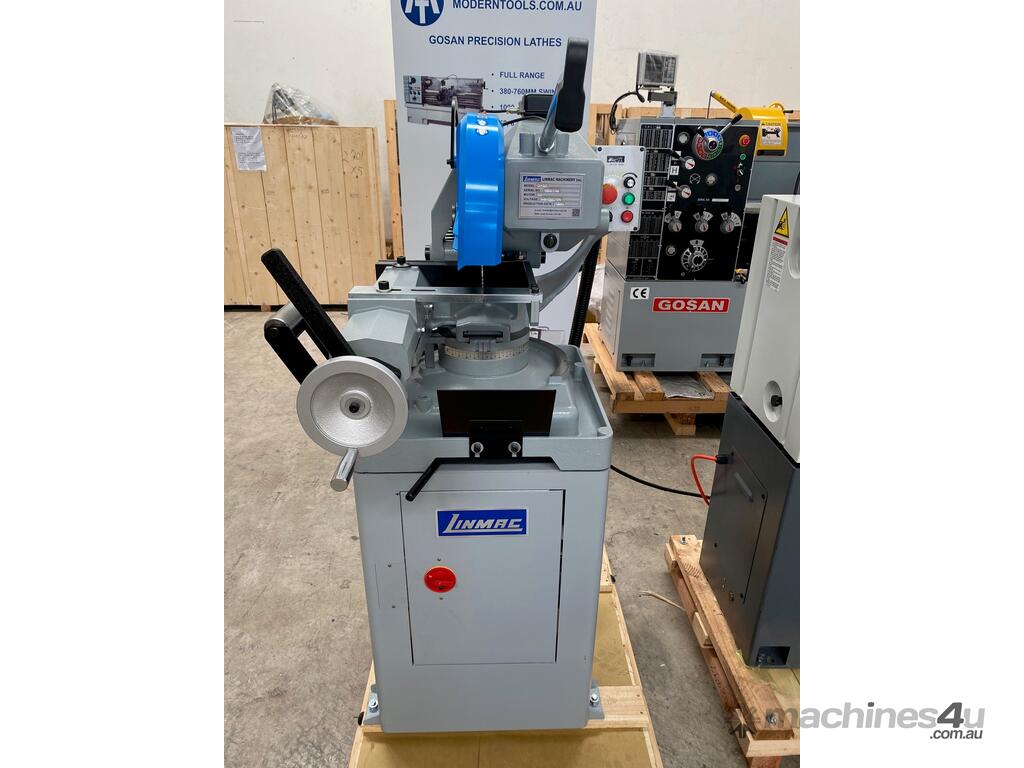

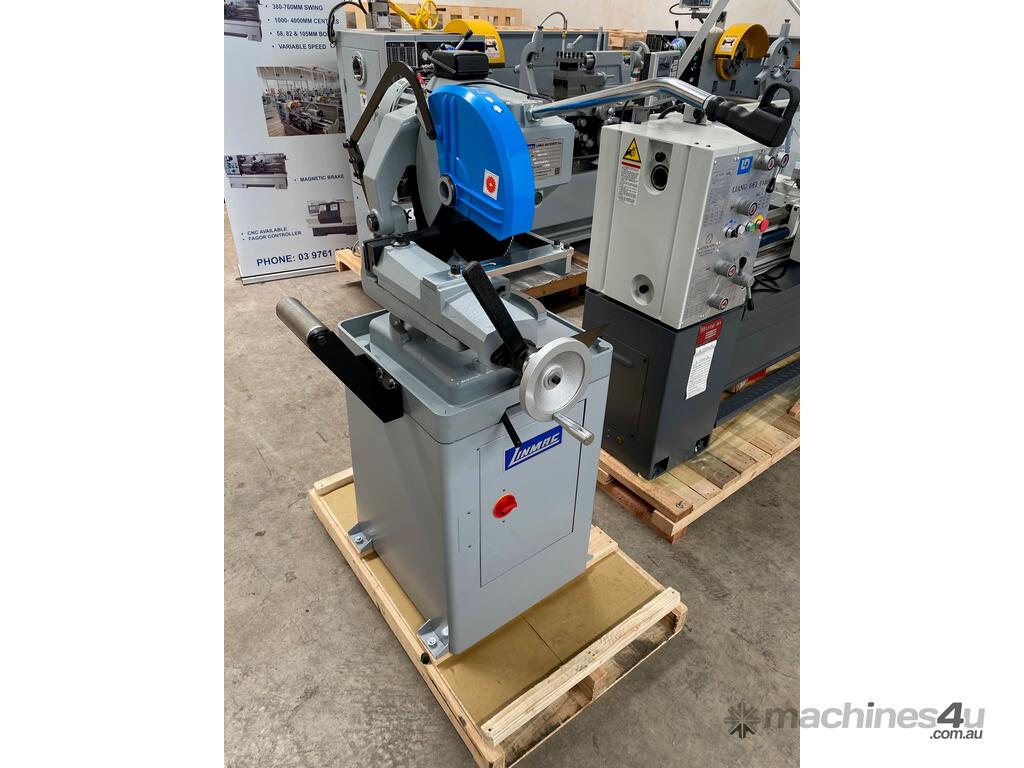

Circular Cold Saw 350mm

With build in coolant system in the base and protective guarding this powerful Taiwanese made Circular cold saw has the capability to cut through a wide range of material with ease and precision.

This cold saw runs a 4 pole 3HP 3phase motor with built in frequency inverter to enable the machine to run of 240 volt 15amp single phase.

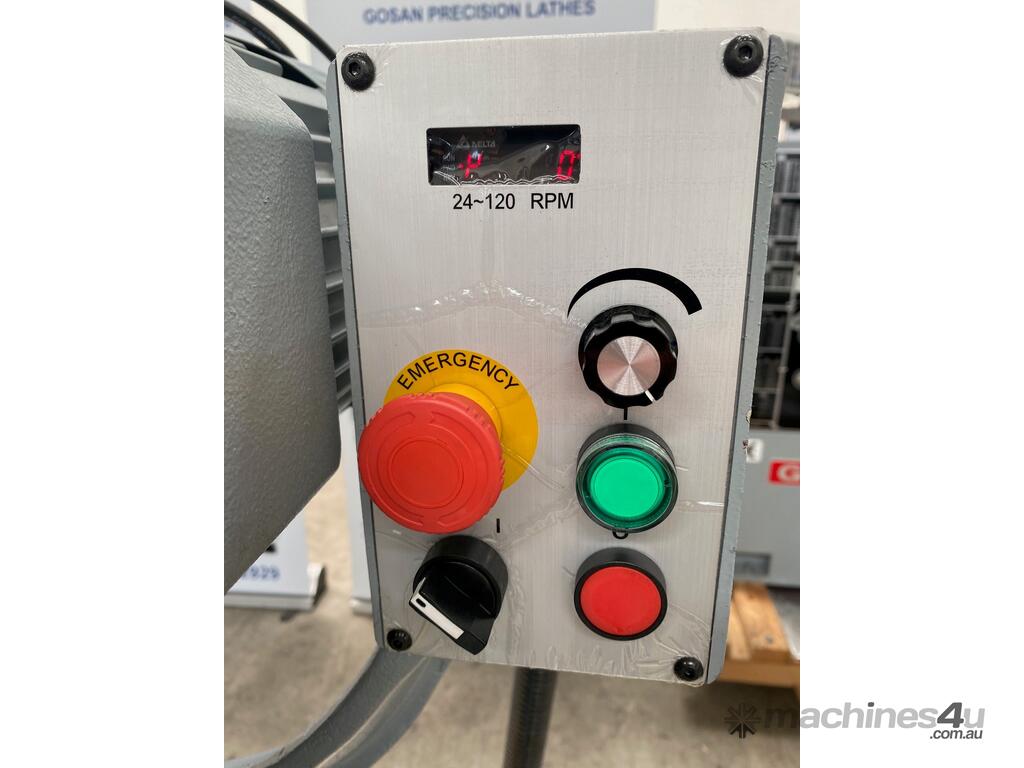

The variable speed inverter enables you to run the cutting disc at speeds ranging from 24 to 120 RPM.

With sold base and mitering capacity left and right to 45 degrees each way, this machine can do the job for you with ease.

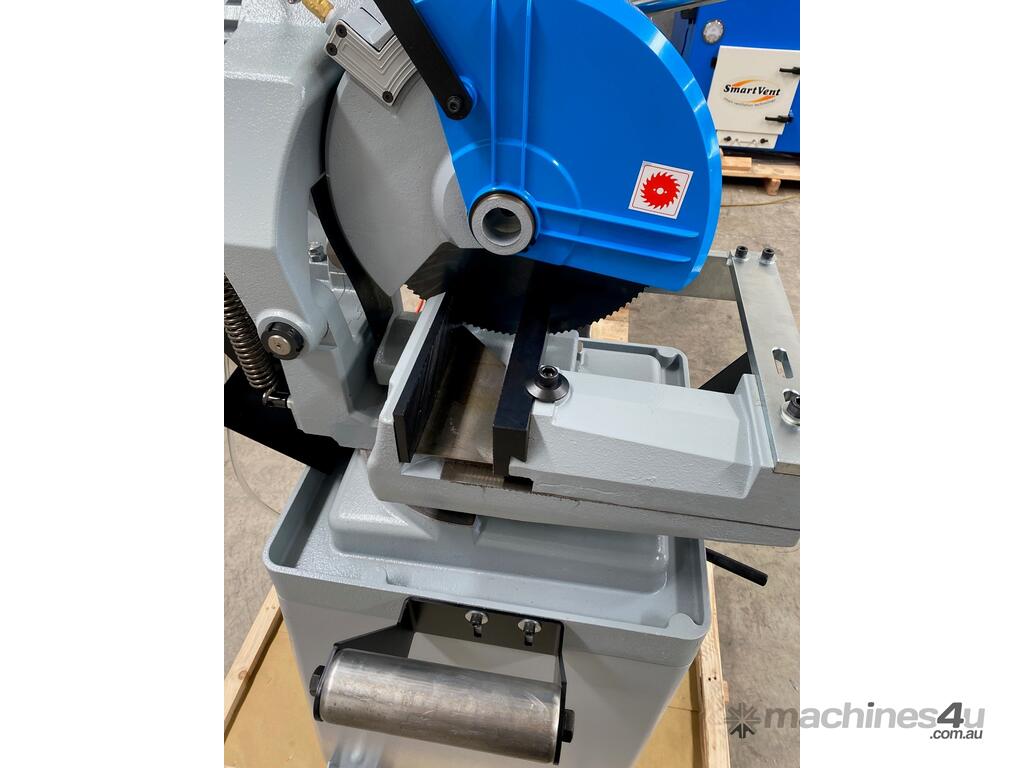

The adjustable vice has rapid lock and unlock capability to run multiple work pieces through the cutting bed with the roller support on the left side of the machine assisting with this process.

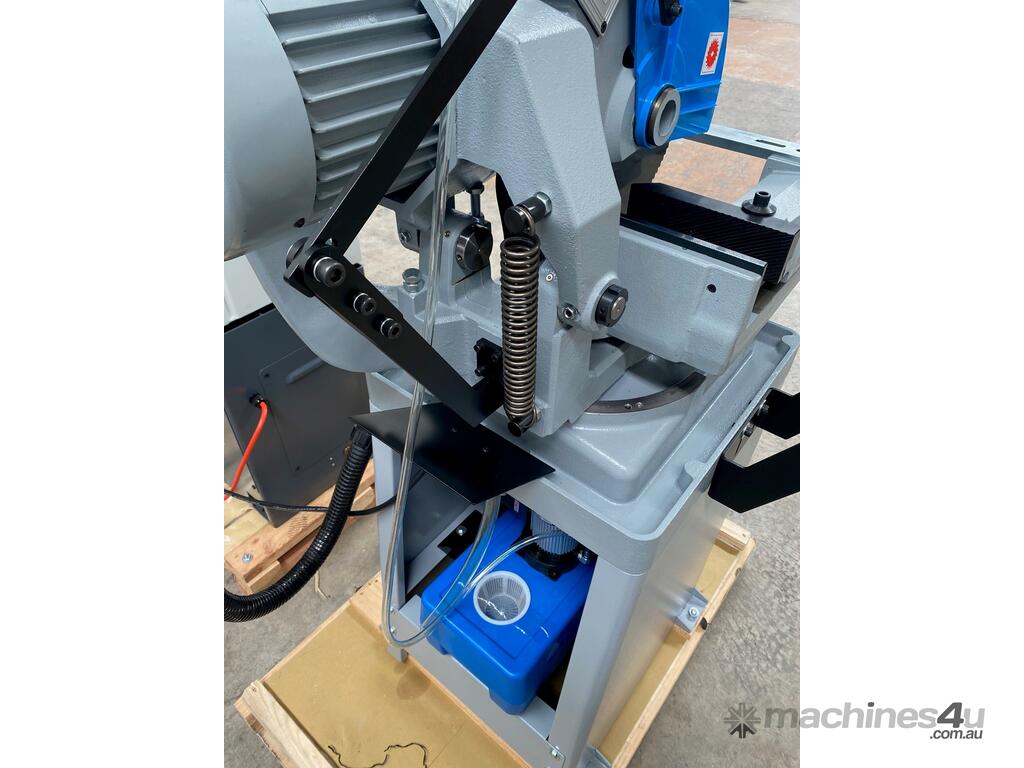

Built in high volume coolant pump keeps the vital fluids up to the cutting disc when required.

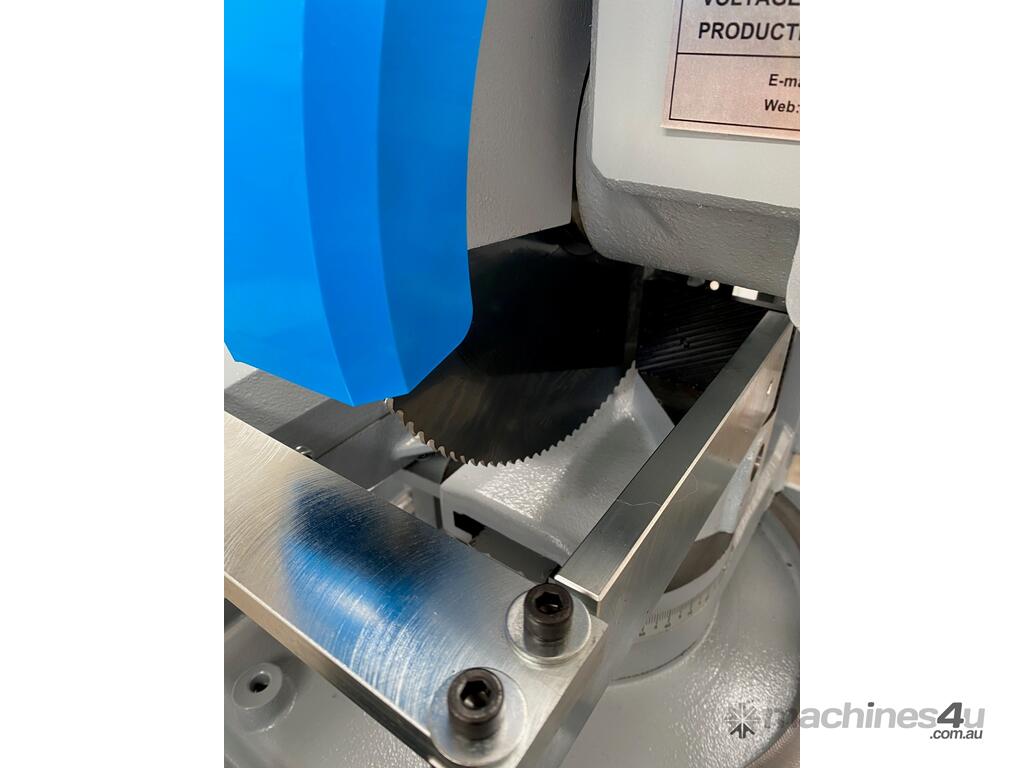

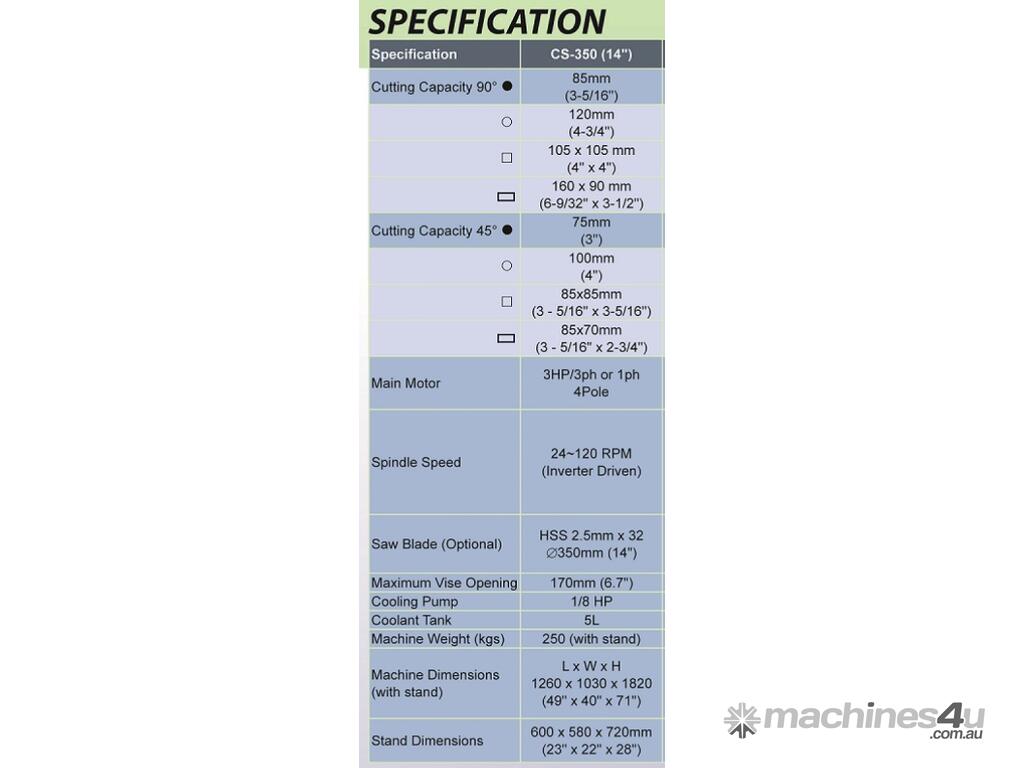

• Cutting disc = 14” (350mm)
• Cutting capacity = 85mm

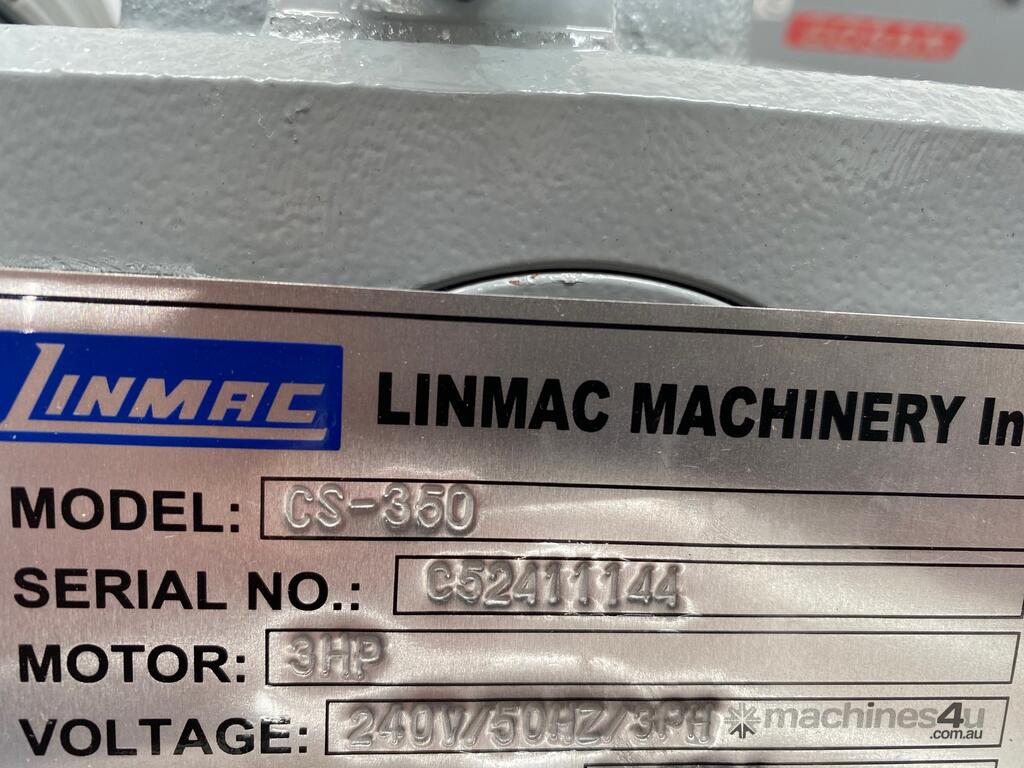

• 3.0 HP 4 pole Single phase machine

• Powerful saw for cutting pipe, solid bar or tubing.
• Aluminium-Bronze worm gear enhances the machine life.
• Direct drive gearbox with high strength allows the blade to cut through the workpiece chatter free and is low maintenance.

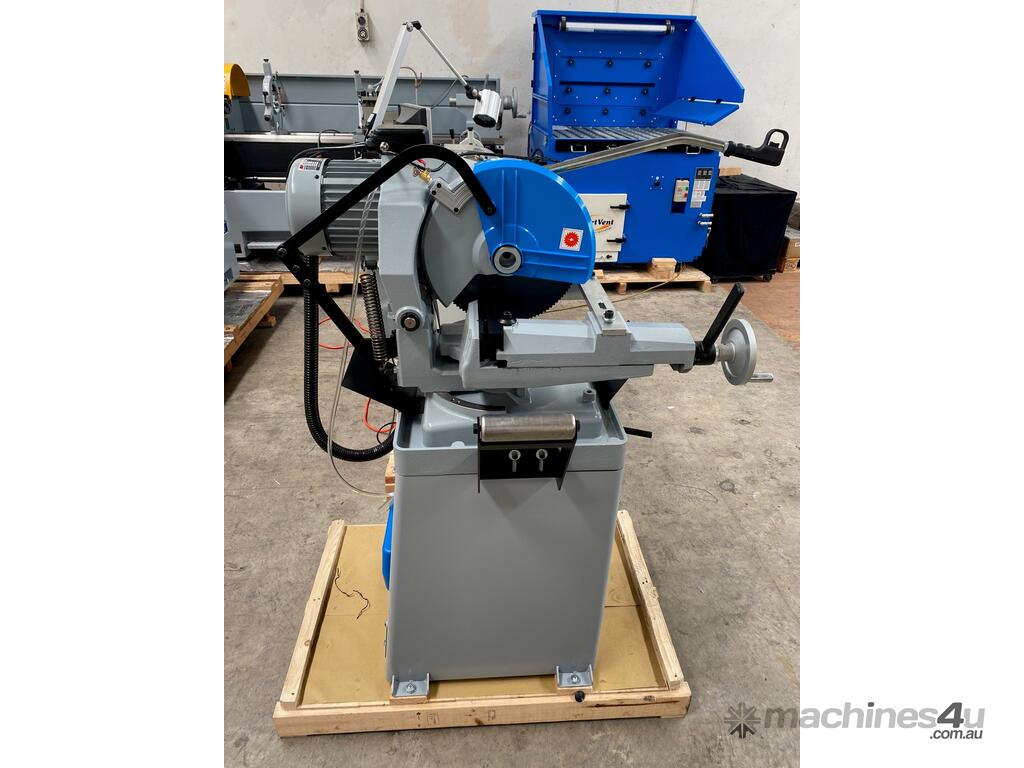

• The saw is fixed on a rigid one-piece cast iron base, which is mounted on a firm steel stand
• The saw can mitre 45 degrees both left and right.
• Inverter drive with 24 to 120 rpm covering most of cutting applications.
• Powerful coolant pump and high-capacity tank providing sufficient coolant to cool the blades and wash away chips. This also increases blade durability.
• The vice has taper locking design that helps production efficiency during intensive cutting. The vice jaw provides strong clamping capability, which holds the material tight.
