Cleaning and Drying System

Hildebrand Industry - Cleaning Unit.

This system is suitable for washing, rinsing and drying a wide variety of cleaning goods. Whether containers, molds or parts of chocolate processing plants; the Minijet does a great job, runs efficiently, economically and is characterised by its extremely user-friendly one-person handling.

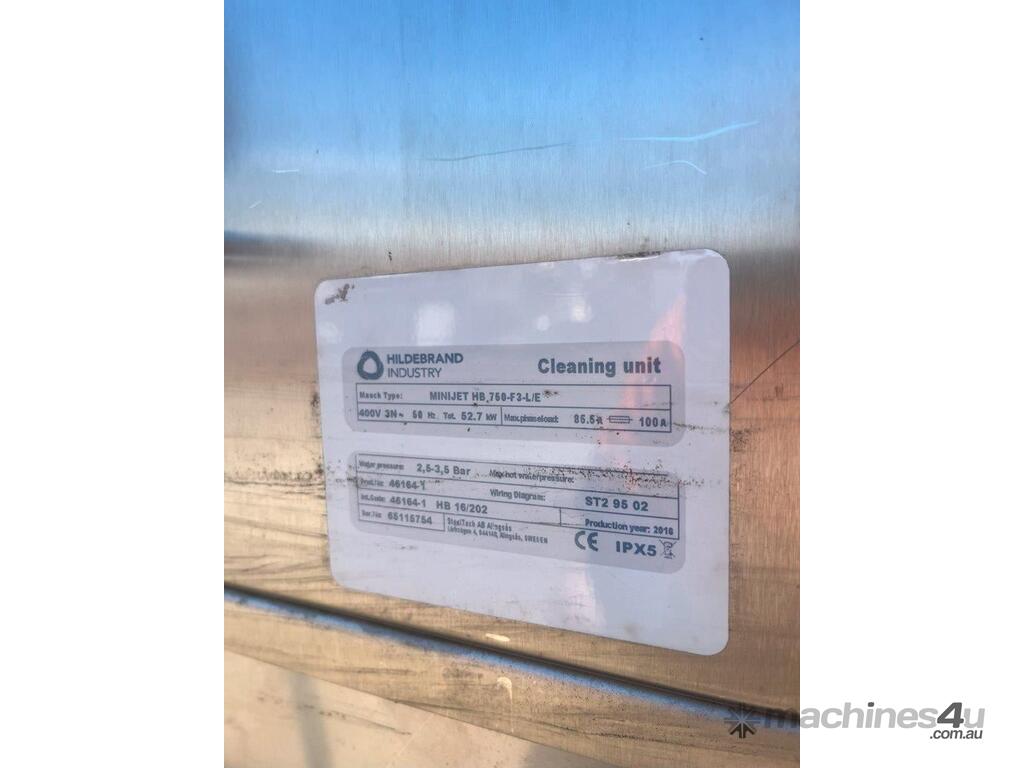

Model: MINIJET HB 750-F3-L/E

Production Year: 2016

Power: 400V, 3N Phase, 50Hz

Water Pressure: 2.5-3.5 BAR

Washing rinsing and drying of Moulds up to 1260 x 110 x 550mm (L x H X W)

Total machine length is 4.5mt long

Tank 180lt

Rinse water per batch 13lt

Electric power motors 10kw

Electric Power Heating 45kw

Exhaust Air 3500 m3/hr

Motor driven wash and carrier for forward and reverse movement.

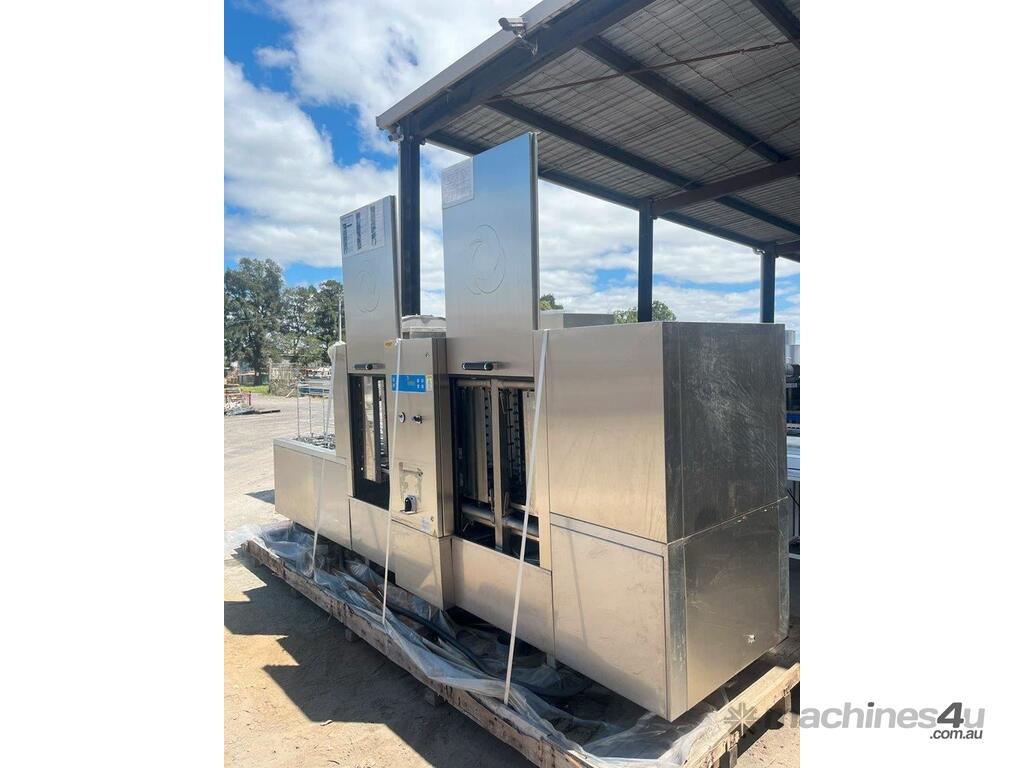

Maintenance and cleaning doors on the front side of machine

IP55 splash proof ss cabinet.

5 cleaning prorgams

Electrically heated tank

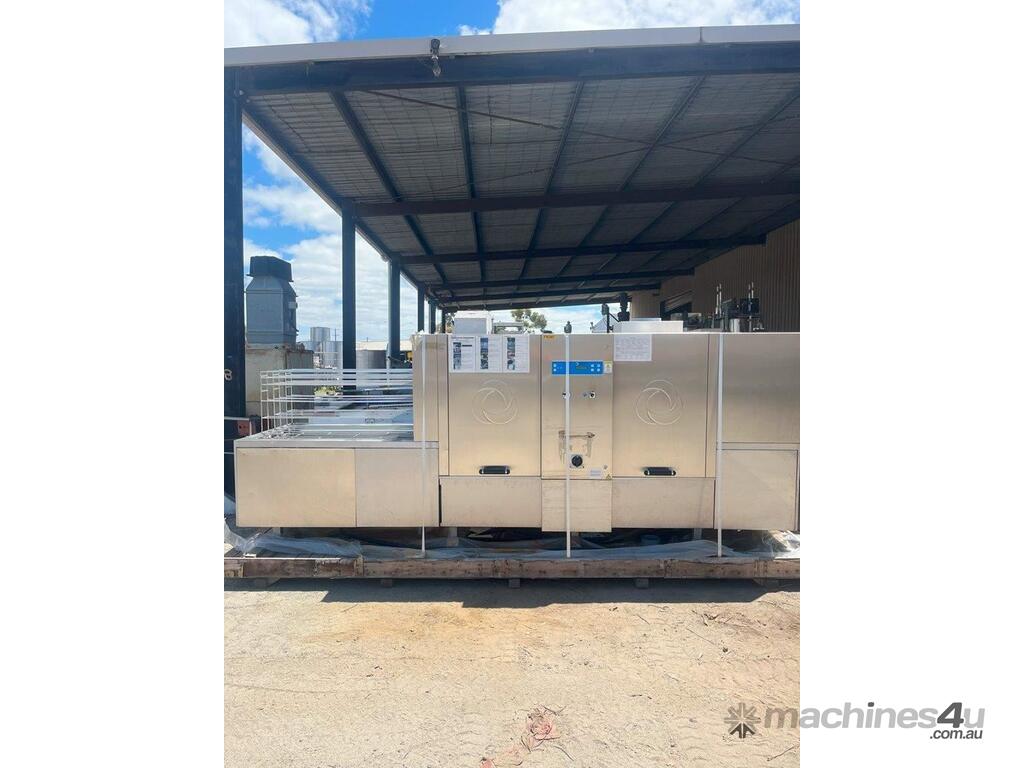

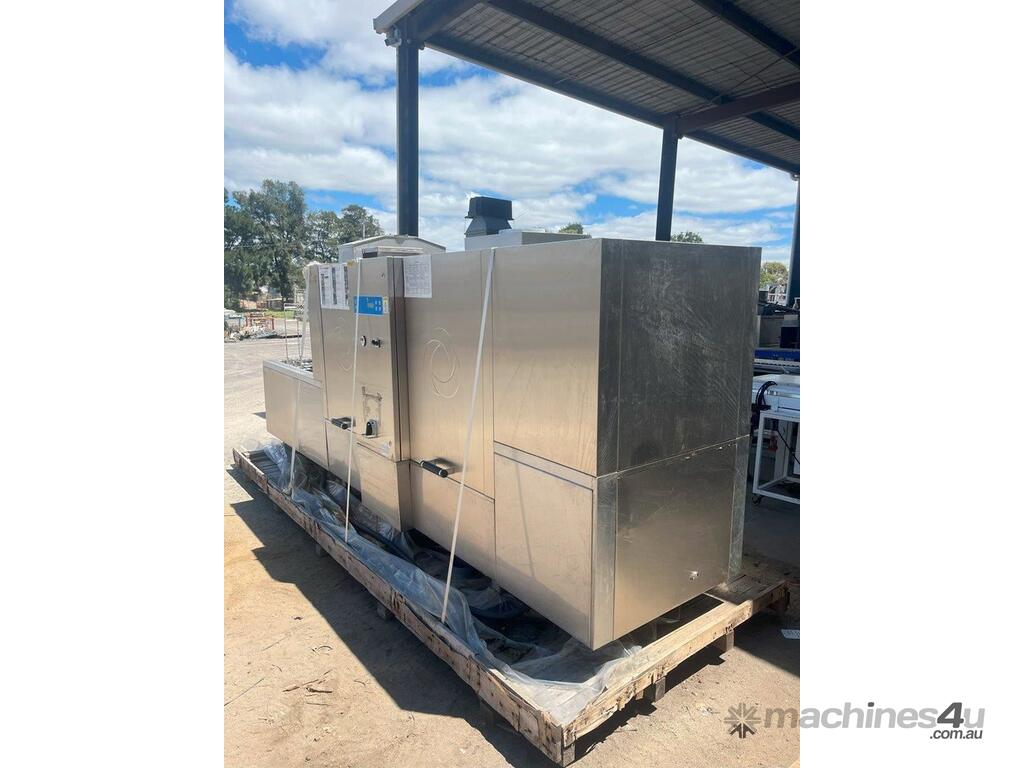

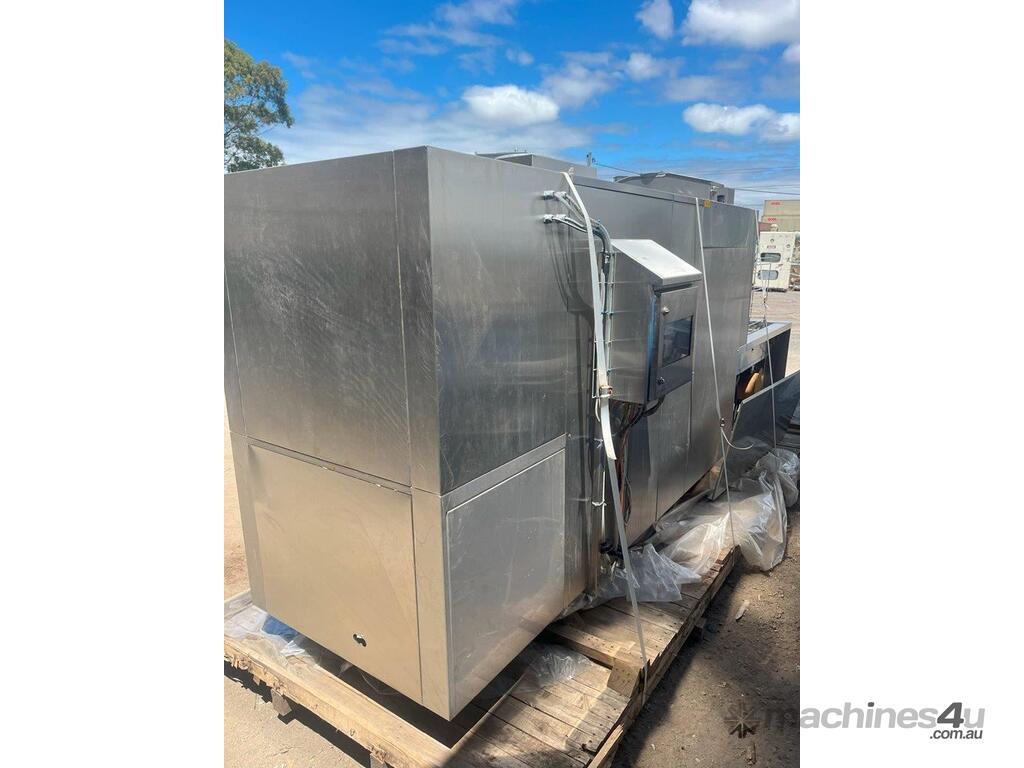

HILDEBRAND UNIVERSAL CLEANING AND DRYING SYSTEM
TYPE MINIJET 750-F3-L/E

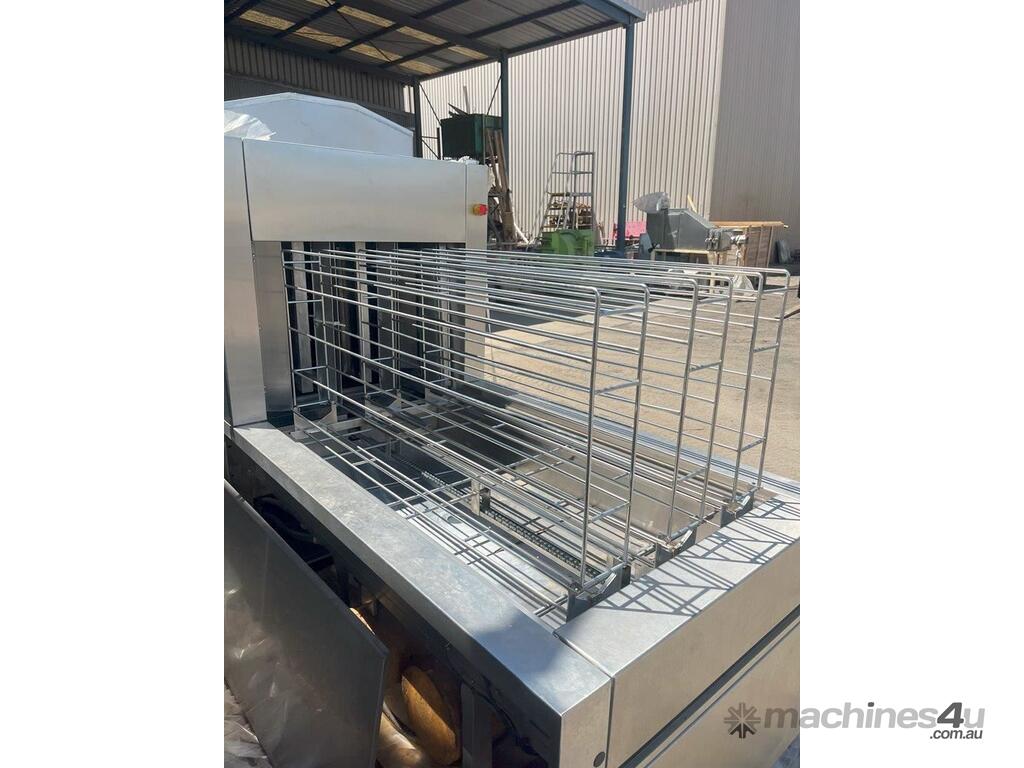

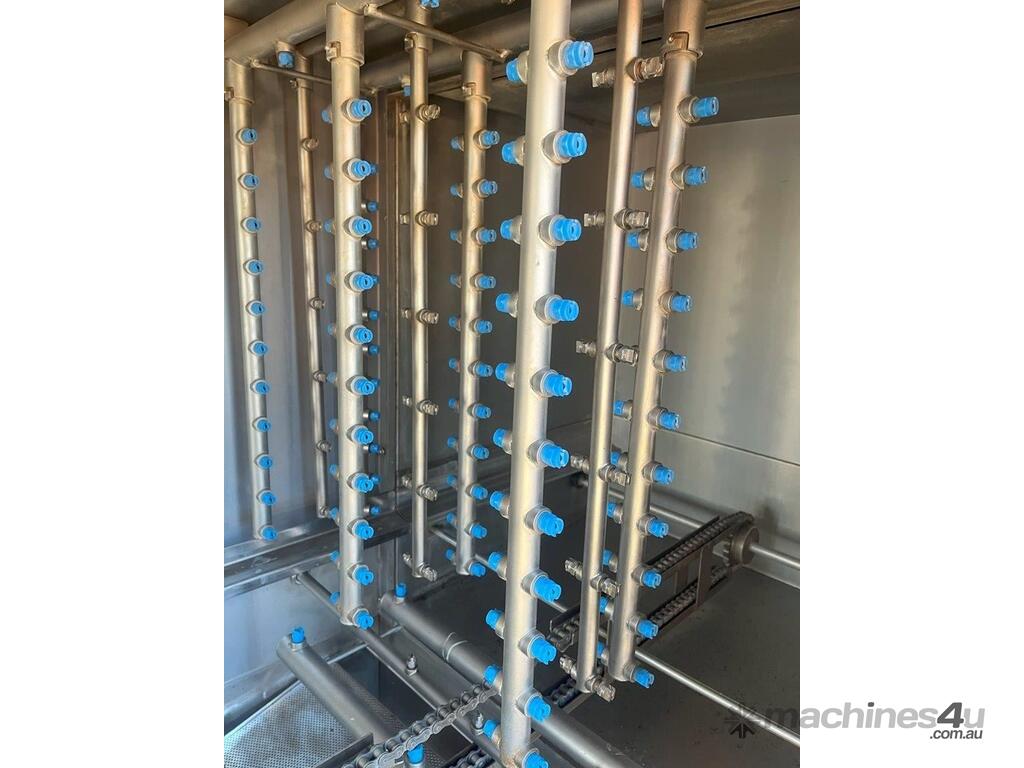

This machine is equipped with a 1 to 3 lane cleaning trolley, a washing and rinsing zone and a high capacity drying zone. It is specially designed for the cleaning of molds ,containers (bins, etc.), animal cages, small parts, etc., and it is designed according to the customized washing goods.

OPERATION

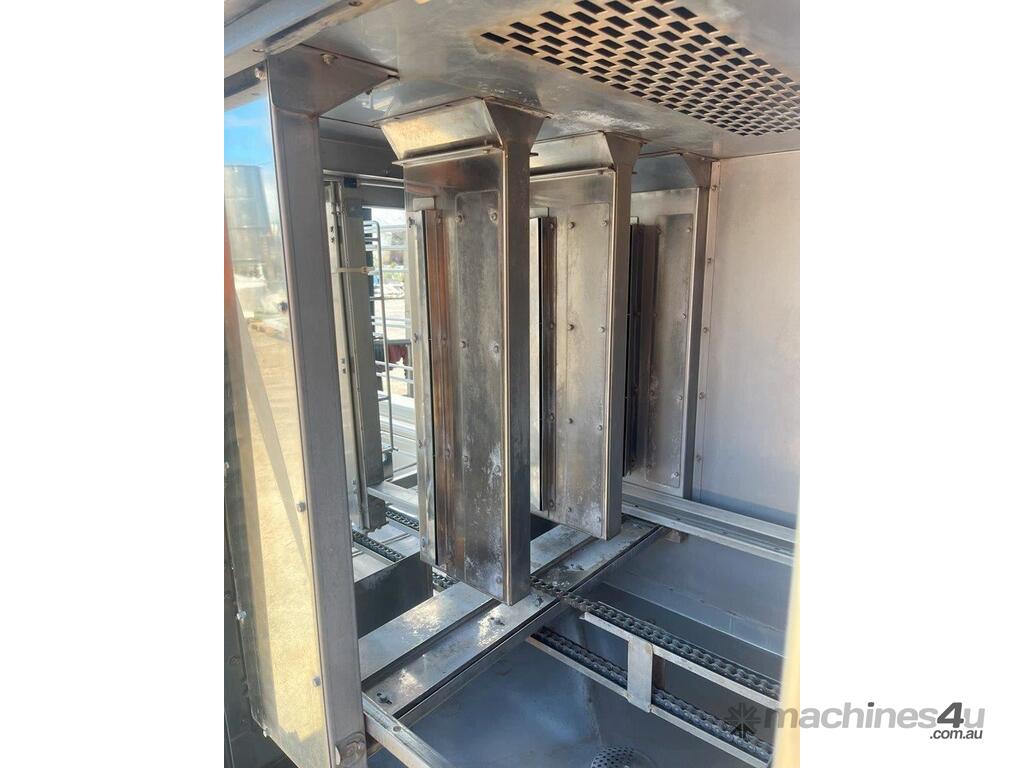

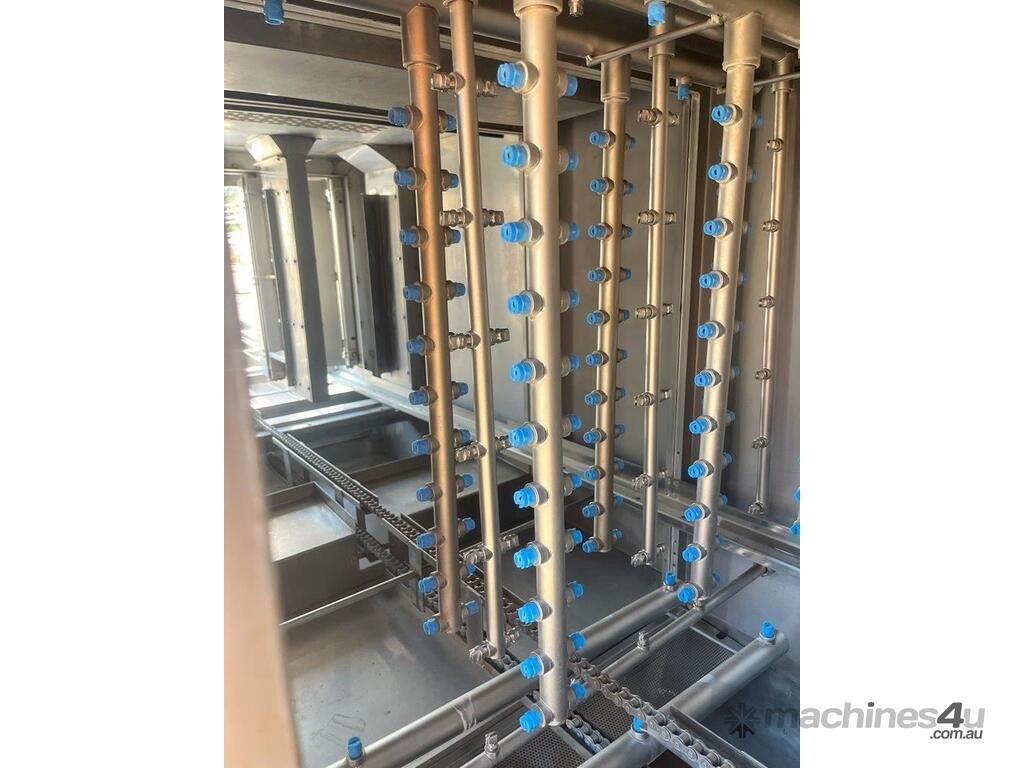

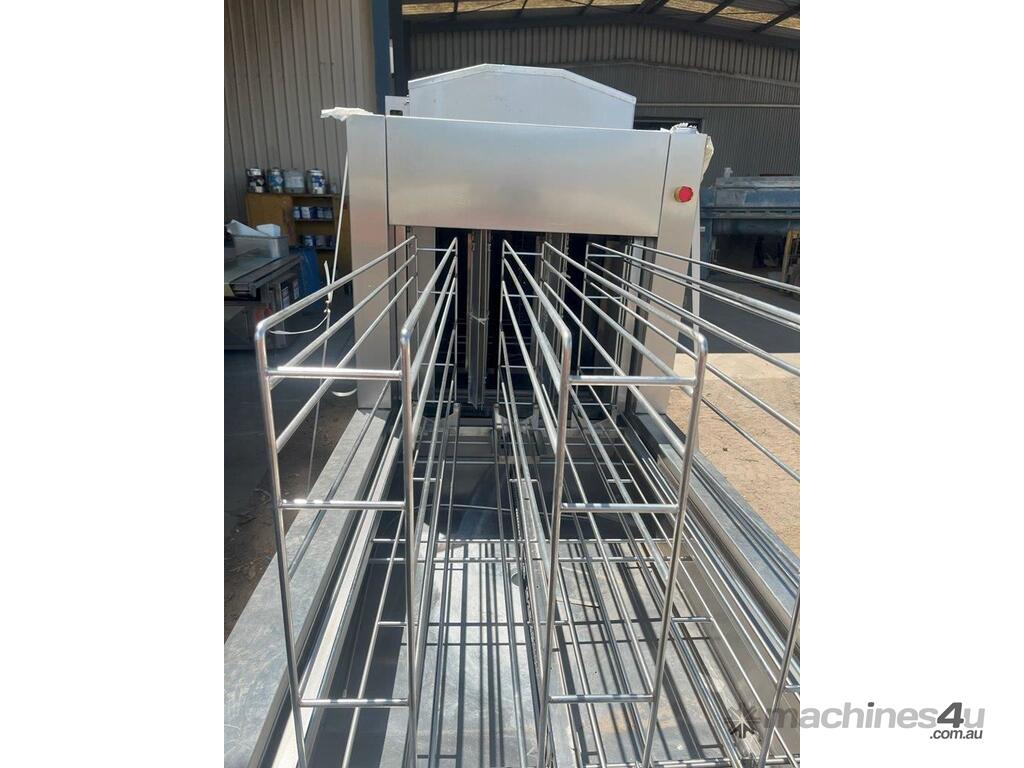

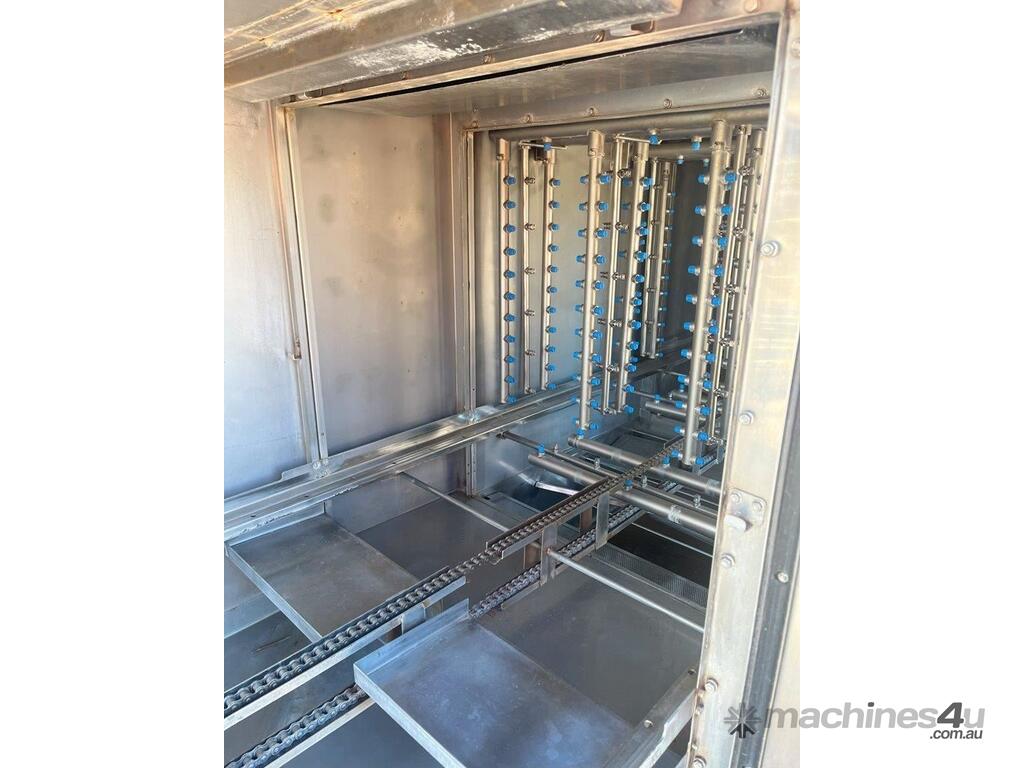

The transport trolley is manually filled with the items to be washed. After the start of the washing program, the wash cart moves independently to the washing zone. By moving the trolley forward and backward, the efficient washing and rinsing of the items to be washed takes place. Afterwards, the trolley moves through the high-performance drying zone, where the washed goods are dried at high capacity, back to the unloading station.



Unit in good condition

Ex chocolate factory washing chocolate moulds.
