Stainless steel nut fryer line in great condition.

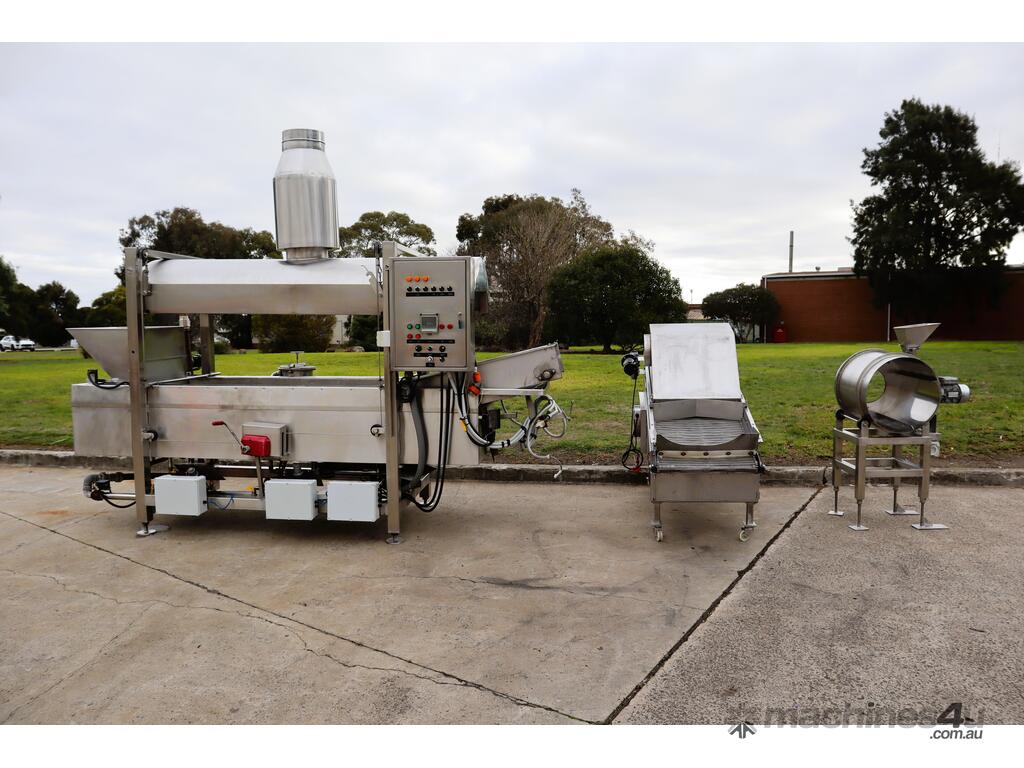

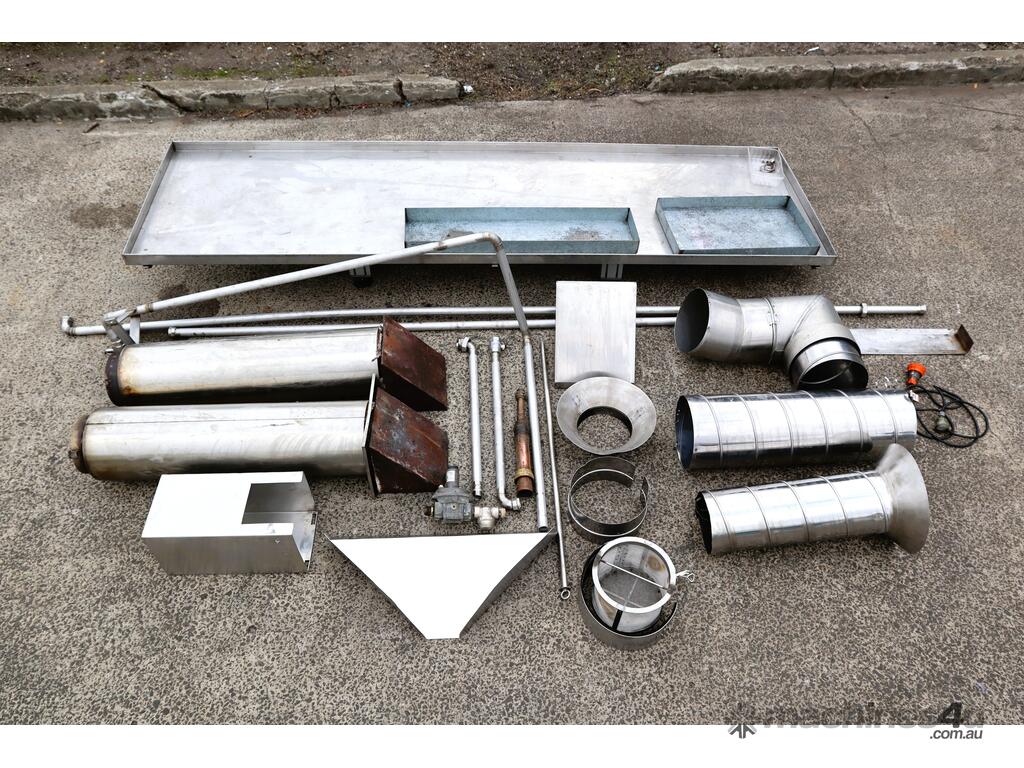

This set consists of 3 items - a large conveyorised fryer, a cooling conveyor and a small de-stoner unit. Includes a set of spare parts such as trays, chutes, hoppers, funnels, clamps and piping.

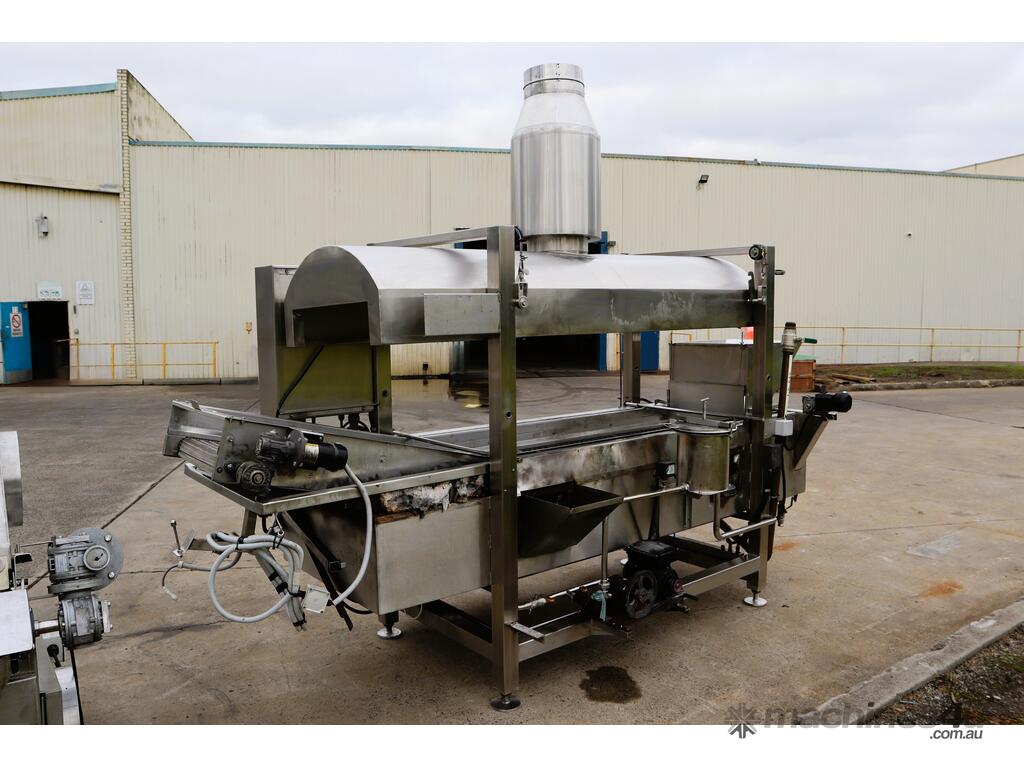

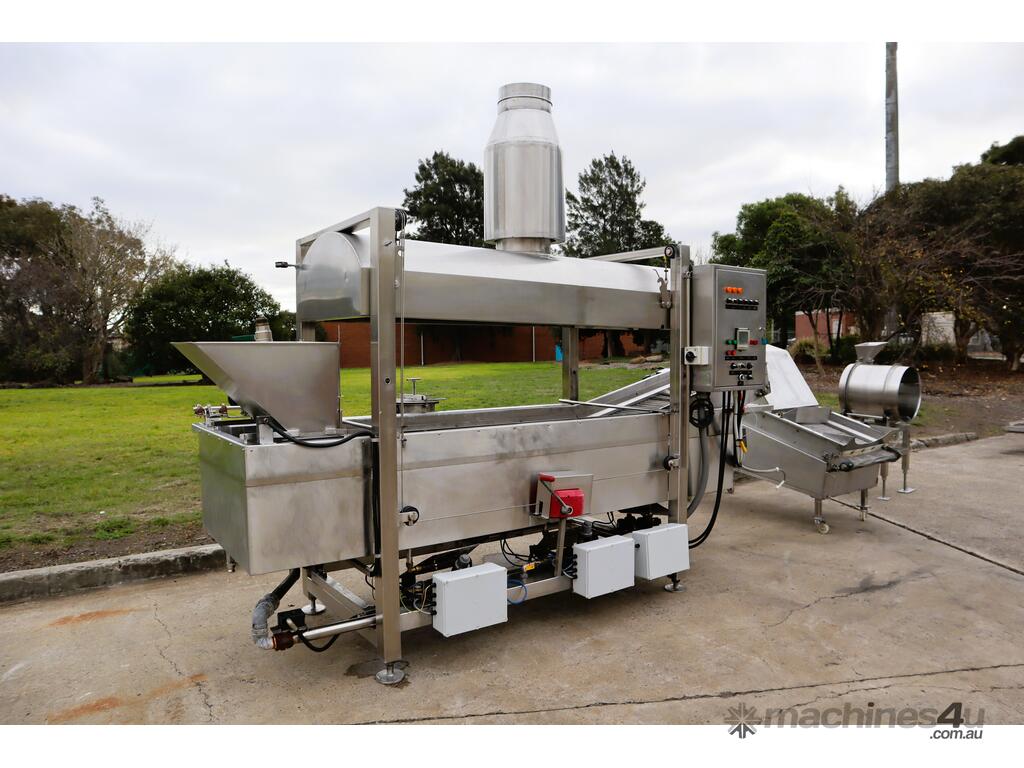

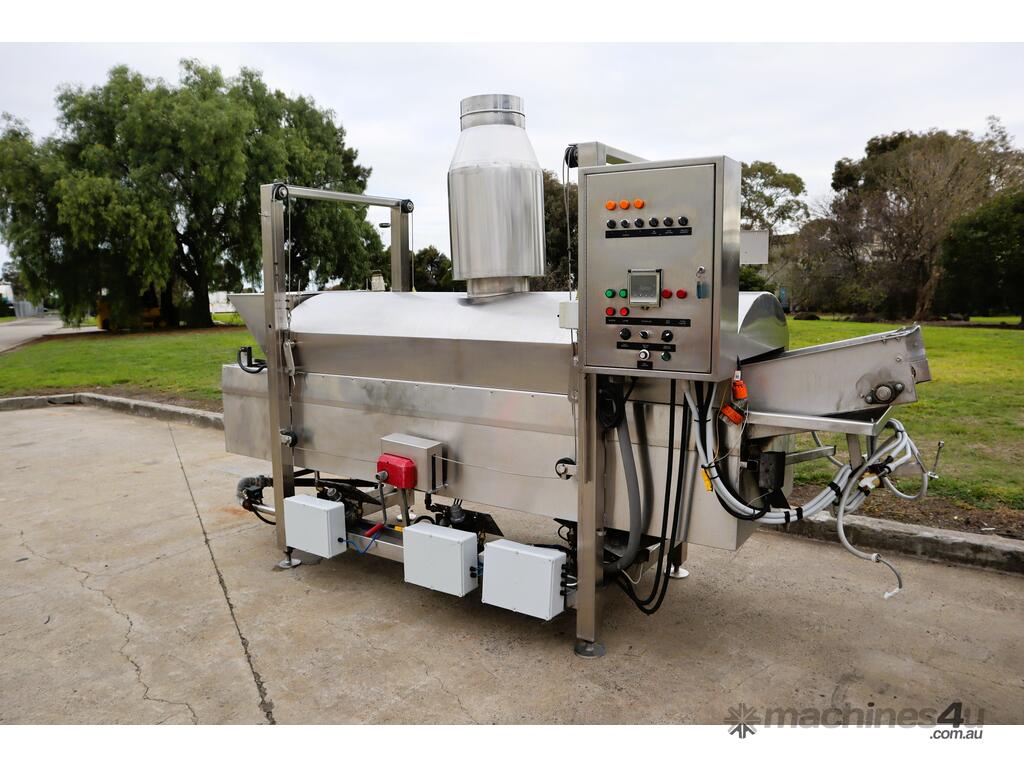

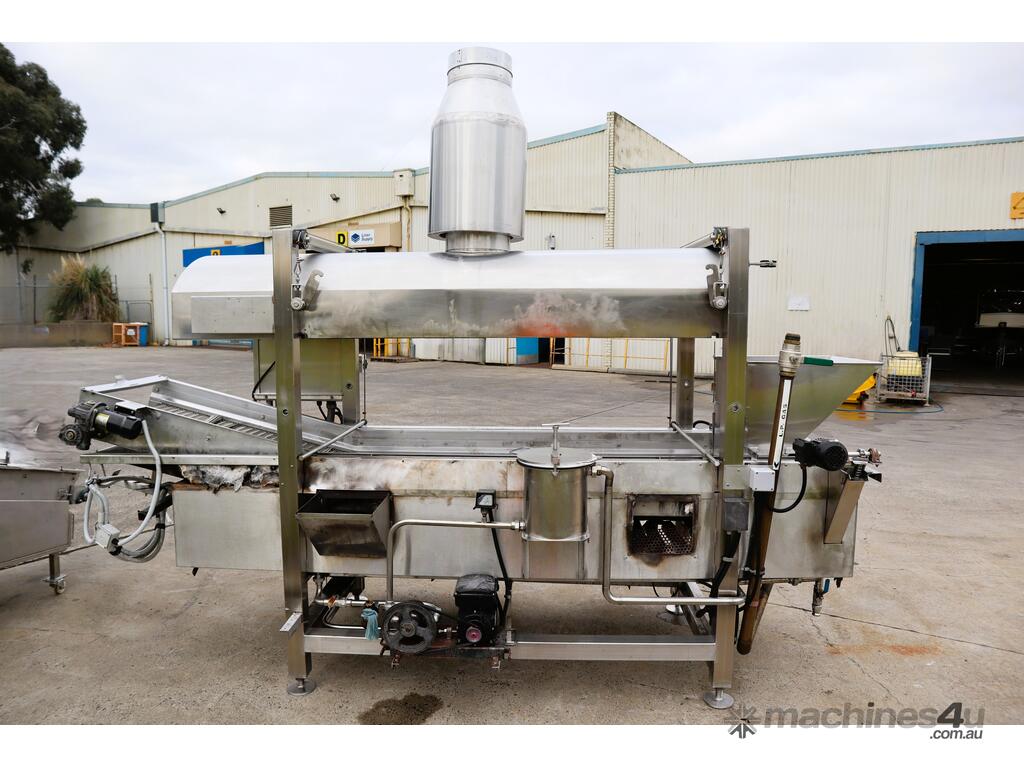

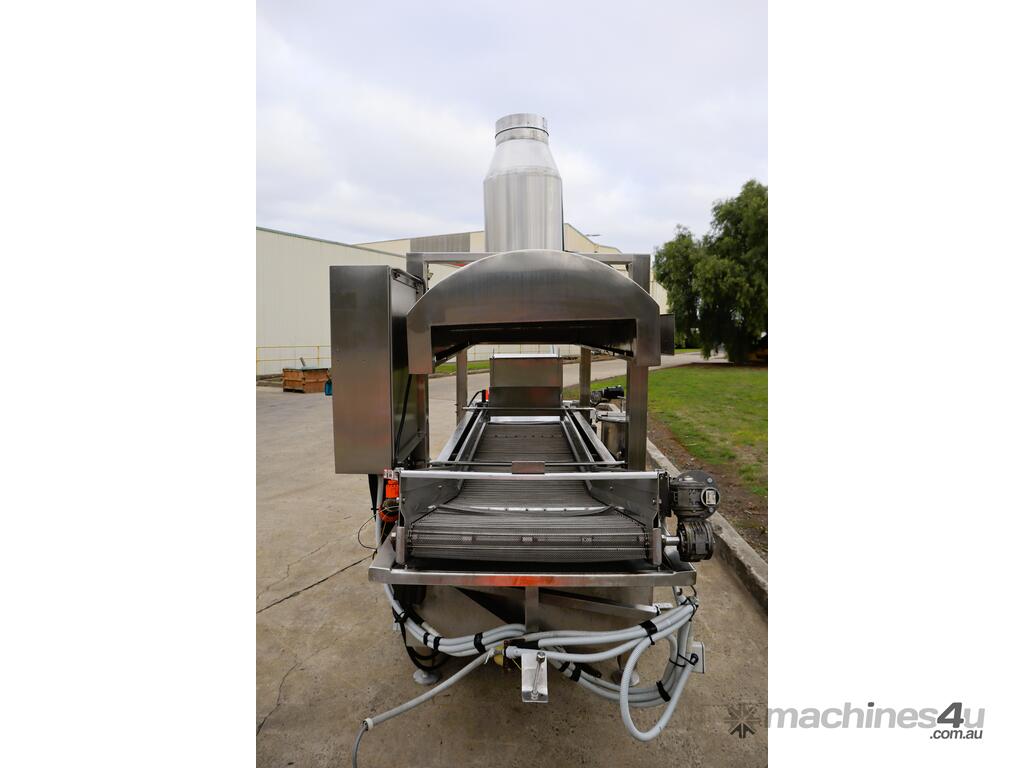

Item #1: Fryer Conveyor

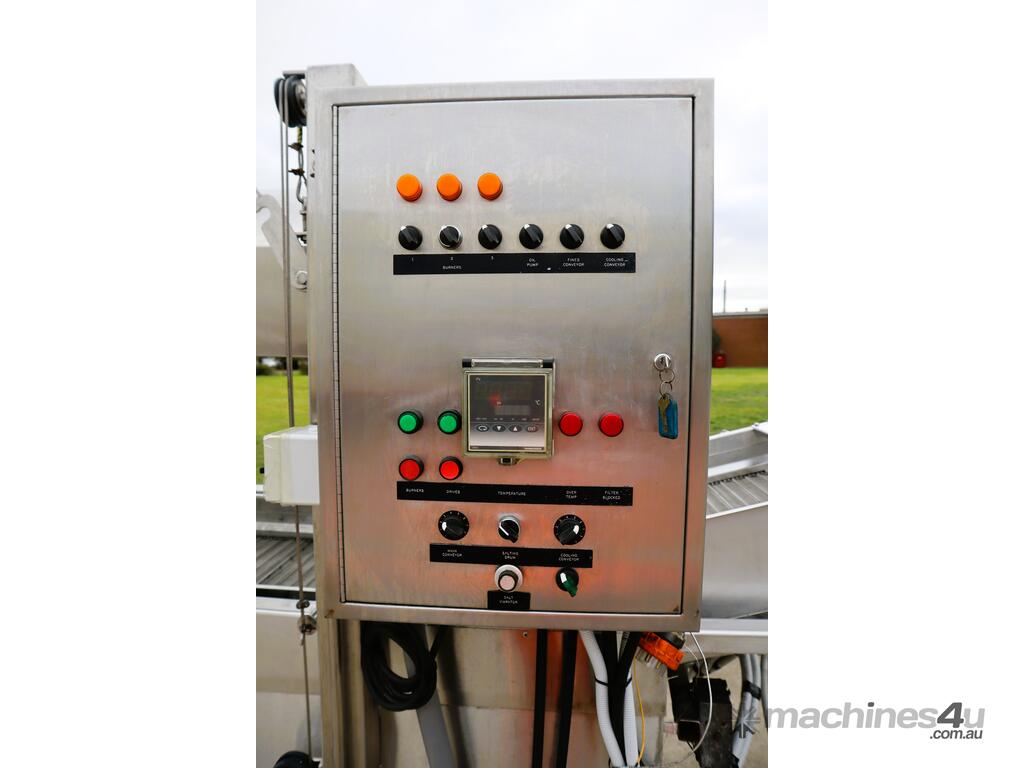

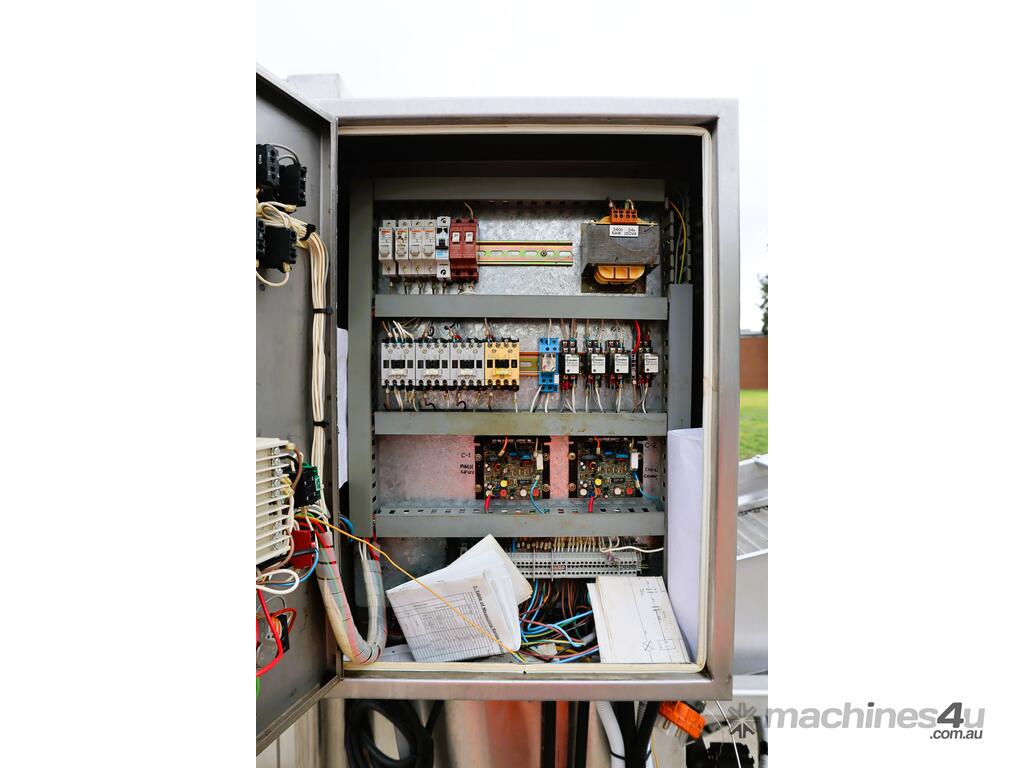

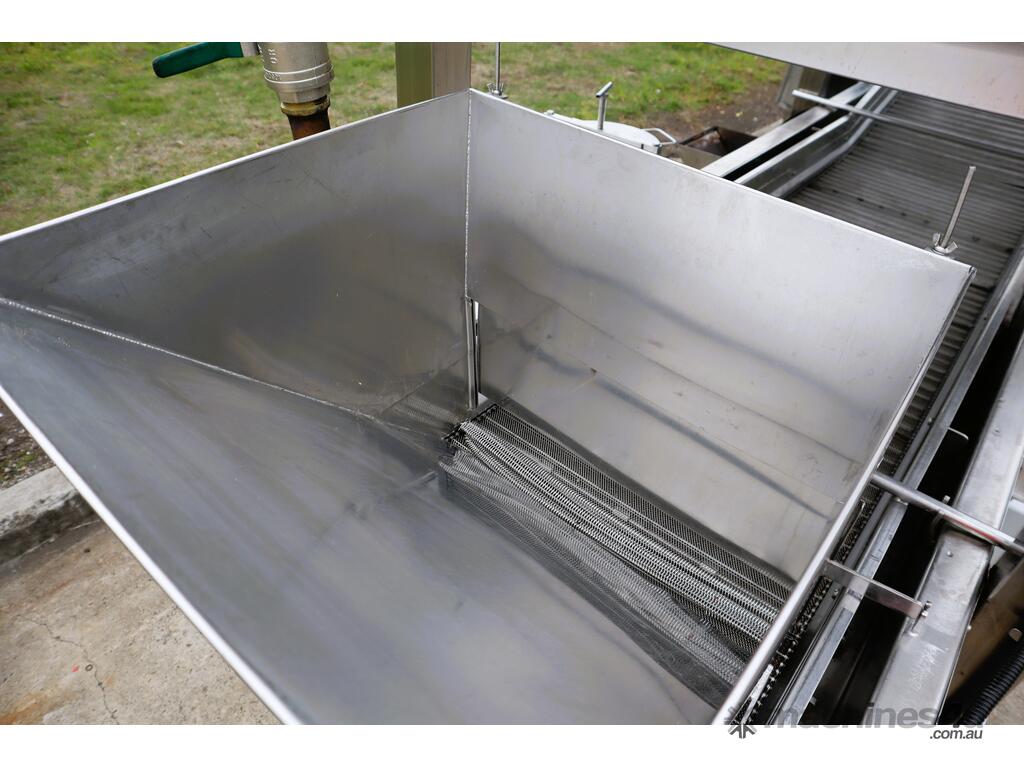

This unit features a hopper that feeds into a conveyor. It has a large enclosed chamber that can be lifted up. The control box for this unit has simple on/off switches for operation of the fryer conveyor, cooling conveyor, and temperature controls.
Hopper Dimensions (mm): 600 L x 580 W x 530 H
Belt Travel (mm): 3300
Belt Width (mm): 600
Gas Type: Natural
Nominal Gas Consumption: 4900 MJ/h
Overall Dimensions (mm): 3700 L x 1540 W x 2420 H

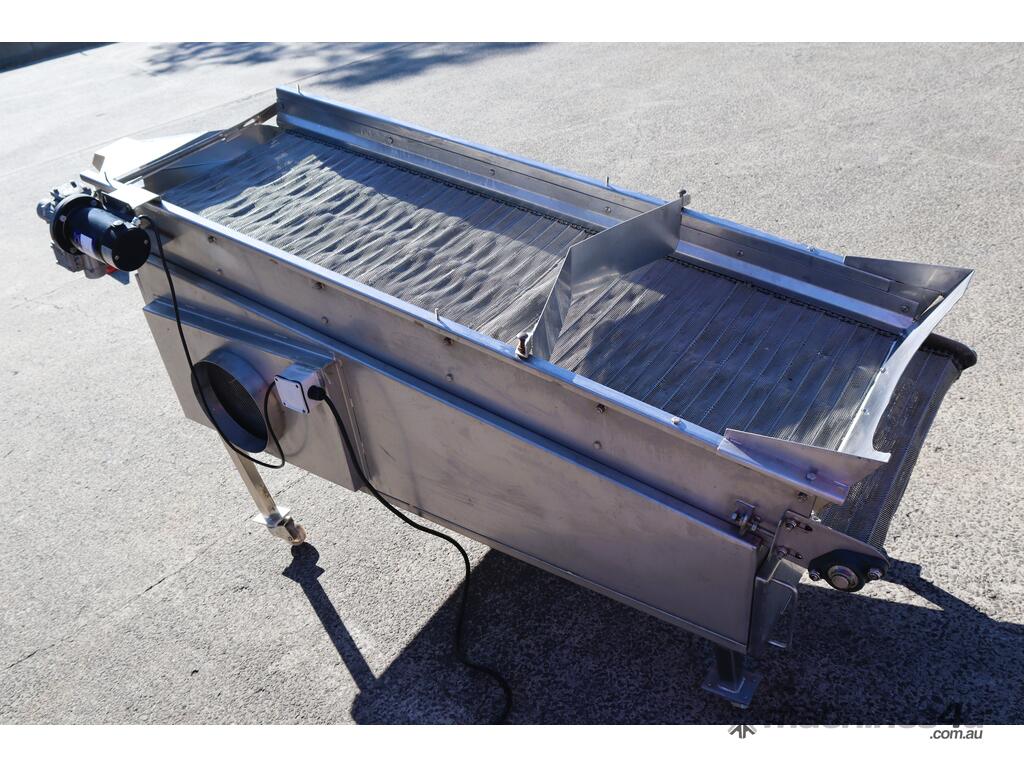

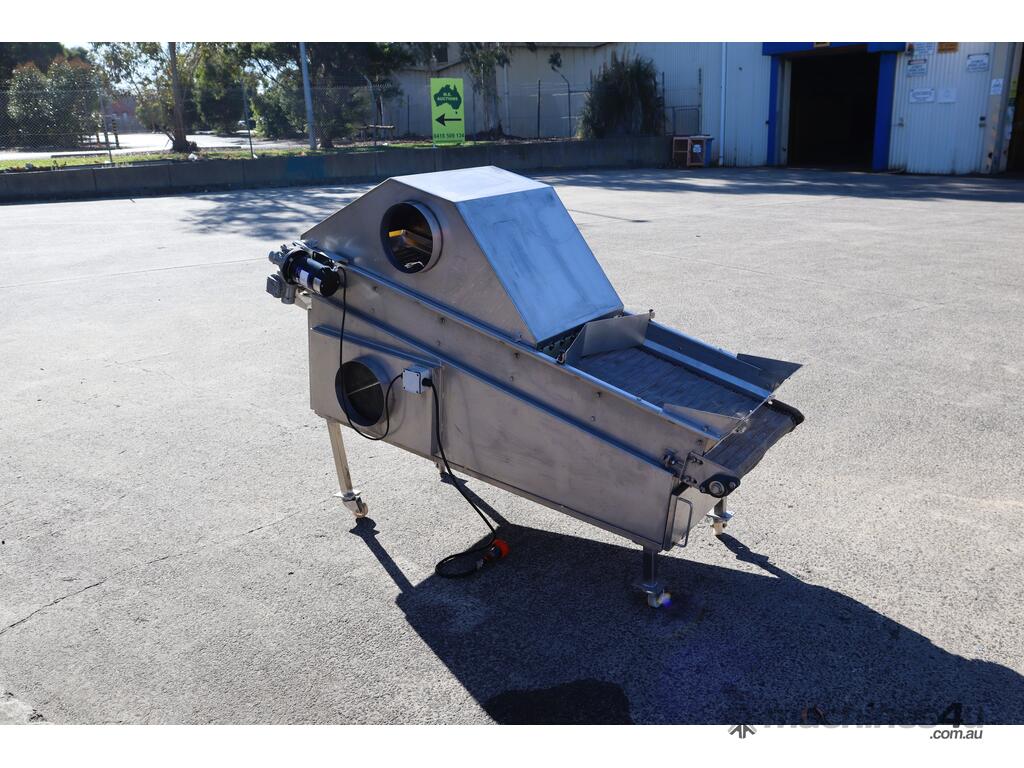

Item #2: Cooling Conveyor

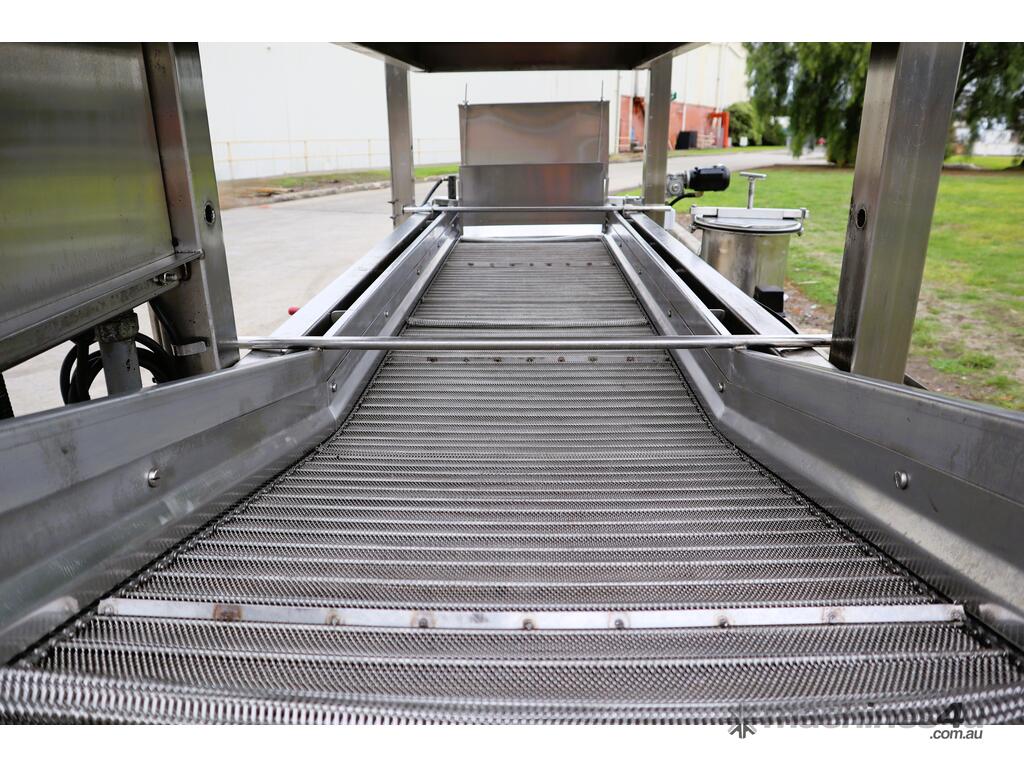

This unit moves hot ambient air away from the processed product and out through a side duct. The mesh conveyor allows for debris to fall through.
Belt Travel (mm): 1780
Belt Width (mm): 600
Belt Height - Highest (mm): 1000
Belt Height - Lowest (mm): 560
Intake Diameter (mm): 250
Outtake Diameter (mm): 250
Voltage: 240V Single Phase
Motor Power: 0.18kW
Cooling Conveyor Overall Dimensions (mm): 2280 L x 875 W x 1430 H

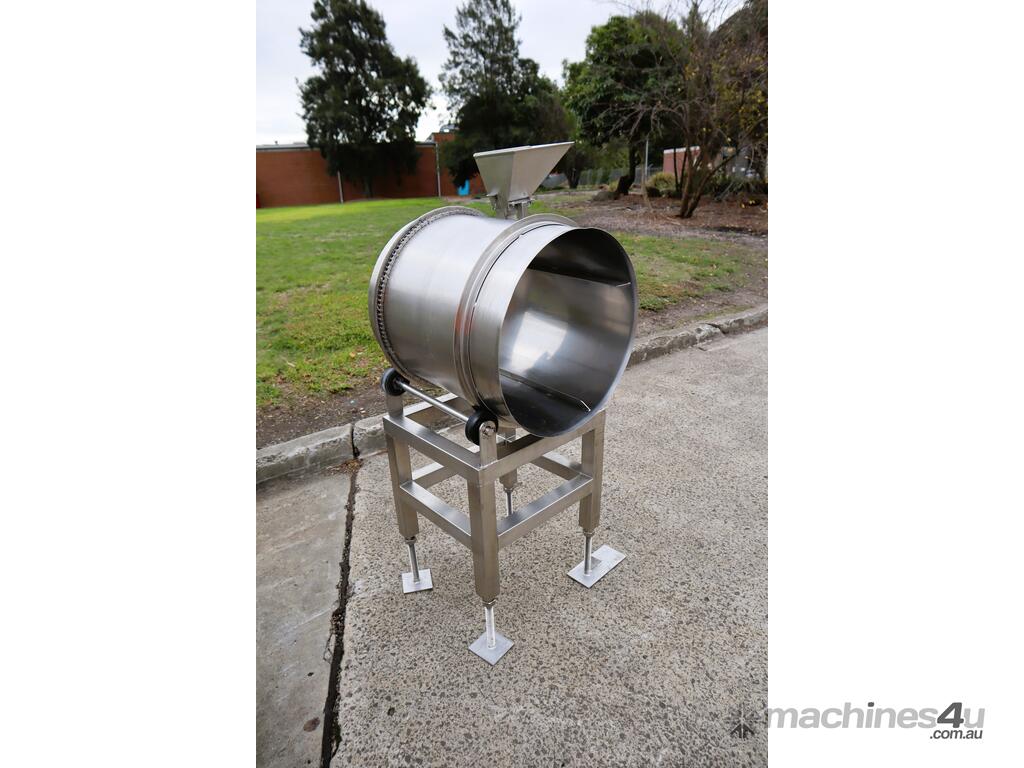

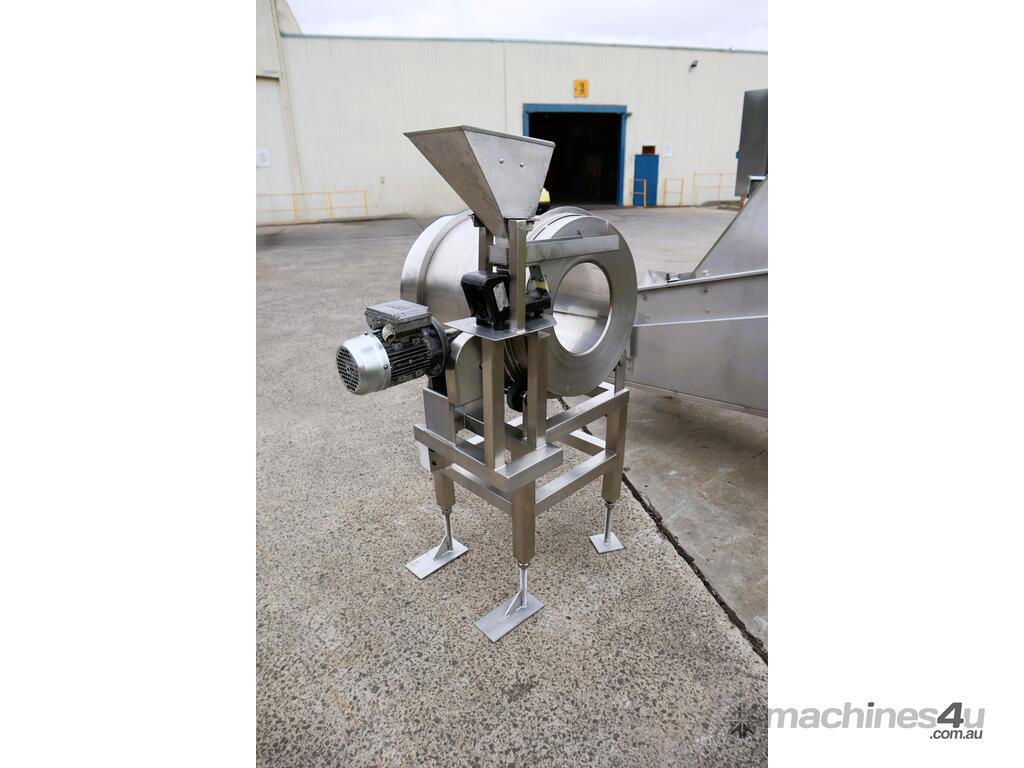

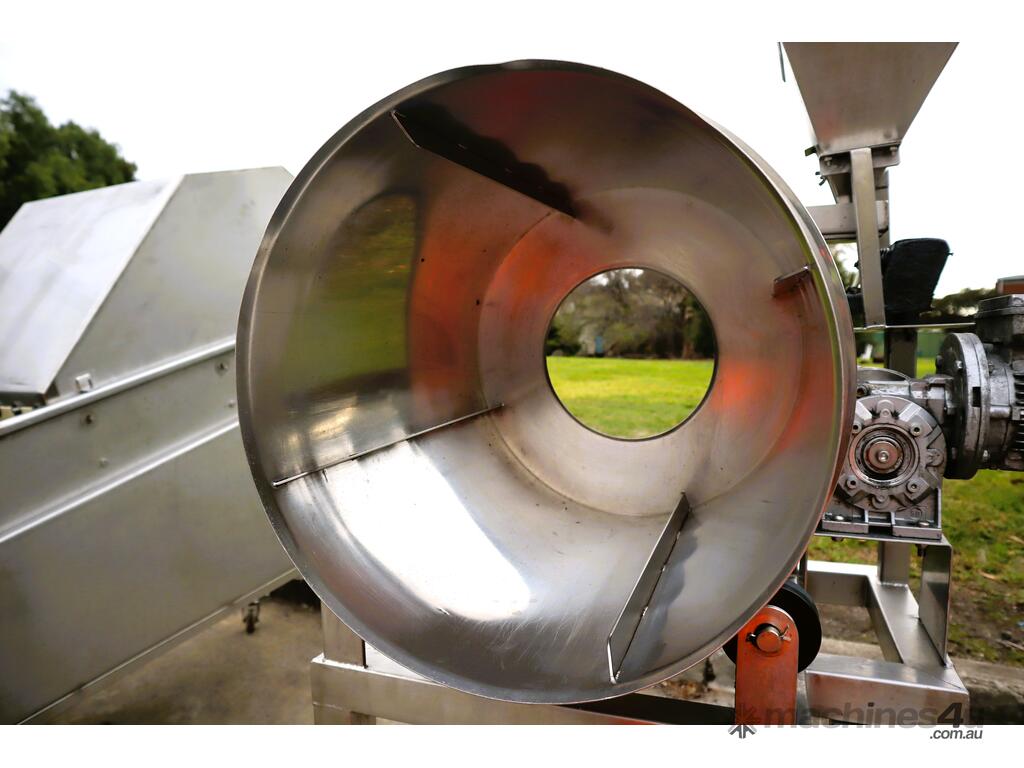

Item #3: Drum Tumbler
Drum Diameter (mm): 500
Hopper Dimensions (mm): 250 L x 210 W x 250 H
Tumbler Overall Dimensions (mm): 885 L x 675 W x 1410 H
