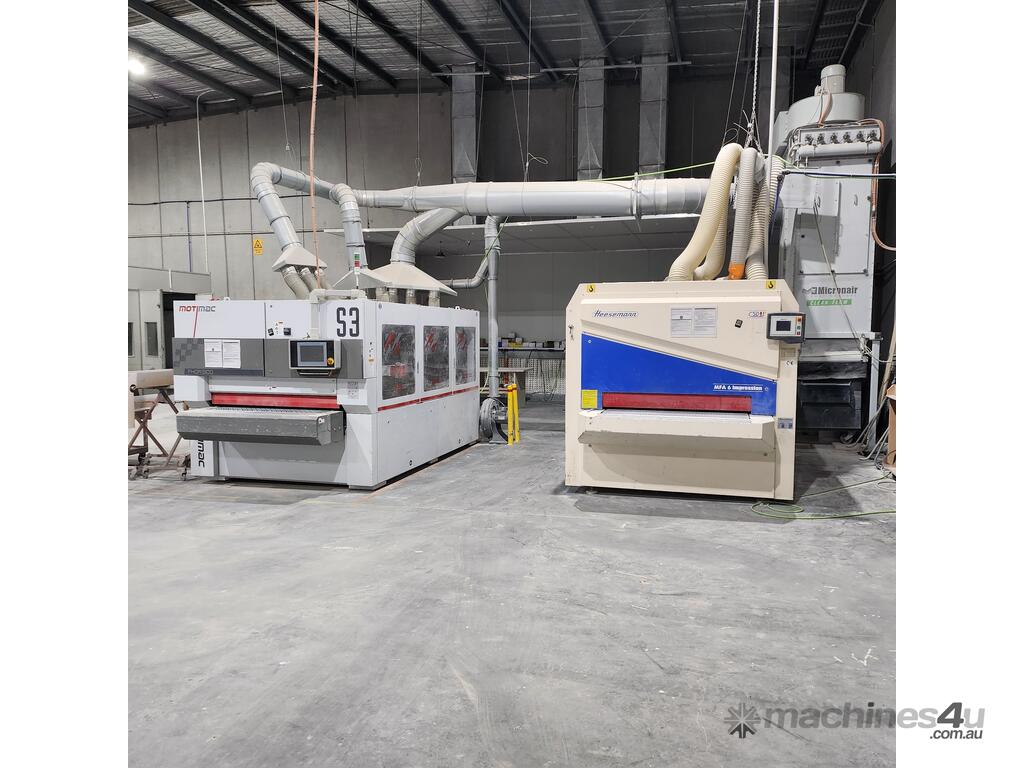

Complete Sanding Line for Sale – Ready to Go Setup for a Two pack Spray Painting Business

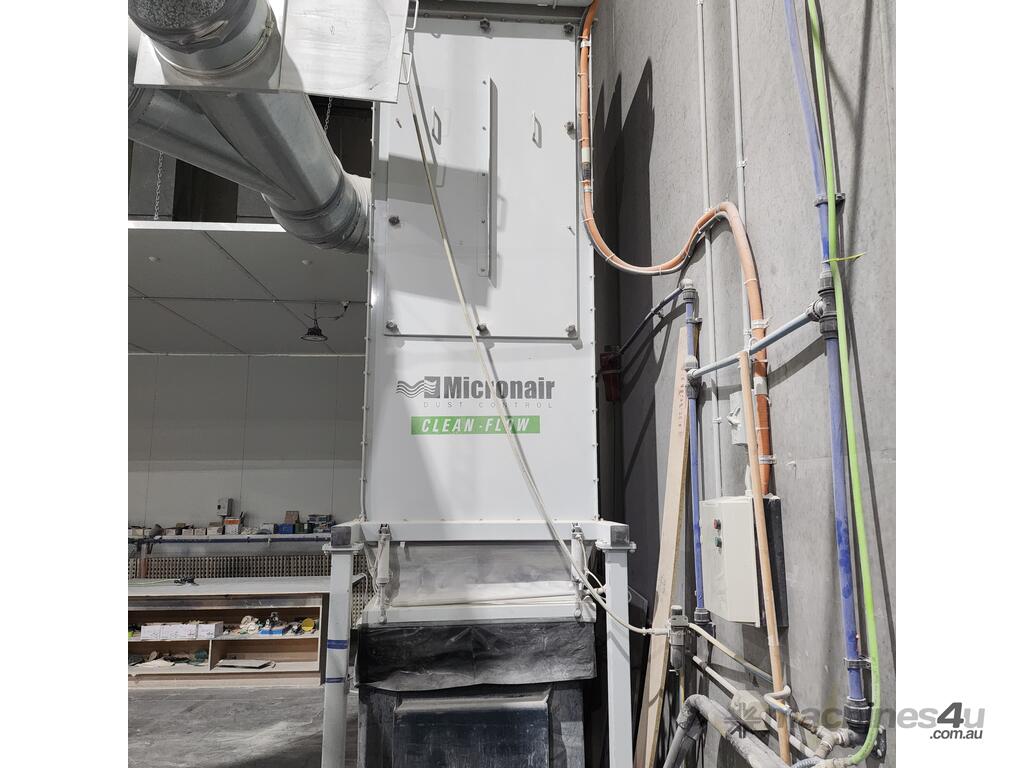

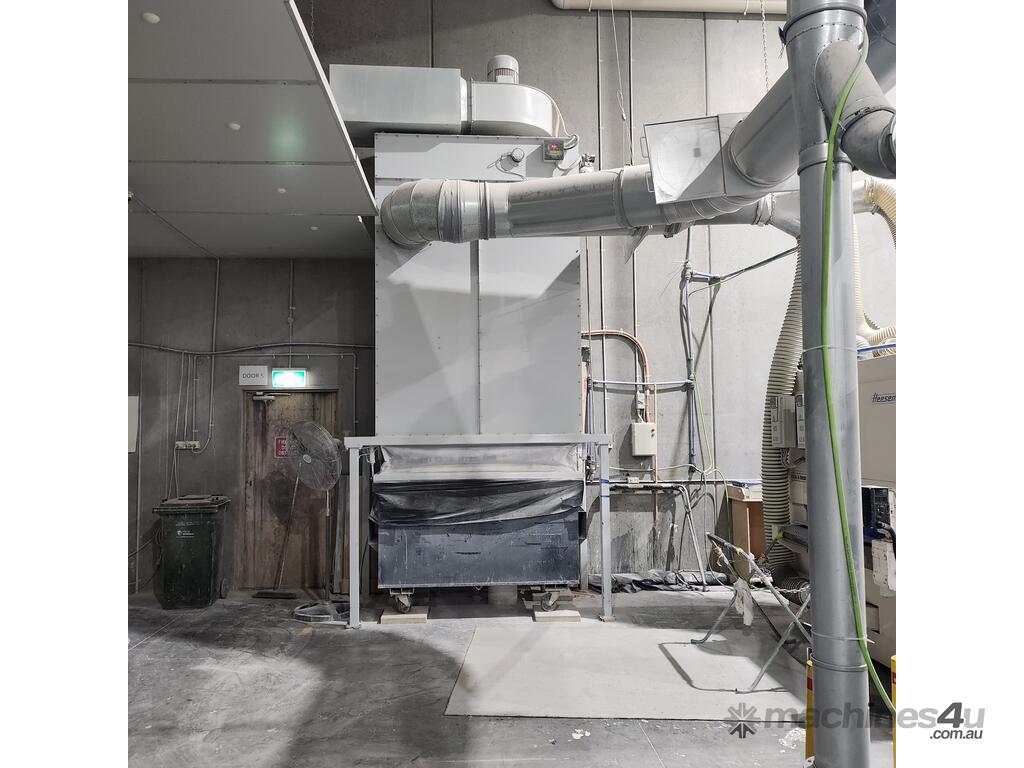

Micronair Reverse Pulse Dust Collector for sale - Clean Flow CF42

Description
Micronair custom match the extraction unit with a wide range of Fan and Motor options to exactly suit your specific needs for an optimum result. Pricing is very competitive and performance unmatched.
All our CLEAN-FLOW range are built around our unique 'ULTRA-FLOW' technology which sets them apart and above other Reverse Pulse extractors.

Supplied with smooth wall filter socks or tapered pleated filters (with very large filter area of 126 sq m) to suit your application. Typical fans/ motors are 15 to 22 kw with airflows to 20,000 cubic m per hour

CLEAN-FLOW models are all 'negative pressure' and 'clean air fan' designs. No dirty air passes through our fans and the extraction unit and collection bins are operating at lower pressure than the external pressure- so no dust can escape from the units or connection to the bins.


The CF42 is Micronairs mid-range of reverse pulse dust extractors for businesses that need high flow, high pressure dust extraction for critical applications. The CLEAN-FLOW range is designed to improve machine efficiency and operator safety in a continuous operating / cleaning, high dust loading environment.

The CLEAN-FLOW design has combined the high capacity reverse pulse technology with a choice of high pressure, high efficiency fans, providing excellent waste material removal at the same time reducing power consumption.

With an ever increasing awareness of OH&S in the workplace business owners are under pressure to provide a workplace that is free from dust and particulate matter. With this in mind special attention has been paid to reducing the level of emissions especially immediately after cleaning. With air volumes to 16,000m3/hr and a filtration capability below 1 micron the CLEAN-FLOW dust extractor is perfect if you have to recirculate the air back into your factory. External venting options are also available.

With business pressure driving higher levels of investment in sophisticated machinery, a dust extraction system that can match the need for high performance is essential.

CLEAN-FLOW is Australian built complete with stainless steel fittings to enable the units to be installed either inside the factory or outside where its fully sealed design makes it weather proof.

The CLEAN-FLOW range can be fitted over a 1.5 to 3 m3 bins or larger to suit your own custom requirements.

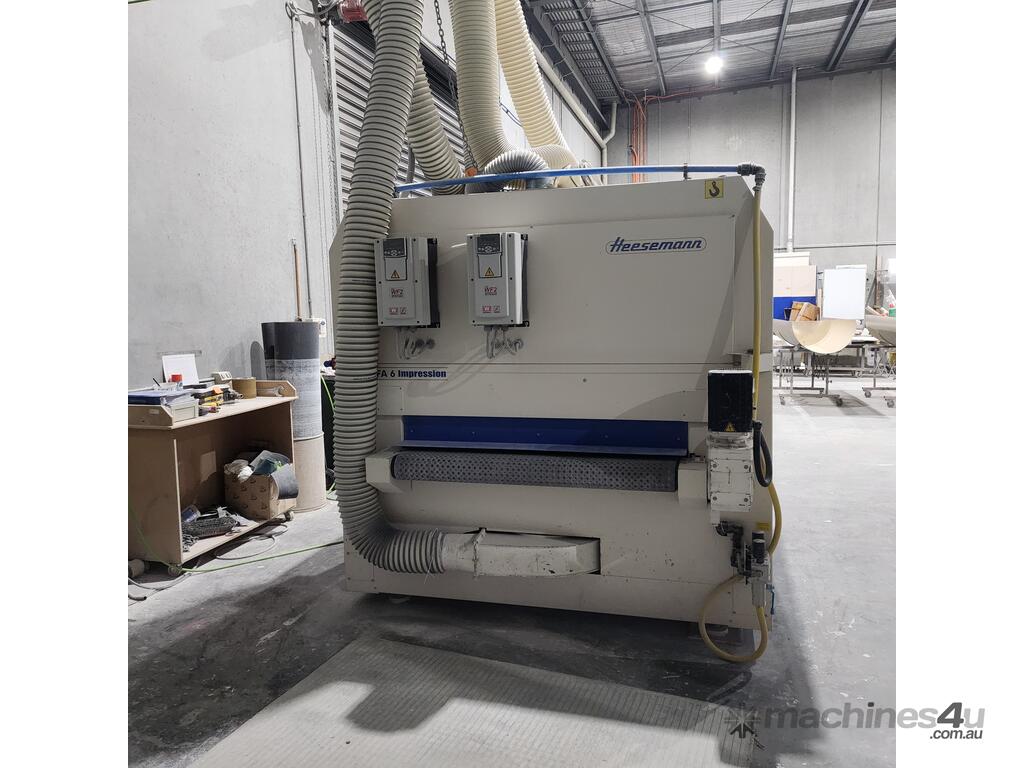

Wide Belt Sanding Machine / Automatic Surface Sander

Make: Heesemann
Model: MFA 6 Impression
Year: 2006
________________________________________
Machine Overview
High-quality all-round sanding machine, ideal for both veneer sanding and lacquer sanding, including high-gloss finishes.
Suitable for integration into sanding lines, with movable sanding aggregates for flexible operation.
________________________________________
Technical Specifications
• Working width: 1300 mm
• Workpiece thickness (min): approx. 3 mm
• Through-feed height (max): approx. 150 mm
________________________________________

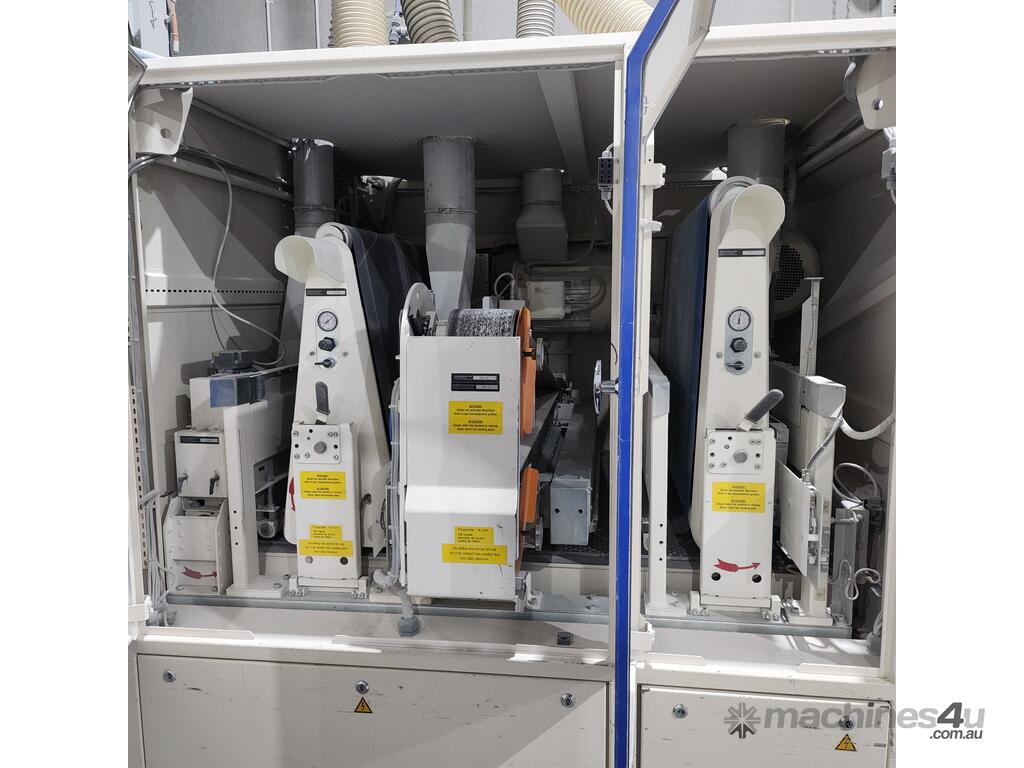

Sanding Units (3 Total)
1. Calibrating Head (Cross Sanding Unit)
• Frequency controlled
• Pressure lamella belt: 4350 x 140 mm
2. Cross Belt Sanding Unit
Frequency controlled
• Sanding belt: 4800 x 150 mm
3. Longitudinal Sanding Unit
• Sanding belt: 2620 x 1400 mm

4. Cleaning Brush Unit
________________________________________
Features
• Electronic segment sanding shoe (segment width: 32 mm)
• Sanding belt blow-off device
• Adjustable sanding belt speed (infinitely variable)
• Max belt speed: 20 m/s
• CSD pressure beam
• Vacuum table
• Infinitely variable feed speed up to approx. 15 m/min
• Constant table height
________________________________________
Electrical Details
• Operating voltage: 400 V
• Control voltage: 230 / 24 V
• Nominal current: 93 A
• Total connected load: 40 kW
________________________________________
Condition
Good Condition
________________________________________

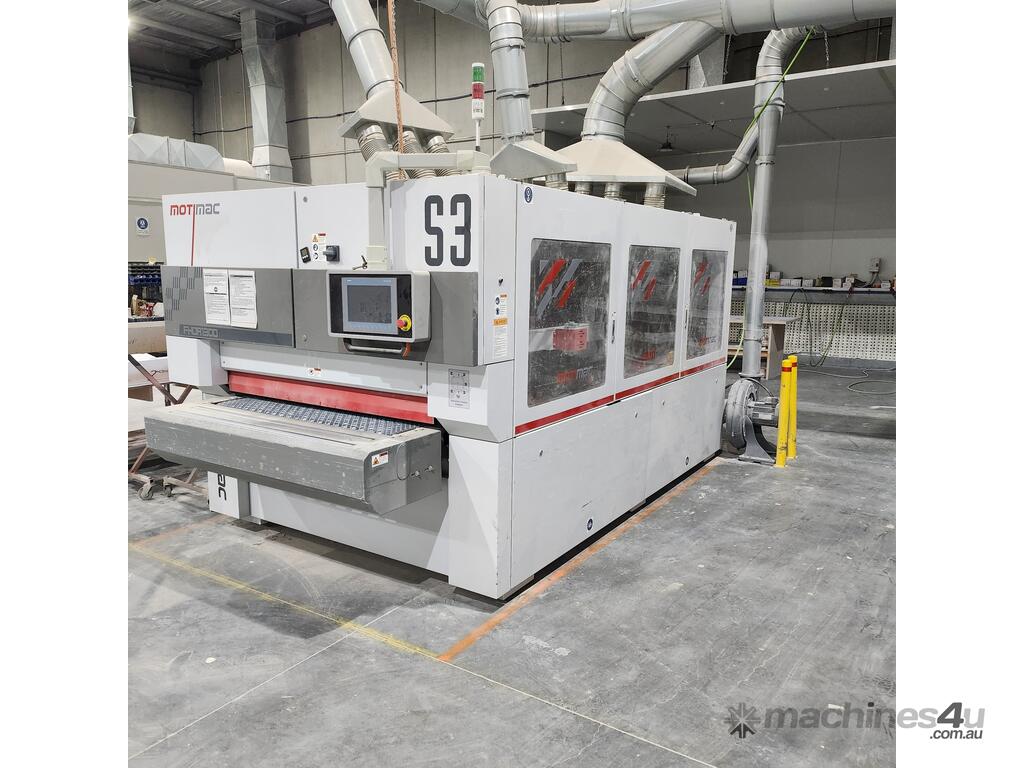

Motimac

FHDR1300
The FHDR1300 is breaking through traditional designs to improve the sanding process. Sanding of profiled or flat pieces is no longer a problem for manufacturing facilities. With the ability to sand pieces as wide as 51" and as short as 18" no other brush sander can compare.

Equipped with Siemens MCGS control systems with and a multi-touch display screen, the operation of the FHDR1300 is as simple as operating a smartphone. With the ability to store settings for different applications, you are guaranteed the same results every time.

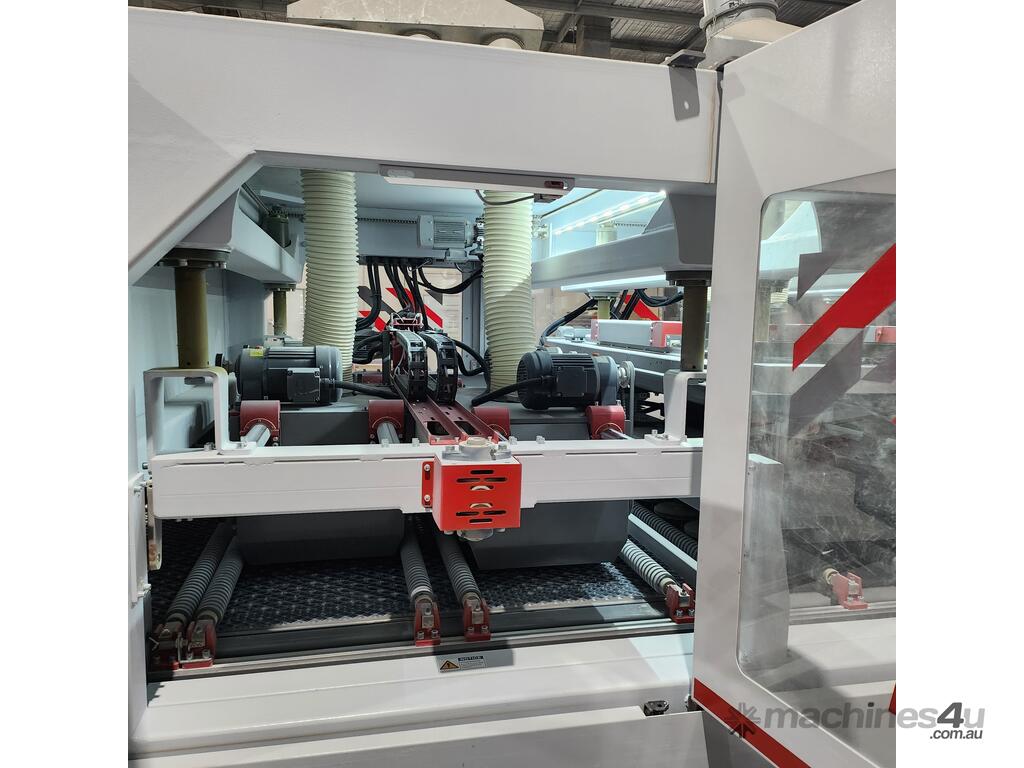

The first section has four counter rotating sanding hubs traveling across the working piece. The second station offers two rows of stationary cup heads that sand the raised areas of the working piece, while simultaneously sanding lower profiles and details. The third and final station offers two counter rotating linear sanding heads. Hitting the leading and trailing edge leaving a consistent overall finish.


Pick up Campbellfield Victoria
