JACON S100E
The S100 is the largest stationery concrete pump in the jacon range.
Engineered to provide maximum output with minimal footprint designed with an S valve this concrete pump is capable of handling extremally harsh mixes as well as low slump concrete.
The compact and robust size of the machine allows for the S100E to be used on all applications due to the fact the pump is electric it can be used in under ground application's as well as low noise sites.

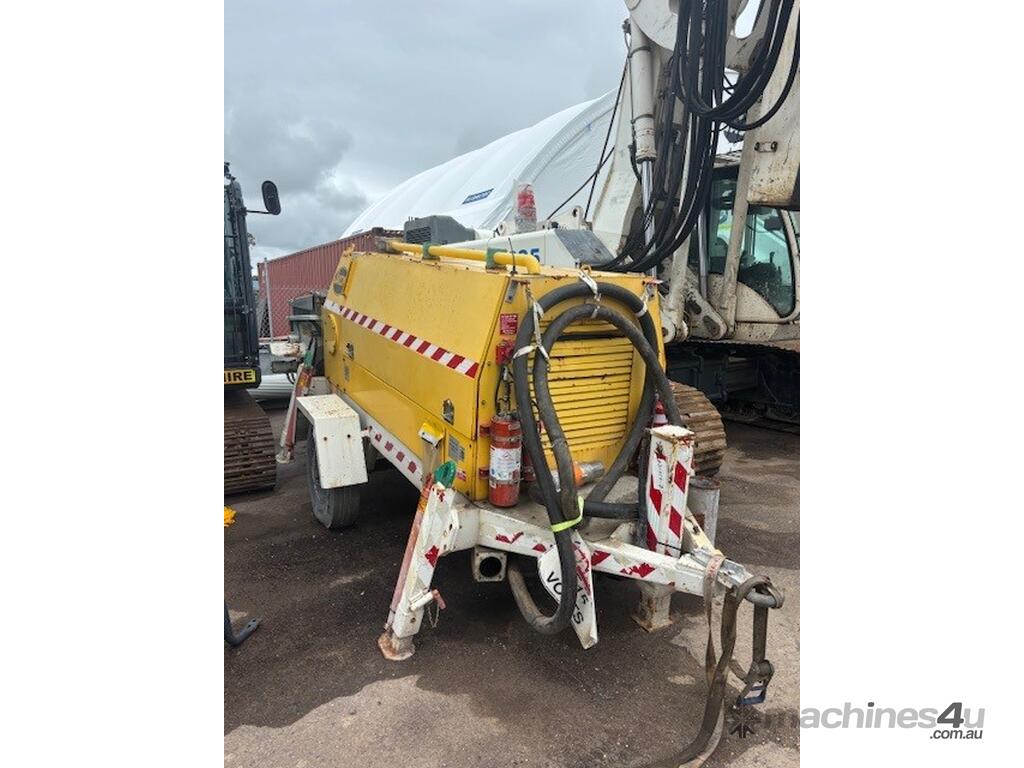

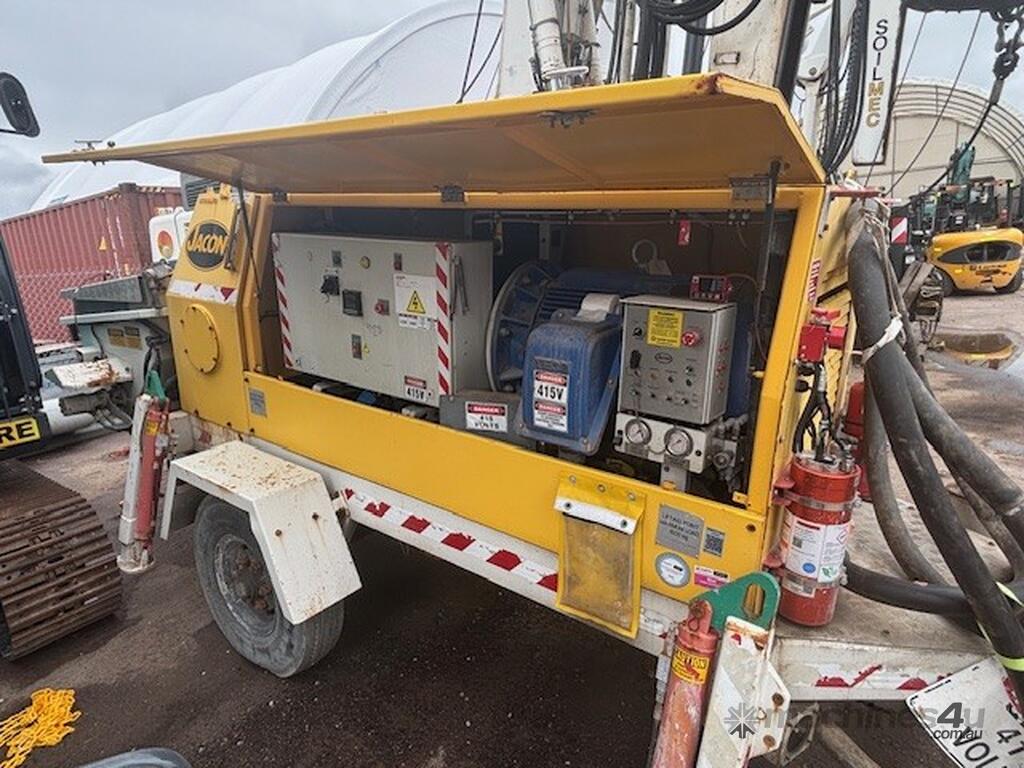

Trailed Electric Concrete Pump

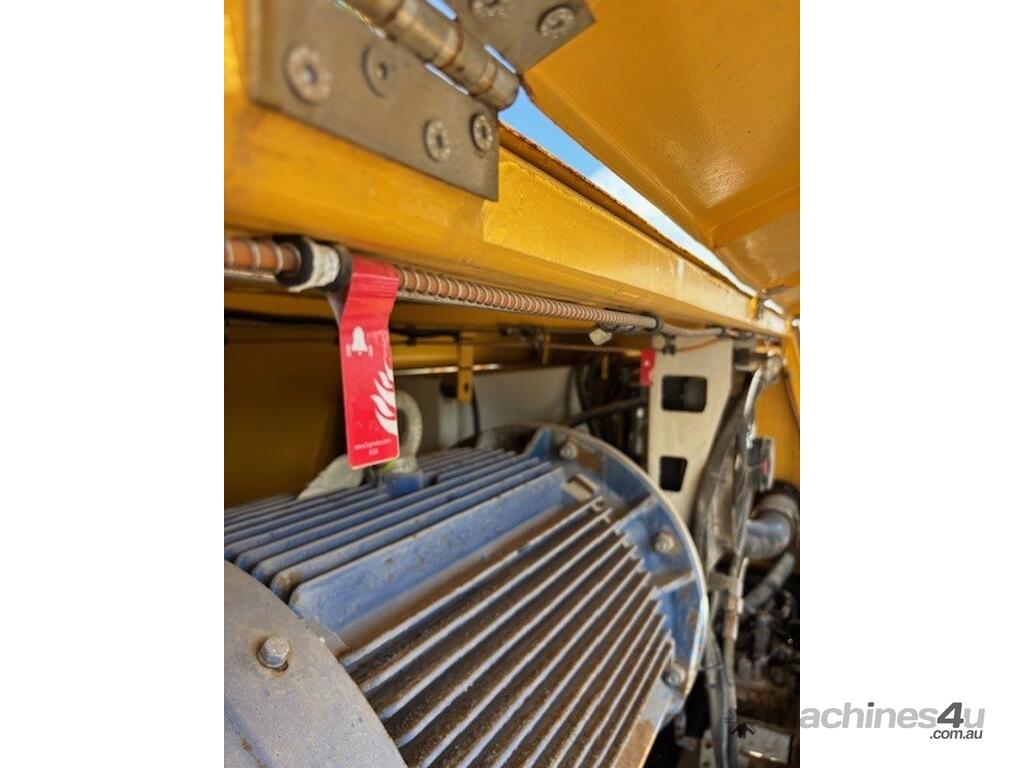

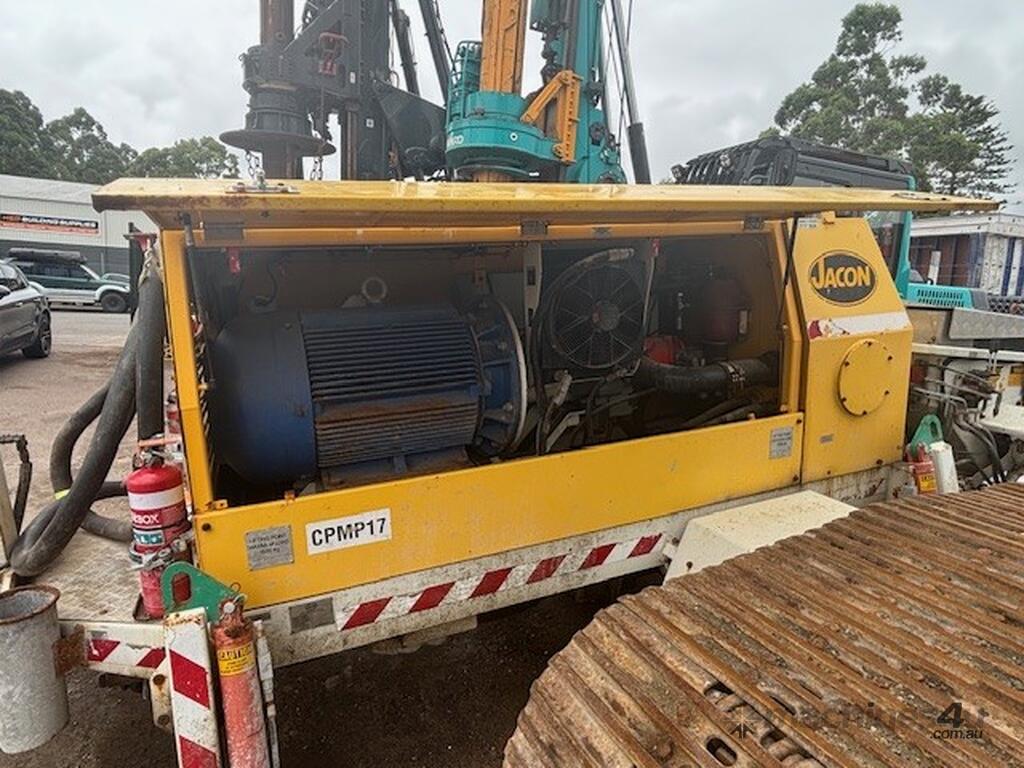

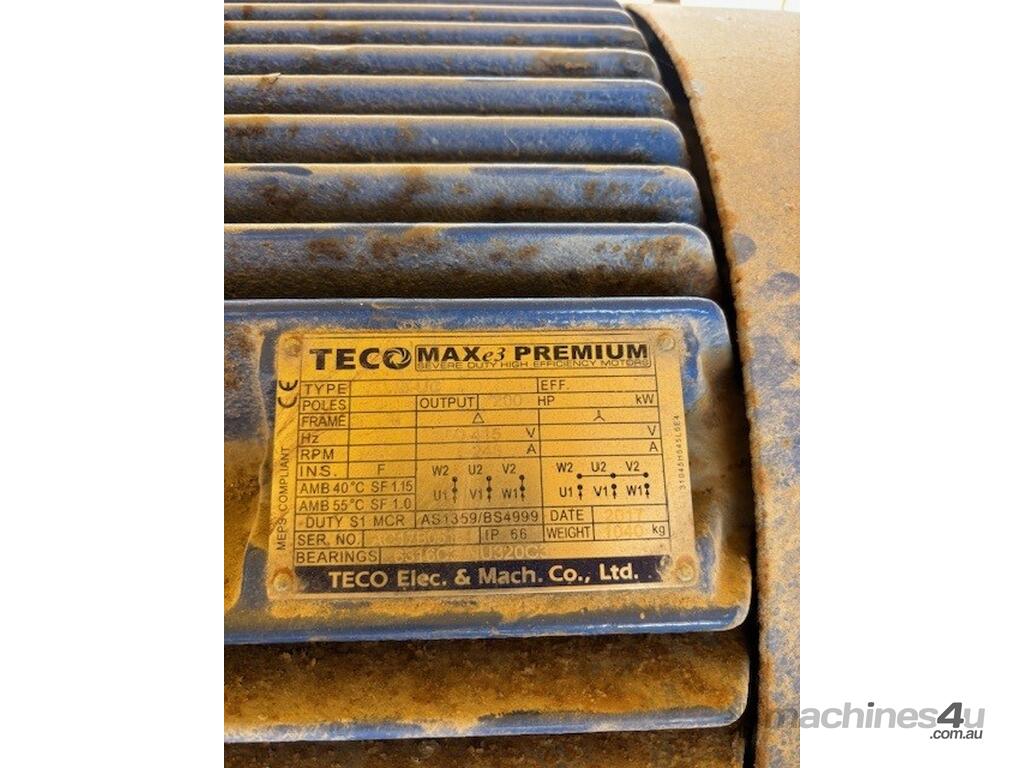

Teco Max e3 premium motor 200 (HP) 150 KW YOM 2017
JACON pump YOM 2018
Single axel with hydraulic stabilisation legs

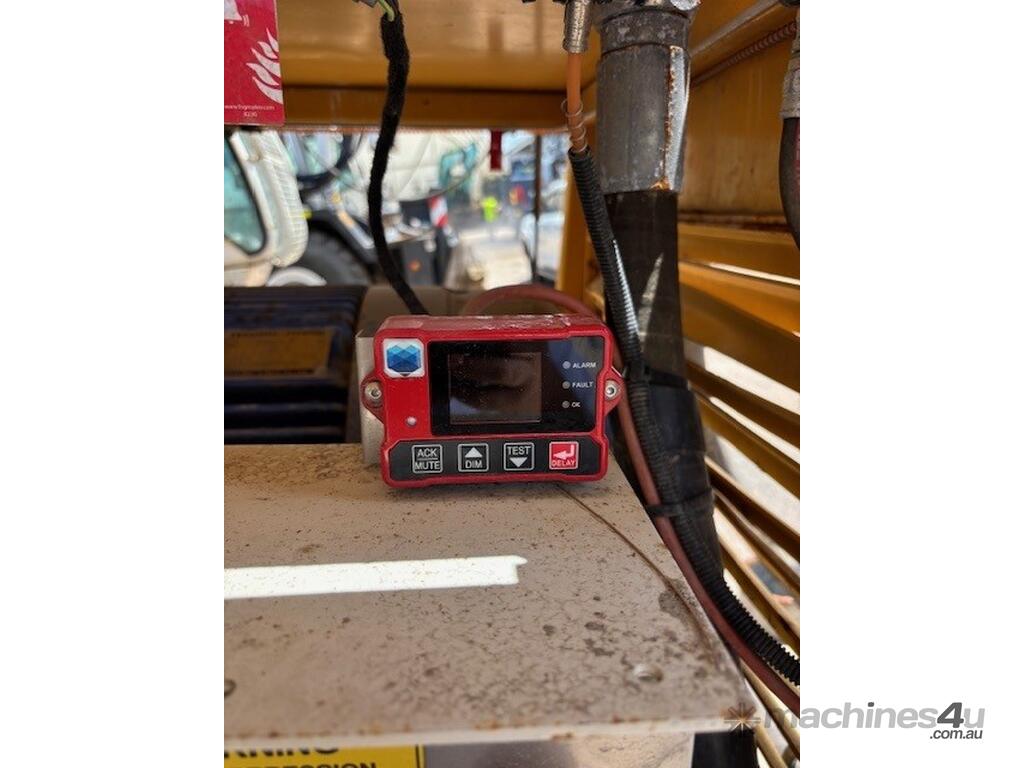

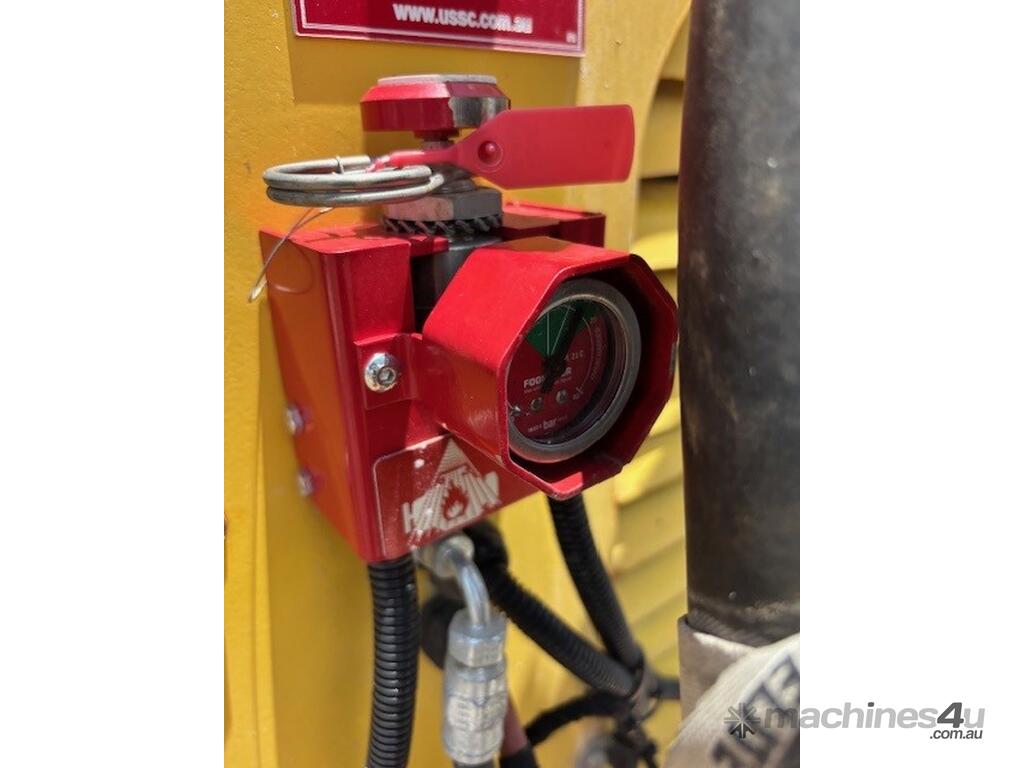

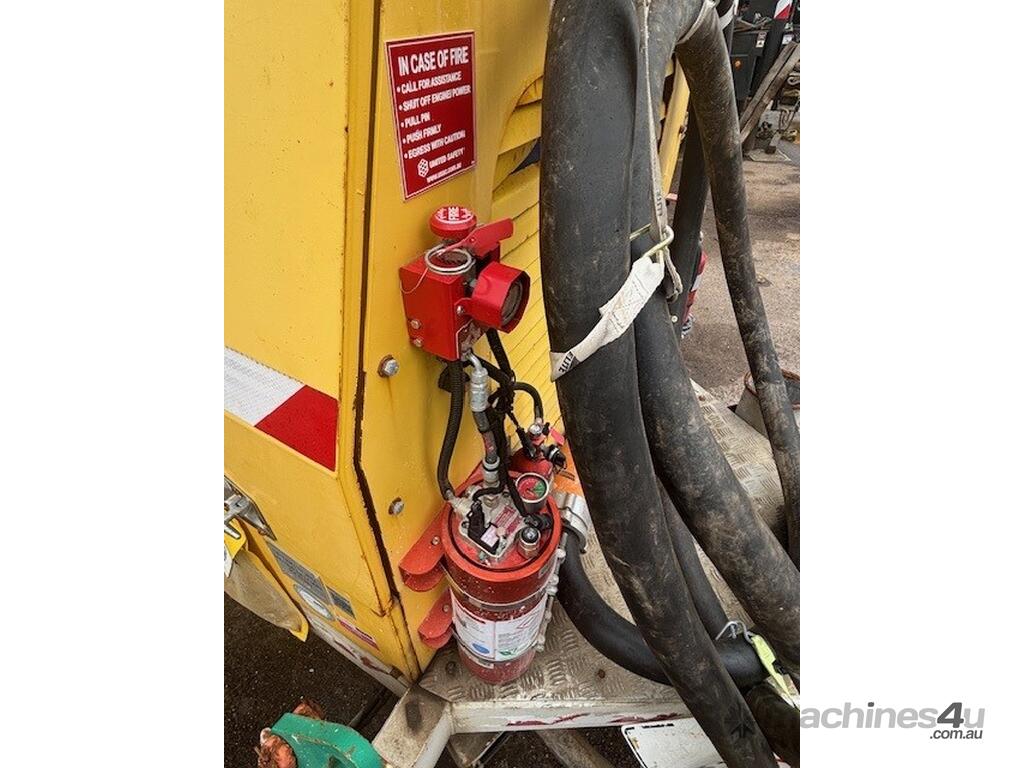

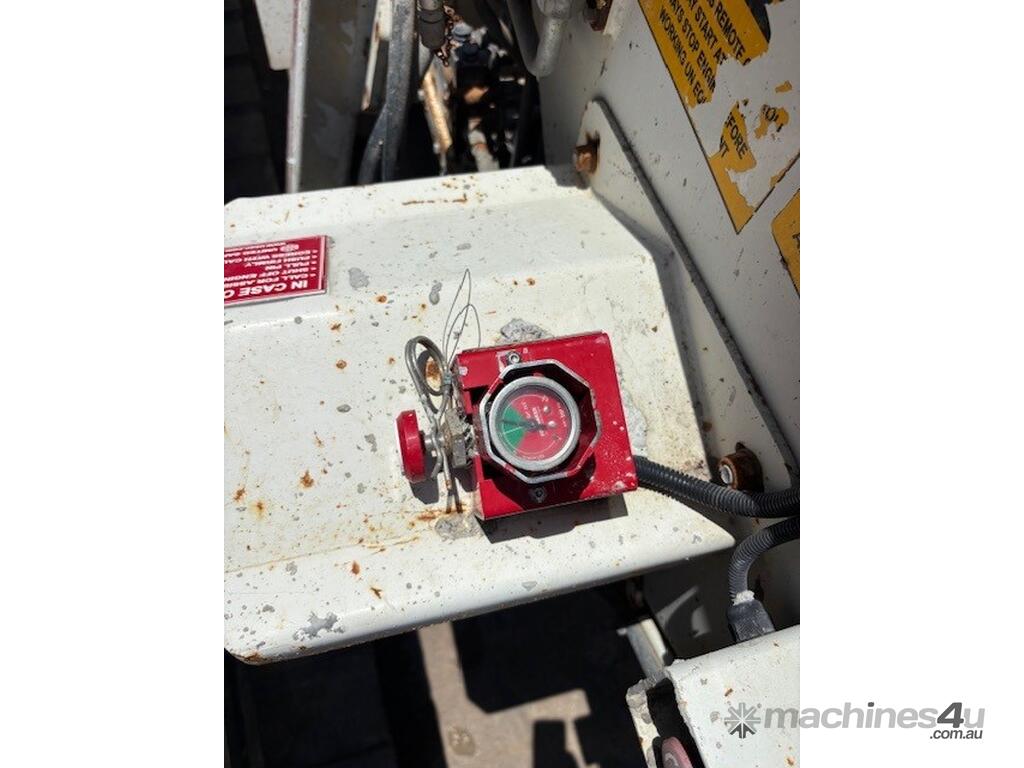

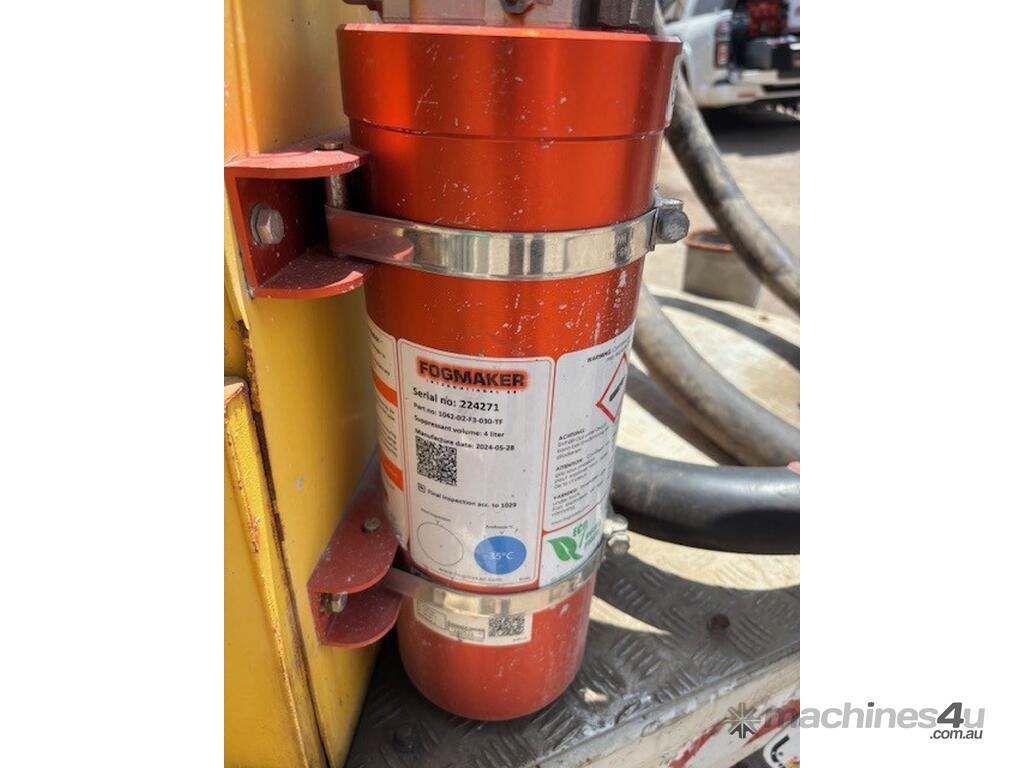

Full Fire suppression system fitted (FOGMAKER 4Lsystem)
Rated output (m3/h) 100
Max. hydraulic pressure (bar) 320
Max. pumping pressure (bar) 79
Max. vertical height (m) 119
Max. horizontal distance (m) 297
Max. stroke rate (1/min) 28
Max. grand size (mm) 40
Type S-valve

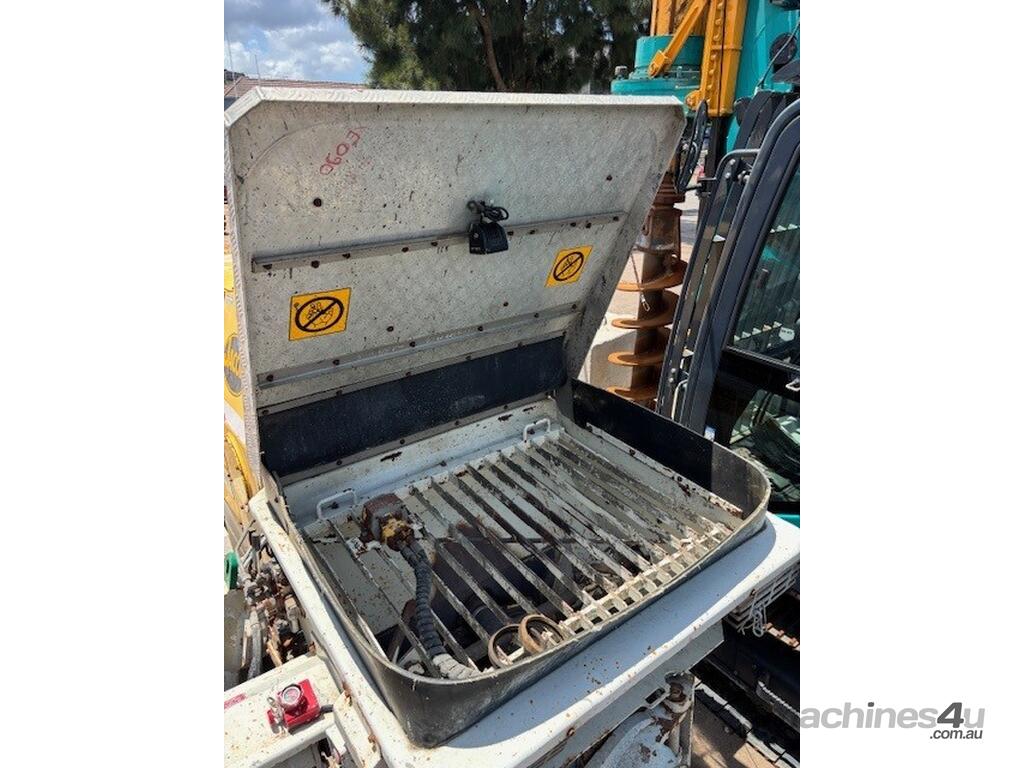

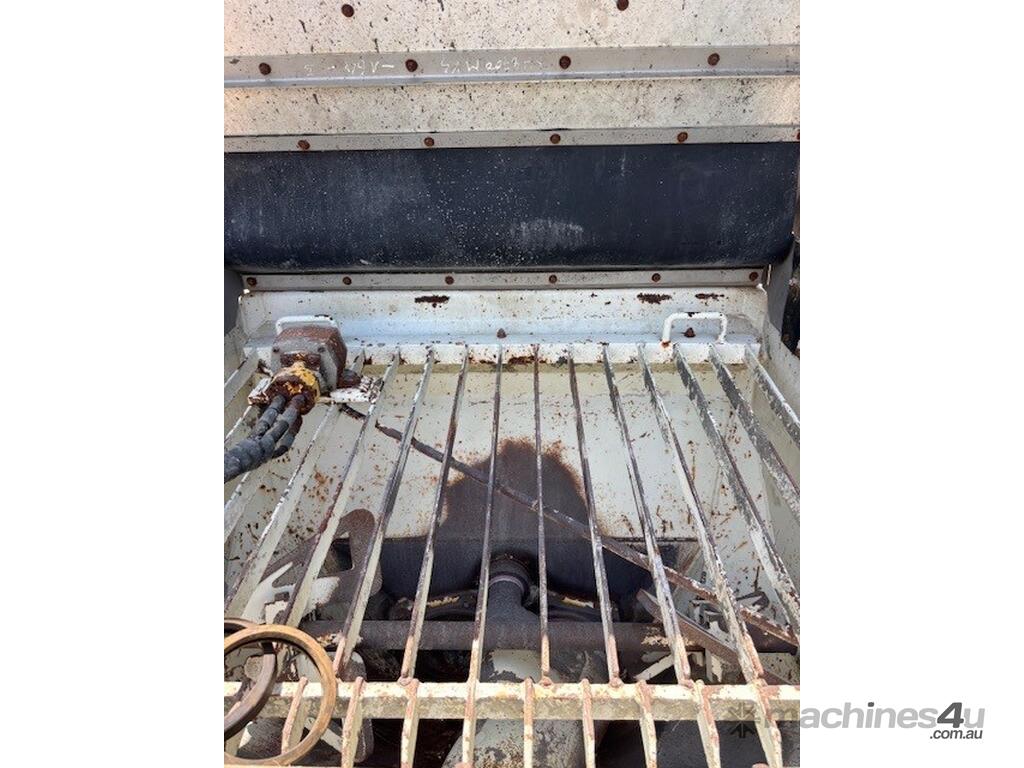

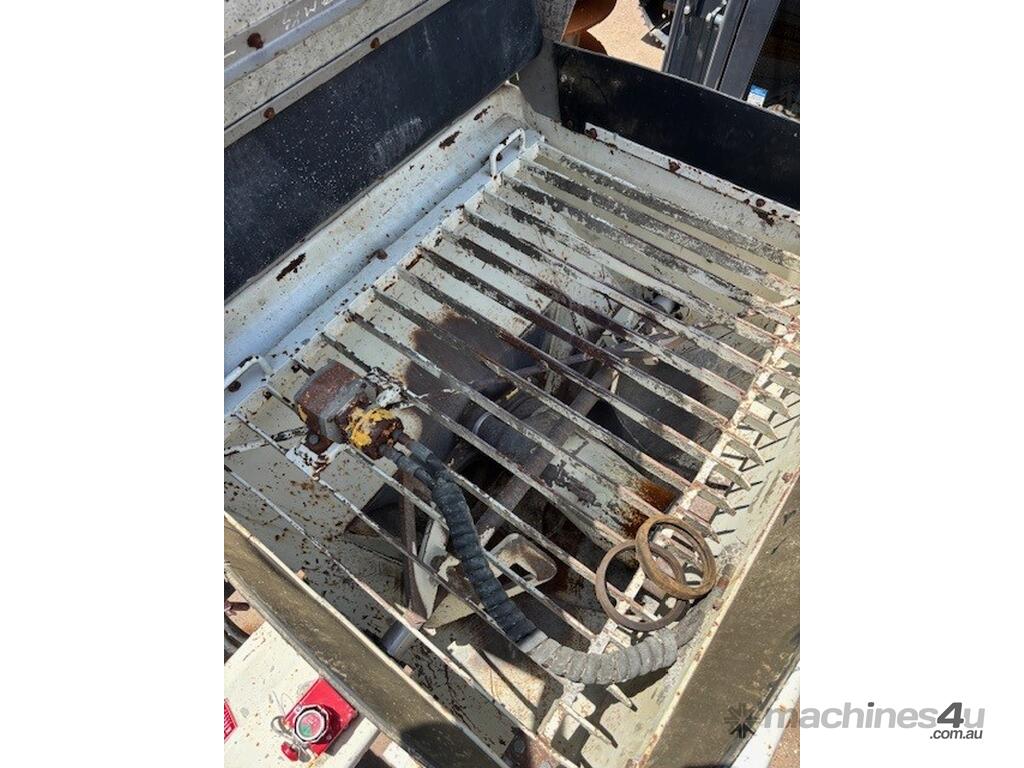

Hopper
Hopper capacity (l) 700
Hopper filling height (mm) 1530

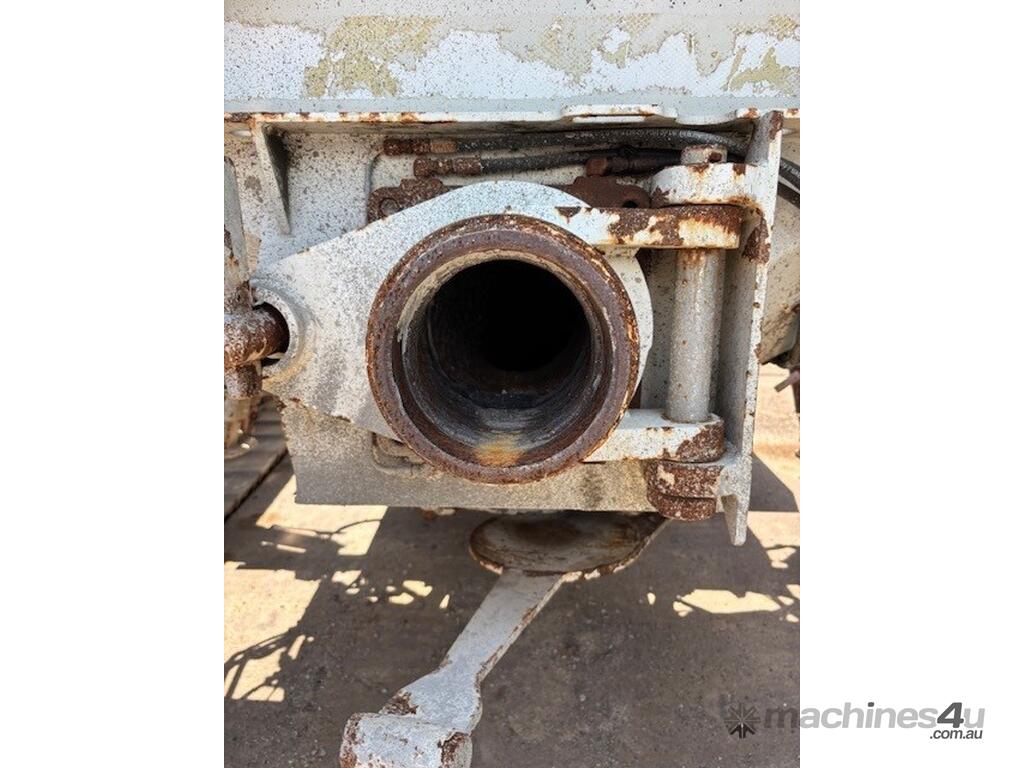

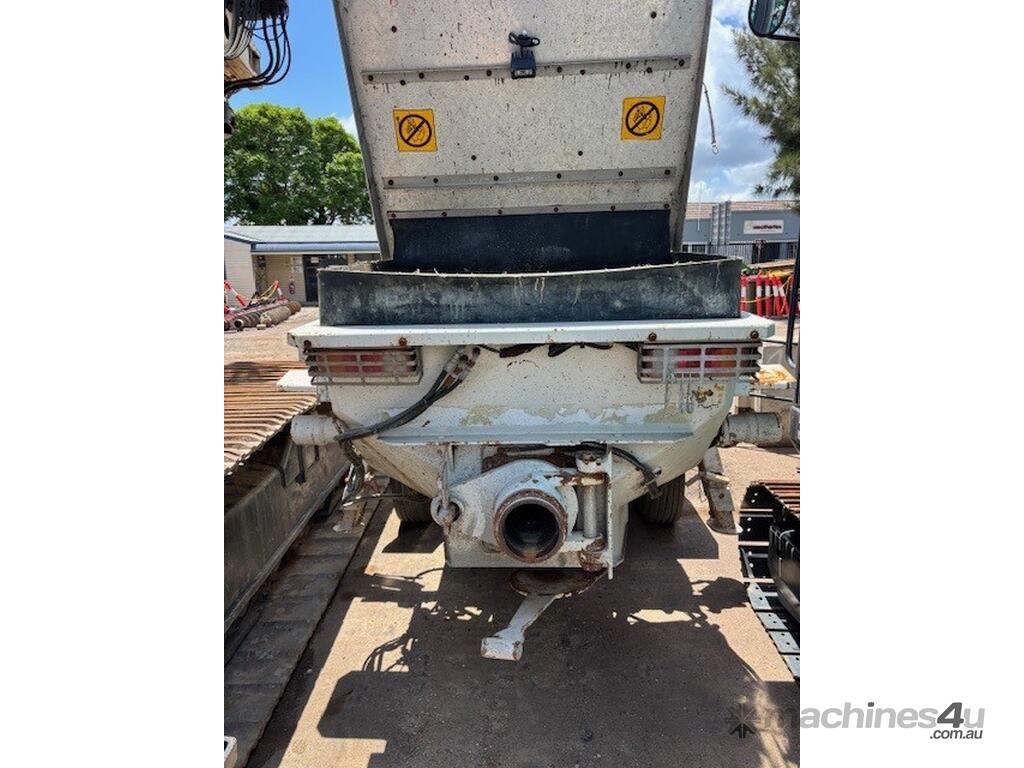

Output opening diameter (mm) 152 (~6 in)
Pumping Cylinder
Bore diameter (mm) 230
Stroke length (mm) 1440
