Concrete Vacuum l=Lifter

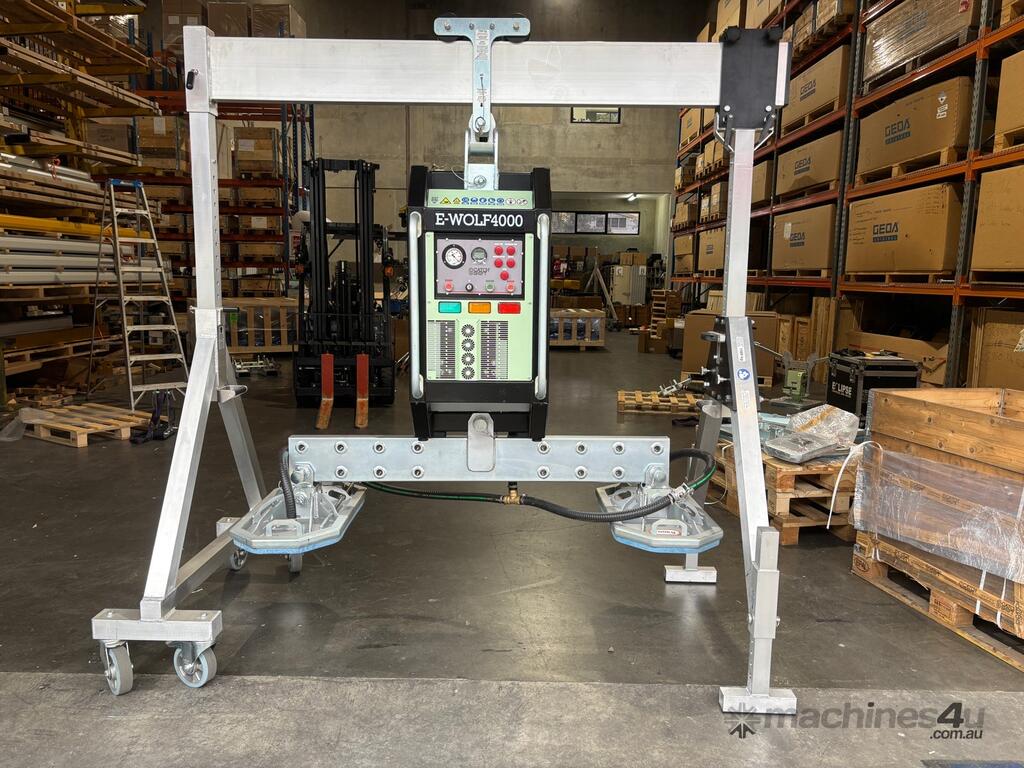

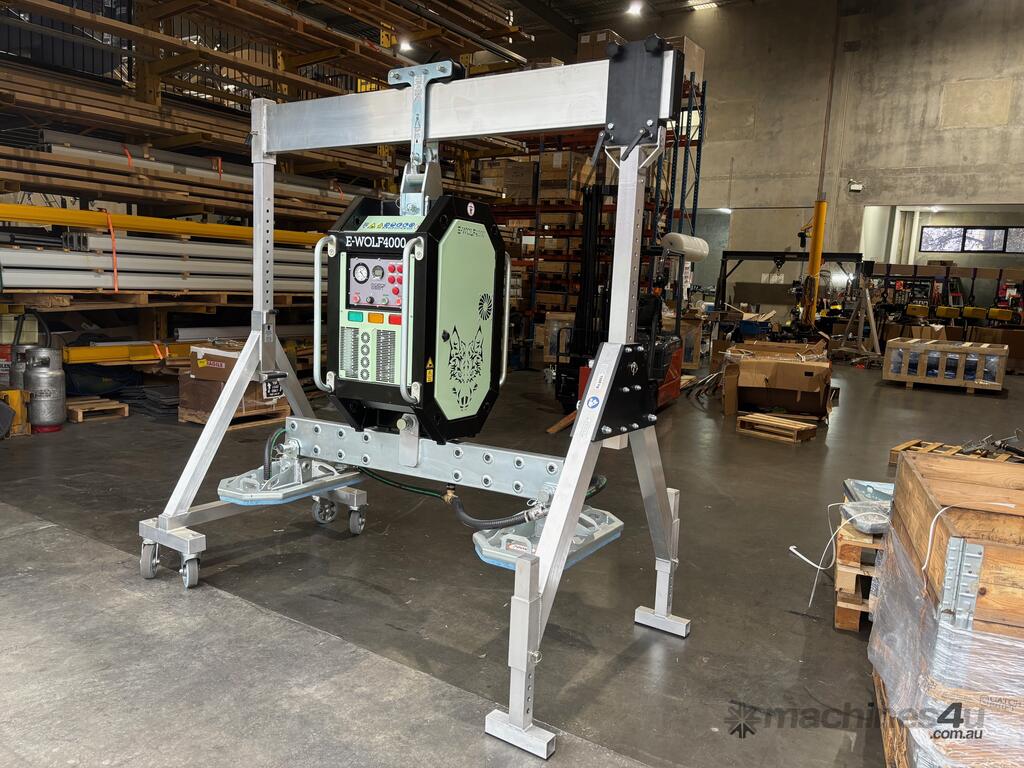

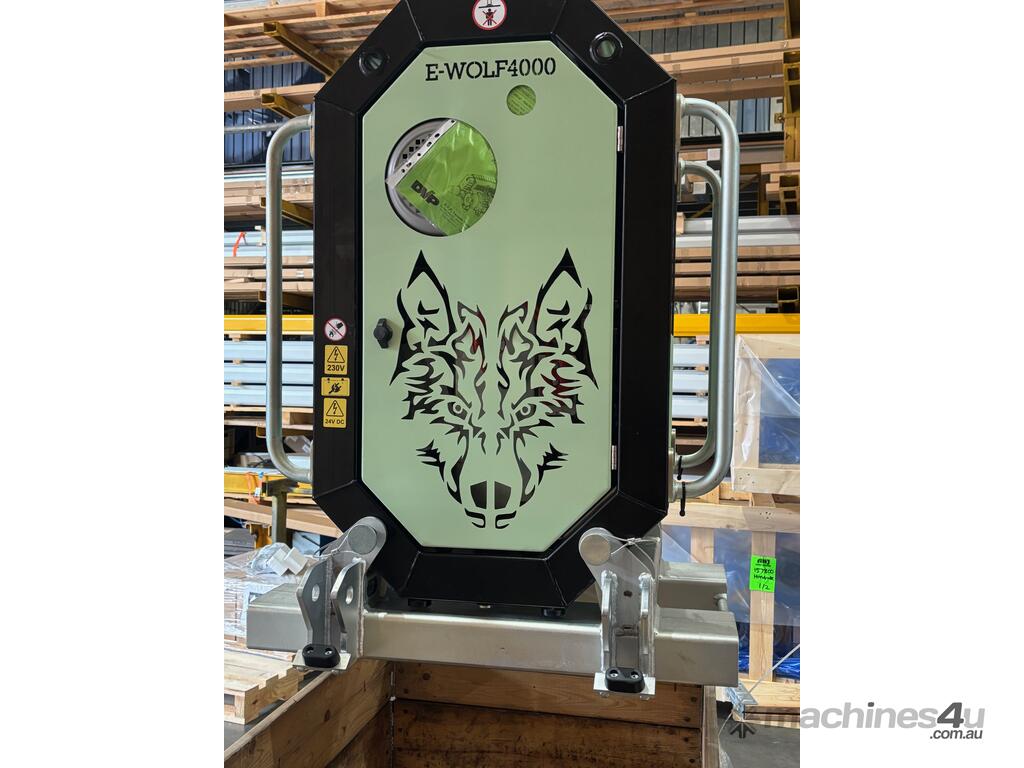

E-WOLF 4000 – 4-Tonne Battery-Powered Industrial Vacuum Lifter

The E-WOLF 4000 is Catchshift’s most powerful vacuum lifting system, engineered for heavy-duty industrial, civil and construction applications. With an impressive 4,000 kg (4-tonne) lifting capacity, it provides a safe, zero-emission, and highly efficient solution for handling large precast concrete, stone, and structural elements.

Equipped with a high-capacity 4,800 Wh lithium battery, the E-WOLF delivers up to 8 hours of runtime per charge, making it a cost-effective alternative to diesel or hydraulic lifting systems. Its dual vacuum circuits, ultra-fast 1-second suction activation, and wireless remote control ensure fast, precise and secure lifting operations across the heaviest materials.

Manufactured in Europe and CE-certified, the E-WOLF 4000 is built with a robust steel frame and a simple, ergonomic interface. Attach it to a crane, loader, forklift or gantry system, mount the required suction pads or beam configuration, and it’s ready for high-performance lifting on demanding worksites.

Applications

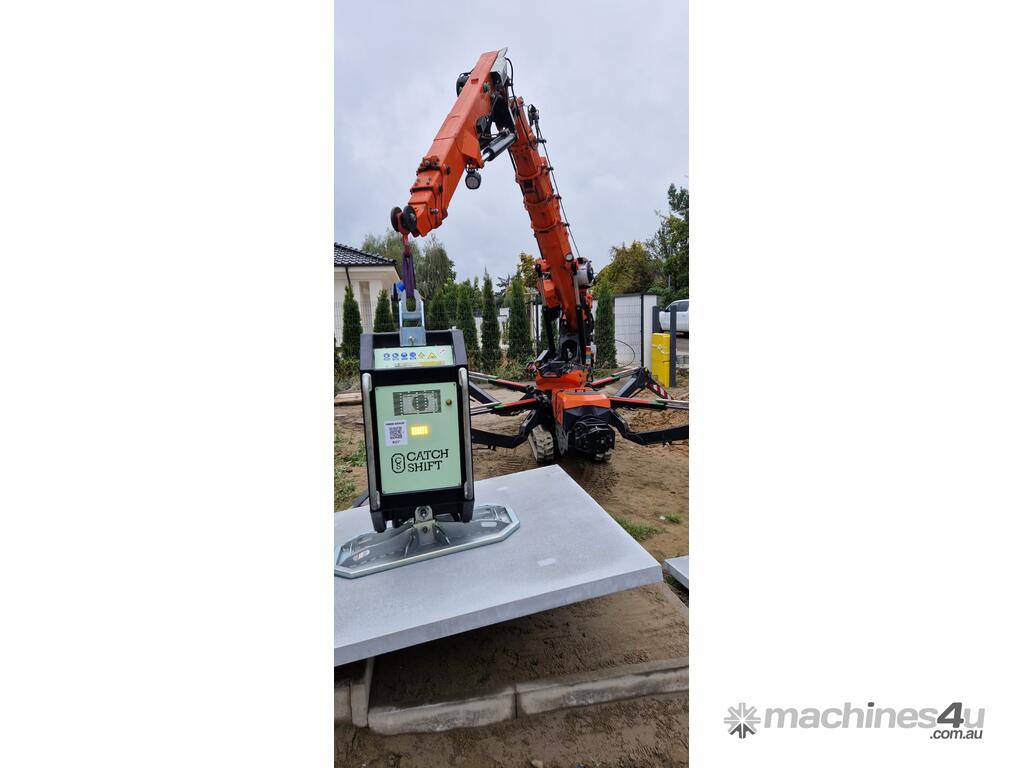

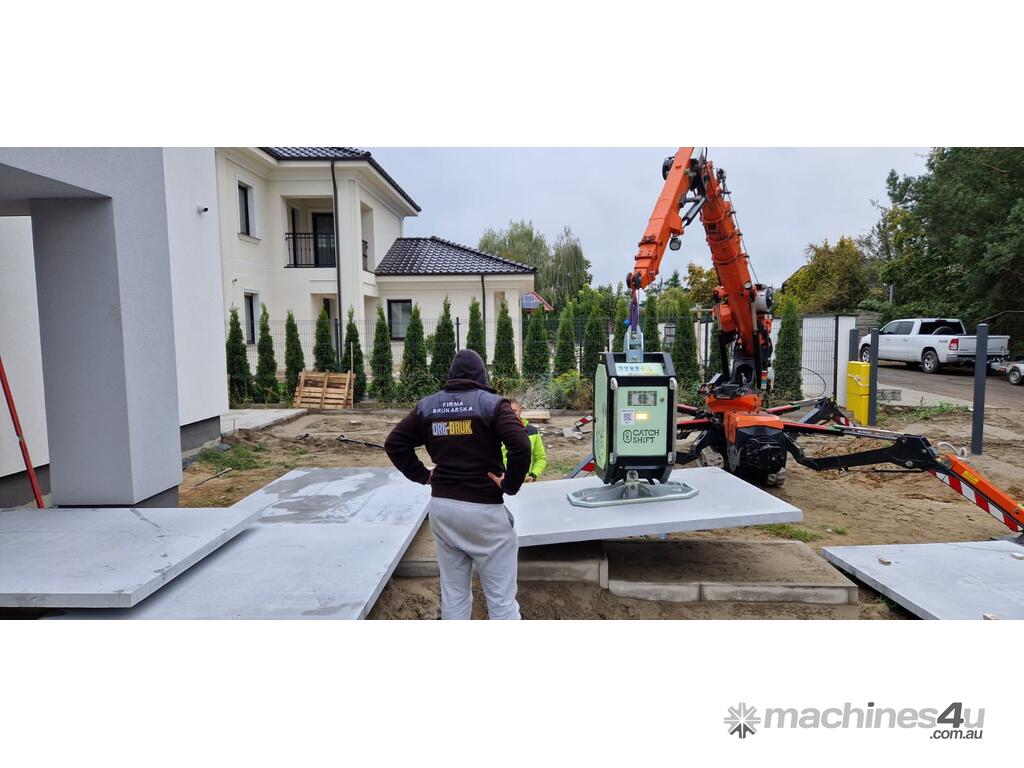

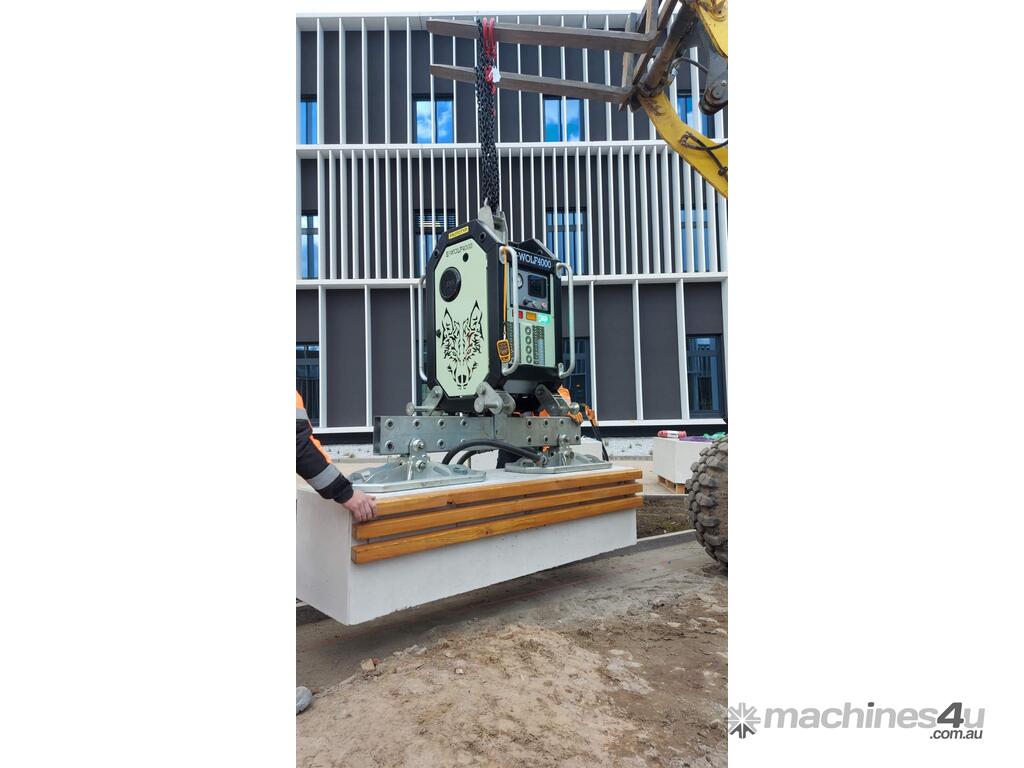

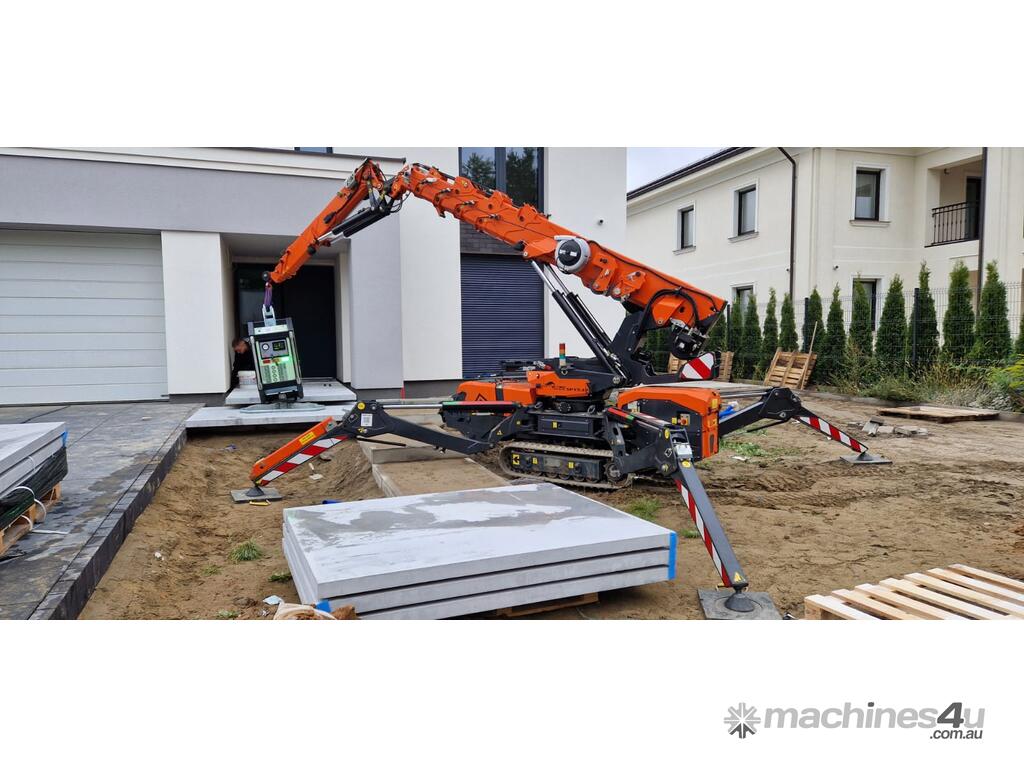

Construction & Infrastructure: precast slabs, panels, road and highway elements
Production Facilities: concrete and stone handling during manufacturing
Rail Industry: sleepers, platform panels, drainage components
Civil & Utility Works: septic tanks, culvert pipes, rings, trench covers, conduits

Key Features

4-tonne lifting capacity for large, heavy precast and structural elements
Zero-emission operation with long-lasting 4,800 Wh lithium battery (? 8 hours runtime)
Dual vacuum circuits for maximum safety and load security
Fast 1-second suction activation for rapid workflow
Wireless remote control + onboard control buttons
Robust steel construction for demanding environments
CE-certified for compliance and reliability in industrial use

Included & Compatible Accessories

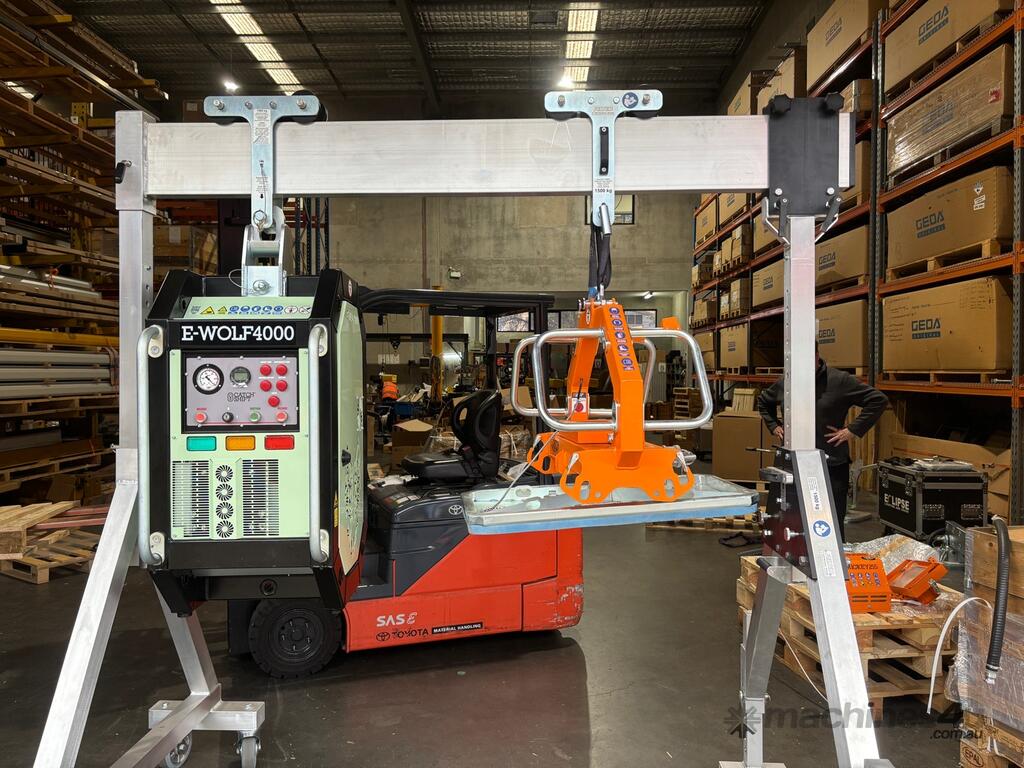

Interchangeable suction pads:

50 × 30 cm – max 300 kg
60 × 15 cm – max 130 kg
80 × 40 cm – max 700 kg
100 × 50 cm – max 1,200 kg
100 × 70 cm – max 1,700 kg
Beams for multi-pad configurations: 1.5 m, 1.8 m, 2.1 m
Handles: standard and upper handle (for belt/chain suspension)
Mounting chains for flexible lifting setups
Transport packaging for safe storage and mobility
Extended warranty option: 1 year ? 2 years
