Confectionery Nut Bar Extrusion Cutting Sorting Line

Compact production line designed for processing small confectionery items or similar food products. This versatile system brings together four key stages of production, allowing continuous forming, transferring, sorting, and handling of product in one streamlined setup. Suitable for confectionery, snacks, and other small goods, it offers an efficient way to move from raw product through to finished, separated pieces with minimal manual handling.

The set includes:
- Extruder with cutter and conveyor for forming and transferring product
- Hopper elevator for collection and continuous feeding
- Sorting machine for size or shape separation
- Vibratory shaker tray for final handling and distribution

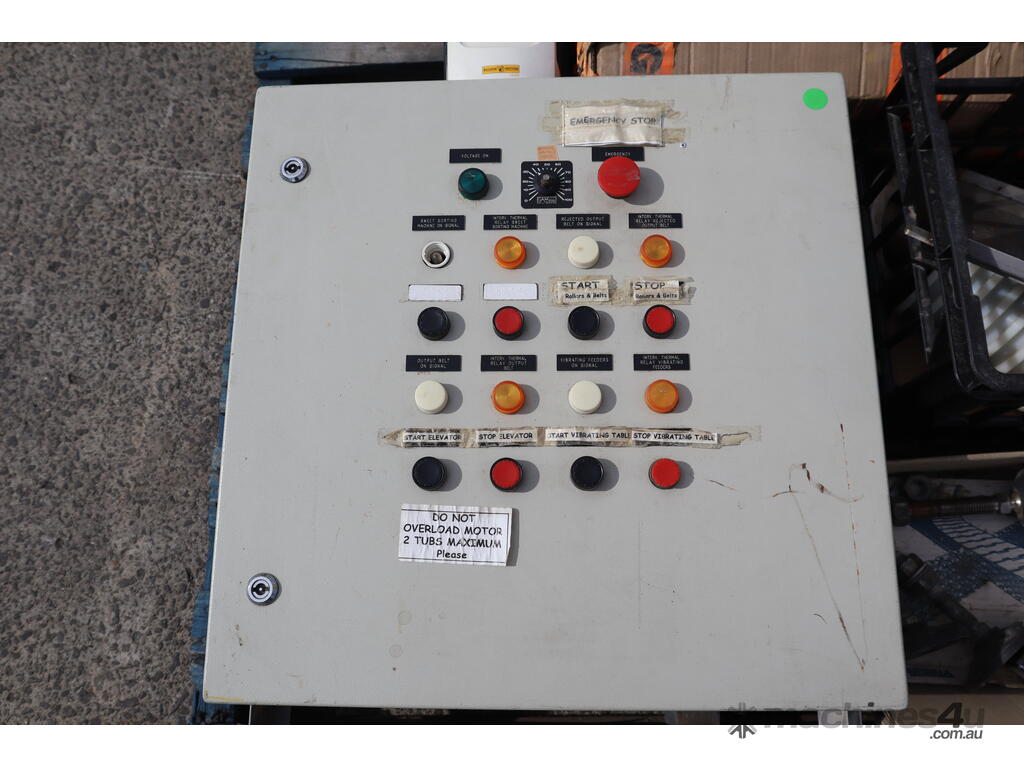

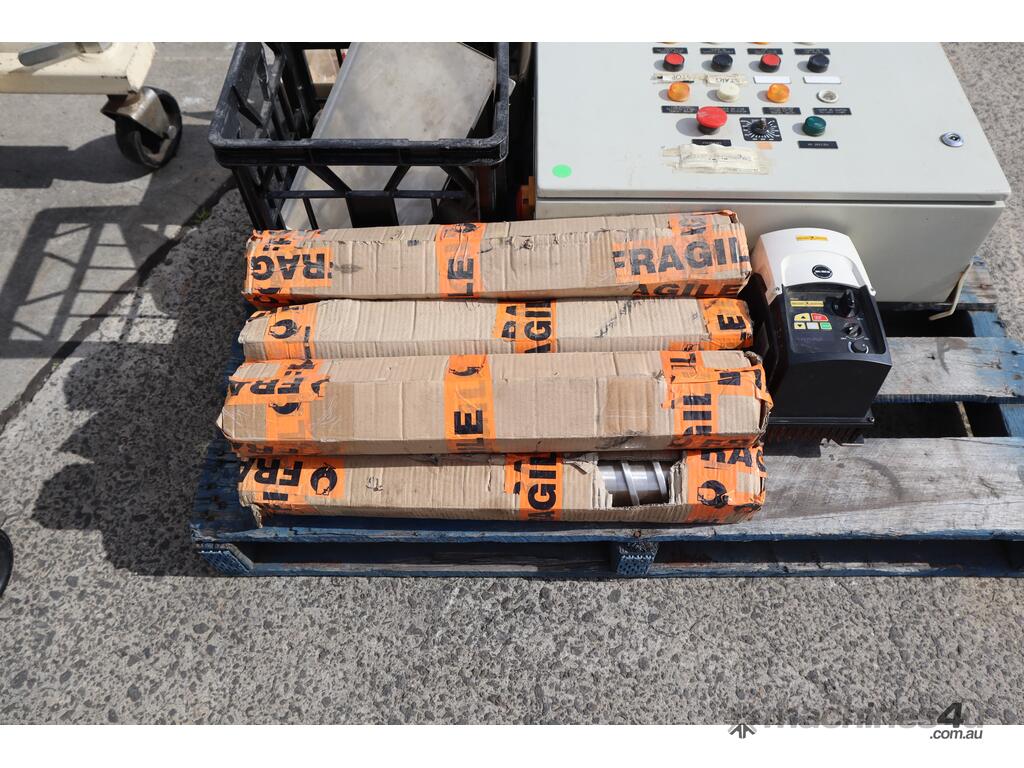

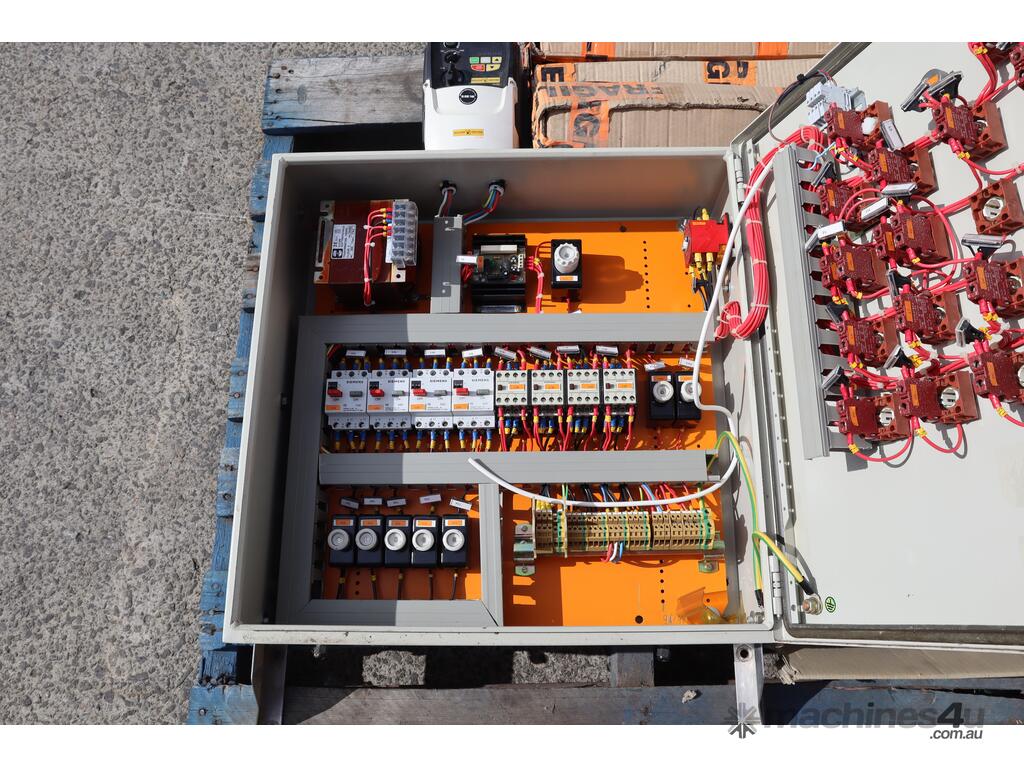

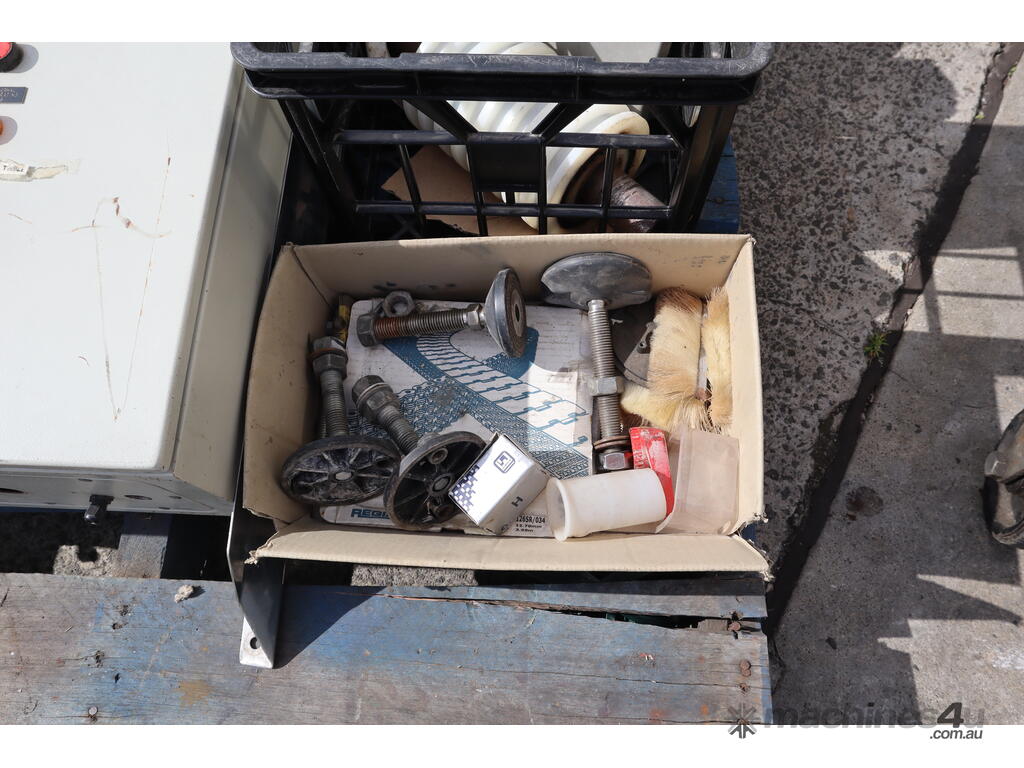

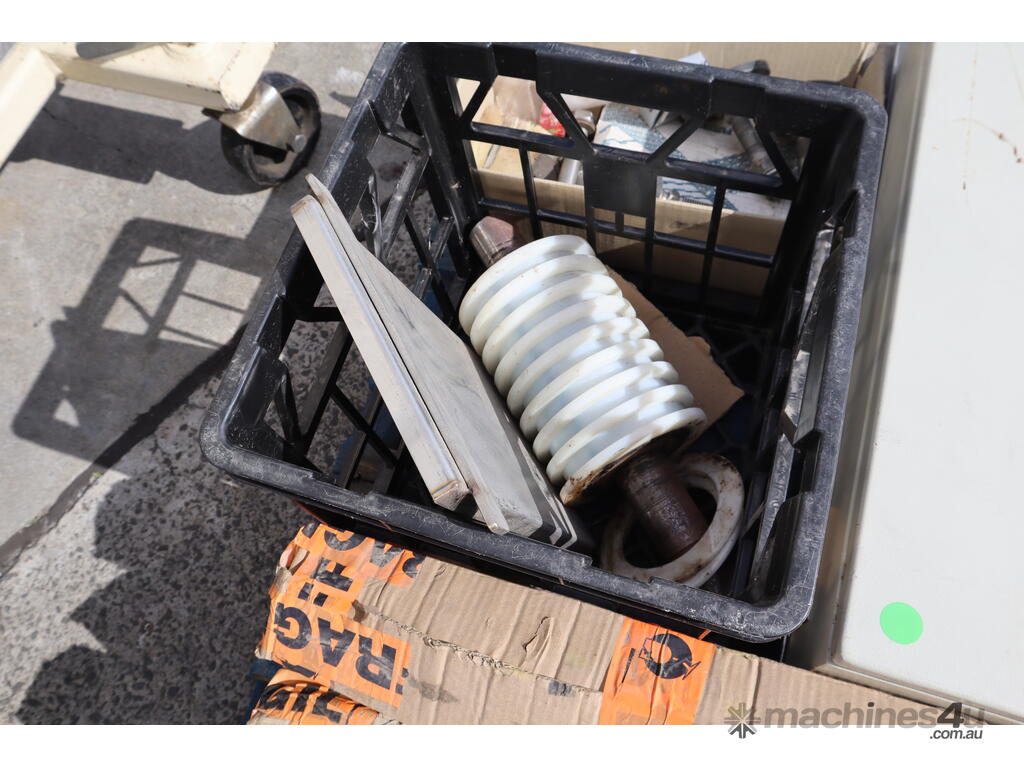

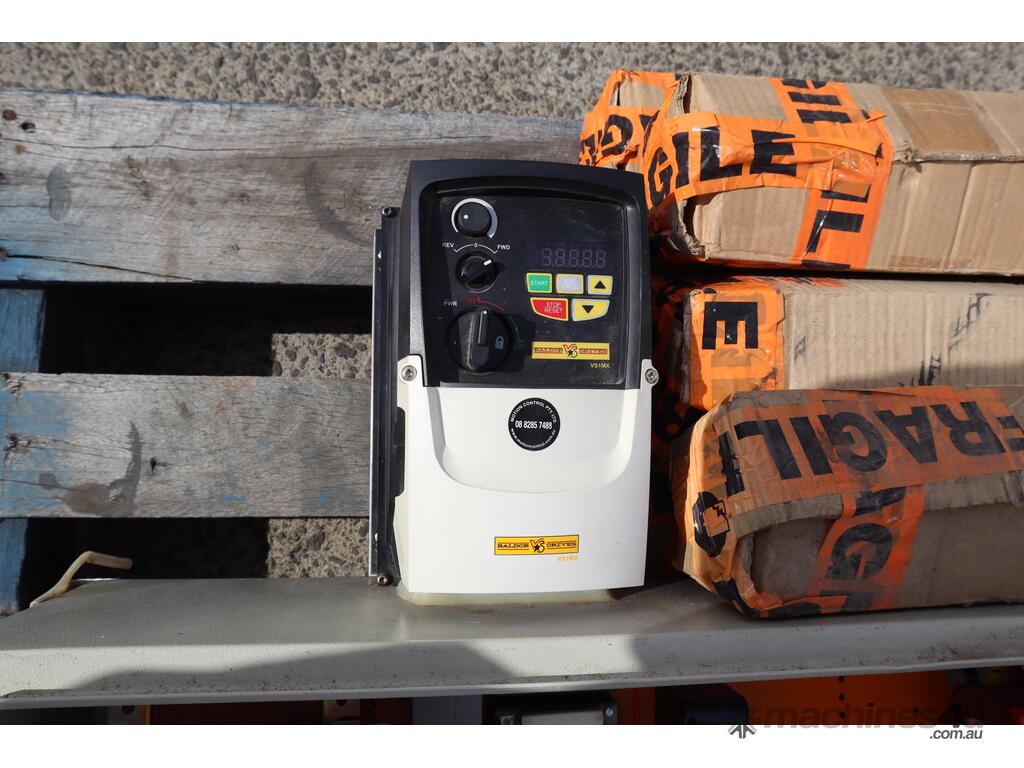

These machines are in good condition, and are robust units that have been built to last. Comes with VSD, control box, legs and other accessories and parts.

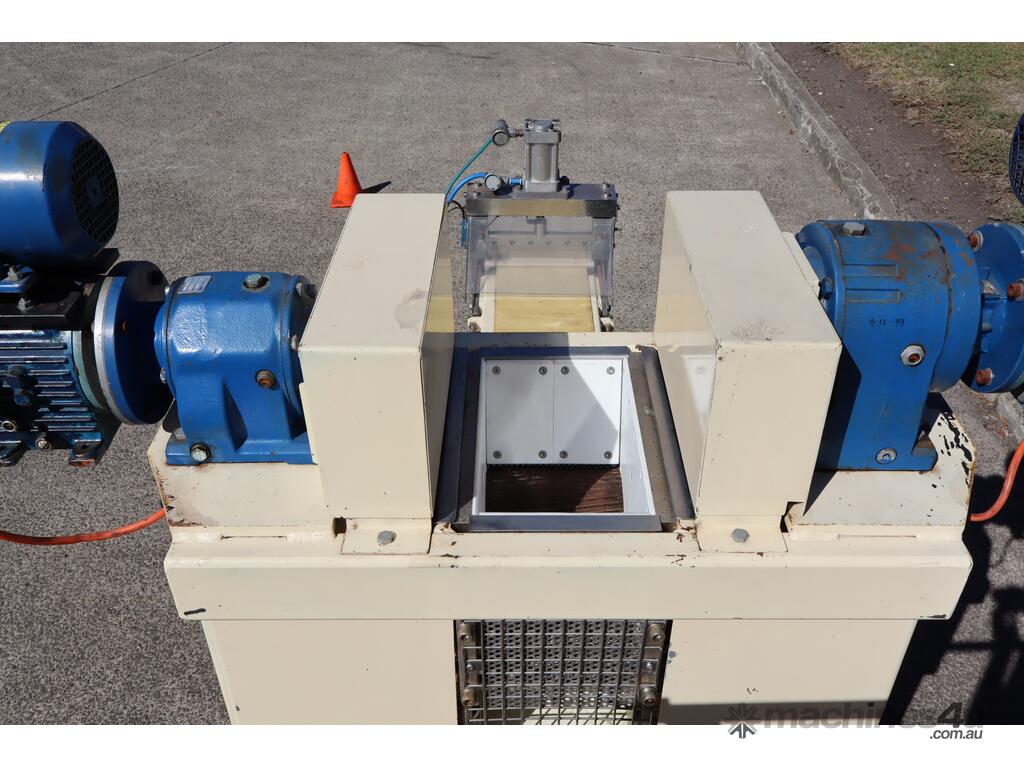

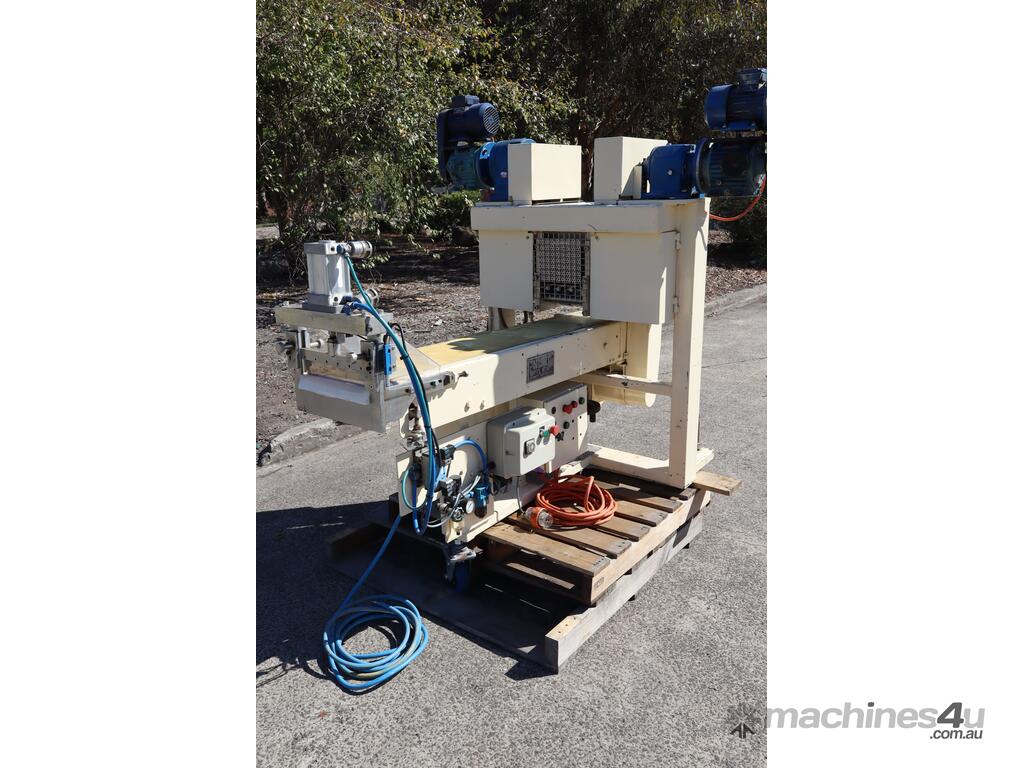

#1 Extruder Cutter Conveyor

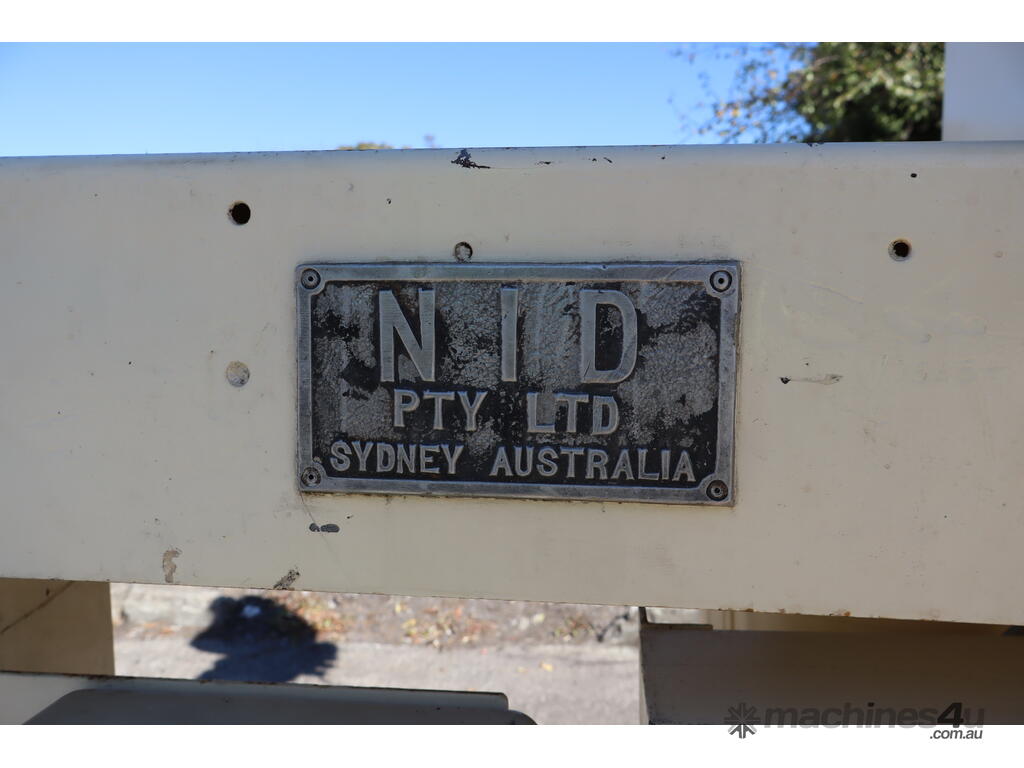

Make: NID
Made in Australia
Belt Travel (mm): 1550
Belt Width (mm): 250
Belt Height (mm): 950

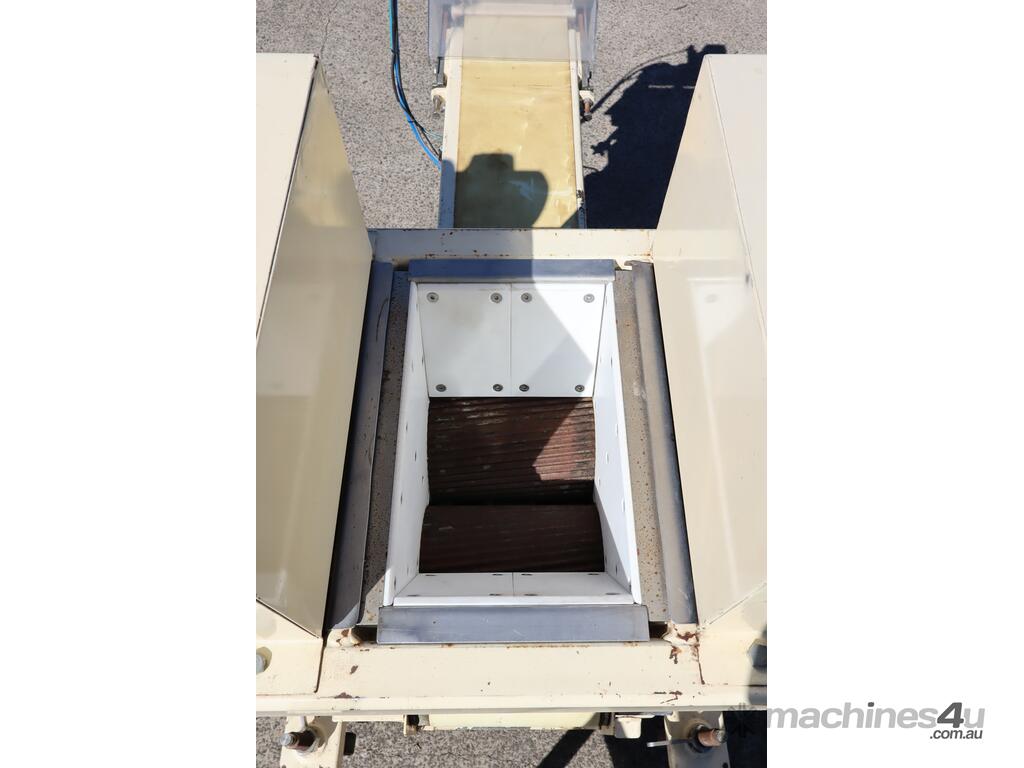

Inlet to Grinder Opening Size (mm): 310 x 210
Inlet Height from Ground (mm): 1450
Voltage: 415V 3 Phase
Motor Power (each): 0.75 kW
Motor Speed (each): 1380 RPM
Overall Dimensions - Extruder Conveyor (mm): 1850 L x 1590 W x 1935 H

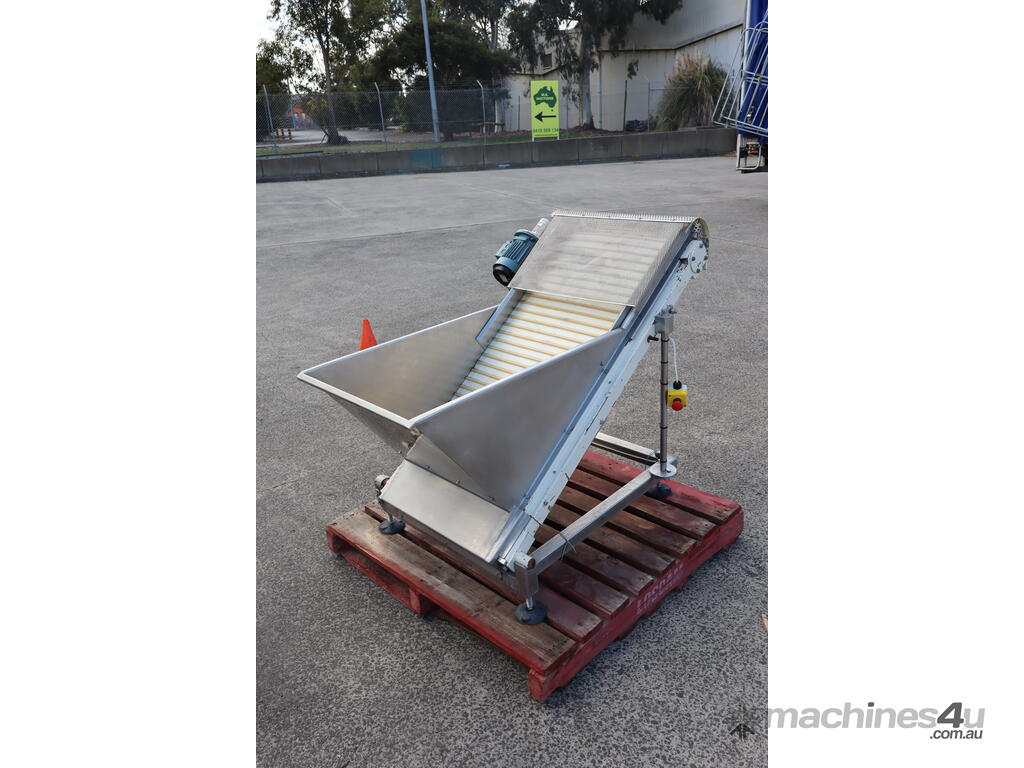

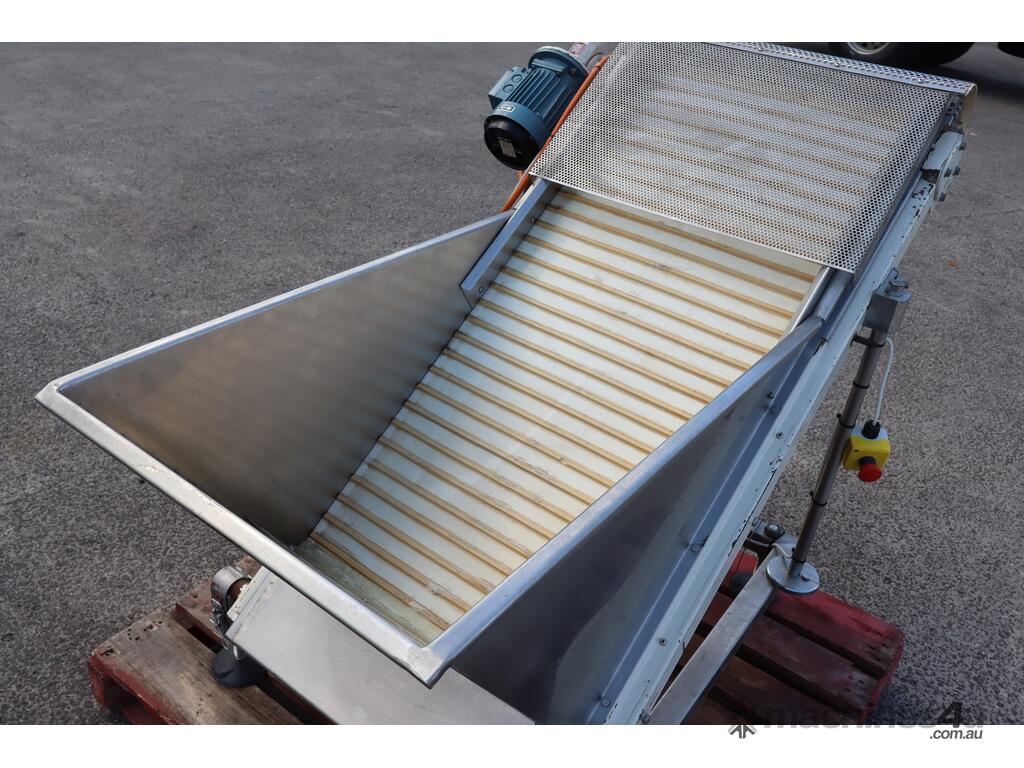

#2 Stainless Steel Elevator Incline Conveyor - 1.1m High
Hopper Opening (mm): 900 x 550
Belt Width (mm): 550
Discharge Height (mm): 1025
Voltage: 440-480V
Motor Power: 0.37kW
Overall Dimensions - Incline Elevator Hopper (mm): 1500 L x 1115W x 1100 H

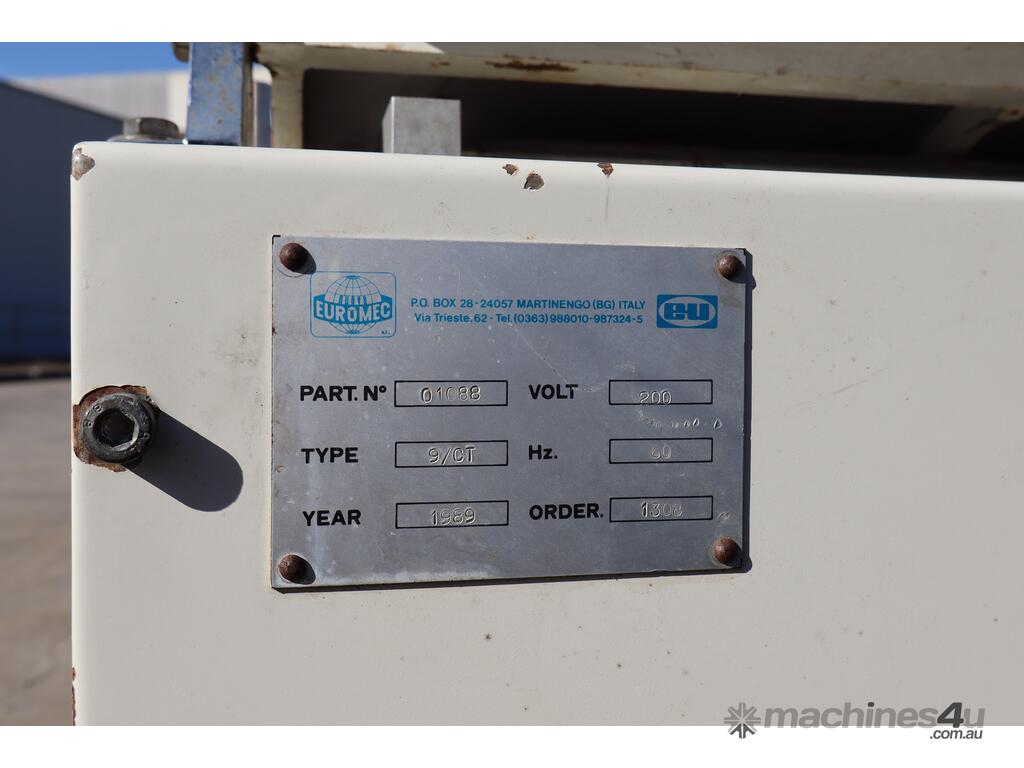

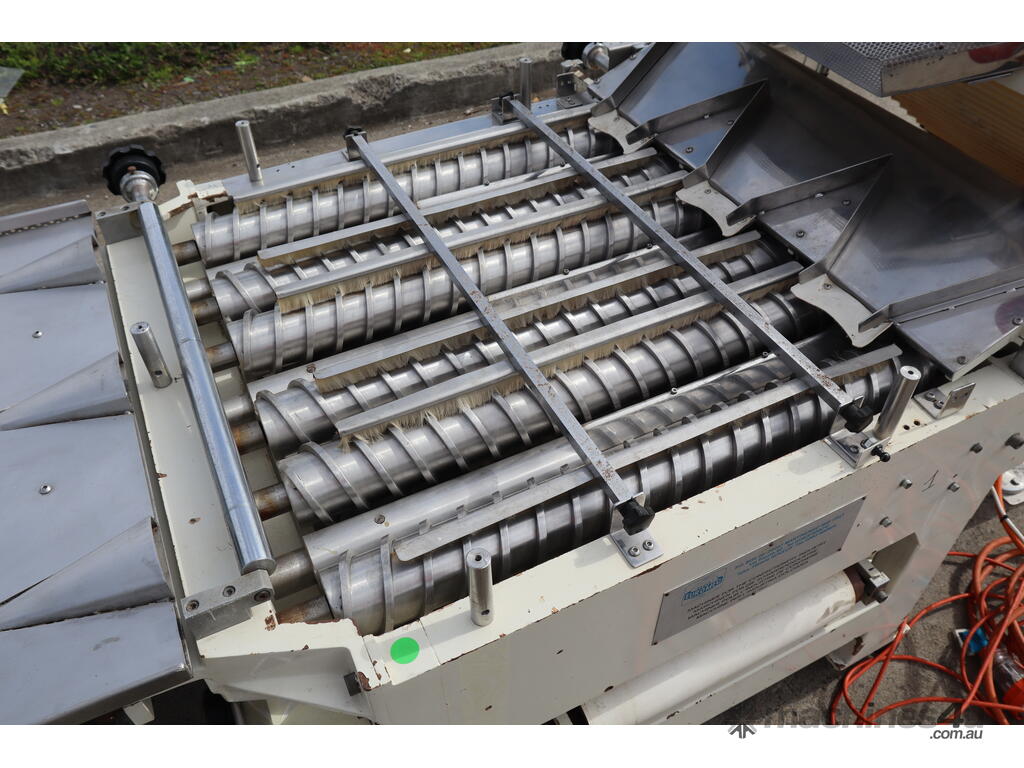

#3 Confectionery Sorting Machine
This Euromec 9CT sorting machine has been designed to sperate oversized, undersized and precise sized pieces according to the thickness of the product. The grader is suited for use with hard candy, soft sugar coating candy/gum, tablets and hard filled candy.
Make: Euromec
Model: 9/CT
Year: 1989
Made in Italy
Sorting Tray (mm): 1125 L x 750
Sorting Tray Height (mm): 750
Voltage: 415V 3 Phase
Motor Power: 0.45 kW
Motor Speed: 1690 RPM
Unit Dimensions - Sorting Machine (mm): 1125 L x 1025 W x 800 H

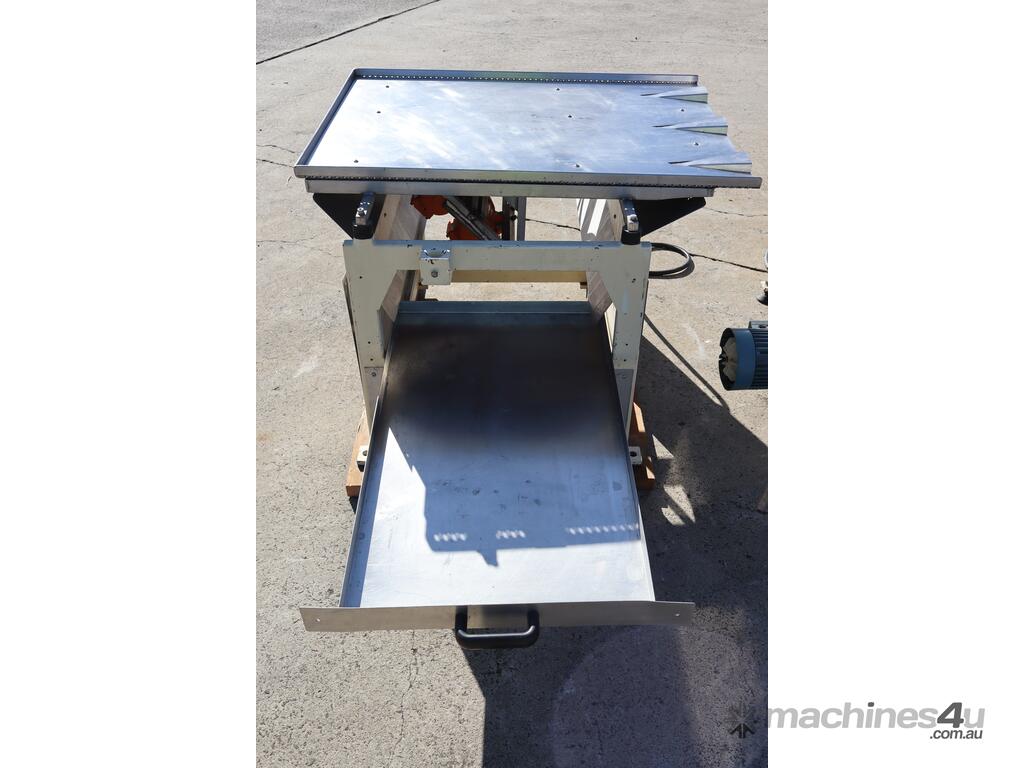

#4 Vibratory Shaker Tray
Tray (mm): 1000 L x 740 W
Tray Height (mm): 710
Unit Dimensions - Shaker Tray (mm): 1045 L x 1000 W x 740 H

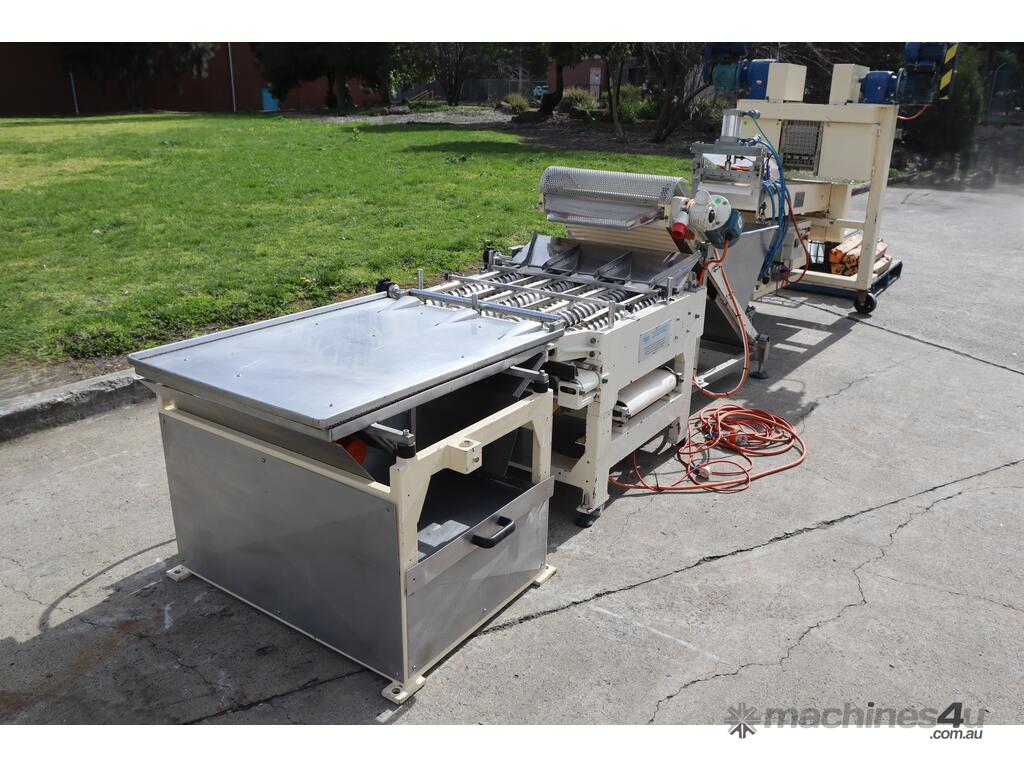

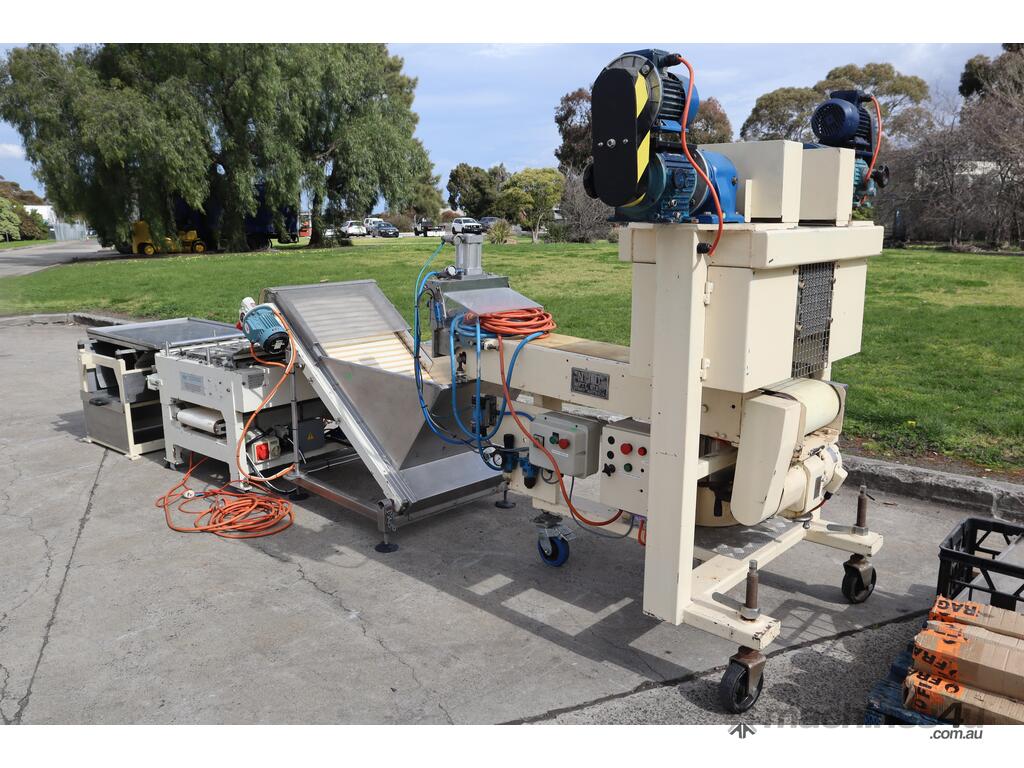

Overall Dimensions - Entire line as in photos (mm): 6645 L x 4755 W x 1935 H approx.
