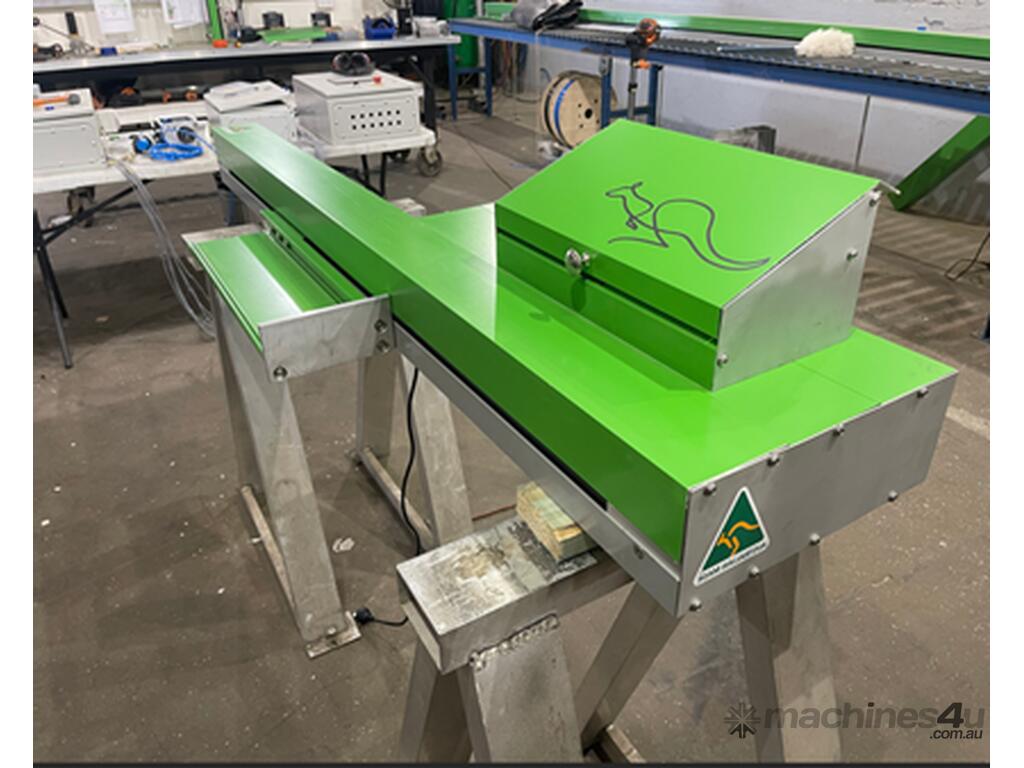

This product has been designed to enable your selected Kangastop to be installed on the two most common types of conveyors currently supplied in the Australian market.
The first conveyor type is the steel C-section design frame - STEEL.
The second type of conveyor has the extruded aluminium frame - ALUMINIUM.

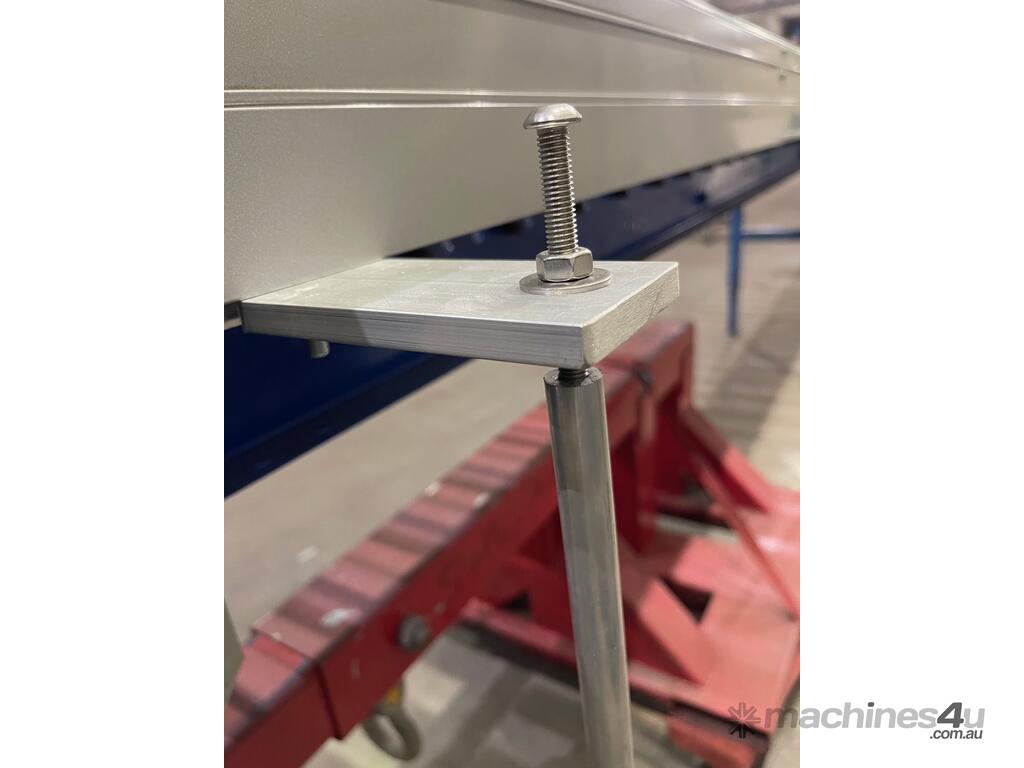

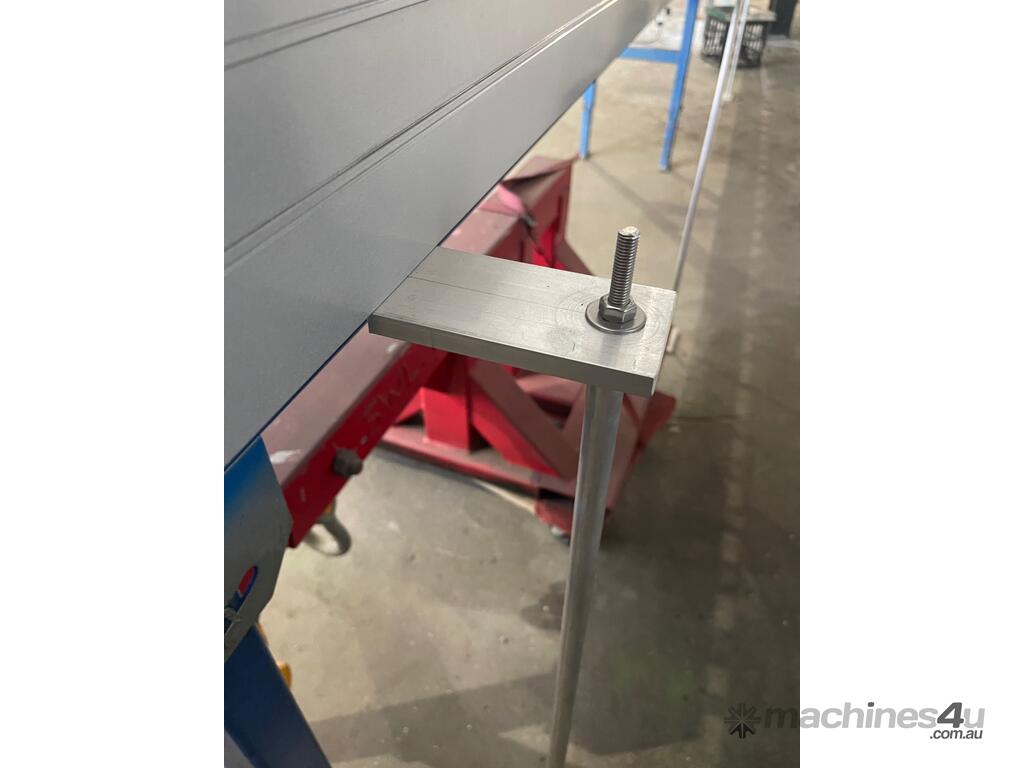

The connection plates bolts to either the top or side of the conveyor depending on the conveyor type. This kit has three standard connection plates.
The kit also comes with one extended length connection plate which is used under the HMI end of the machine where most of the weight from the motor and the associated components is located.

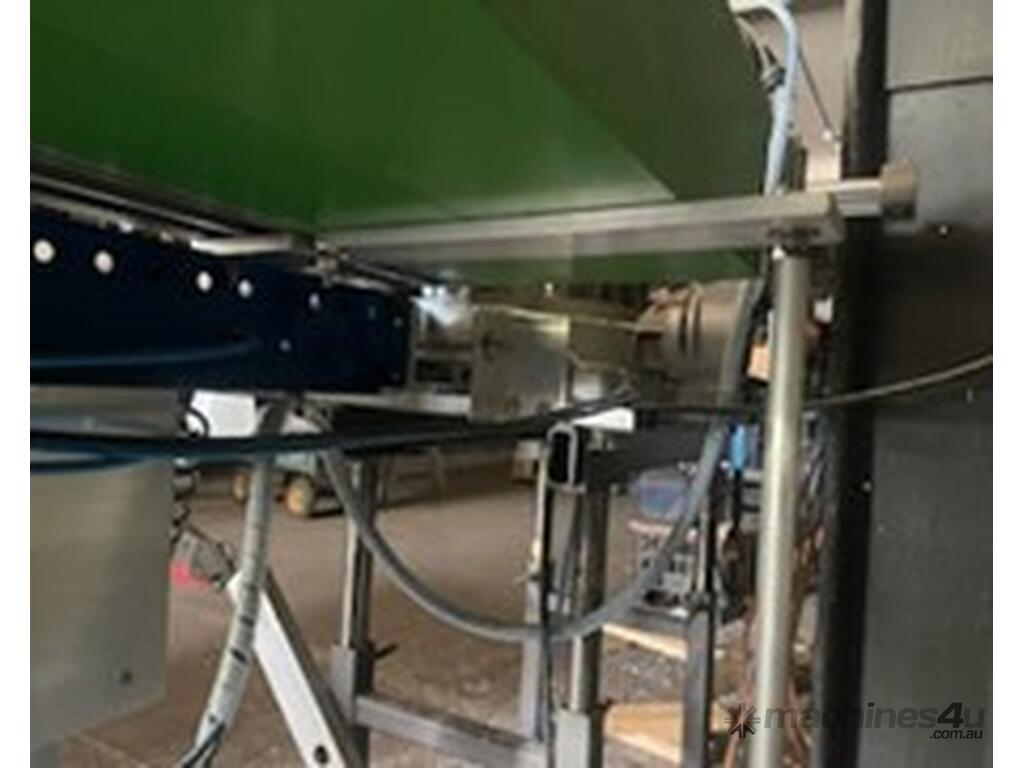

Both bracket types will provide sufficient clearance to mount the Kangastop while not fouling existing rollers.
The conveyor connection brackets are manufactured from 6 mm extruded aluminium and have all the holes and slots to attach the Kangastop.
This kit comes with:
1 only long mounting plate
3 only standard mounting plates

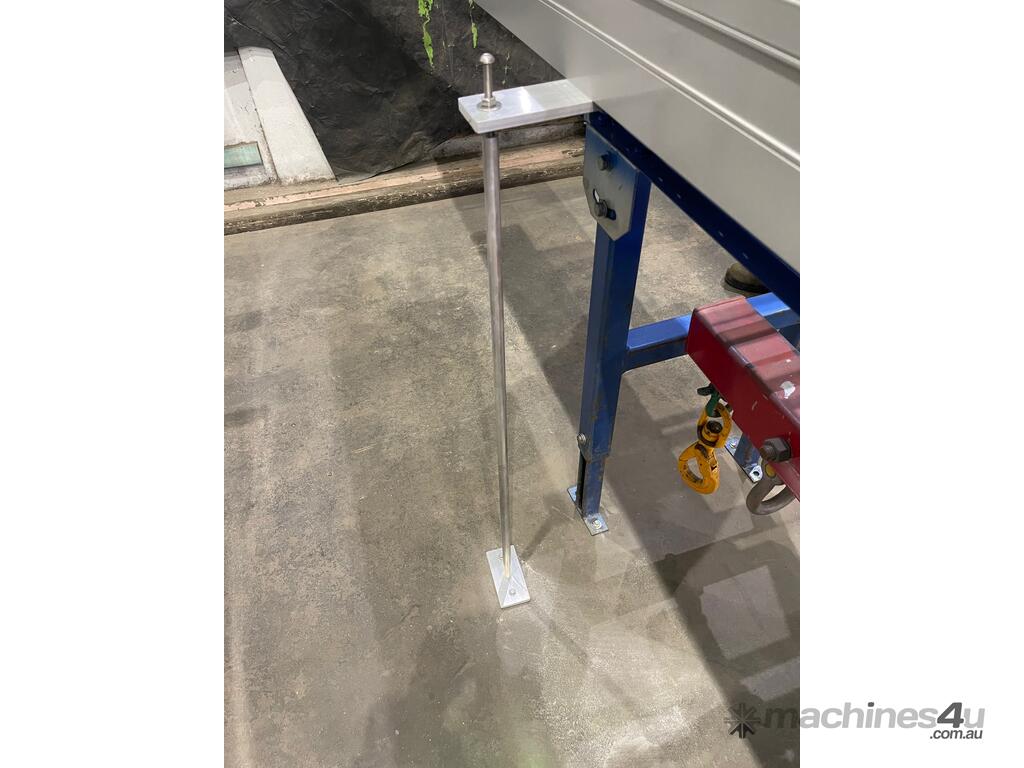

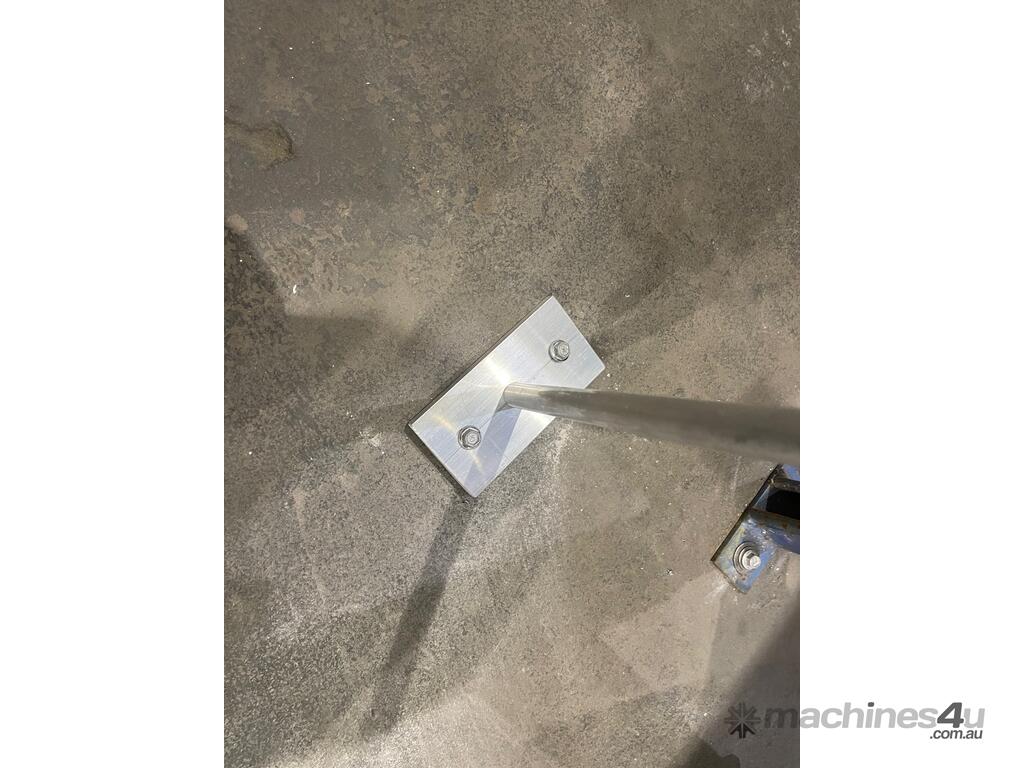

4 only adjustable legs to support the
Kangastop and allow for fine adjustment.
All associated stainless fixings to attach
the brackets to the existing conveyor.
All M8 plugs and galvanised hex head
screws to secure the support legs.
A set of instructions to install.
All fixings are stainless steel.
For further information please contact either:
Michael on or michaelkangastop
Doug on or dougkangastop
Or visit our factory at Unit 2D, Riverstone Business Park, 81 Riverstone Rd,
Richards, NSW, 2765
