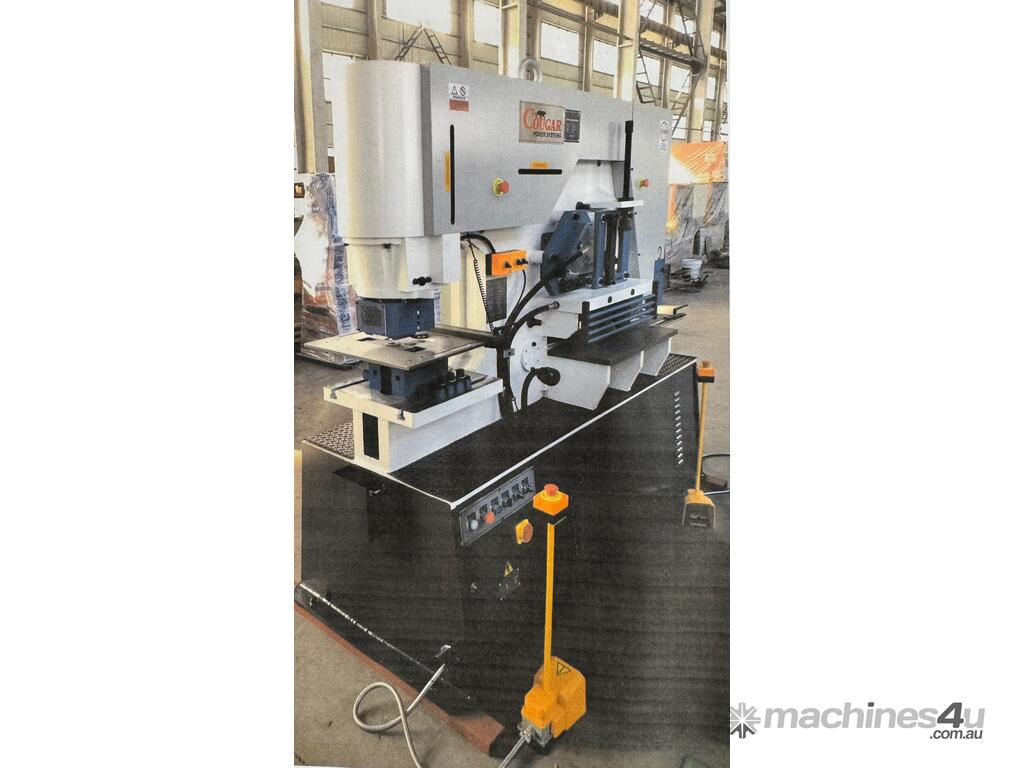

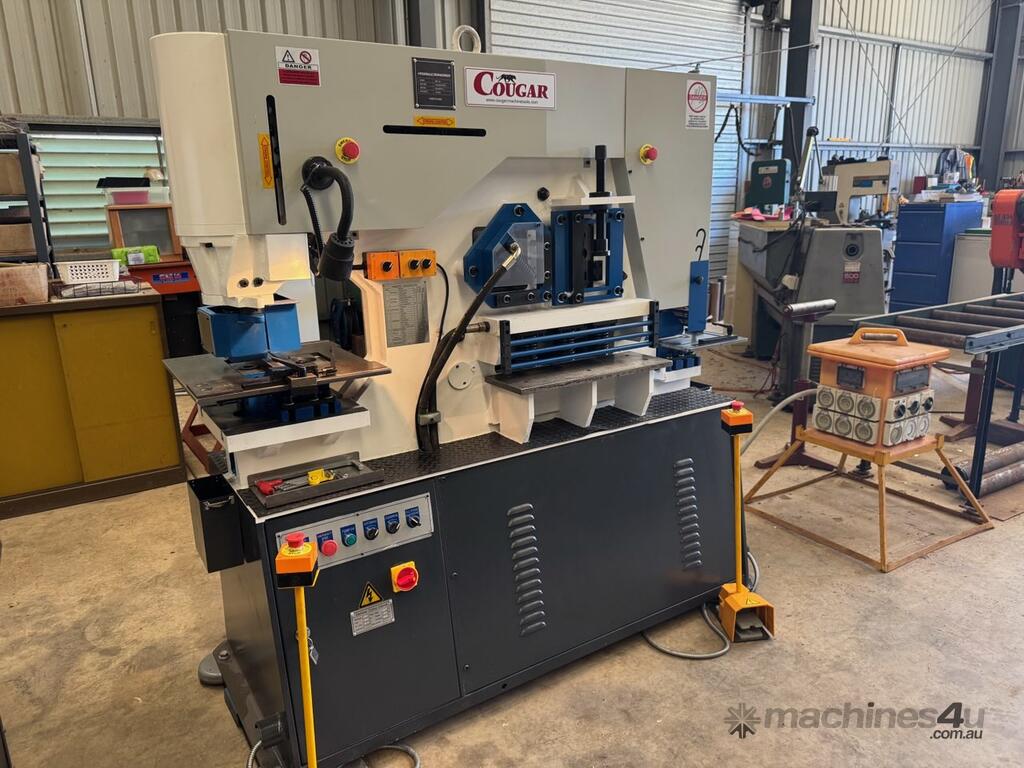

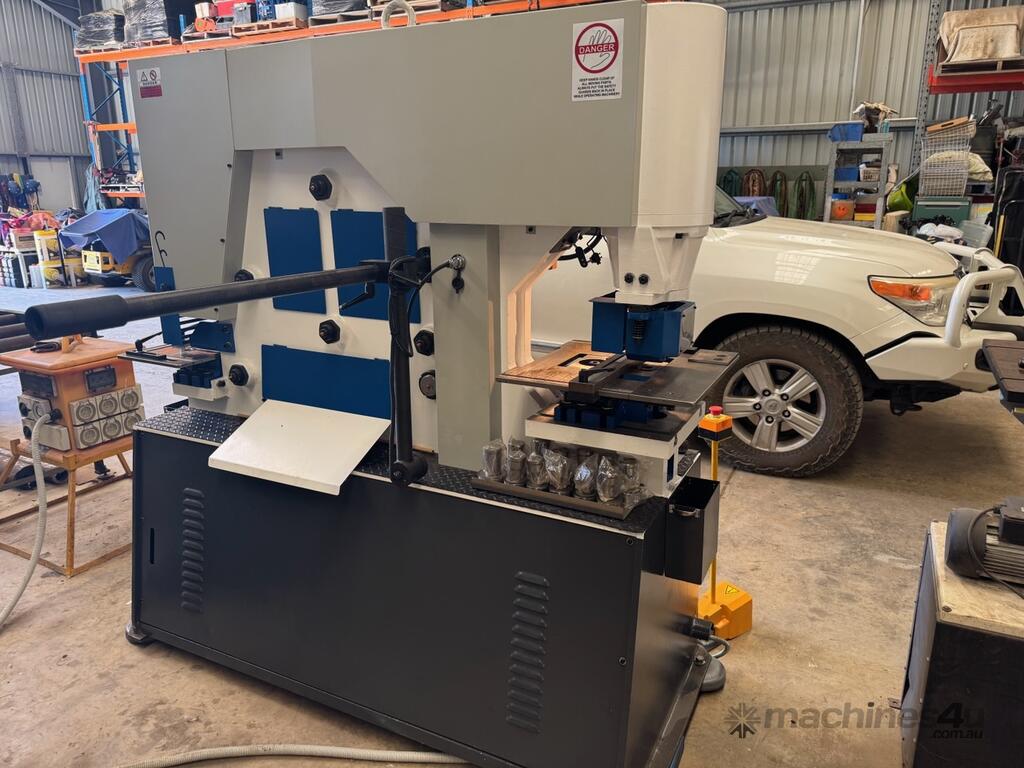

Cougar 60 Ton Twin Cylinder Hydraulic Punch & Shear, Hydraulic Plat & Electric Touch & Cut

Cougar 60 Ton Twin Cylinder Hydraulic Punch & Shear, Hydraulic Plat & Electric Touch & Cut
Double Cylinder, Punch, Shear. Crop & Notch Angle Cropping, 6 Sets Tools, 305mm Deep Throat, 1000mm Touch & Cut. LED Work light.

- Welcome to Inspect Demonstration Model at Maleny, Qld.

Description
This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.
With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods.
A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Six sets standard round punch and dies included.

Features
- Double cylinder hydraulic punch & shear machine,

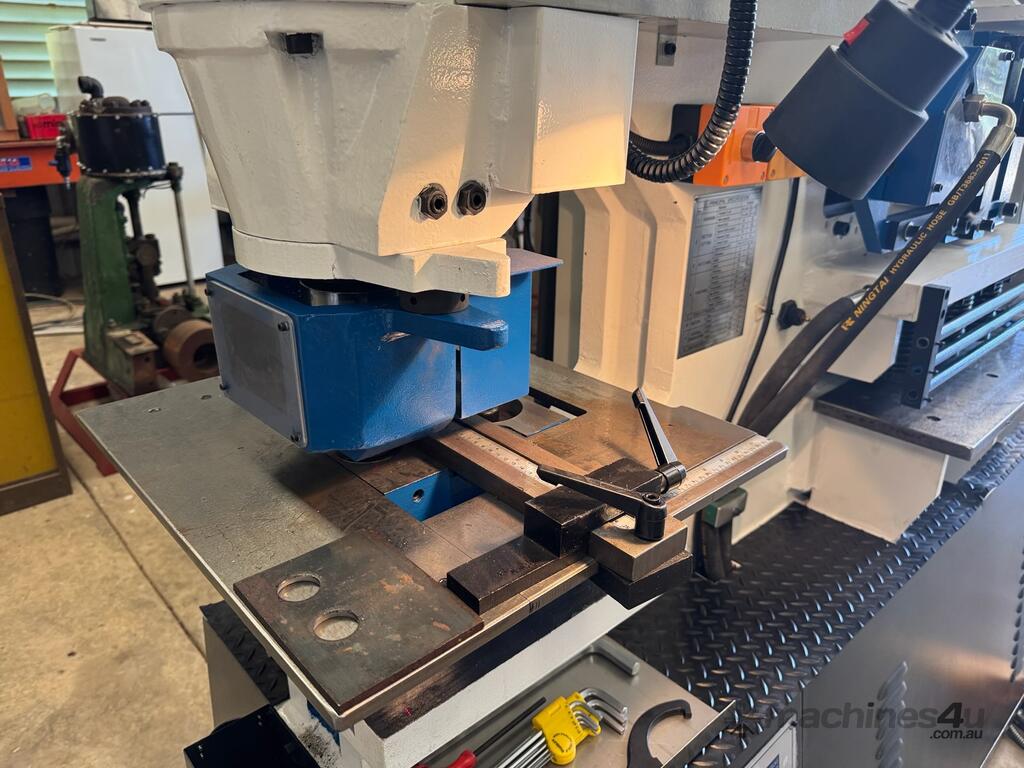

- Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications,

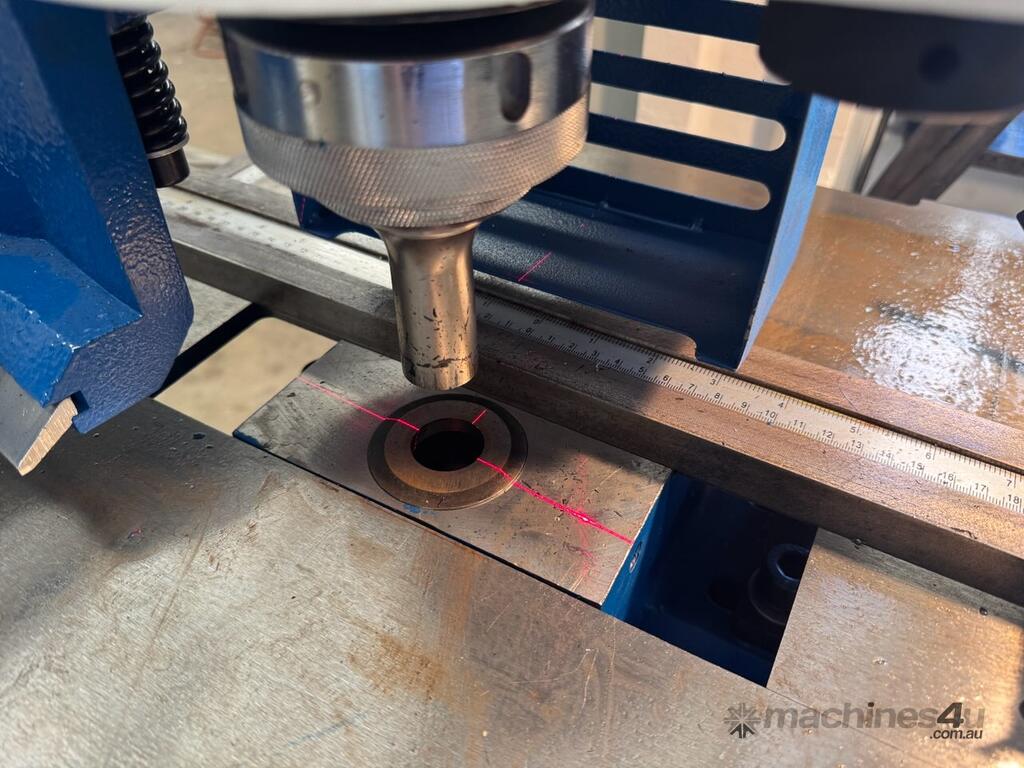

- Laser Targeting System for Punching,
- Quick action tool change system,
- Swing-away punch-stripper unit,
- Two universal bottom die holders included,
- Hydraulic clamp assist flat plate shearing station with square & angle guides,
- Angle cropping station,
- Solid round and square cropping station,
- Rear notching station,
- 1000mm electric touch and cut feature,
- 6 sets of standard type punch and die tooling included,
- Low power inching and adjustable stroke at punch station,
- Overload relief on the hydraulic system,
- Centralised pressure lubrication system,
- Roving foot pedal operation,
- Emergency stops,
- Machine manual,
- Service toolkit,
- Hydraulic oil supplied,
- CE compliant.

Technical Data Snap-Shot
- 60Ton Dual Cylinder Capacity,
- 25mm hole in 16mm plate (optional 52mm x 9mm),
- 80mm stroke length,
- 1100mm working height,
- 305mm deep punch throat depth,
- 250mm x 16mm flat plate shear / also 400mm x 8mm,
- 120mm x 120mm x 12mm angle crop also 70mm x 8mm at 45 degrees,
- 45mm Round & 40mm x 40mm Square Cropping Station,
- 100mm x 57mm x 10mm rear notch,
- Shipping dimensions - 1650mm x 800mm x 1780mm,
- Weight - Kg.
- Power - V 4Kw.

Accessories Included

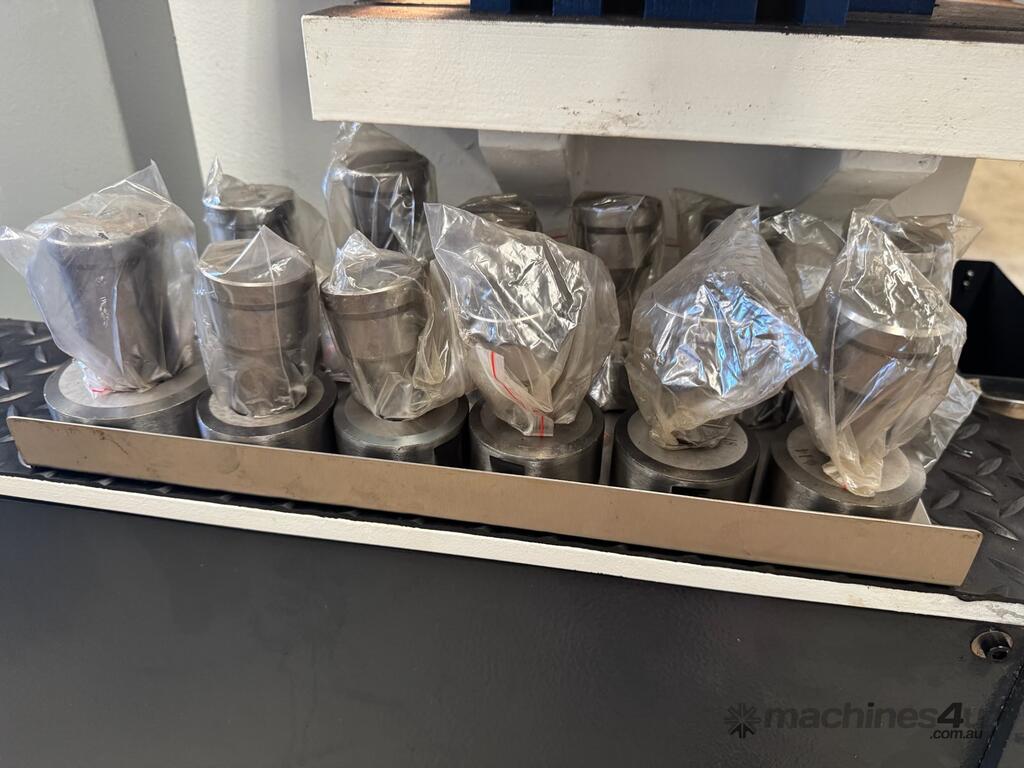

- 6 sets round punch & die / short series punches (9001),
- 9001 Series Top Tooling – 12mm, 14mm, 16nmm, 18mm, 20mm, 22mm,
- 9023 Series Bottom Tooling – 12.7mm, 14.7mm, 16.7nmm, 18.7mm, 20.7mm, 22.7mm,
- Quick release punch station with 3 x stripper inserts supplied,
- We carry these in stock 3mm ~ 34mm in 0.5mm increments,
- Electric touch & cut feature,
- Toolbox & manual.
