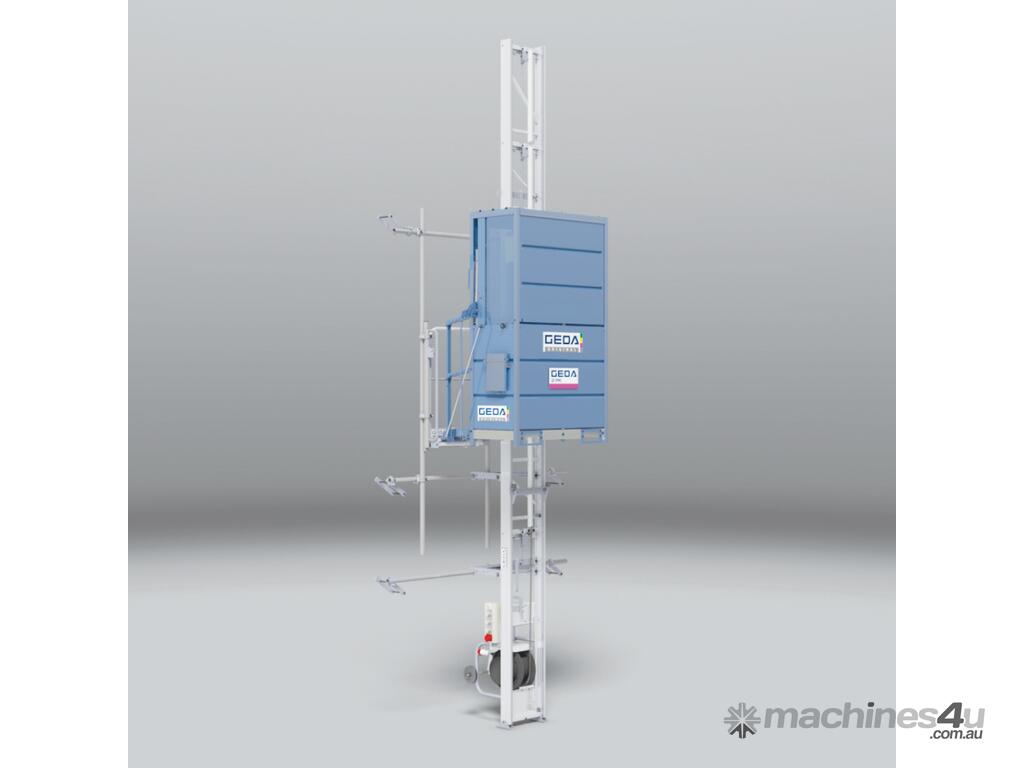

GEDA 2 PK – Crane Operator Hoist (Rack & Pinion Access System)

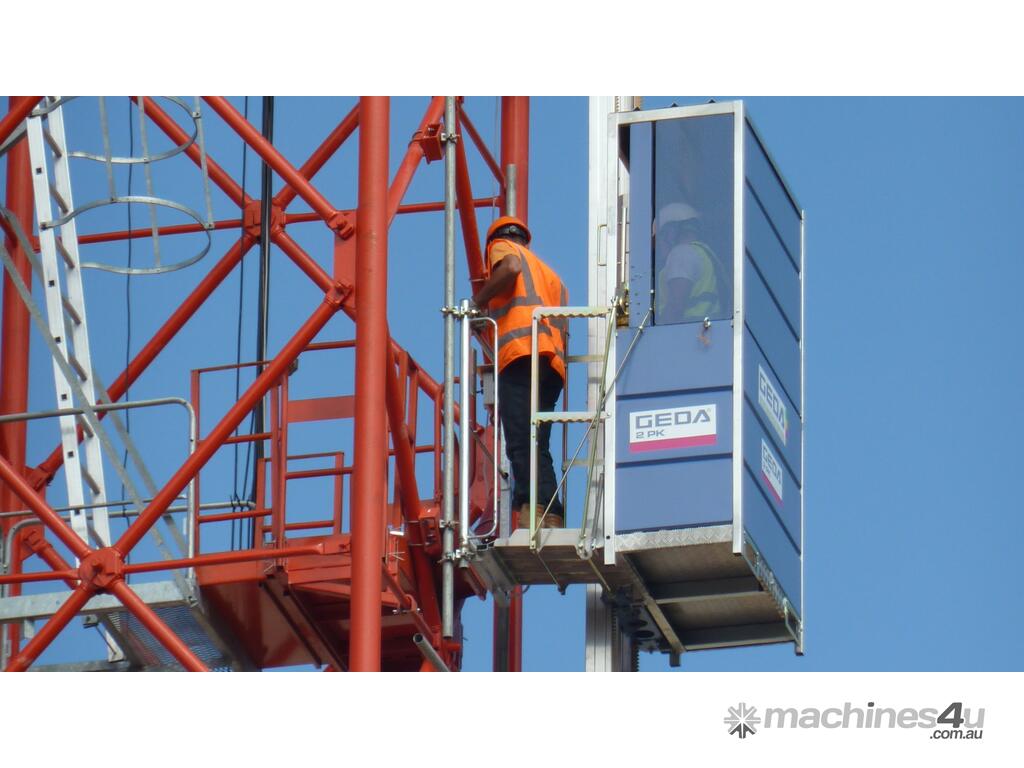

The GEDA 2 PK is a high-performance rack-and-pinion crane operator hoist designed to provide fast, safe and fatigue-free access to crane cabs. Instead of long, exhausting ladder climbs several times a day, operators can travel comfortably and securely in all weather conditions — including rain, snow, ice and strong winds.

Built with lightweight aluminium ladder sections and GEDA’s patented quick-lock system, the 2 PK offers rapid installation, smooth lifting performance and exceptional reliability. Fully compliant with the European Machinery Directive and international safety standards, it is trusted worldwide for tower cranes, high-rise construction, and complex infrastructure projects.

The GEDA 2 PK is highly configurable with multiple height options, landing gate packages, and accessories to suit your crane type and project requirements. Contact us for POA pricing based on your configuration.

Key Features

Lightweight aluminium construction for easy transport and installation
Patented quick-lock system – fast assembly with no screws required
Integrated cable drums for simpler handling and reduced setup time
All-weather reliability – engineered for rain, snow, wind and extreme site conditions
Maintenance-friendly design with easy access to wear parts and long service intervals
Safety-focused platform with entry ramp, side protection, landing gates and speed-dependent safety gear
Emergency rescue capability for rapid evacuation of operators in case of or incident

Specifications

Load Capacity: 200 kg (2 persons)
Lifting Speeds: 25 m/min
Available Lifting Heights: 60 m, 80 m, 120 m, 150 m (higher available on request)
Power Supply: 1.5 kW / 400 V / 50 Hz / 16 A
Platform Dimensions: 1.1 m × 0.6 m × 2.1 m
Mast System: Aluminium ladder with rack

Optional Configurations

Custom lifting heights beyond 150 m
Additional landing level safety gates
Protective covers for extreme conditions
Flexible mounting options for different crane mast types
